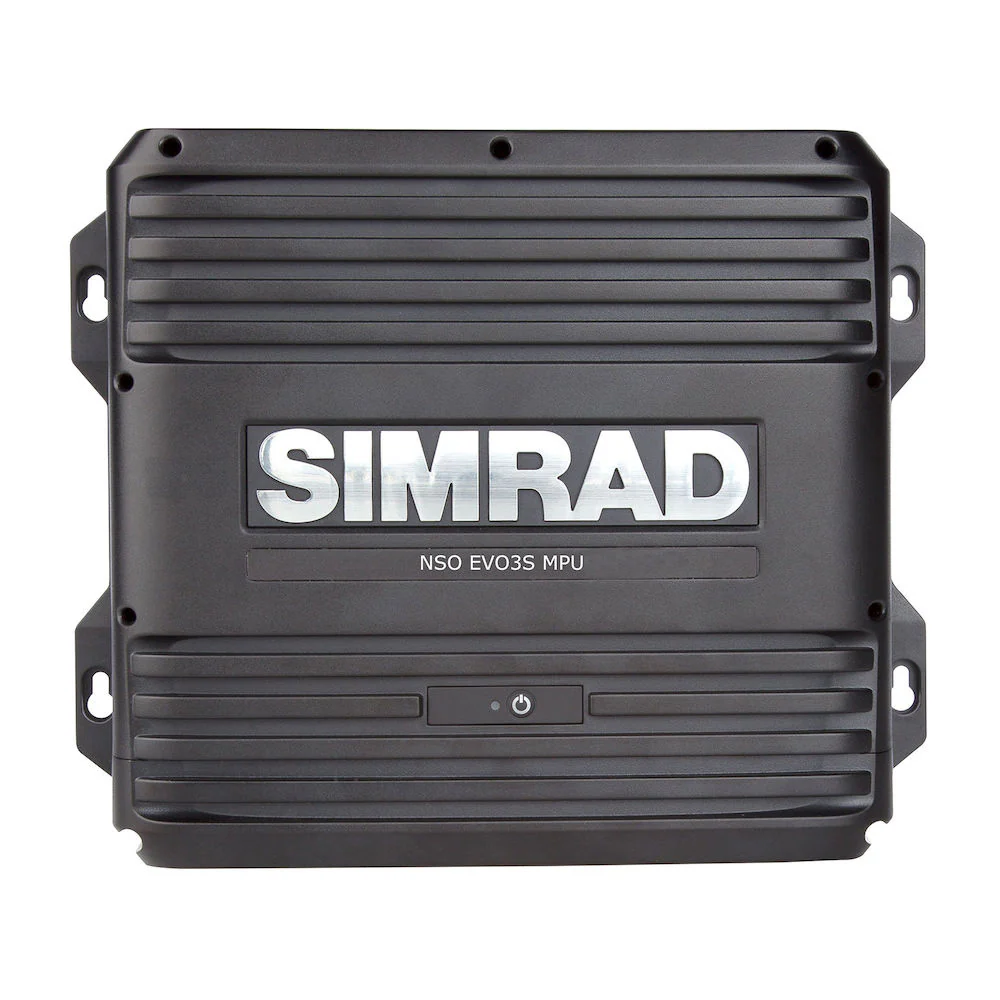

Simrad NSO evo3S MPU Processor [000-15100-001]

Simrad NSO evo3S MPU Processor [000-15100-001]

Simrad NSO evo3S MPU Processor [000-15100-001]

Description

Create truly customized multi-display systems with the NSO evo3S Processor – the ideal solution aboard powerboats 33' (10M) and larger.  This marine processor can drive two independent displays, supporting both touchscreen and non-touch monitors.  Expand and integrate to build your preferred system including navigation, radar, sonar, autopilot, and more.

 Features:

  • Build a tailored, multi-display system that is perfect for you and your boat with the modular NSO evo3S system. The NSO evo3S marine processor is a compact ‘black box’ solution containing two Quad-Core processors and the connectivity options needed to integrate and expand your system vessel-wide.
  • Dual monitor support - enabling two independent stations
  • Quad-Core processors for supreme performance. The NSO evo3S processor features two quad-core processors delivering category-leading response times across connected displays.
  • Industry-standard vessel-wide connectivity. NSO evo3S systems offer vessel-wide integration, with Ethernet and industry-standard NMEA 2000Âź connectivity with an extensive selection of Simrad and third-party accessories.

In the Box:

  • Processor x 1
  • Power cable - 6.5' (2 M) 4 pin to bare wire x 1
  • Ethernet cable - 4" (.1 M) x 1
  • NMEA 0183 cable - 6.5" (2 M) x 1
  • NMEA 2000 cable - 6' (1.8 M) x 1
  • NMEA 2000 power cable with T-Connector - x 1
  • NMEA 200 terminal resistor kit x 1
  • NMEA 2000 T-Connector x 2
  • Instruction manual

*Sold as an Individual

Product Specifications

Simrad NSO evo3S MPU Processor [000-15100-001] Product Specifications

Specifications:

Display

  • Display Resolution: 1366x768 (WXGA), 1920x1080 (Full HD 16:9), 1920x1200 (WUXGA 16:10), 1280x800 (16:10), 1280x1024 (SXGA 5:4)

  • Backlight Color: White/Red

  • Viewing Angles: 170°

Physical

  • Dimensions (W × H × D): 281 × 232 × 66 mm (11 × 9.1 × 2.5")

  • Mounting Type: Bracket (supplied), panel, flush

  • Weight: 1.06 kg (2.33 lbs)

Electrical

  • Power Consumption Max: 45 W

  • Recommended Fuse Rating: 5 A

  • Supply Voltage: 9 – 31.2 V DC

Environment

  • Operating Temperature Range: -15°C to +55°C (5°F to 131°F)

  • Storage Temperature Range: -20°C to +60°C (4°F to 140°F)

  • Waterproof Rating: IPX2

Connectivity

  • Bluetooth: No

  • Ethernet Ports: 3 × RJ45, 1 Mbit, max 3 MPU on network

  • Wi-Fi: Compatible with WIFI-1 external module

  • NMEA 0183 Supported Sentences: Input – GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM; Output – GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM

  • NMEA 2000 Connectivity: 1 × NMEA 2000 Micro-C port, 1 LEN

  • PC Connectivity: No

  • SD Card Storage: 1 SD slot or optional USB reader, max 32GB

  • Video: 2 × composite inputs (PAL/NTSC), 1 × HDMI output

MFD Features

  • AIS: Receive AIS data over NMEA 2000 or NMEA 0183 (wired to both NMEA 0183 ports on MPU)

  • Autopilot: Full autopilot control and commissioning

  • Digital Switching: BEP C-Zone

  • Internal Storage: 90 MB

  • Multimedia: via SonicHub, SonicHub2, FusionLink, *Sirius (USA only)

  • Sonar Compatibility: No internal echosounder; compatible with SonarHub, StructureScan, StructureScan3D, BSM-3, BSM-2, BSM1 network echo sounders

  • Waypoints / Routes / Tracks: 6000 waypoints, 500 routes (max 100 points each), 50 tracks (up to 12,000 track points)

  • Weather: SiriusXM via WM-3 (USA only), GRIB

Autopilot

  • Maneuvers / Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

  • Steering Modes: Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV (*Boat type set to Sail)

Approvals

  • Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1

Other

  • Interface: Touch control on Moxx-T Monitors, USB keyboard, USB mouse, OP40/OP50 remotes

  • Languages: English (US/UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish; Asian/European/Russia/Ukraine/Middle Eastern packs available

  • Warranty Period: 2 Years

  • Connectivity Summary: NMEA 2000, NMEA 0183, Ethernet, 2 video inputs, 1 video output, Wi-Fi compatible with external module

  • Supply Voltage: 9 – 31.2 V DC

  • Waterproof Rating: IPX2

  • Dimensions (W × H × D): 11" × 9.1" × 2.5" (281 × 232 × 66 mm)

  • Weight: 2.33 lb (1.06 kg)

Product Manual

Owner's Manual (pdf)

Product Warranty

Simrad Warranty

Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW).  These units are certified to different standards for different markets.  Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East).  Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements.  In addition, customers who experience a problem can receive prompt local service and support.  Contact us for more information.

Product FAQ's

N/A

$1,749.65

Original: $4,999.00

-65%
Simrad NSO evo3S MPU Processor [000-15100-001]—

$4,999.00

$1,749.65
