Simrad NSO evo3S 24" MFD System Pack [000-15128-001]
Simrad NSO evo3S 24" MFD System Pack [000-15128-001]
Simrad NSO evo3S 24" MFD System Pack [000-15128-001]
Description
Complete your ideal boat set up with the ultimate navigation system. NSOevo3S gives you 2x faster response times delivered through an iMX 8 high-performance processor. The Full HD gives you stunning clarity, and intuitive touchscreen and remote keypad controls help give you total control of your onboard electronics.Â
Supreme Performance
Every NSO evo3S display features an iMX 8 integrated six-core processor delivering category-leading response times for incredibly smooth screen transitions. With up to twice the CPU performance, you have instant access to the information you need, as you need it, no matter the conditions. Create your own custom helm layouts to suit any activity, and switch seamlessly between layouts in an instant. Low-profile glass helm styling conceals and protects NSO evo3’s powerful core, and complements any helm design from ultra-modern to a timeless classic.
Ultimate Clarity with Intuitive Touchscreen Control
NSO evo3S delivers the ultimate view with an ultra-bright display, available in 16, 19, or 24-inch widescreen sizes. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. Experience stunning clarity with Full HD resolution, and the option to combine up to six panels in a split-screen layout. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar at a touch.
Fully Connected
Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, and integration with an extensive range of 3rd party technologies.
Features:
iMX 8 Integrated six-core processor for superior performance
Ultra-sharp, full HD 24-inch display
Seamless touchscreen control of your entire connected SIMRAD® system
Low-profile glass helm styling
Extended visibility with six-panel split-screen option
Connect with smartphones, tablets, and internet hotspots
Integrate with an extensive range of 3rd party technologies

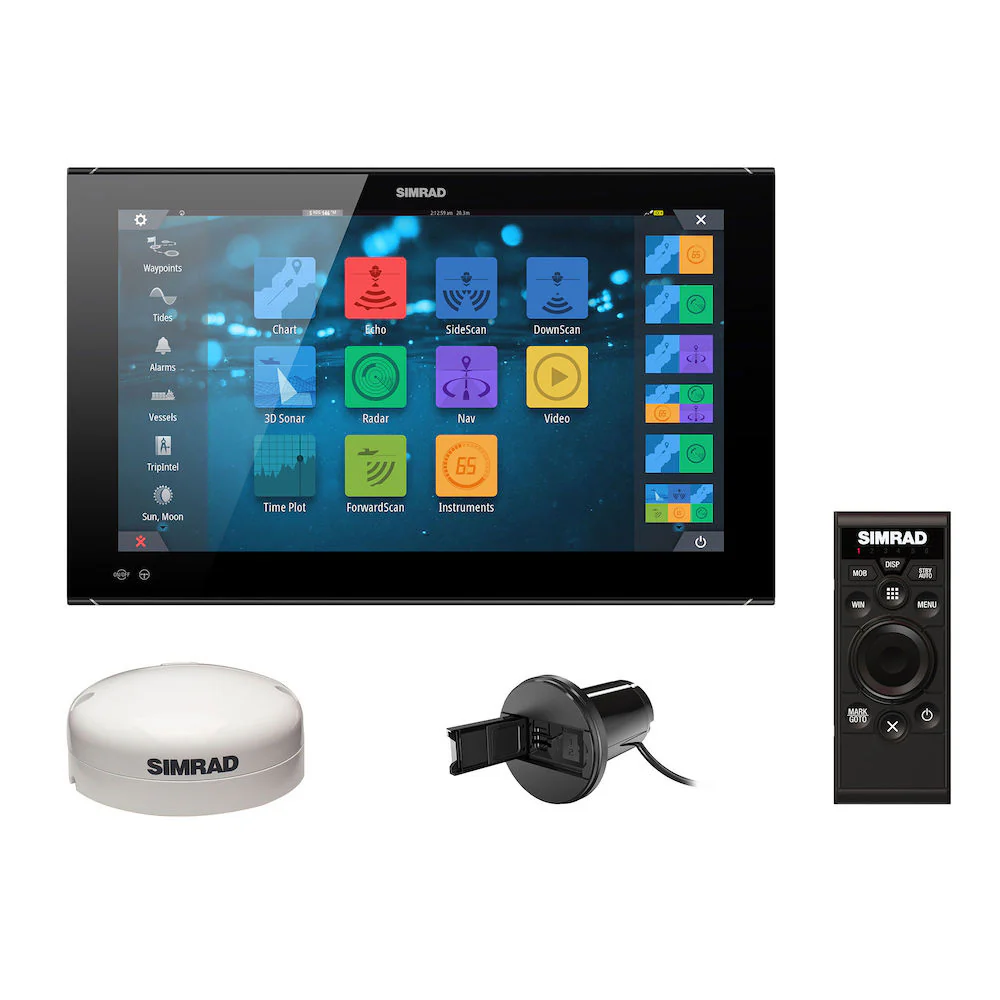

Kit Includes:
24 in. NSOevo3S
KeypadÂ
GPS antennaÂ
Chart card reader
Product Specifications
Simrad NSO evo3S 24" MFD System Pack [000-15128-001] Product Specifications
Display Specifications:
Screen Size: 24-inches
Resolution: 1920 x 1080
Brightness: 1000 nits
Touch Screen: Full touch screen (multi-touch)
Viewing angles in degrees (typical value @ contrast ratio = 10): 80 degrees top/bottom, 80 degrees left/right
Electrical Specifications:
Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max)
Power Consumption: Max 40 W +- 4 W 50 W +- 4 W 80 W +- 4 W
Recommended Fuse Rating: (12 V / 24 V) 6 A / 3 A 7 A / 4 A 10 A / 5 A
Environmental Specifications:
Temperature Range: -15°C to +55°C (5°F to 131°F)
Storage Temperature: -20°C to +60°C (4°F to 140°F)
Waterproof Rating: IPX6 (when panel mounted correctly with only the front exposed)
Video Output: 1x high-definition video output (1080p, no HDCP, HDMI-A)
Video Input: 2x composite video (BNC) / 1x high-definition video (1080p, HDCP 1.4, HDMI-A)
Data Card Reader: 1x slot (microSD)
Wireless: Internal 802.11b/g/n
Physical Specifications:
Compass Safe Distance (Metric, Imperial): 50 cm
Weight: 7.8 kg (17.2 lbs.)
Specifications:
Touchscreen: Yes
Screen Size: 24"
Box Dimensions: 14"H x 21"W x 30"L WT: 34.6 lbs
UPC: 9420064108466
Product Manual
NSS evo3S Installation Manual
NSS evo3S Quick Guide
NSS evo3S Operator Manual
Product Warranty
Simrad Warranty
Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW).  These units are certified to different standards for different markets.  Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East).  Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements.  In addition, customers who experience a problem can receive prompt local service and support.  Contact us for more information.
Product FAQ's
N/A
$3,499.65
Original: $9,999.00
-65%
Simrad NSO evo3S 24" MFD System Pack [000-15128-001]—
$9,999.00
$3,499.65
