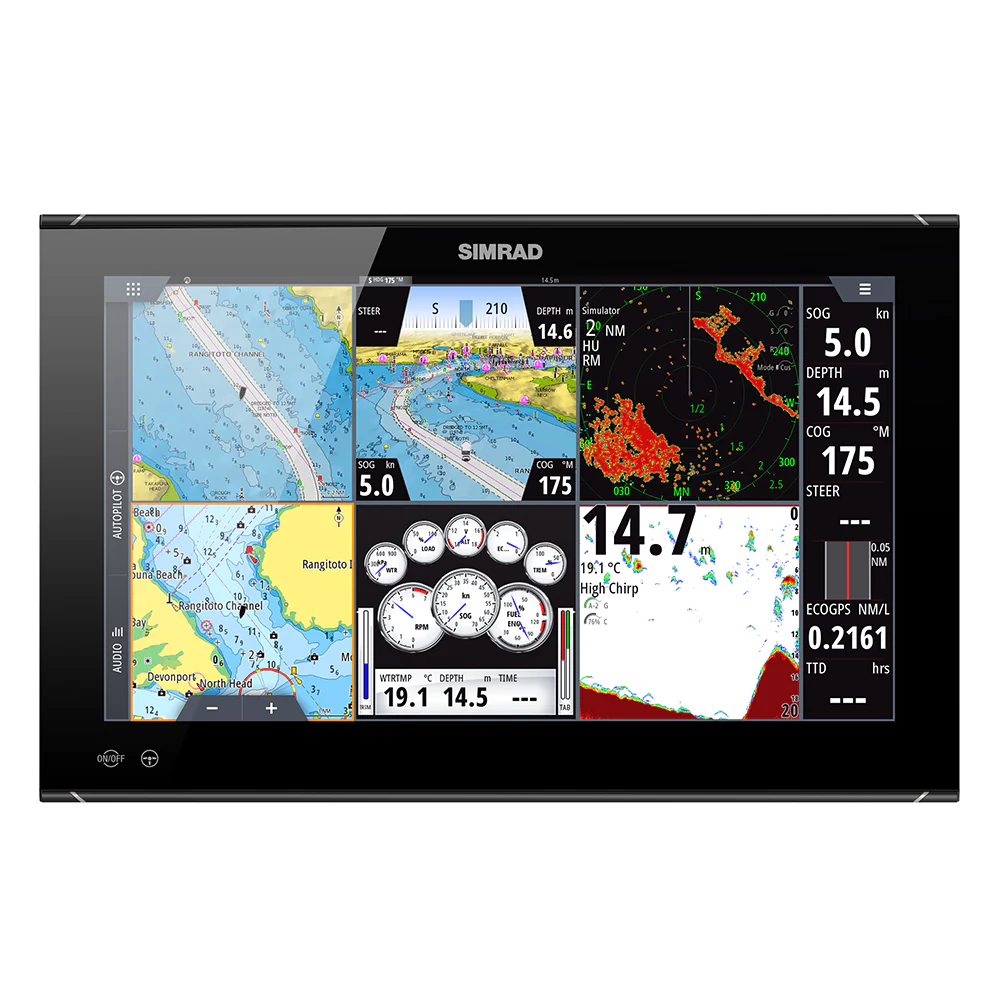

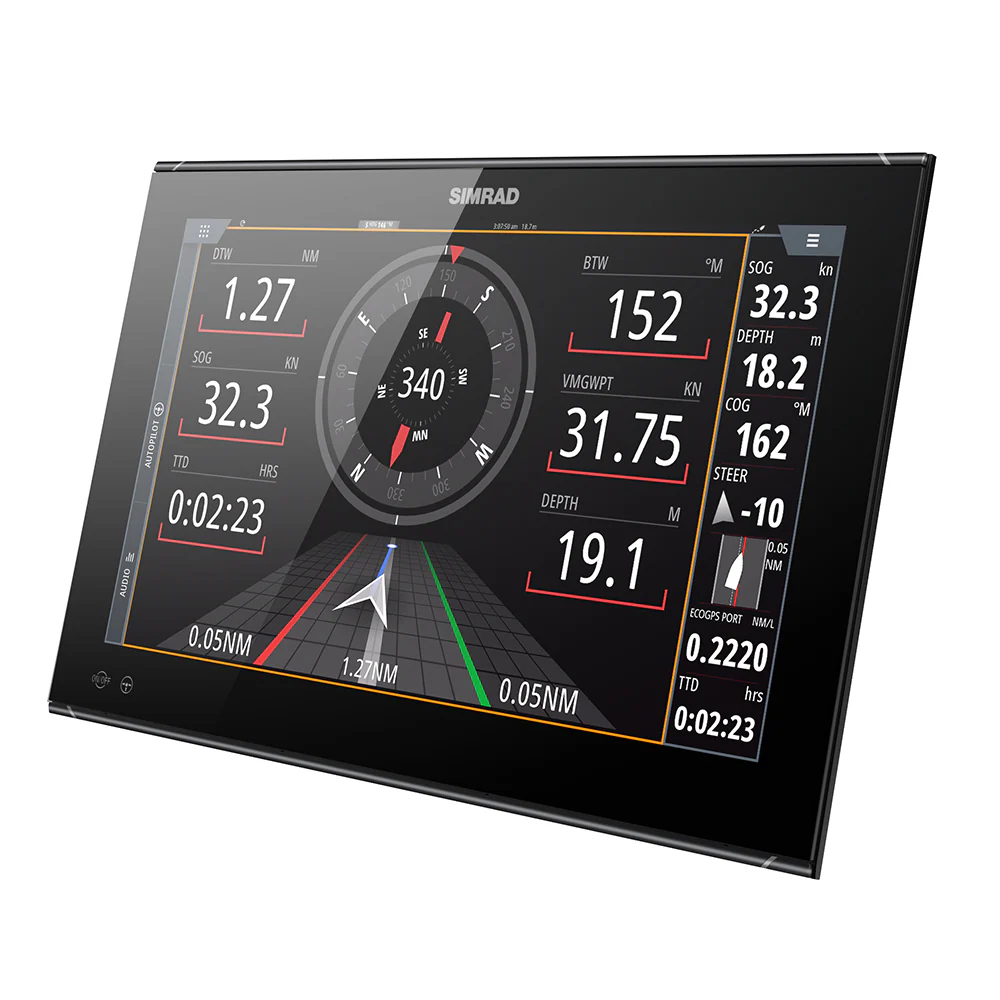

Simrad NSO evo3S 19" MFD Display Only [000-15049-001]

Simrad NSO evo3S 19" MFD Display Only [000-15049-001]

Simrad NSO evo3S 19" MFD Display Only [000-15049-001]

Description

Ultimate Clarity

NSO evo3S delivers the ultimate view with an ultra-bright 19-inch display, ideal for both indoor and outdoor installations. Wide viewing angles keep the screen in view from anywhere in sight, even if you’re wearing polarised sunglasses. See more than ever with Full HD resolution, and the option to combine up to six panels in a split-screen layout.

Intuitive Control

A responsive, multi-touch display places control of your on-board electronics at your fingertips. Intuitively navigate charts, define waypoints, and take control of connected systems such as autopilot, radar, and sonar with a touch. A range of optional keypads add classic controls, perfect for fine adjustments or use in rough conditions.

Swift Response

Every NSO evo3S display features an integrated six-core processor for ultimately smooth response, from charting to StructureScan® 3D imaging. Enjoy swift access to the information you need, as you need it, whether you’re cruising the open ocean or carefully navigating a crowded harbour.

Glass Helm Style

NSO evo3S glass helm systems offer the perfect combination of form and function. Create your own custom helm layouts to suit any activity, and switch seamlessly between those layouts in an instant. Low-profile glass helm styling complements any helm design, from ultra-modern to timeless classic.

Fully Connected

Built-in wireless connectivity links NSO evo3S to your existing mobile devices for remote viewing and control, and delivers easy online software upgrades via any wireless internet hotspot. Wired Ethernet, NMEA 2000®, and J1939 networking provide almost limitless integration options, from vessel-wide display systems to radar, sonar, engine integration, and much more.

Features:

  • Ultra-bright, Full HD 19-inch display
  • Easy touchscreen control of your entire Simrad system
  • Integrated six-core processor for ultimate performance
  • Low-profile glass helm styling
  • See more than ever with six-panel split screen option
  • Connect with smartphones, tablets, and internet hotspots

In The Box:

  • Display unit
  • Suncover
  • Bezels
  • Power cable and connector block
  • RJ45 to 5-pin Ethernet adapter cable
  • NMEA 0183 connector block
  • Documentation pack
  • Cable retainer kit
  • Panel mounting kit

Connections:

  • NMEA 2000 - NMEA 2000 data
  • J1939 - J1939 engine data
  • USB - mouse, keyboard or mass storage
  • NETWORK 1-3 - Ethernet network
  • SD - microSD card reader
  • HDMI OUT - HDMI video output
  • VIDEO IN - composite video input
  • HDMI IN - HDMI video input
  • NMEA 0183 - NMEA 0183 data
  • POWER - 12 - 24 V DC input, external alarm and power control

Product Specifications

Simrad NSO evo3S 19" MFD Display Only [000-15049-001] Product Specifications

Specifications:

    Display

    • Backlight Color: White

    • Display Resolution: 1920 × 1080

    • Display Size: 19 Inches

    • Screen Brightness: 1200 Nits

    • Viewing Angles: 80° Top/Bottom, 80° Left/Right

    Physical

    • Compass Safe Distance: 50 Cm (19.7")

    • Dimensions (W × H × D): 478.1 × 305 × 83 Mm (18.82 × 12.01 × 3.27")

    • With Bracket: 509.9 × 348 × 214.6 Mm (20.08 × 13.7 × 8.45")

    • Mounting Type: Panel Or Bracket Mount (Optional Heavy Duty Bracket 000-13547-001)

    • Weight: 4.8 Kg (10.5 Lbs)

    Electrical

    • Power Consumption Max: 50 W ± 4 W

    • Recommended Fuse Rating: 7 A @ 12 V DC

    • Supply Voltage: 10 – 32 V DC

    Environment

    • Operating Temperature Range: -15°C To +55°C (5° F To 131° F)

    • Shock/Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1

    • Storage Temperature Range: -20°C To +60°C (4°F To 140°F)

    • Waterproof Rating: IPX6 On Front (Rear Not Waterproof)

    Connectivity

    • Bluetooth: Internal

    • Ethernet Ports: 3 × 100 Mbit/s RJ45 (Adapter To 5-Pin Yellow Using Cable 000-11246-001)

    • Wi-Fi: Internal 802.11b/g/n

    • NMEA 0183 Sentences Supported: Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWD, DSC, DSE, VDM. Output: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM

    • NMEA 2000 Connectivity: 1 × NMEA 2000 Micro-C Port, 1 LEN

    • PC Connectivity: HDMI Video In From A PC

    • SD Card Storage: 1 MicroSD Slot, Or Use USB Dashmount Card Reader MI10 With 2 × MicroSD Slots, Max 32 GB Each (>32 GB Format To NTFS)

    • Video: 2 × Composite Video (BNC), 1 × HD Video Input (1080p, HDCP 1.4, HDMI-A), 1 × HD Video Output (1080p, No HDCP, HDMI-A)

    MFD

    • AIS: Receive AIS Data Over NMEA 2000 Or NMEA 0183 (AIS Not Bridged To N2K)

    • Autopilot: Auto, Nav., No Drift, Follow Up, Non-Follow Up, Turn Patterns, Standby, *Wind, *Wind NAV (*Boat Type Set To Sail, Requires STBY Button Or Controller)

    • Cartography Included: World Basemap

    • Digital Switching: BEP C-Zone, Naviop

    • GPS: External GPS Required

    • Internal Storage: 16 GB

    • Multimedia: Via SonicHub2, Fusion Link, *Sirius, **JL Audio (*USA Only, **AUST./NZ Only)

    • Sonar Compatibility: External Echo Sounder Module Or MFD With Built-In Sonar Sharing Over Ethernet Required

    • Waypoints, Routes, Tracks: 6,000 Waypoints, 500 Routes (Max 100 Points Each), 50 Tracks (Up To 12,000 Points)

    • Weather: SiriusXM Via WM-3 (USA Only), GRIB

    GPS

    • Correction: N/A

    • GPS Receiver Channels: N/A

    • Position Accuracy: N/A

    • Time To First Fix: N/A

    • Update Rate: N/A

    Autopilot

    • Maneuvers / Turn Patterns: U-Turn, Spiral-Turn, C-Turn, Zig-Zag, Square-Turn, Lazy S-Turn, Depth Contour Tracking

    • Steering Modes: Auto, Nav., No Drift, Follow Up, Non-Follow Up, Turn Patterns, Standby, *Wind, *Wind NAV (*Boat Type Set To Sail)

    Approvals

    • Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1

    Other

    • Interface: Touch Screen, OP40 Or OP50 Controller Via NMEA 2000

    • Languages: Standard: English (US/UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Unlockable: Asian (English US, Japanese, Korean, Thai, Chinese), Eastern European (English US/UK, Bulgarian, German, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Lithuanian, Latvian, Polish, Slovak, Turkish), Russia/Ukraine (English US/UK, German, Spanish, French, Italian, Russian, Ukrainian), Middle Eastern (English US/UK, Arabic, German, Spanish, Farsi, French, Italian)

    • Warranty Period: 2 Years

    Product Manual

    Quick Guide (pdf)

    Owner's Manual (pdf)

    Product Warranty

    Simrad Warranty

    Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

    For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

    Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

    Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW).  These units are certified to different standards for different markets.  Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East).  Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements.  In addition, customers who experience a problem can receive prompt local service and support.  Contact us for more information.

    Product FAQ's

    N/A

    $2,519.65
