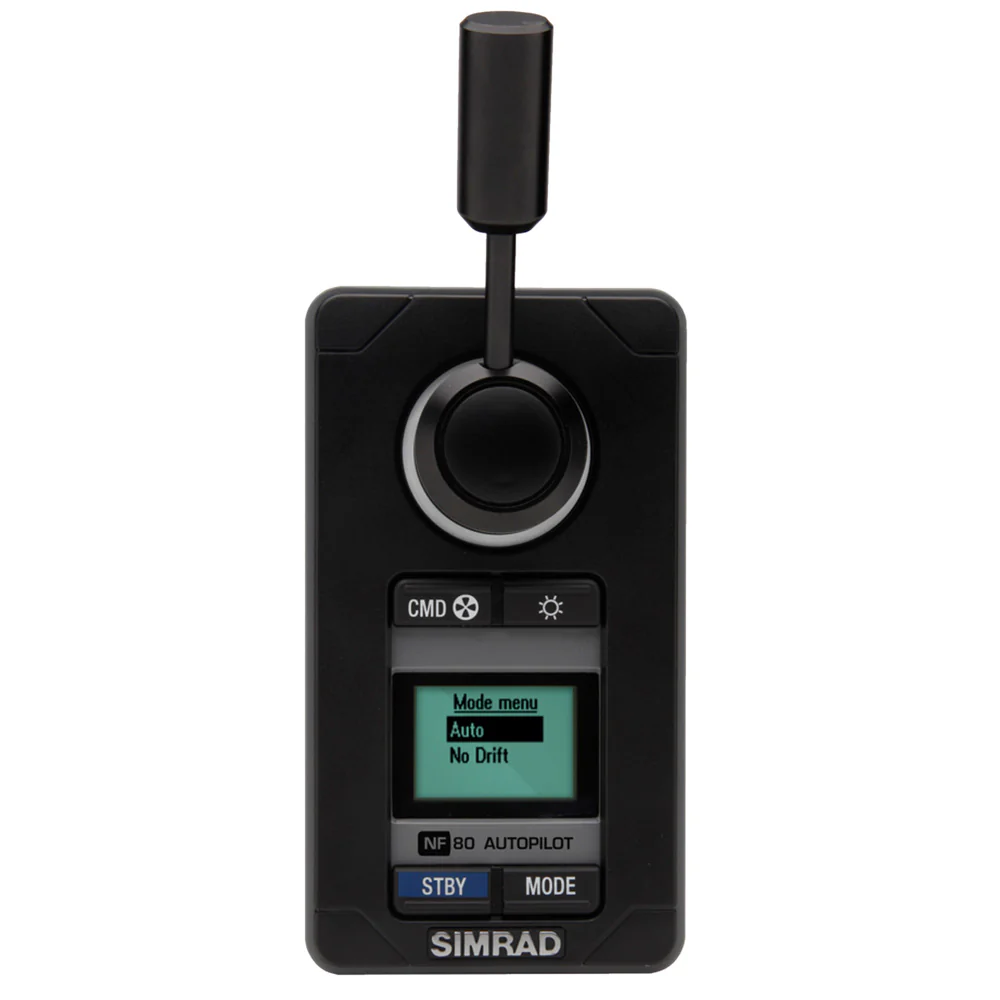

Simrad NF80 Non Follow Up Remote [000-10185-001]
Description
The NF80 works with your Simrad autopilot system, adding a dedicated lever for heading adjustments, course changes, or hand steering. Non Follow Up control means the rudder turns while the lever is held to port or starboard, and remains at its current angle when the lever is released.
Dedicated Autopilot Control
Our steering remotes offer intuitive controls and a 1.7-inch display that can be used to make course, heading rudder angle, or autopilot mode changes from anywhere onboard. Adding a remote to your system can provide dedicated steering controls for your fully integrated autopilot system, complementing the touchscreen controls on your multifunction display. Remotes can also enable autopilot control from multiple stations: perfect for fly-bridges and other dual-helm setups.
Direct Rudder Control with Non Follow Up Steering
Your Simrad autopilot not only keeps you on the course but lets you hand-steer from any autopilot station on board. The NF80 offers Non Follow Up steering, which puts you in direct control of your boat’s rudder. Move the spring-loaded steering lever to port or starboard, and the rudder will begin to turn in the same direction. The rudder will continue to turn until the lever is released, then hold its current angle until a new angle is set.
Easy Installation
This wired remote can be mounted almost anywhere. A simple design allows flush-mount installation using the included accessories, or external mounting to a desktop or bulkhead via an optional mounting kit. The remote connects to your Simrad autopilot system via a single NMEA 2000® cable into your existing network, offering plug-and-play installation with no complex wiring required.
Features:
- Non Follow Up steering (rudder turns while the lever is held to port or starboard)
- Rudder stops at its current position when the lever is released
- Integrated 1.7-inch display enables remote autopilot control
- Easy desktop/bulkhead or flush-mount installation
- Simple plug-and-play NMEA 2000® connectivity
Product Specifications
Simrad NF80 Non Follow Up Remote [000-10185-001] Product Specifications
Specifications:
Physical
-
Compass Safe: 0.4 m (15.75")
-
Weight: 0.5 kg (1.1 lbs)
-
Dimensions W x H x D: 80 x 144 x 40 mm (3.15 x 5.67 x 1.55")
-
Mounting Type: Flush, Bulkhead
Display
Electrical
Environment
Connectivity
Autopilot
-
Steering Modes: Non-Follow Up (NFU), Auto, No Drift, Nav
-
Compass Sensor Support: N/A
Other
Product Manual
N/A
Product Warranty
Simrad Warranty
Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW).  These units are certified to different standards for different markets.  Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East).  Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements.  In addition, customers who experience a problem can receive prompt local service and support.  Contact us for more information.
Product FAQ's
N/A
