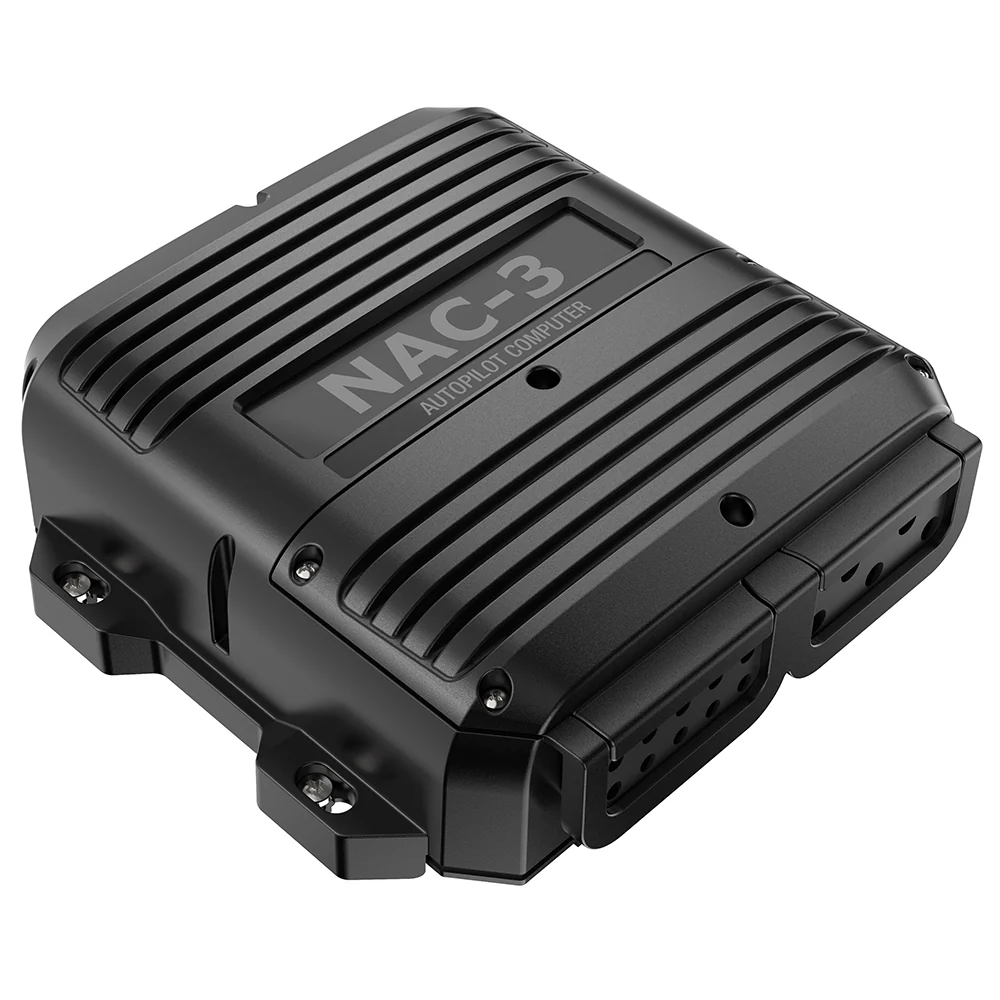

Simrad NAC-3 High Current Course Computer [000-13250-001]

Simrad NAC-3 High Current Course Computer [000-13250-001]

Simrad NAC-3 High Current Course Computer [000-13250-001]

Description

The NAC-3 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 Amps continuous/50 Amps peak).

Features:

  • Reliable autopilot performance based on Simrad Continuum™ steering technology
  • Recommended for boats above 10M (33') in length
  • High-current output of 30 Amps continuous, 50 Amps peak
  • Clutch output (3 Amps maximum)
  • Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
  • Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
  • Supports Simrad RF25 and RF300 rudder feedback units
  • NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays
  • NMEA 0183® input

Product Specifications

Simrad NAC-3 High Current Course Computer [000-13250-001] Product Specifications

Specifications:

Physical

  • Compass Safe: 0.5 m (20 inches)

  • Dimensions W x H x D: 204 x 190 x 57 mm (8.1 x 7.5 x 2.2")

  • Mounting Type: Bulkhead

  • Weight: 0.7 kg (1.6 lbs)

Electrical

  • Power Consumption Max: 750 W

  • Power Consumption Typical: 100 mA + Drive load

  • Recommended Fuse Rating: Internal fuse 30A (Slow)

  • Supply Voltage: 12/24 VDC ±30–10%

Environment

  • Operating Temperature Range: -15° to +55°C (5° to 131°F)

  • Storage Temperature Range: -30° to +70°C (-22° to +158°F)

  • Waterproof Rating: IPx2

Connectivity

  • NMEA 0183 Sentences Supported: Input: AAM, ACK, APB, BOD, BWC, DPT, GGA, GLL, HDG, HDT, HSC, RMA, RMB, RMC, ROT, THS, TNT, VBW, VHW, VLW, VTG, ZDA

  • NMEA 0183 Output: HDG (10Hz) or HDT (10Hz), RSA (5Hz)

  • NMEA 2000 Connectivity: 1 x CAN terminal, 1 LEN

Autopilot

  • Compass Sensor Support: NMEA 2000, NMEA 0183

  • Drive Output: 12/24 VDC, Rev. motor control 30A, 50A peak (1 sec); Solenoid control: 10A (min. 10 mA)

  • Engine Drive Systems Integration: Reversible pump/motor, Solenoid valve on/off

  • Rudder Sensor Support: RF300, RF45X, RF25N, RF70 & VRF

Other

  • Warranty Period: 2 Years

  • Type: Parts

Shipping

  • Box Dimensions: 5"H x 9"W x 10"L

  • Box Weight: 3.2 lbs

  • UPC: 9420024154397

Product Manual

NAC-3 Installation Guide

Product Warranty

Simrad Warranty

Product FAQ's

N/A
