Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit [000-13336-001]

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit [000-13336-001]

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit [000-13336-001]

Description

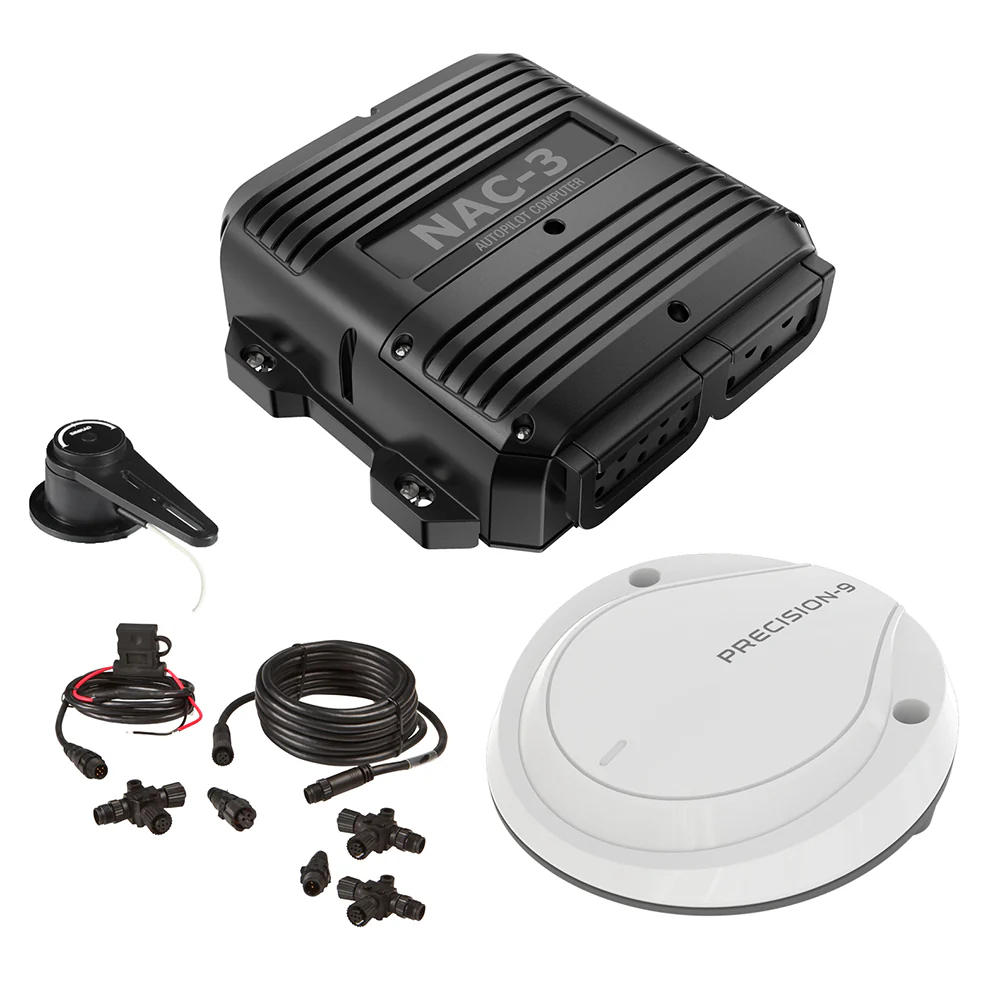

Comprising of the high-current NAC-3 autopilot computer, Precision-9 compass, RF-25 rudder feedback unit & N2k Starter Kit.

The NAC-3 Autopilot Computer is the brains behind your autopilot system. NAC-3 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Precision-9 Compass
The Precision-9 Compass. Outputs Heading (20 hZ), Rate Of Turn (20 hZ), roll, and pitch (10 hZ) over the NMEA 2000® network.

RF25N NMEA2000
RF25N, Rudder Feedback Unit: With transmission link and 5M (16.5') NMEA2000 Micro-C cable

N2k Backbone Starter Kit
NMEA 2000 Micro-C Network starter kit: Includes Network power cable, 4.5M (15') N2K cable, 3 x T-connectors, 2 x network terminators

Product Specifications

Simrad NAC-3 Autopilot Core Pack - NAC-3, Precision-9, RF25N & N2k Starter Kit [000-13336-001] Product Specifications

Specifications:

    Physical & Environment

    • Dimensions (L x W x H): 211 x 196 x 65.5 mm (8.31" x 7.72" x 2.58")

    • Weight: 0.7 kg (1.6 lbs)

    • Mounting: Bulkhead

    • Construction: Plastic

    • Color: Black

    • Cable Inlet: Grommet (Spare Included)

    • Operating Temperature: 0 to +55°C

    • Storage Temperature: -32 to +70°C

    • Protection: IPx7

    Electrical & Connectivity

    • Local Power Supply: 12/24 V DC ±10–30%

    • NMEA 2000 Load Equivalent Number (50 mA): 1

    • Reversible Motor Control of Rudder: Max continuous load 30A, peak 50A for 1s

    • On/Off Solenoid Control of Rudder: 12/24V DC, common, load range 10 mA to 10 A, off current <1 mA

    • Engage Output for Bypass/Clutch: 12/24V DC, min 10 mA, max 3 A

    • Rudder Angle, Frequency Input: 15V, 1.4 to 5 kHz, resolution 20 Hz/° OR NMEA2000

    • NFU Port/Stbd Input & Mode Indicator Output: External open/close contact, common return, contact current max 30 mA

    • Mode Input: External open/close or pulse contact for SYSTEM SELECT, common return, close to activate, contact current max 30 mA

    • External Alarm Output for Buzzer/Relay: Max 100 mA, voltage level as local supply

    • IEC 61162-1 Input (NMEA0183 In): 1 channel

    • IEC 61162-1 Output (NMEA0183 Out): 1 channel

    • IEC 61162-1 Speed: 4.8 & 38.4 kbaud

    • NMEA2000: Certified (pending)

    Other

    • Steering Type: Hydraulic

    • Box Dimensions: 14"H x 14"W x 18"L

    • Shipping Weight: 8.8 lbs

    • UPC: 9420024155646

    Product Manual

    NAC-3 Installation Guide

    Product Warranty

    Simrad Warranty

    Product FAQ's

    N/A
