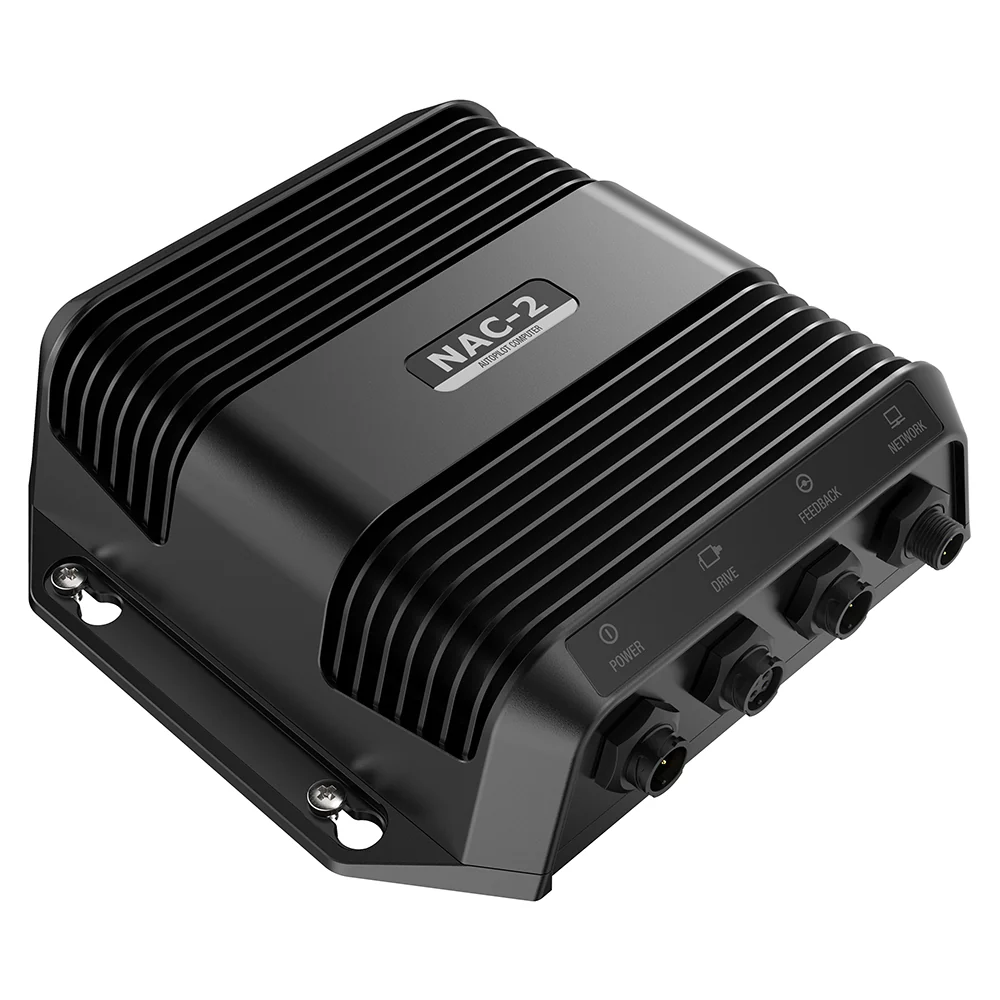

Simrad NAC-2 Low Current Course Computer [000-13249-001]

Simrad NAC-2 Low Current Course Computer [000-13249-001]

Simrad NAC-2 Low Current Course Computer [000-13249-001]

Description

The NAC-2 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10M (33') in length and is suitable for low-current pumps, mechanical drive units, or solenoid valves (8 Amps continuous/16 Amps peak).

Features:

  • Reliable autopilot performance based on Simrad Continuum™ steering technology
  • Recommended for boats up to 10M (33') in length
  • Output of 8 Amps continuous, 16 Amps peak
  • Clutch output (3 Amps maximum)
  • Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
  • Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
  • Supports Simrad RF25 rudder feedback units
  • Plug-and-play connectors for easy installation
  • NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays

Product Specifications

Simrad NAC-2 Low Current Course Computer [000-13249-001] Product Specifications

Specifications:

Key Features

  • Drive Output: 8A continuous, 16A peak for 1 second

  • Clutch Output: 12/24V DC, 10mA to 10A

  • Solenoid Output: 12/24V DC, 10mA to 10A

  • Virtual Rudder Feedback support

  • Compatible with Simrad RF25, RF45X, RF300, RF70, VRF rudder sensors

  • NMEA 2000 connectivity for seamless integration

  • Easy installation with plug-and-play connectors

Physical & Electrical

  • Dimensions W x H x D: 204 x 190 x 57 mm (8.1 x 7.5 x 2.2")

  • Compass Safe Distance: 0.5 m (20 inches)

  • Mounting Type: Bulkhead

  • Weight: 0.7 kg (1.6 lbs)

  • Supply Voltage: 12/24V DC (9–31.2V)

  • Power Consumption: 140 mA + drive load

  • Recommended Fuse Rating: Internal fuse 30A (Slow)

  • Waterproof Rating: IPx2

  • Operating Temperature Range: -15°C to +55°C (5°F to 131°F)

  • Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)

Connectivity

  • NMEA 0183 Supported Sentences: Input: AAM, ACK, APB, BOD, BWC, DPT, GGA, GLL, HDG, HDT, HSC, RMA, RMB, RMC, ROT, THS, TNT, VBW, VHW, VLW, VTG, ZDA. Output: HDG (10Hz) or HDT (10Hz), RSA (5Hz)

  • NMEA 2000 Connectivity: 1x CAN terminal, 1 LEN

Packaging

  • Type: Parts

  • Box Dimensions: 3"H x 10"W x 13"L

  • Box Weight: 3.75 lbs

  • UPC: 9420024154380

  • Warranty Period: 2 years

Product Manual

NAC-2 Installation Guide

Product Warranty

Simrad Warranty

Product FAQ's

N/A

$987.00
Simrad NAC-2 Low Current Course Computer [000-13249-001]—
$987.00
