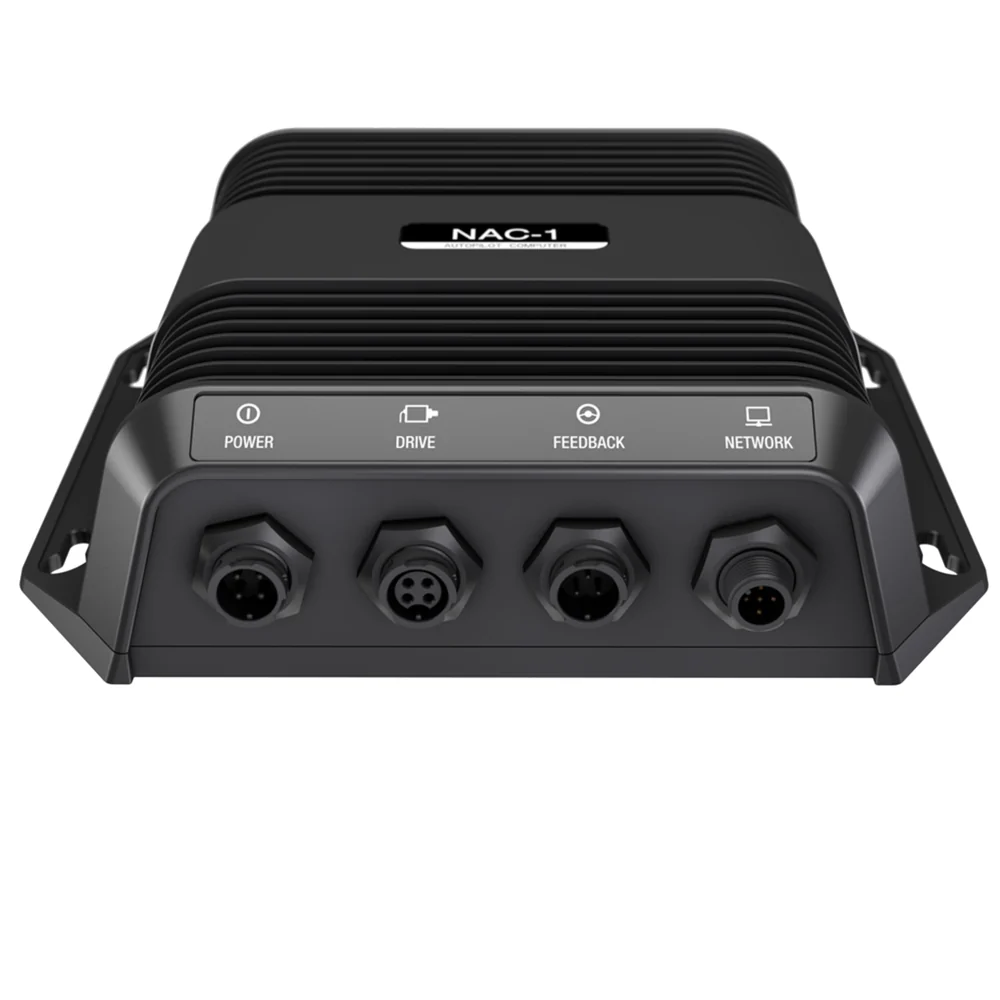

Simrad NAC-1 Autopilot Computer [000-11769-001]
Description
The NAC-1 is the centre of your autopilot system, containing the electronics needed to operate and interface with other key components. It has been designed for hydraulic or cable-steered boats up to nine metres (30 feet) in length, and works with Simrad displays to provide a fully integrated autopilot solution.Â
Easy Installation
Plug-and-play connectors facilitate easy installation, minimising the wiring necessary to install your autopilot system. Industry-standard NMEA 2000® networking offers simple connectivity to heading sensors, rudder feedback units, and multifunction displays located anywhere on board.
Hydraulic & Cable Steer Options
The NAC-1 Autopilot Computer is recommended for boats up to 9 metres (30 feet) in length. It been designed to reliably drive either the Simrad PUMP-1 reversible hydraulic pump for hydraulic-steered outboards, or the HELM-1 drive unit for cable-steered vessels.
Virtual Rudder Feedback
Simrad Virtual Rudder Feedback technology eliminates the need to install a separate rudder feedback unit aboard outboard and sterndrive (inboard/outboard) boats with planing hulls. This reduces overall autopilot system cost and complexity, and is ideal where a feedback unit is impractical due to mechanical constraints.
Minimum Product Requirements:
A drive unit, heading sensor, NMEA 2000® network, and compatible autopilot controller or multifunction display are required to create a complete autopilot system. Some vessels may also require a rudder feedback unit.
Features:
- Reliable autopilot performance based on Continuum Steering technology
- Recommended for boats up to 9 metres (30 feet) in length
- Compatible with the Simrad PUMP-1 reversible hydraulic pump and HELM-1 cable steer drive unit
- Virtual rudder feedback for simplified installation aboard outboard and sterndrive boats
- Supports Simrad RF25 rudder feedback units
- Plug-and-play connectors for easy installation
- NMEA 2000® connectivity to heading sensors, rudder feedbacks, and multifunction displays
What's in the box?
- NAC-1 Course Computer
- NAC-1/NAC-2 Power Cable - 2m
Product Specifications
Simrad NAC-1 Autopilot Computer [000-11769-001] Product Specifications
Specifications:
Display
-
Backlight Color: n/a
-
Display Resolution: n/a
-
Viewing Angles: n/a
Physical
Electrical
-
Power Consumption Max: 140 mA + drive unit load
-
Power Consumption Typical: 140 mA + drive unit load
-
Recommended Fuse Rating: 20 A
-
Supply Voltage: 9–16 V DC
Environment
Connectivity
Autopilot
-
Compass Sensor Support: NMEA2000
-
Drive Max Stroke: n/a
-
Drive Output: 12 V DC, reversible motor control 8 A, 16 A peak (1 sec)
-
Engine Drive Systems Integration: Reversible pump / Helm Drive
-
Turn Patterns: n/a
-
Rudder Sensor Support: VRF, 0–5 V, RF25
-
Steering Modes: n/a
Other
-
Interface: n/a
-
Languages: n/a
-
Warranty Period: 2 years
Product Manual
NAC-1 Installation Guide
Product Warranty
Simrad Warranty
Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW).  These units are certified to different standards for different markets.  Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East).  Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements.  In addition, customers who experience a problem can receive prompt local service and support.  Contact us for more information.
