Simrad LF3000 Linear Feedback [20188074]

Simrad LF3000 Linear Feedback [20188074]

Simrad LF3000 Linear Feedback [20188074]

Description

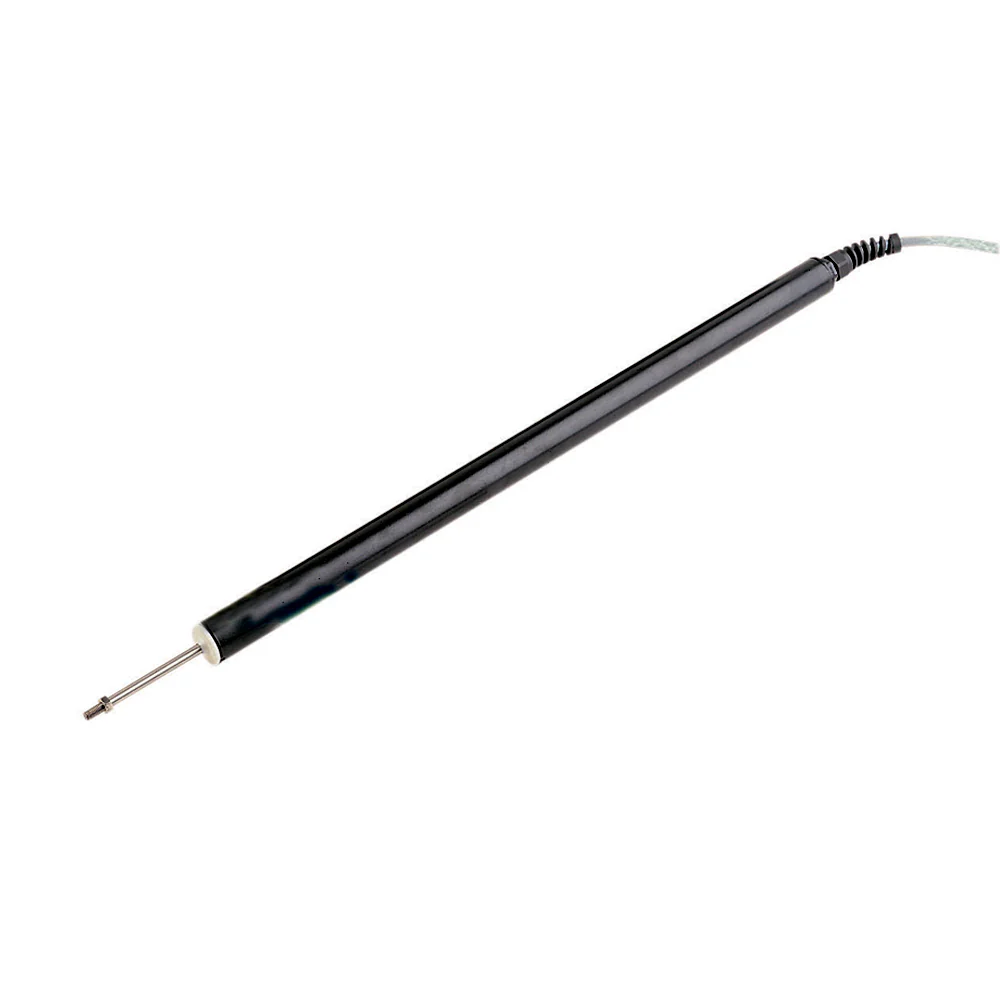

LF3000 is a linear feedback unit for boats with outboard engine. It transforms the linearmovement to an analog signal. Supplied with 8,5 m cable and mounting clamps.

The LF3000 is a waterproof feedback unit. It has a 300 mm (11,8") stroke and comes with a special mounting bracket which secures the LF3000 to the cylinder of the existing outboard drive unit.

The 8.5m (28') cable is terminated in the LFI3000 Mk2 Linear Feedback Interface according to the wiring diagram.

LFI3000 MK2 Linear Feedback Interface
LFI3000 Mk2 is an interface unit for LF3000 Linear Feedback. It converts the analog LF3000 signal to a standard digital feedback signal for the autopilot steering computer.

Product Specifications

Simrad LF3000 Linear Feedback [20188074] Product Specifications

Specifications:

Physical

  • Stroke Length: 300 mm (11.8")

  • Cable Length: 8.5 m (28')

  • Mounting: Secures to the cylinder of the existing outboard drive unit using a special mounting bracket

  • Waterproof Rating: IP56

  • Weight: Approximately 0.7 kg (1.6 lbs) including cable

Electrical

  • Power Consumption: 0.9 W

  • Signal Output: Analog signal converted to a standard digital feedback signal via LFI3000 Mk2 Interface

Environmental

  • Operating Temperature Range: 0°C to +70°C (32°F to 158°F)

  • Storage Temperature Range: -30°C to +80°C (-22°F to 176°F)

Compatibility

  • Required Interface: LFI3000 Mk2 Linear Feedback Interface (sold separately)

  • Application: Designed for boats with outboard engines requiring rudder angle feedback for autopilot systems

Specifications

  • Type: Parts

  • Box Dimensions: 3"H x 4"W x 22"L

  • WT: 2.8 lbs

  • UPC: 809190313446

Product Manual

N/A

Product Warranty

Simrad Warranty

Product FAQ's

N/A
