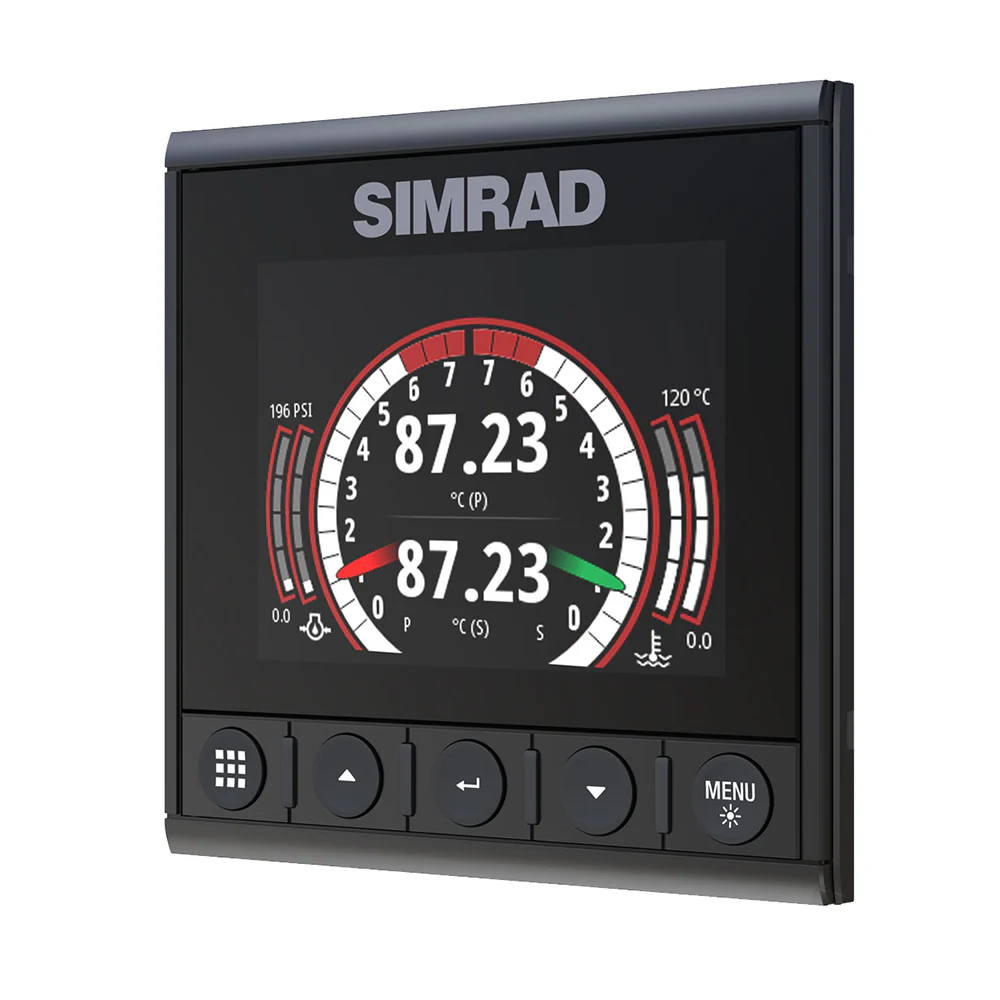

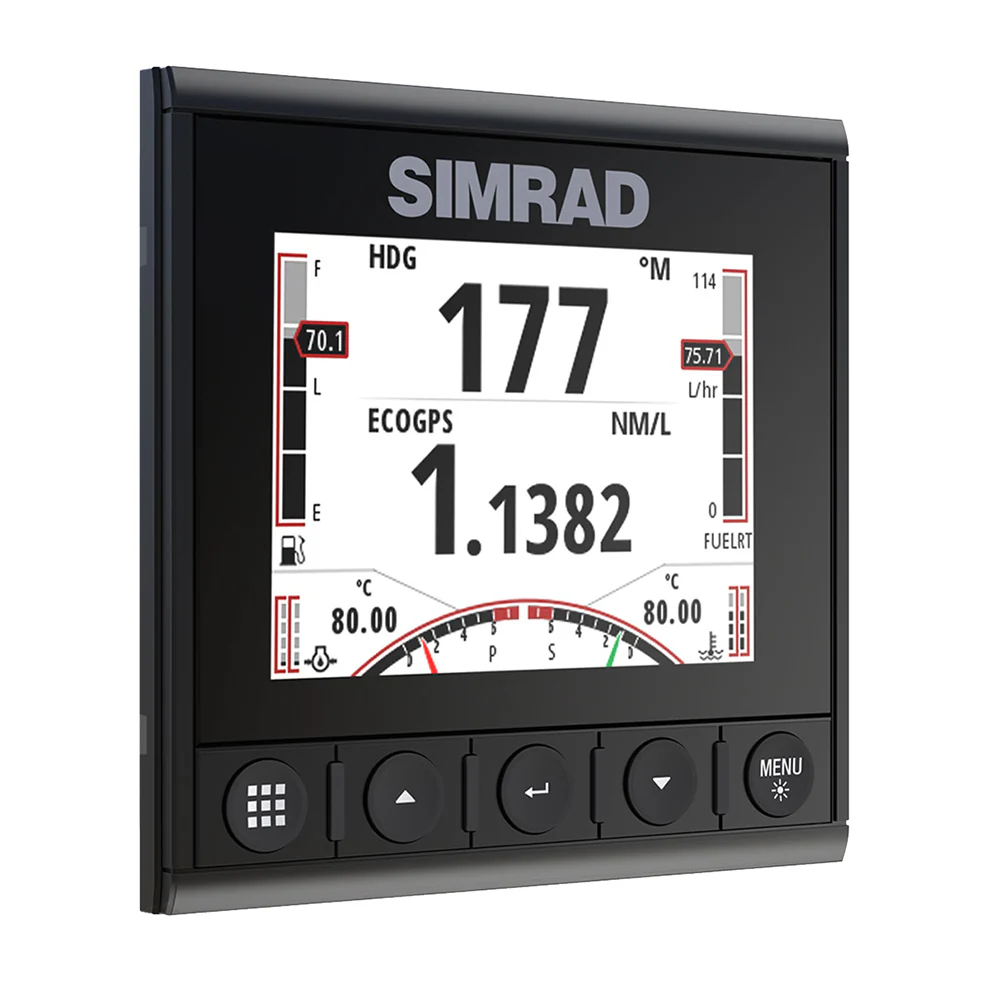

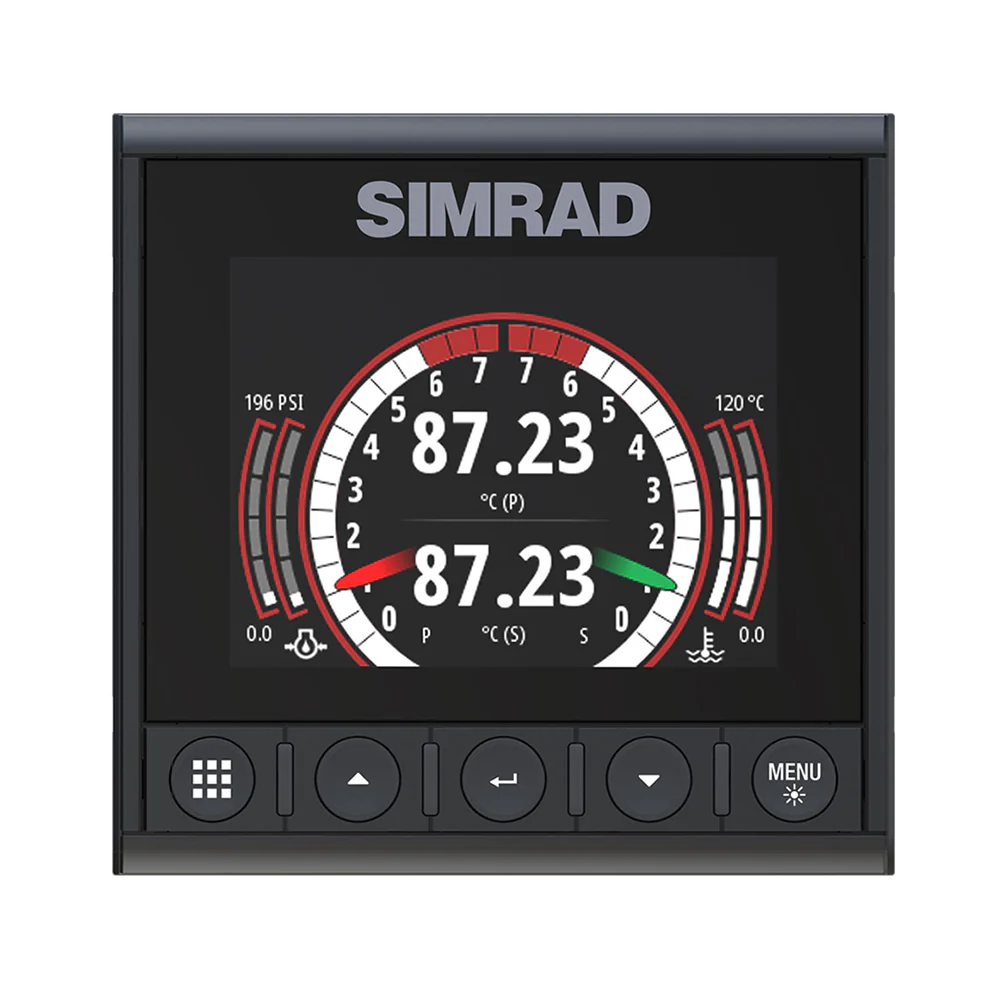

Simrad IS42J Instrument Links J1939 Diesel Engines to NMEA 2000 Network [000-14479-001]

Simrad IS42J Instrument Links J1939 Diesel Engines to NMEA 2000 Network [000-14479-001]

Simrad IS42J Instrument Links J1939 Diesel Engines to NMEA 2000 Network [000-14479-001]

Description

More than a standalone gauge, the IS42J links J1939 diesel engines to the boater’s NMEA 2000® network. This allows boaters to view engine data on a wide range of other Simrad gauges and multifunction displays, vessel-wide, without the need for a separate J1939 gateway or converter.

The IS42J is simple to install, with only one cable required for each J1939 engine and a single connection to the boat’s DC power supply. With a dual-engine J1939 gateway built in, there are no separate black-box components to install, and plug-and-play adapter cables are available to suit a wide range of J1939 diesel engines. Sharing engine data with other Simrad gauges or displays is also simple via NMEA 2000® connectivity.

Key Features:

  • Bright, optically bonded 4.1-inch color display
  • Monitor up to two J1939 connected engines
  • Built-in J1939-to-NMEA 2000® gateway
  • Intuitive operation with waterproof silicon keys
  • Easy to install and configure
  • Low-profile glass helm design
  • Displays and converts many J1939 SPN’s
  • Configurable data types for digital values and sidebars
  • Fuel usage and fuel economy monitoring

Product Specifications

Simrad IS42J Instrument Links J1939 Diesel Engines to NMEA 2000 Network [000-14479-001] Product Specifications

Display

  • Backlight Color: White, Red, Green, Blue

  • Display Resolution: 320 x 240, 4:3

Physical

  • Compass Safe Distance: 300 mm (1.0')

  • Dimensions (W x H x D): 118 x 115 x 37 mm (4.6 x 4.5 x 1.4")

  • Mounting Type: Flush

  • Weight: 0.32 kg (0.7 lbs)

Electrical

  • Power Consumption (max): 2.2 W

  • Power Consumption (typical): 1.8 W

  • Recommended Fuse Rating: 3 A

  • Supply Voltage: 12 V DC (10–16 V DC)

Environment

  • Humidity: Up to 95% RH

  • Operating Temperature Range: -25 to +65°C (-13°F to +149°F)

  • Storage Temperature Range: -40 to +85°C (-40°F to +185°F)

  • Waterproof Rating: IPx7

Connectivity

  • N2K PGNs:

    • Receive: 59392, 59904, 60928, 126208, 126992, 126996, 127488, 127489, 127505, 127508, 128259, 128267, 129025, 129026, 129029, 129033, 130136

    • Transmit: 59904, 60928, 126208, 126996, 127258

  • NMEA 2000 Connectivity: 1 x NMEA2000 Micro-C port, 1 LEN

Approvals

  • Compliance: IEC/EN 60945

Other

  • Interface: Keypad

  • Languages: English, French, Spanish, German, Italian, Swedish, South African, Danish, Finnish, Icelandic, Dutch, Norwegian, Portuguese, Greek

  • Warranty Period: 2 Years

Product Manual

N/A

Product Warranty

Simrad Warranty

Product FAQ's

N/A

$323.05

Original: $923.00

-65%
Simrad IS42J Instrument Links J1939 Diesel Engines to NMEA 2000 Network [000-14479-001]—

$923.00

$323.05
