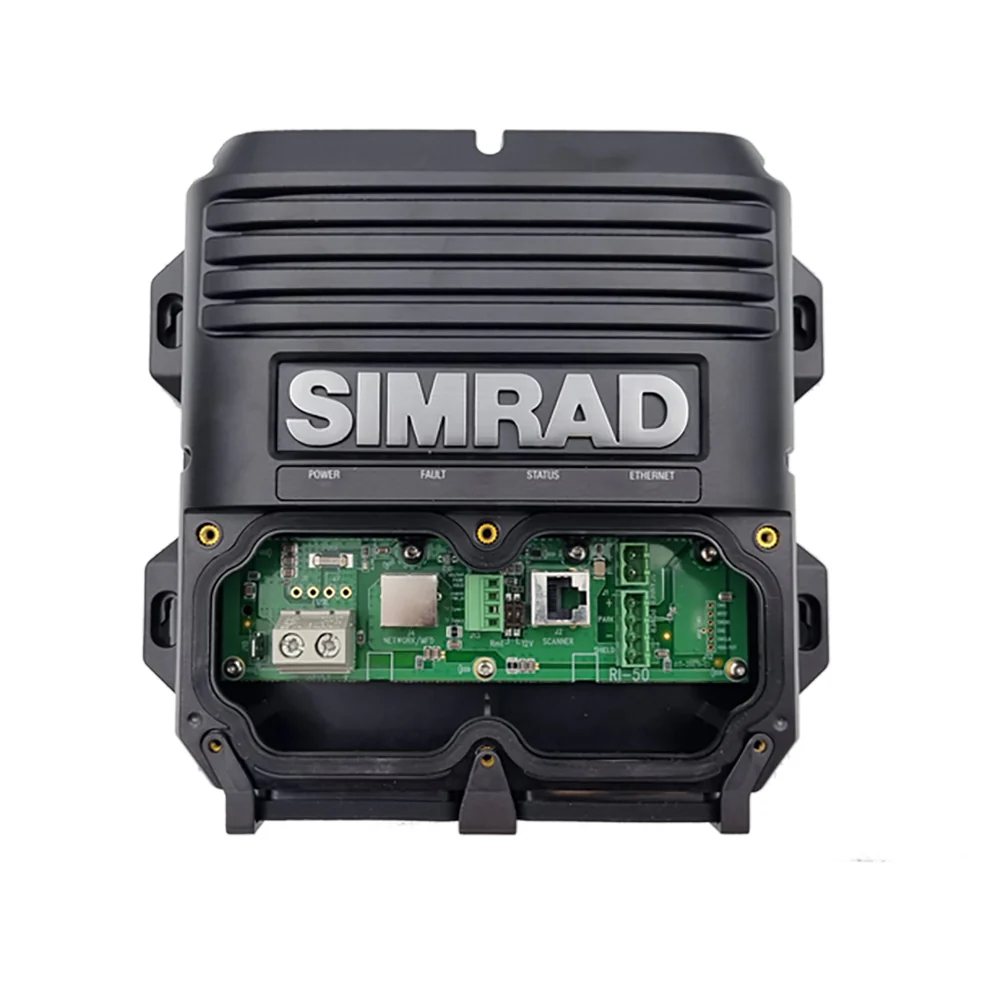

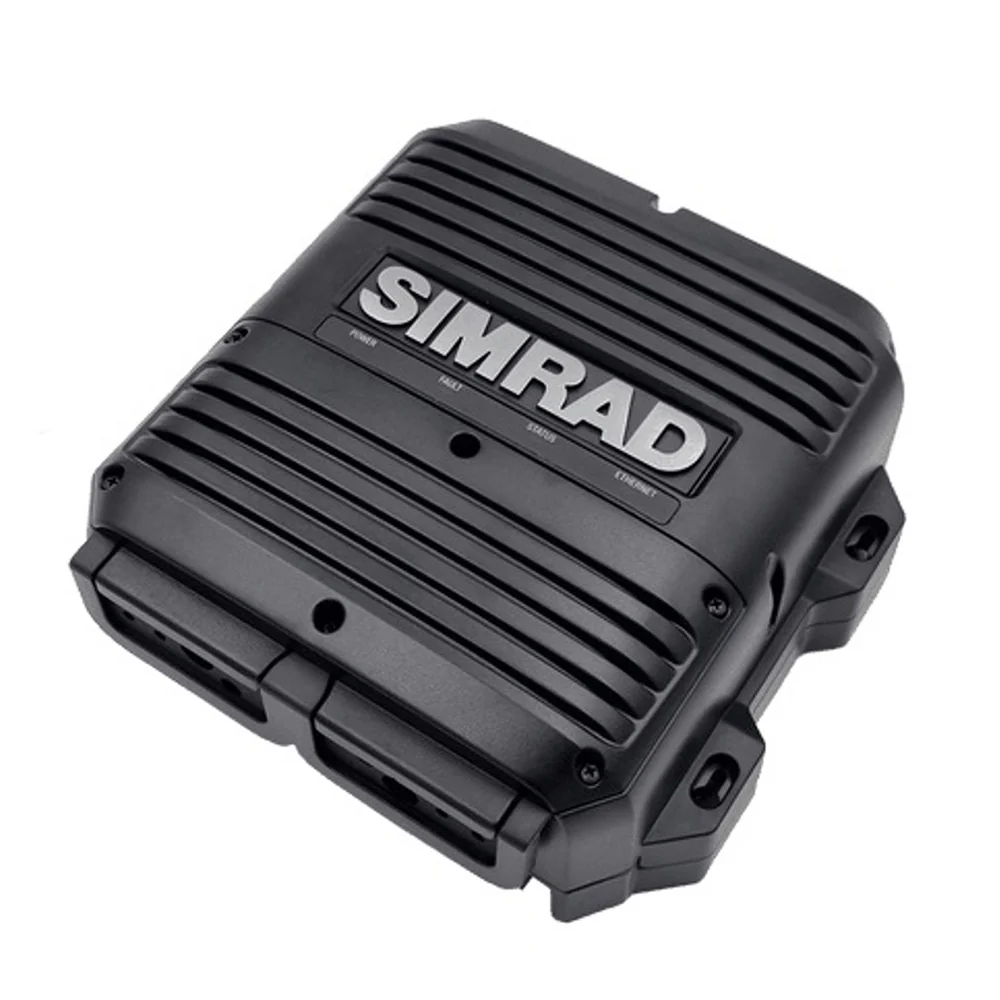

Simrad HALO RI-50 Power Supply f/HALO 2000 3000 Radars [000-15757-001]

Simrad HALO RI-50 Power Supply f/HALO 2000 3000 Radars [000-15757-001]

Simrad HALO RI-50 Power Supply f/HALO 2000 Ā 3000 Radars [000-15757-001]

Description

HALOĀ® RI-50 Power Supply for HALOĀ® 2000 & 3000 Radars

The RI-50 Radar Power Supply is designed to accommodate Simrad HALO 2000 and 3000 radars to 12 or 24V systems.

Key Features:

  • Accommodates 12- and 24-volt systems and used for all HALO 2000 and 3000 models
  • Same dimensions and mounting template as RI-12
  • Supplies 50 V DC to the pedestal in Tx mode
  • Improved external POWER/FAULT/STATUS/ETHERNET LED indicator lights
  • Internal BLOWN FUSE indicator light for diagnostics
  • Supplies parking voltage control to pedestal using low current
  • Ethernet output with ETHERNET LED (pigtail adapter supplied for Internal RJ45 to external Navico Yellow)
  • Note: no NMEA2000 connection (NMEA data converted by the MFD and passed over ethernet)

Product Specifications

Simrad HALO RI-50 Power Supply f/HALO 2000 Ā 3000 Radars [000-15757-001] Product Specifications

Specification Details
Model Simrad RI50
Brand Simrad
Class Type Radars
Family Simrad Radar – Halo
Component Processor / Computer / Ethernet Module
Item Type Main Product
Weight 2.06 kg
Dimensions (W x H x D) 22.5 Ɨ 26 Ɨ 13 cm
SKU 000-15757-001

Product Manual

N/A

Product Warranty

Simrad Warranty

Product FAQ's

N/A

$629.00
Simrad HALO RI-50 Power Supply f/HALO 2000 3000 Radars [000-15757-001]—
$629.00
