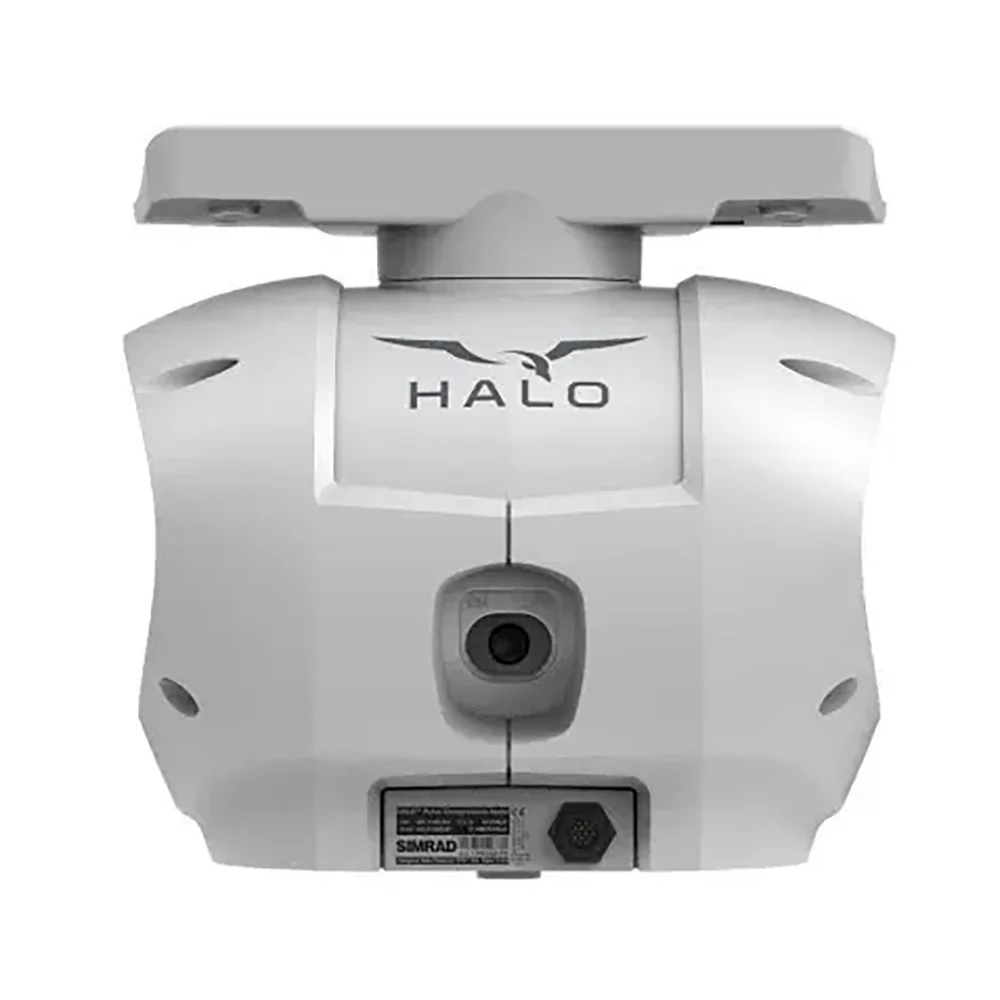

Simrad HALO 300X Radar Pedestal Only - 130W [000-15766-001]

Simrad HALO 300X Radar Pedestal Only - 130W [000-15766-001]

Simrad HALO 300X Radar Pedestal Only - 130W [000-15766-001]

Description

HALOĀ® 300X Radar Pedestal Only - 130W

Simrad's HALO 300X 130W Pulse Compression Radar: Pedestal Only.

Product Specifications

Simrad HALO 300X Radar Pedestal Only - 130W [000-15766-001] Product Specifications

Specification Details
Power Consumption (Max) 250 W (peak, 12V) at maximum wind velocity
Power Consumption (Typical) 45–75 W (average) at zero wind velocity
Recommended Fuse Rating 25 A for 12 V systems or 15 A for 24 V
Supply Voltage 12 OR 24 V DC into RI-50; 12 V Systems: 10.8–15 V DC, 24 V Systems: 20–31.2 V DC. Pedestal voltage input: 50 V DC nominal (generated by RI-50)
Operating Temperature Range -25°C to +55°C (-13°F to 131°F)
Shock and Vibration IEC60945 Exposed product
Waterproof Rating IPX6
Compass Safe Distance Standard: 1.0 m (3.3 ft), Steer: 0.5 m (1.6 ft)
Dimensions (W x H x D) 324 Ɨ 429 Ɨ 339 mm (12.76″ Ɨ 16.81″ Ɨ 13.35″)
Weight 20.3 kg (44.8 lbs)
Max Range (Scale) 96 nm
Min Range (Scale) 75 m (300 ft)
Max Operating Wind Speed 80 Knots (all antenna sizes)
Radar Modes Head Up, North Up
Radar Technology Pulse Compression
Rotation Speed 16–48 RPM (depending on operating mode)
SART/RACON Trigger Yes – trigger distance: about 1 nm max (weather and sea-state dependent)
Interface Simrad MFD
Warranty Period 2 Years
SKU 000-15766-001

Product Manual

N/A

Product Warranty

Simrad Warranty

Product FAQ's

N/A

$7,034.00
