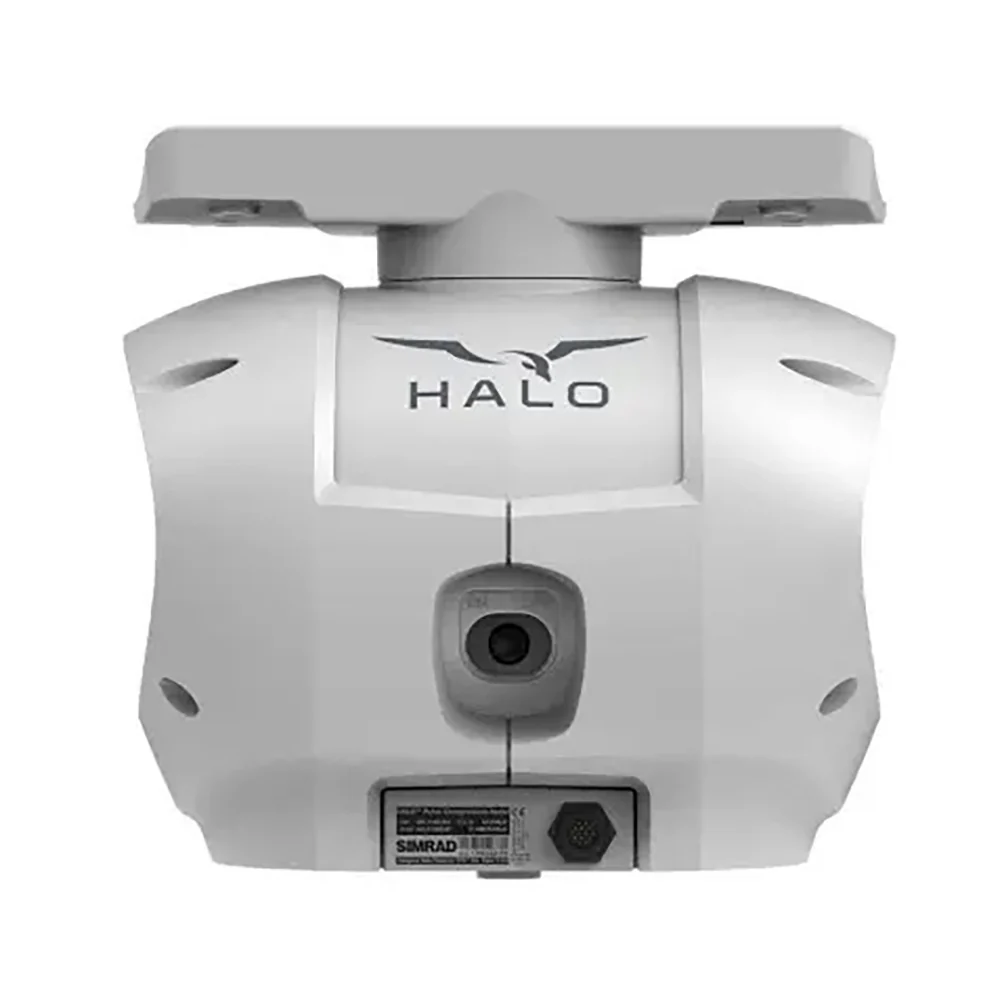

Simrad HALO 200X Radar Pedestal Only - 50W [000-15762-001]

Simrad HALO 200X Radar Pedestal Only - 50W [000-15762-001]

Simrad HALO 200X Radar Pedestal Only - 50W [000-15762-001]

Description

HALOĀ® 200X Radar Pedestal Only - 50W

Simrad's HALO 200X 50W Pulse Compression Radar: Pedestal Only.

Product Specifications

Simrad HALO 200X Radar Pedestal Only - 50W [000-15762-001] Product Specifications

Specification Details
Power Consumption (Max) 235 W (peak, 12V) at maximum wind velocity
Power Consumption (Typical) 45–60 W (average) at zero wind velocity
Recommended Fuse Rating 25 A (12V systems) / 15 A (24V systems)
Supply Voltage Radar input: 12 or 24 V DC via RI-50; 12V Systems: 10.8–15 V DC; 24V Systems: 20–31.2 V DC; Pedestal input: 50 V DC nominal from RI-50
Operating Temperature Range -25°C to +55°C (-13°F to 131°F)
Shock and Vibration IEC60945 Exposed Product
Waterproof Rating IPX6
Compass Safe Distance Standard: 1.0 m (3.3 ft); Steering: 0.5 m (1.6 ft)
Dimensions (W x H x D) 324 x 429 x 339 mm (12.76″ x 16.81″ x 13.35″)
Weight 20.3 kg (44.8 lbs)
Maximum Range Scale 72 nm
Minimum Range Scale 75 m (300 ft)
Maximum Operating Wind Speed 80 Knots (all antenna sizes)
Radar Modes Head Up, North Up
Radar Technology Pulse Compression
Rotation Speed 16–48 RPM (depending on mode)
SART/RACON Trigger Yes – up to 1 nm (weather and sea state dependent)
Interface Simrad MFD
Warranty Period 2 Years
SKU 000-15762-001

Product Manual

N/A

Product Warranty

Simrad Warranty

Product FAQ's

N/A

$5,459.00
