Simrad GPS Antenna GS25 [000-11043-002]

Simrad GPS Antenna GS25 [000-11043-002]

Simrad GPS Antenna GS25 [000-11043-002]

Description

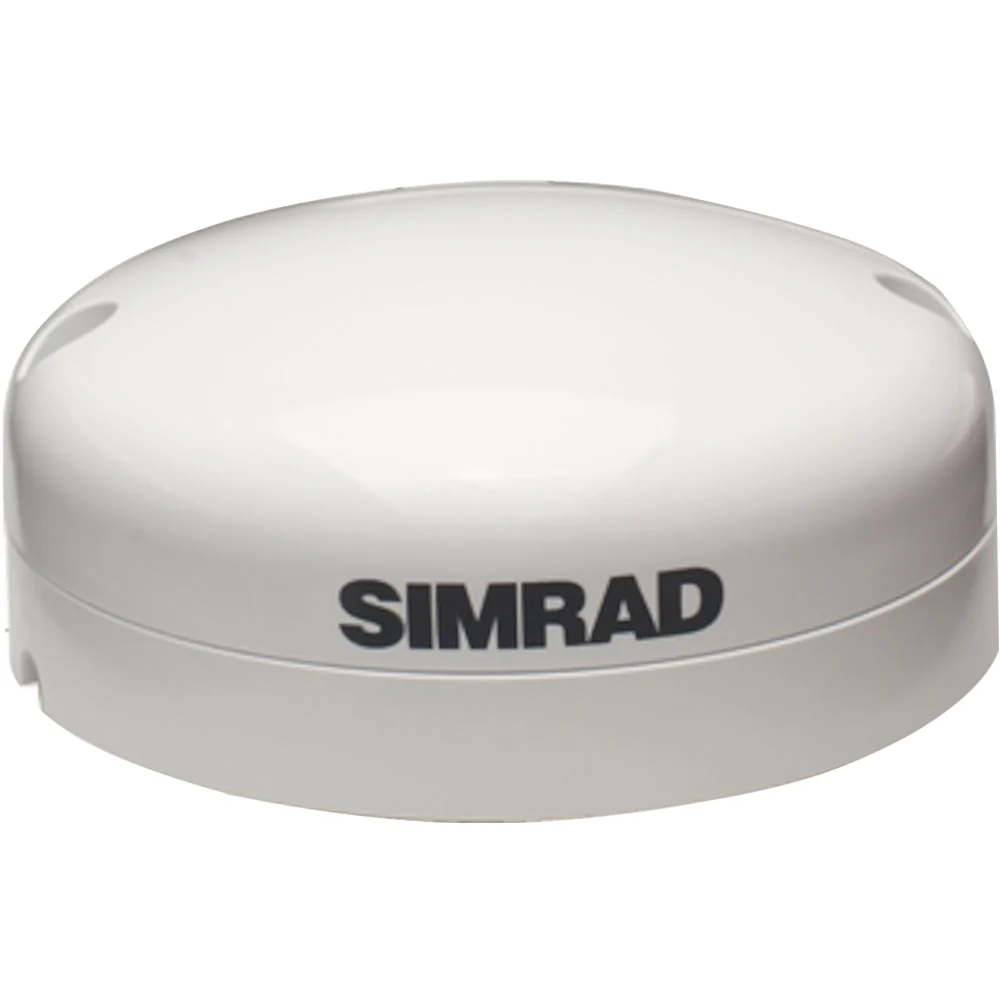

The Simrad GS25 GPS antenna is the ideal GPS for any navigator that requires extremely accurate and rapid vessel position and speed updates. Unlike other position-only antennas, the GS25 provides magnetic heading for accurate boat direction at any speed and for radar/chart overlay. The GS25 easily connects to any Simrad NS Series multifunction display or any NMEA 2000® network. It is fully waterproof and can be pole or surface mounted on any vessel. *Please note this product is not suitable for use with MARPA or autopilot systems which require a rate compass such as the RC42.

Features:

  • High-Speed Position Update
  • Rapid Signal Acquisition
  • Consistent Position Accuracy
  • Integrated Magnetic Heading
  • GPS, WAAS, EGNOS and More
  • Compact Design
  • Fully Waterproof
  • NMEA 2000® Connectivity
  • Simrad Yachting Construction

What's in the Box?

  • N2KEXT-15RD 15ft Network Extension Cable
  • Pole Mount GS25/ZG100/POINT-1
  • N2K-T-RD Network T-Connector

Product Specifications

Simrad GPS Antenna GS25 [000-11043-002] Product Specifications

Specifications:

Physical

  • Compass Safe Distance: 0.5 m (20")

  • Mounting Type: Flush mount / Standard Pole Mount

  • Weight: 0.14 kg (0.3 lbs)

Electrical

  • Power Consumption (max): 2 W

  • Power Consumption (typical): < 2 W

  • Supply Voltage: 9–18 V DC

Environment

  • Humidity: 40ÂşC, 93% RH, operating

  • Operating Temperature Range: -25°C to 60°C (-13°F to 140°F)

  • Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

  • Waterproof Rating: IPX7

Connectivity

  • N2K PGNs: 126992, 129025, 129026, 129029, 129539, 129540, 127258, 127250, 127251, 127257

  • NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 2 LEN

GPS

  • Correction: DGPS, WAAS, EGNOS, GLONASS, MSAS

  • GPS Receiver Channels: 32 Channels

  • Position Accuracy: 3 m (9.8 ft)

  • Time to First Fix: 3 s (Cold Start 50 s)

  • Update Rate: Up to 10 Hz (1, 5, 10)

Approvals

  • Compliance: CE under RED 2014/53/EU Directive

Heading Sensors

  • Heading Sensor Accuracy: ±3° Heading, ±1° Roll/Pitch @ 30°

  • Heading Sensor Data Available: Magnetic Heading, Rate of Turn, Heel Angle, Trim Angle

  • Heading Sensor Data Protocol: NMEA 2000

  • Sensor Type: Solid state

Other

  • Warranty Period: 2 Years

Product Manual

N/A

Product Warranty

Simrad Warranty

Product FAQ's

N/A
