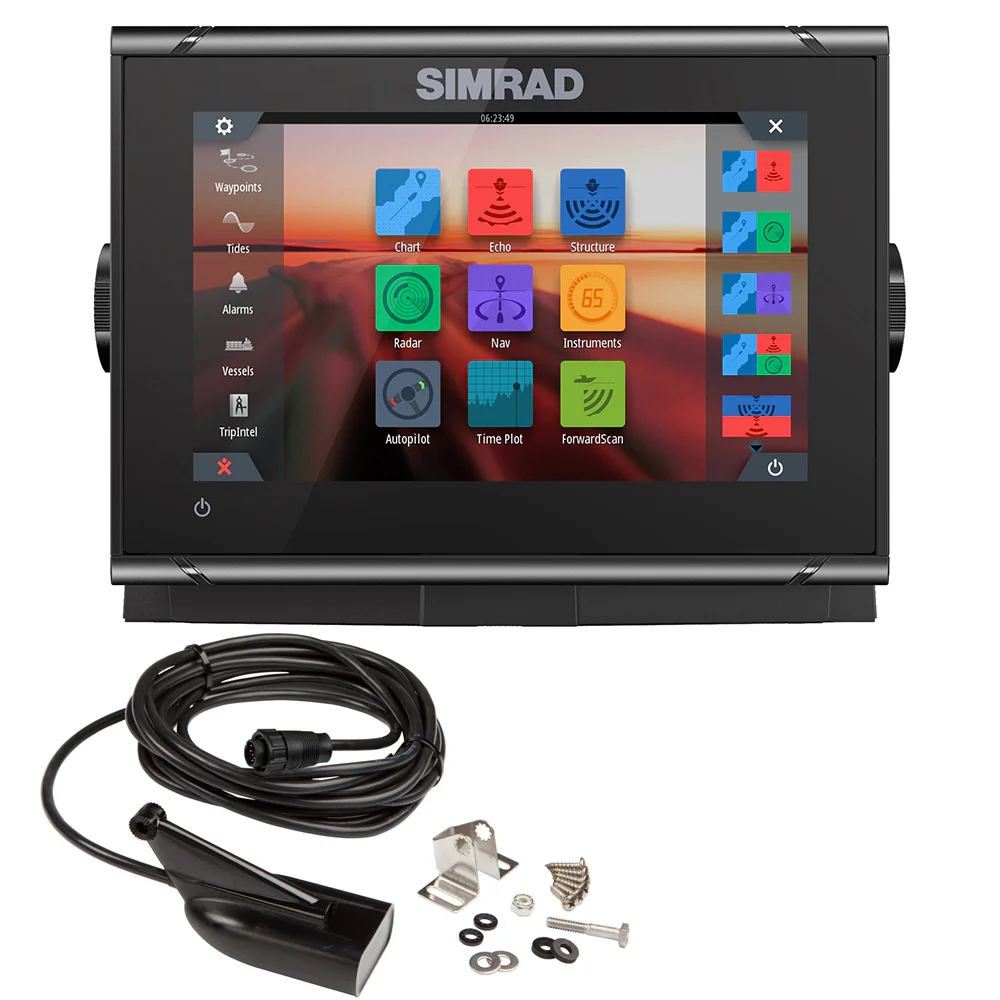

Simrad GO7 XSR Chartplotter/Fishfinder w/HDI Transom Mount Transducer C-MAP Discover Chart [000-14326-002]

Simrad GO7 XSR Chartplotter/Fishfinder w/HDI Transom Mount Transducer C-MAP Discover Chart [000-14326-002]

Simrad GO7 XSR Chartplotter/Fishfinder w/HDI Transom Mount Transducer  C-MAP Discover Chart [000-14326-002]

Description

The compact GO7 XSR is a great way to expand the capabilities of your sport boat or dayboat. Cruise confidently with GPS navigation, find fish with built-in sonar and extend your view with an optional radar system. Enjoy precise navigation with C-MAP DISCOVER charts and find fish with HDI Transom Mount transducer.

Get more from every day on the water

Simrad GO series displays are designed to help you make the most of your time on the water and are a perfect addition to sport boats, dayboats, and center-consoles. Behind every sunlight-viewable GO series touchscreen lies a built-in GPS receiver, echosounder, wireless connectivity, and industry-standard NMEA 2000® networking. Navigate, connect with mobile devices, control accessories like your on-board sound system, and choose from an array of built-in sonar. Radar capability—available on the GO7 and above—offers added safety and fishfinding functionality.

Multi-touch display for intuitive, tablet-style control

The GO series offers true ease of use with intuitive touchscreen controls that smartphone and tablet users will find instantly familiar. Customize your home screen with the features you use most, and see everything you need on-screen at once with adjustable split-screen views. Mark waypoints on charts with a touch, and easily assign meaningful names and symbols that make them quick to find when you are planning your next trip.

Chartplotter with built-in GPS helps keep you on course

Every GO series display is a full-featured chartplotter with a built-in GPS receiver. GO displays offer compatibility with a wide range of optional charts from C-MAP, Navionics®, and more. You can even leverage advanced chart-specific features like C-MAP Easy Routing and Navionics Autorouting to make planning your next trip on the water as easy as planning a trip in the car.

Wireless and wired connectivity take your display beyond the bridge

Built-in wireless connectivity mirrors your display to a compatible smartphone or tablet, giving you instant access to charts, radar and other functionality from anywhere onboard. Wireless also enables easy online software updates via an internet hotspot. Industry-standard NMEA 2000® connectivity offers a wide range of expansion and integration options: monitor your boat’s engine performance and fuel efficiency, steer your boat with a Simrad autopilot or control your onboard entertainment system from your GO series display.

Turn your display into a fishfinder

Choose from a wide range of fish-finding sonar options to suit your vessel, from CHIRP or traditional sonar transducers for a classic fish-finder view, or get all your fish-finding sonar in one transducer with Active Imaging Imaging™ 3-in-1. Active Imaging brings the world-class clarity and target separation of CHIRP Sonar, plus incredible detail of reefs, drop-offs and wrecks from SideScan and DownScan Imaging™.  **Requires Optional Active Imaging 3-in-1 Transducer.

Find fish and track depth

A transom-mounted HDI Skimmer® transducer delivers fish-finding sonar for amateur anglers and offers a simple way for powerboating enthusiasts to keep an eye on depth. CHIRP technology enables clear detection of fish throughout the water column, while DownScan Imaging™ sonar creates a picture-like view of fish-holding structure beneath your boat. FishReveal™ technology combines these two specialized views into a single, crystal-clear picture of fish and structure.

Active Imaging™ transducer pinpoints fish and structure

Your GO series display works as a powerful fishfinder when combined with the easy-to-install, transom-mounted Active Imaging™ transducer. Enjoy all the advantages of CHIRP Sonar, SideScan and DownScan Imaging, which deliver a wide-angle view of fish-holding structure beneath and to the sides of your boat. Find structure faster, and have an easier time identifying fish on DownScan Imaging with FishReveal™.

Features:

  • 7-inch widescreen with bright LED backlight
  • Easy to use with simple, intuitive touchscreen controls
  • Works as a display for Broadband 3G™/4G™ and HALO® radar
  • Includes C-MAP DISCOVER chart card
  • Active Imaging™ transducer delivers CHIRP sonar, SideScan and DownScan Imaging™ views (Optional Transducer
  • Compatible with the WM-4 SiriusXM® satellite weather module (North America only)

In the Box:

  • GO7 U-Bracket
  • GO7 XSR Bezel
  • GO7 XSR Dash Mount Kit
  • Sun Cover for GO7 Bracket Mount
  • Power Cable, 4-Pin
  • Black HDI Skimmer Med/High 455/800 9Pin

C-MAP Discover Chart Features:

  • Full-Featured Vector Charts
  • Custom Depth Shading
  • High-Resolution Bathymetry
  • Easy-Routing
  • Tides & Currents

Product Specifications

Simrad GO7 XSR Chartplotter/Fishfinder w/HDI Transom Mount Transducer  C-MAP Discover Chart [000-14326-002] Product Specifications

Specifications:

Display

  • Backlight Color: White

  • Display Resolution: 800 x 480 px

  • Screen Brightness: 1200 nits

  • Viewing Angles: 80° top/bottom, 80° left/right

  • Screen Size: 7"

  • Touchscreen: Yes

Physical

  • Dimensions (W x H x D): 197 x 141 x 82.7 mm (7.56" x 5.55" x 3.26") (no bracket)

  • Mounting Type: Bracket or Panel

  • Box Dimensions: 9"H x 10"W x 12"L

  • Weight: 6.8 lbs

Electrical

  • Power Consumption (max): 20 W

  • Power Consumption (typical): 12 W

  • Recommended Fuse Rating: 3 A

  • Supply Voltage: 10–17 V DC

Environment

  • Operating Temperature Range: -15°C to +55°C (5° F to 131°F)

  • Storage Temperature Range: -20°C to +60°C (4°F to 140°F)

  • Shock / Vibration: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1

  • Waterproof Rating: IPX6 and IPX7

Connectivity

  • Bluetooth: Internal

  • Ethernet Ports: 1 x 5-pin yellow connector (Radar & Sirius USA only)

  • Wi-Fi: Internal

  • NMEA 0183 Supported: Exports NMEA0183 over Wi-Fi

  • NMEA 2000 Connectivity: 1 x NMEA 2000 Micro-C port, 1 LEN

  • SD Card Storage: 1 Micro SD slot, max 32 GB; >32 GB format to NTFS

  • PC Connectivity: None

  • Video: None

MFD Features

  • AIS: Receive AIS data over NMEA 2000 only

  • Autopilot: Auto, Nav, No Drift, Follow-up, Non-follow-up, Turn patterns, Standby, *Wind, *Wind NAV (*Boat type set to Sail; requires STBY button or controller)

  • Digital Switching: BEP C-Zone

  • Cartography Included: C-MAP DISCOVER

  • Multimedia: SonicHub2, Fusion Link, *Sirius (USA only), **JL Audio (AUS & NZ only)

  • Sonar Compatibility: Integrated CHIRP / DownScan / ForwardScan, Single 9-pin Xsonic Connector

  • Waypoints, Routes, Tracks: 6000 waypoints, 500 routes (max 100 points each), 50 tracks (up to 12,000 points)

  • Weather: SiriusXM via WM-3 (USA only), GRIB

GPS

  • Correction: WASS, MSAS, EGNOS, GLONASS

  • GPS Receiver Channels: 32 Channels

  • Position Accuracy: Horizontal Accuracy 3 m (9.8 ft)

  • Time to First Fix: Cold start <90 s; Satellite Reacquisition 5 s

  • Update Rate: 10 Hz

Autopilot

  • Manoeuvres / Turn Patterns: U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking

  • Steering Modes: Auto, Nav, No Drift, Follow-up, Non-follow-up, Turn patterns, Standby, *Wind, *Wind NAV (*Boat type set to Sail)

Approvals

  • Compliance: CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002, EN 300 440-2, V1.4.1

Other

  • Interface: Touch screen, OP40 or OP50 controller via NMEA 2000

  • Languages: Standard Language Pack: English (US/UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Asian, Eastern European, Russia/Ukraine, Middle Eastern Language Packs available

  • Warranty Period: 2 Years

  • Transducer Included: Yes (000-12570-001)

  • Cartography Brand: Navionics / C-Map / Lowrance

  • UPC: 9420064120109

Product Manual

GO7 Installation Manual

GO XSE/XSR Operator Manual

Product Warranty

Simrad Warranty

Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW).  These units are certified to different standards for different markets.  Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East).  Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements.  In addition, customers who experience a problem can receive prompt local service and support.  Contact us for more information.

Product FAQ's

N/A
