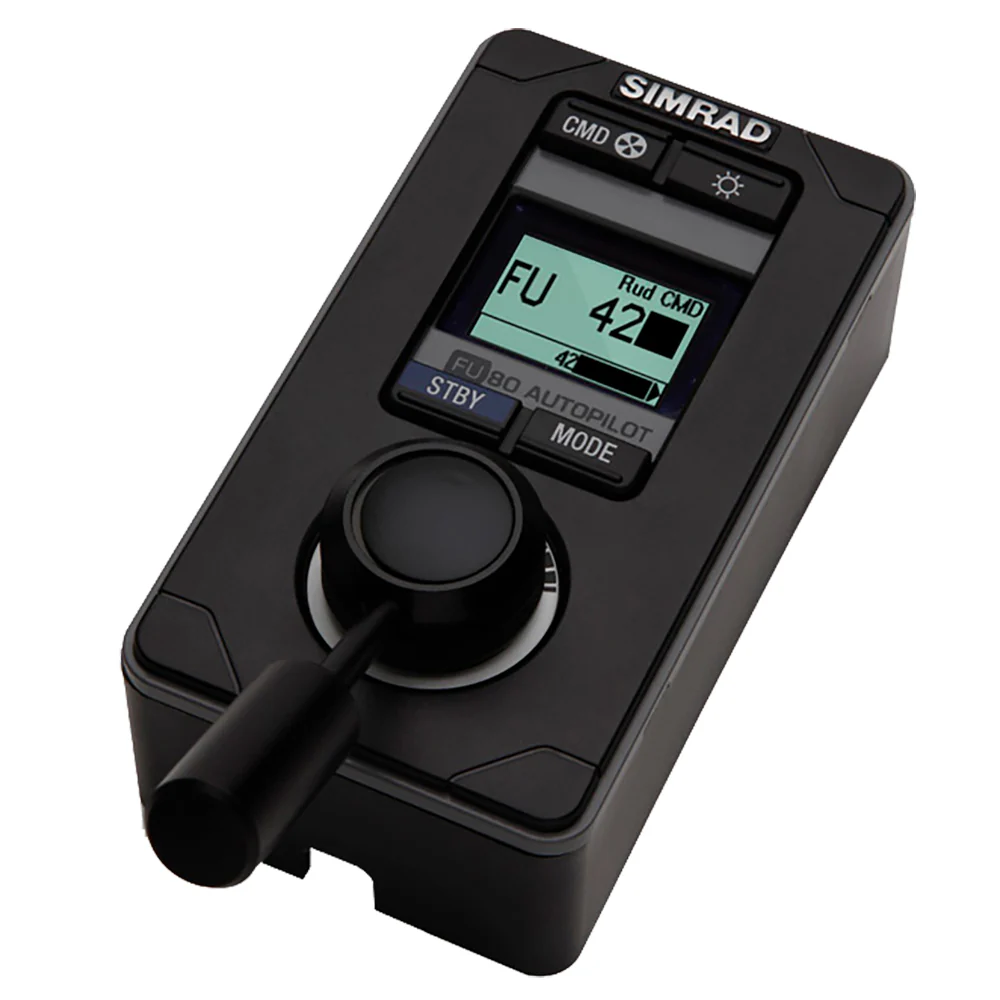

Simrad FU80 Remote Control w/Display [000-10183-001]

Simrad FU80 Remote Control w/Display [000-10183-001]

Simrad FU80 Remote Control w/Display [000-10183-001]

Description

The FU80 (a manoeuvre controller) is a Follow Up remote which means that the rudder, when hand steering, moves to the commanded angle set by turning the knob to port or starboard.

Features:

  • 35mm x 25mm display
  • Type approved
  • Two mounting options - desktop and panel (flush)
  • Network based with NMEA2000 cabling
  • Backward compatible with AP24, AP28, NSE, NSO

Product Specifications

Simrad FU80 Remote Control w/Display [000-10183-001] Product Specifications

Specifications:

Physical

  • Dimensions: 177 x 115 x 56 mm (7 x 4.5 x 2.2")

  • Mounting Type: Flush or optional bracket

  • Weight: 0.51 kg (1.13 lbs)

  • Box Dimensions: 5"H x 6"W x 9"L

  • WT: 2.1 lbs

Electrical

  • Power Consumption max: 3 W

  • Power Consumption typical: 2.3 W

  • Supply Voltage: 12V DC (10.8 – 15.6V DC)

Environment

  • Operating Temperature Range: -25° to +65°C (-13° to +149°F)

  • Storage Temperature Range: -40° to +85°C (-40° to +185°F)

  • Waterproof Rating: IPx7

Connectivity

  • NMEA 2000® Micro-C port, 5 LEN

Autopilot

  • Compass Sensor Support: NMEA 2000

  • Steering Modes: Heading, No Drift, Waypoint Steering (NAV), Wind, Power Steer (NFU, FU)

  • Maneuvers Turn Patterns: C-turn, U-turn, Spiral, Zigzag, Square, S-turn, Depth contour tracking, Tack, Gybe

Approvals

  • CE 60945

Interface

  • Keypad and rotary dial

Languages

  • English(US), English(UK), Danish, German, Spanish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Brazilian, Swedish, Afrikaans, Japanese, Korean, Simplified Chinese, Traditional Chinese, Bulgarian, Hebrew, Hungarian, Slovak, Russian, Ukrainian

Warranty

  • 2 Years

Type

  • Parts

UPC

  • 9420024108123

Product Manual

FU80 / NF80 / QS80 User Manual

Product Warranty

Simrad Warranty

Product FAQ's

N/A

$1,000.99
