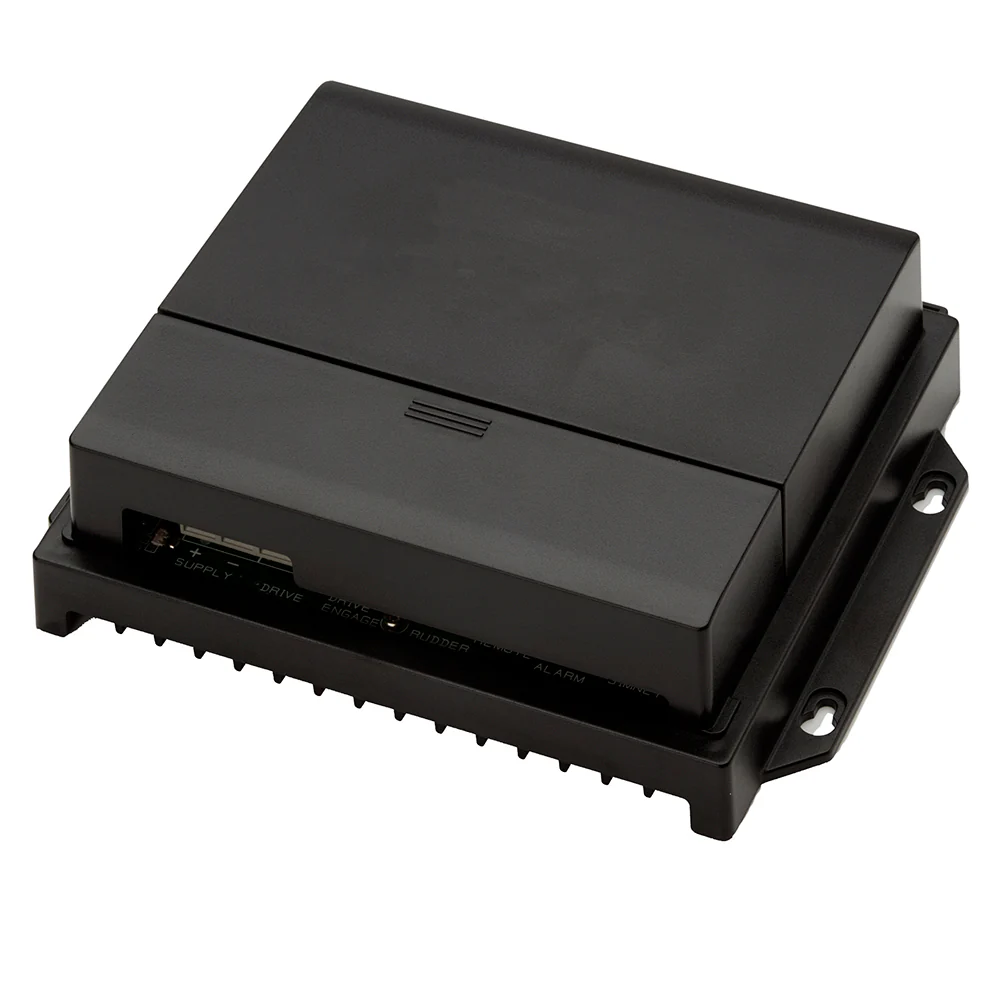

Simrad AC70 Course Computer [000-10186-001]

Simrad AC70 Course Computer [000-10186-001]

Simrad AC70 Course Computer [000-10186-001]

Description

A comprehensive range of computers and interface units are offered with the Simrad AP70 and AP80 autopilots providing a complete solution for every steering system.

Drive computer for rudder using reversible motor or non-isolated solenoids and frequency rudder angle feedback. Connention for NFU remote control and one channel IEC 61162-1 (NMEA 0183) RX/TX or IEC 61162-1, 2 and 3 compatible.

Product Specifications

Simrad AC70 Course Computer [000-10186-001] Product Specifications

Specifications:

Physical

  • Compass Safe: 0.5 m (20")

  • Dimensions (W x H x D): 204 x 190 x 57 mm (8.1 x 7.5 x 2.2")

  • Mounting Type: Bulkhead

  • Weight: 0.7 kg (1.6 lbs)

Electrical

  • Power Consumption (Max): 750 W

  • Power Consumption (Typical): 100 mA + drive load

  • Recommended Fuse Rating: Internal fuse 30A (Slow)

  • Supply Voltage: 12/24 V DC ±30%

Environment

  • Operating Temperature Range: -15 to +55°C (5 to 131°F)

  • Storage Temperature Range: -30 to +70°C (-22 to +158°F)

  • Waterproof Rating: IPx2

Connectivity

  • NMEA 0183 Sentences Supported:
    Input: AAM, ACK, APB, BOD, BWC, DPT, GGA, GLL, HDG, HDT, HSC, RMA, RMB, RMC, ROT, THS, TNT, VBW, VHW, VLW, VTG, ZDA
    Output: HDG (10Hz) or HDT (10Hz), RSA (5Hz)

  • NMEA 2000 Connectivity: 1 x CAN terminal, 1 LEN

Autopilot

  • Compass Sensor Support: NMEA 2000, NMEA 0183

  • Drive Output: 12/24 V DC, reversible motor control 30A, 50A peak (1 sec.), solenoid control: 10A (min 10 mA)

  • Engine Drive Systems Integration: Reversible pump/motor, solenoid valve on/off

  • Rudder Sensor Support: RF300, RF45X, RF25N, RF70 & VRF

Other

  • Warranty Period: 2 years

  • Type: Parts

  • Box Dimensions: 3"H x 8"W x 12"L

  • Weight (Boxed): 3.15 lbs

  • UPC: 9420024108154

Product Manual

N/A

Product Warranty

Simrad Warranty

Product FAQ's

N/A

$615.30

Original: $1,757.99

-65%
Simrad AC70 Course Computer [000-10186-001]—

$1,757.99

$615.30
