Simrad A2004 Autopilot Pack - No Compass [000-13899-001]
Description
The A2004 is a dedicated autopilot controller designed to meet the needs of professional mariners aboard a variety of commercial vessels. It features a proven Simrad interface, presented on a wide-angle and zero-fog colour display. Engineered for responsiveness and ease of use, the A2004 pairs a precision rotary control dial with dedicated buttons for instant access to steering modes, a custom-configurable Work mode, and automated turn patterns.
Features:
- Proven Simrad interface designed for commercial marine applications
- Large, heavy-duty rotary control dial for precision steering
- Continuum steering technology
- Optically bonded 4.1" color display with 170° viewing angle
- Thruster integration & heavy-duty rudder feedback support
- Configurable work mode and low/high speed modes
- Automated turn patterns for fuel-efficient, hands-free manoeuvres
- No Drift steering holds course against wind and tide
- Flush or bracket mounting options
- Certified NMEA 2000® connectivity
- Dimensions 6.968 wide by 4.527 high
- Dimensions with Bracket 8.063 wide by 4.901 high
Proven Simrad Interface
The A2004 builds upon the proven user interface and keypad layout of the Simrad AP70 and AP80 professional autopilot controllers, and delivers consistency with the latest generation of Simrad radar, sonar, and ECDIS displays.A large aluminium rotary control dial enables quick but precise steering adjustments, while dedicated keys offer instant access to steering modes, a custom-configurable Work mode, and automated turn patterns. All built-in controls are designed for ease of use with wet or gloved hands, in commercial settings such as fishing vessels and workboats. The A2004 also supports a wide range of Simrad autopilot remotes and steering levers.
Continuum Steering Technology
Every Simrad steering innovation builds upon a legacy encompassing over sixty years of autopilot development, which continues to this day. This legacy is exemplified by the Continuum algorithm: the software behind Simrad steering technology. Continuum steering distils years of research and on-water testing into a flexible software solution, capable of delivering reliable auto-steering performance tuned specifically to match a vessel’s control characteristics. With a comprehensive range of hardware and interface modules, Simrad autopilot solutions can be tailored to suit a wide range of commercial vessels and applications.
Optically Bonded 4.1-inch Color Display
To ensure optimal visibility in all conditions, the A2004’s colour LCD panel is optically bonded to its protective glass covering – eliminating the possibility of internal condensation. Transflective LCD technology makes use of reflected sunlight to brighten rather than obscure the screen, delivering superior day-time visibility and lower power consumption compared to traditional backlit displays. An ultra-wide 170 degree viewing angle means key autopilot information is clearly visible at a glance, from anywhere in sight of the display.
Thruster Integration & Rudder Feedback Support
The A2004 enables autopilot control of a single thruster via an optional AD80 or SD80 interface module. The thruster can be set to engage automatically below a user-defined speed threshold, and configured separately for normal and Work modes. The A2004 also supports specialized heavy-duty rudder feedback units designed for reliable operation aboard commercial vessels.
Product Specifications
Simrad A2004 Autopilot Pack - No Compass [000-13899-001] Product Specifications
Specifications:

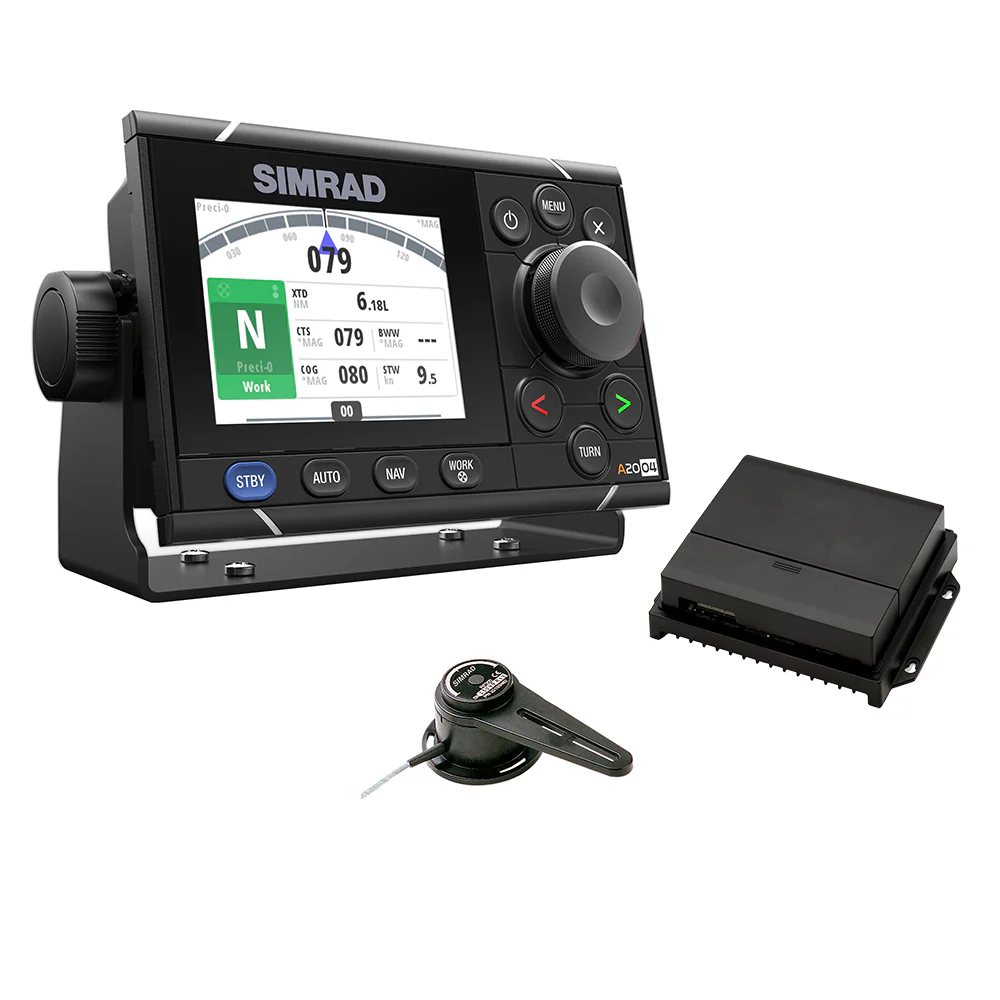

Package Contents
-
A2004 Rotary Autopilot Control Head
-
4.1" optically bonded color display with 170° viewing angle
-
Large rotary control dial
-
Dedicated buttons for steering modes and automated turn patterns
-
AC70 Autopilot Computer (central processing unit)
-
RF300 Rudder Feedback Unit (real-time rudder position data)
Key Features
-
Proven Simrad interface for commercial marine applications
-
Continuum Steering Technology for precise, responsive steering
-
Thruster integration support for enhanced maneuverability
-
Automated turn patterns for fuel-efficient, hands-free maneuvers
-
No Drift Steering to maintain course against wind and tide
-
Supports flush and bracket mounting configurations
-
NMEA 2000® connectivity for seamless integration
Physical
Box & Shipping
Other
Product Manual
N/A
Product Warranty
Simrad Warranty
Simrad Yachting / Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Simrad Yachting / Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Simrad Yachting / Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Recreational Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Simrad Yachting manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW).  These units are certified to different standards for different markets.  Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East).  Customers should purchase units from local authorized Simrad Yachting / Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements.  In addition, customers who experience a problem can receive prompt local service and support.  Contact us for more information.
