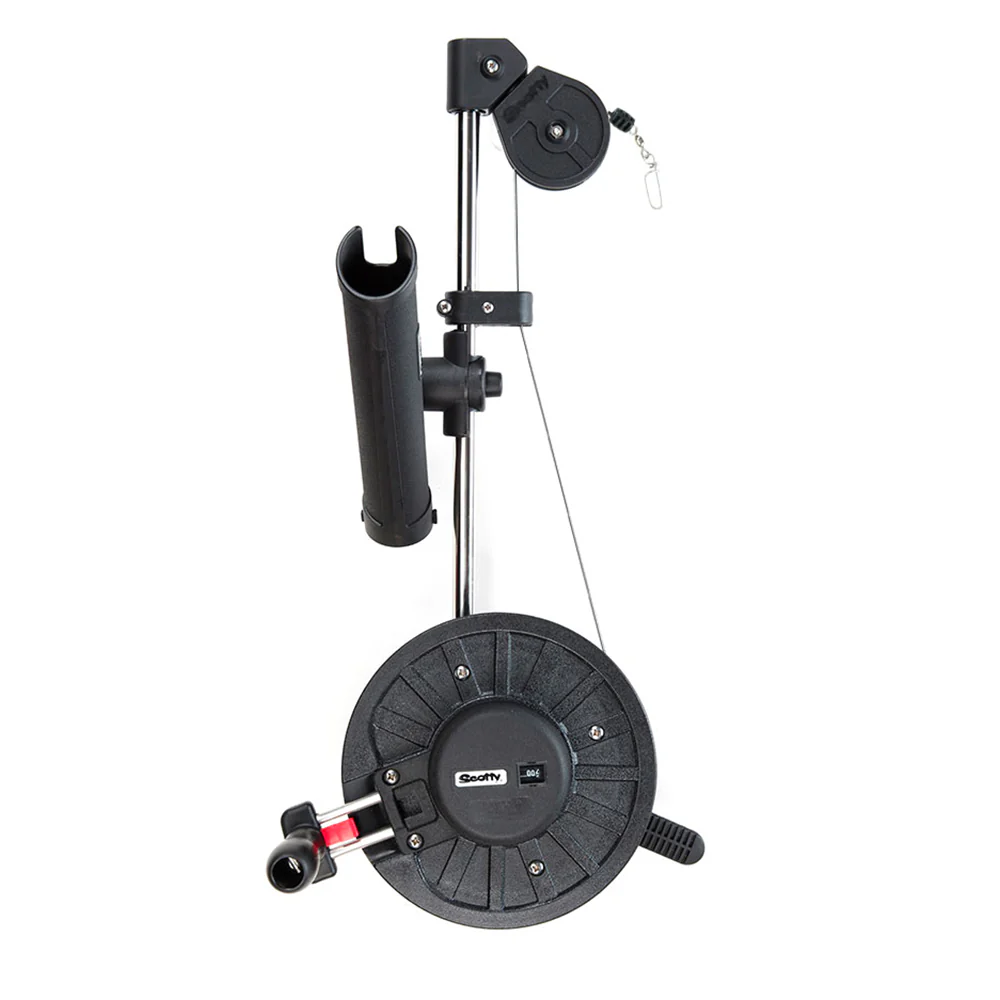

Scotty 1060 Depthking Manual Downrigger w/Rod Holder [1060DPR]
Scotty 1060 Depthking Manual Downrigger w/Rod Holder [1060DPR]
This unit includes a high speed two foot per turn spool and is fully equipped with an extension handle for extra leverage with heavy weights. Ideal for the small boat that fishes deep and needs a high speed retrieve.
PRODUCT OVERVIEW:
- Spray protected positive-drive depth counter
- 200 ft. of 150 lb. Test, Stainless Steel Downrigger Cable
- 2 ft. per turn of the spool
- Boom mounted adjustable 355 Rodmaster II Rod Holder
- Includes 1010 Quick-Slide Deck Mounting Bracket
- Marine grade stainless steel boom
- Clutch brake with the largest braking surface in the industry – In the event of a bottom hang-up, it will pay out to avoid loosing gear
- Includes Power Grip Plus Line Release
- Fully assembled and factory tested with complete saltwater protection
Downrigger Boom Length: 23″ stainless steel boom
Downrigger Boom Diameter: 3/4″
Rod Holder Interior Diameter: 1.85″
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Scotty 1060 Depthking Manual Downrigger w/Rod Holder [1060DPR] Product Specifications
| Feature | Details |
|---|---|
| Model (SKU) | 1060 Depthking (1060DPR) |
| UPC | 062017310602 |
| Boom | 23″ fixed stainless steel (¾″ dia) |
| Cable | 200 ft of 150 lb test stainless steel |
| Line Retrieval Speed | 2 ft per crank revolution (high-speed crank with extension handle) |
| Depth Counter | Spray-protected positive-drive mechanical counter (model 1145) |
| Brake | Clutch brake with large surface—automatic payout on snag |
| Rod Holder | Adjustable boom-mounted Rodmaster II (#355) with 1.85″ internal diameter |
| Line Release Included | Power Grip Plus 18″ (model 1170) |
| Mount Included | Quick‑slide #1010 Deck Mount Bracket |
| Assembly & Warranty | Fully assembled, saltwater protected, limited lifetime warranty |
| Product Weight | ≈ 8 lb (3.7 kg) boxed |
| Dimensions (Boxed) | ~29″ L × 11″ W × 7″ H |
| Prop 65 Warning | Contains lead—California compliance |
| Origin | Proudly made in Canada |
