RUiXU Lithi2-16 | 51.2V 314Ah | 16kWh Outdoor Battery Storage | UL1973 UL9540A
RUiXU Lithi2-16 | 51.2V 314Ah | 16kWh Outdoor Battery Storage | UL1973 UL9540A
DescriptionĀ
Lithi2-16
Nominal voltageĀ ļ¼51.2V
Nominal [email protected] ļ¼314Ā Ah
Min. [email protected]ļ¼314 Ah
Nominal energy :16.07kWh

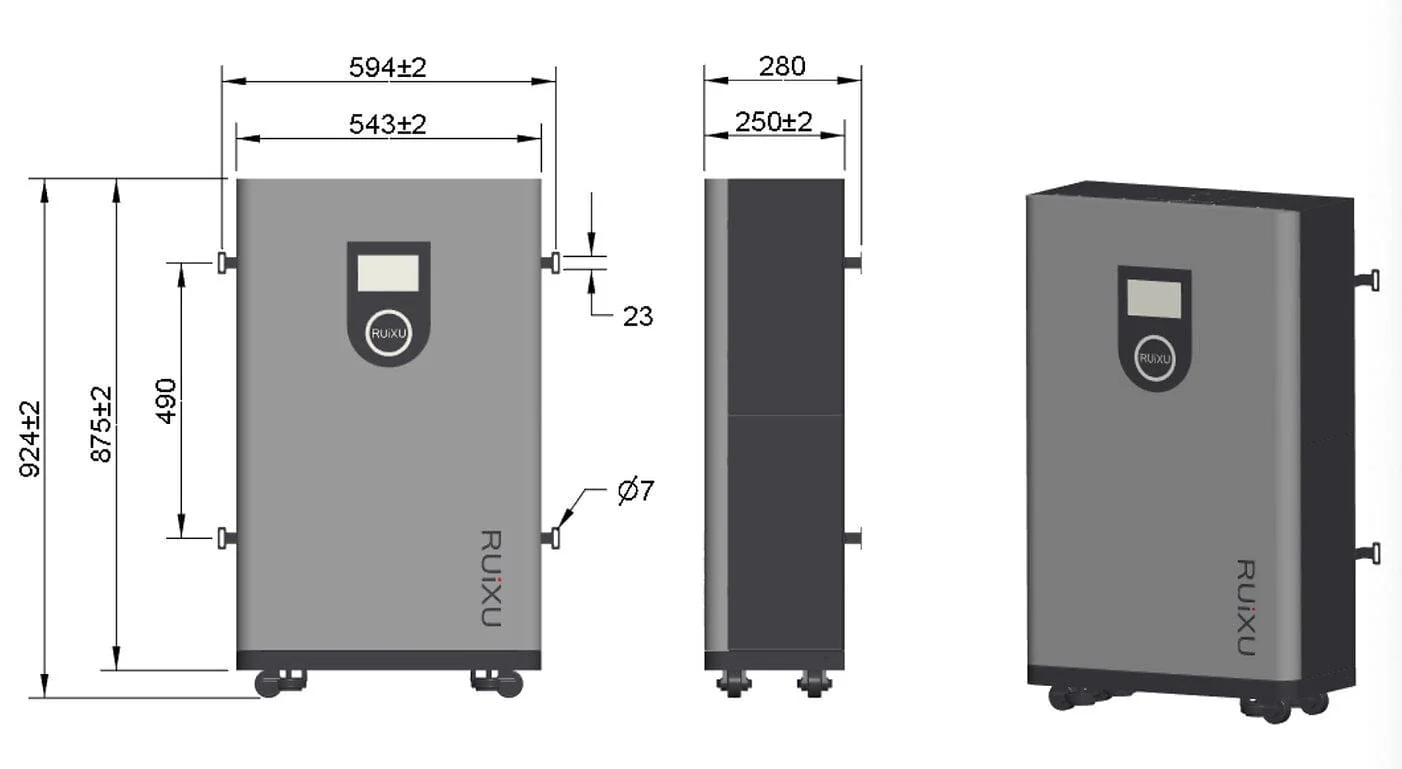

Dimesion(H*W*D):924(with wheels)*543*250mm | 36.3(with wheels)*21.3*10inch
Weight: ~145kg ļ¼320lb)Ā
Ā
COMMUNICATIONS:
Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,
Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,
MUST,Sunsynk,Schneider

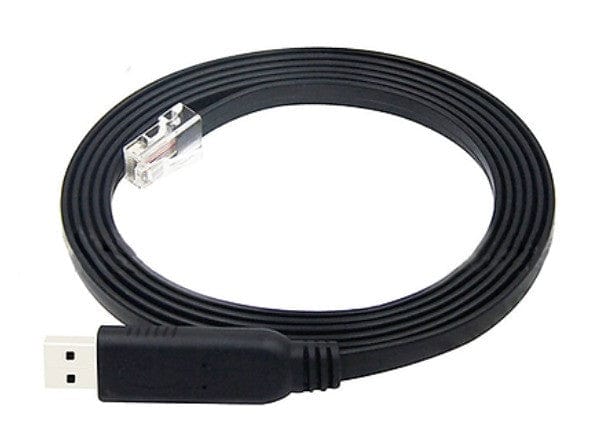

RS485 : MPP,Voltronic,RCT,Alpha outback
EXPANDABLE
Support 32pcs in parallel
expandable from 16kWh to 257kWh for both residential and commercial buildings.

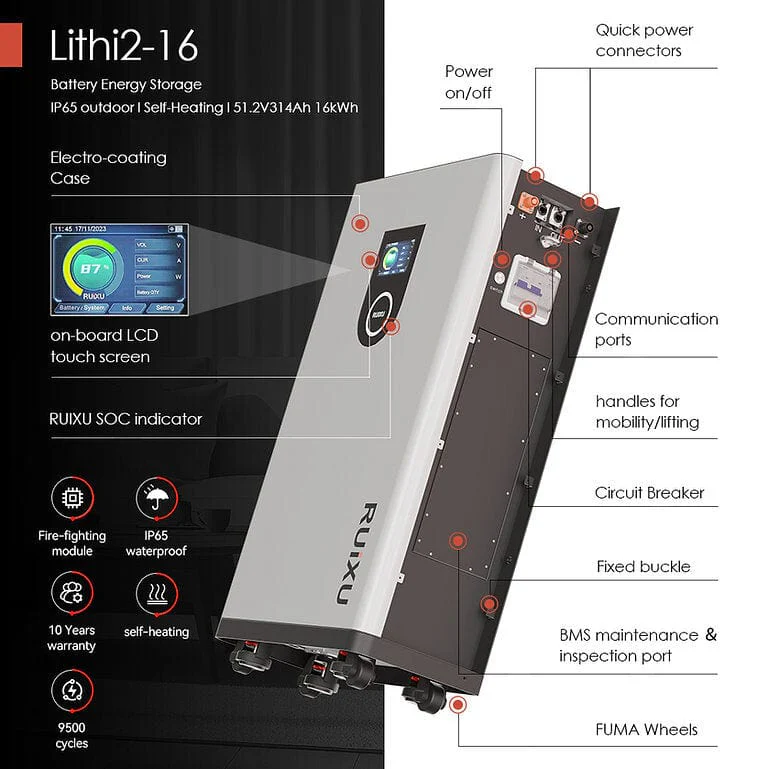

Quick plugs provide 250A (continuous) overcurrent capacity, easy tool-less connection,Ā long-term anti-loosening and heating protection.
Four concealed heavy-duty Fuma wheels facilitate movement of the battery withoutĀ detracting from the elegant design. An anti-tipping mount on the back anchors the batteryĀ to the wall.
An inspection port on the side of the battery provides access to the BMS and fuse for ease ofĀ maintenance.

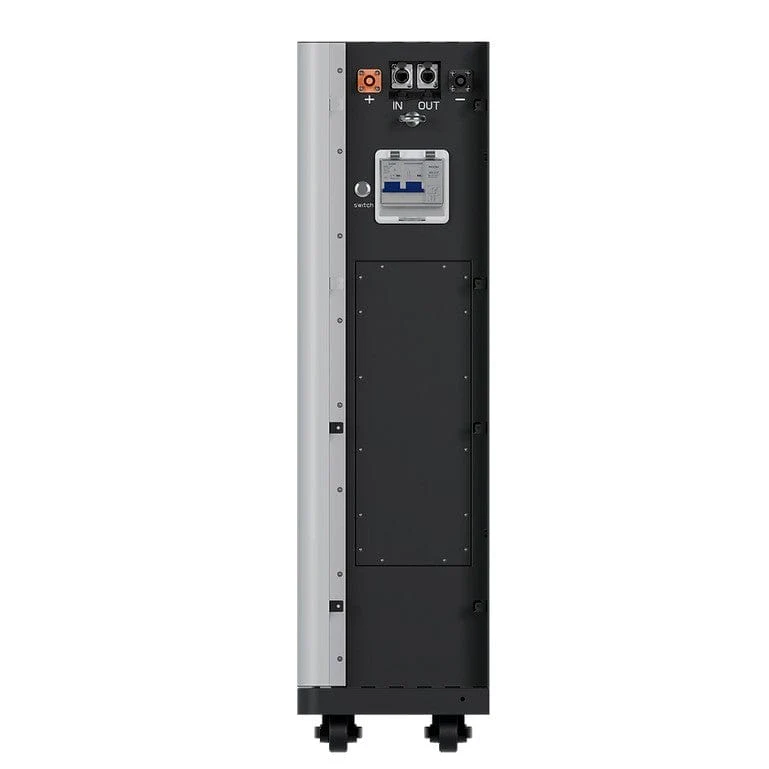

All-pole, dual protection through fuse (negative terminal) and micro circuit breakerĀ (positive terminal).
A double equilibrium approach achieves efficient cell balancing by calculating capacityĀ differences between battery cells from charging-process data and by extending theĀ balancing time, improving the efficiency and reliability compared to general passive andĀ active balancing modes.
Keeping your battery charged in cold temperaturesĀ .
Product Specifications
RUiXU Lithi2-16 | 51.2V314Ah | 16kWh Outdoor Battery Storage | UL1973 UL9540A Product Specifications
| Nominal voltage | 51.2V |
|---|---|
| Nominal capacity | 314Ah |
| Nominal energy | 16kWh |
| Operating voltage range | 44.8V~56.0V |
| Charge voltage | 56.8V |
| Float voltage | 54.6V |
| Recommended charge current | 140A |
| Max.charge current | 200A |
| Recommended discharge current | 100A |
| Communication | RS485/CAN |
| Peak discharge current | 240A/15S 360A/1S |
| IP rating | IP65 |
| Cycle life@80% DOD | ā„ 9500 cycles |
| Design life | 15Years |
| Operation temperature | Min: -20Ā°C (-4Ā°F) Max: 50Ā°C(122Ā°F) |
| Storage temperature | Min: -20Ā°C (-4Ā°F) Max: 45Ā°C(113Ā°F) |
| MECHANICAL SPECIFICATIONS | |
| Dimensions ( H Ć W Ć D) | 924(with wheels)*543*250mm 36.3(with wheels)*21.3*9.8inch |
| Weight | 145kgs |
| Cell(s) | 16S1P |
| Electrolyte | LiFePO4 |
| Certifification | CE/ IEC62619 /UN38.3 UL1973/UL9540 pending |
| Warranty | 10Years |
| HEATER SPECIFICATIONS | |
| Voltage | 56V |
| Power Consumption | 480W |
| Function | sellf-heating starts ā¤41Ā°F (5Ā°C), ā„53.6Ā°F(12Ā°C) self-heating stops |
Ā
RUiXU Lithi2-16 Spec Sheet
Product Manual
RUiXU Lithi2-16 | 51.2V314Ah | 16kWh Battery Storage | UL1973 ,UL9540A Manual
Product Warranty
RUIXU(āthe Sellerā) warrants each RUIXU branded battery (āthe Productā), as listed below, sold by RUIXU or any of its authorized distributors or dealers, to be free of defects for the period as listed in the table below (āthe Warranty Periodā), from the date of sale as determined by either the customersā sale receipt, the shipping invoice and/or the battery serial number, with proof of purchase. Within the Warranty Period, subject to the exclusions listed below, the Manufacturer will credit, replace or repair, if serviceable, the Product and/or parts of the Product, if the components in question are determined to be defective in material or workmanship.
The Warranty Period for Physical Goods purchased from RUiXU Battery is 10 Years.
RUiXU Battery will replace or repair the product at no charge, using new or refurbished replacement parts.
The Seller has no obligation under this limited warranty for product subjected to the following conditions (including but not limited to):
*Damage caused during shipping or mishandling of the Product
*Damage due to improper installation:loose terminal connections, under-sized cabling, incorrect series (cannot be used in series) or parallel connections, reverse polarity connections, or insufficient space for airflow
*Environmental damage such as inappropriate storage conditions as defined by the Manufacturer, exposure to extreme hot or cold temperatures, fire or freezing, or water damage, impact, or collision
*Damage due to improper operation or maintenance such as under- or over-charging the Product, cold temperature charging, lack of cleaning resulting in corroded terminal connections or build-up of dirt, debris, organic matter, fossil fuels, or chemicals on the Product casing

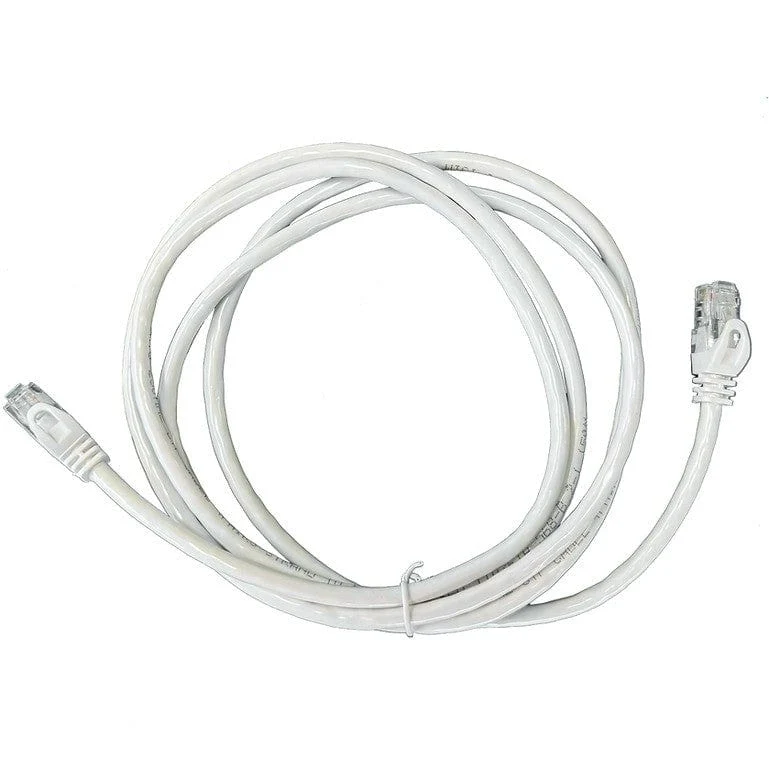

*Improper use of CAN cables such as improper connections or not connecting them
*Installing CAN communication devices that do not follow the appropriate CANbus guidelines as defined by the Manufacturer
*Product that has been opened, modified, or tampered with Tampering or removal of manufacture date codes.
*Product that was used for applications other than which it was designed and intended for by the Manufacturer
*Product that was under-sized for the application.
This Limited Warranty does not cover a Product that has reached its normal end of life due to usage which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of Energy over its life which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.
Submitting A Warranty Claim
To submit a warranty claim, please contact the original place of purchase. The Product may be required to be shipped back to the Seller for further inspection. The Product must be shipped in compliance with UN38.3. Please note that DOT requires all personsā shipping batteries to be Hazmat certified.
Technical Support
If you have technical questions about the Product, please contact the place of purchase or RUIXU Battery directly atĀ [email protected]
Product FAQs
N/A
