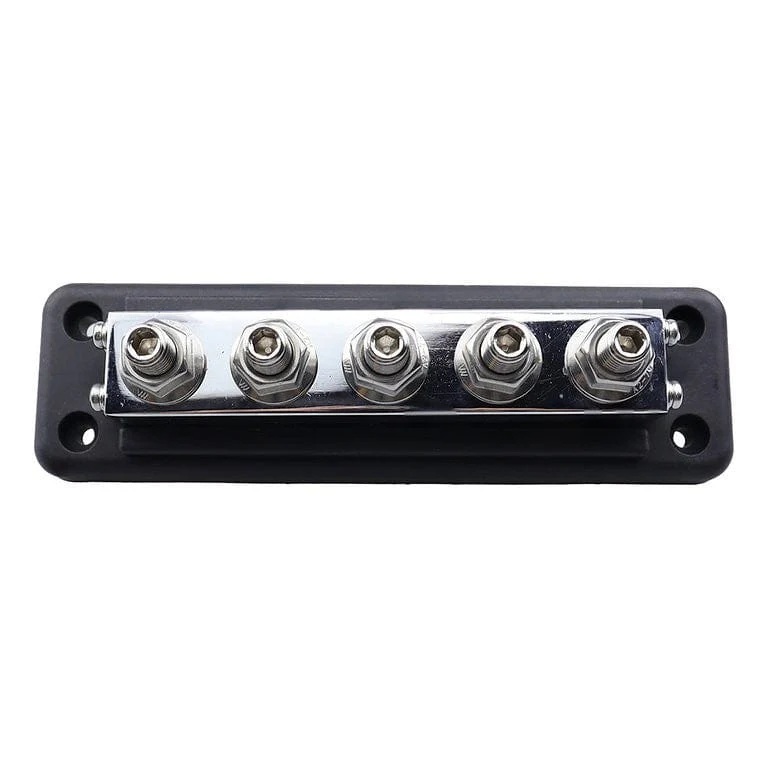

RUiXU Busbar | 5 x 3/8" Terminal Post + 5 x 14mm Fastening Nuts (work with OP140 or OP200)

RUiXU Busbar | 5 x 3/8" Terminal Post + 5 x 14mm Fastening Nuts (work with OP140 or OP200)

RX5600

Dimensions (HxWxD)(with cover) :2.2 x 8 x 2.2 inch / 55 x 204 x 56 mm

Weight:1.7 lb / 0.75 kg

• Heavy Duty 5-Post Power/Ground Distribution Busbar
• (X5) 3/8" Terminal Post & (x4) 14mm Fastening Nuts
• Constructed out of Highly Conductive Nickel Coated Copper
• Features a Robust Polymer Mounting Base
• Each busbar is fitted out with a removable protection cover

Product Specifications

RUiXU Busbar | 5 x 3/8" Terminal Post + 5 x 14mm Fastening Nuts (work with OP140 or OP200) Product Specifications

Max. current	600 A
Max. Voltage	70 VDC
Terminal diameter	3/8 inch / 9.53 mm
Terminal height	0.76 inch / 19 mm
Terminal material	Stainless steel
Flange nut material	Stainless steel
Recommended torque	180 lbf·inch / 20 N·m
Screw terminals	diameter #8 (0.164 inch) / 4.2 mm
Screw material	Stainless steel
Recommended torque	17 lbf-inch / 2 N·m
Busbar material	Tin-plated copper (19 x 24 mm)
Base material	ABS, black, UL 94 V-0
Cover material	ABS, black, UL 94 V-2
Weight(RX5600)	1.7 lb / 0.75 kg
Dimensions (HxWxD)(with cover)	2.2 x 8 x 2.2 inch / 55 x 204 x 56 mm

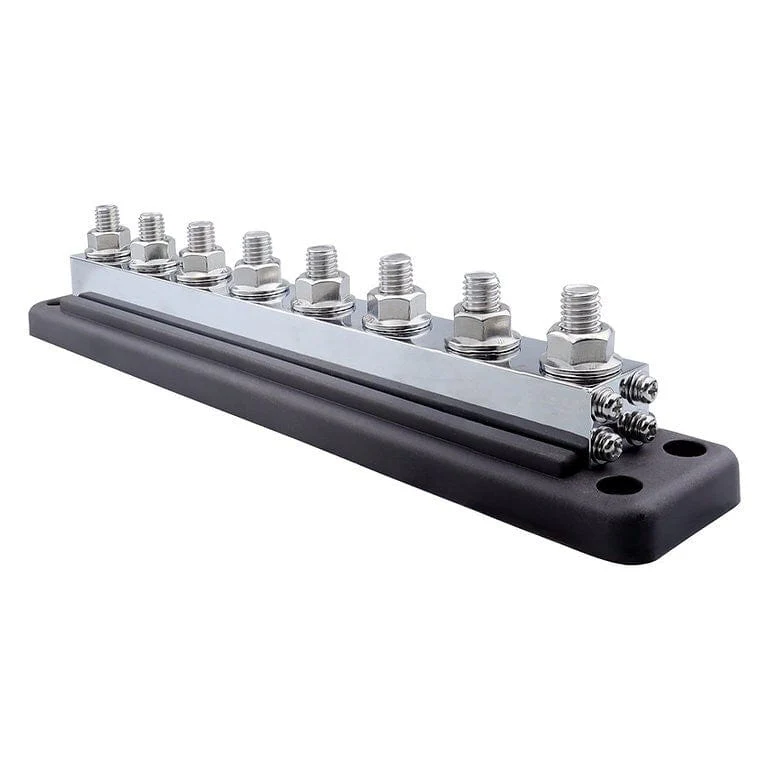

Weight(RX8600)	2.9 lb / 1.3 kg
Dimensions (HxWxD)(with cover)	2.2 x 12.4 x 2.2 inch / 56 x 316 x 56 mm
