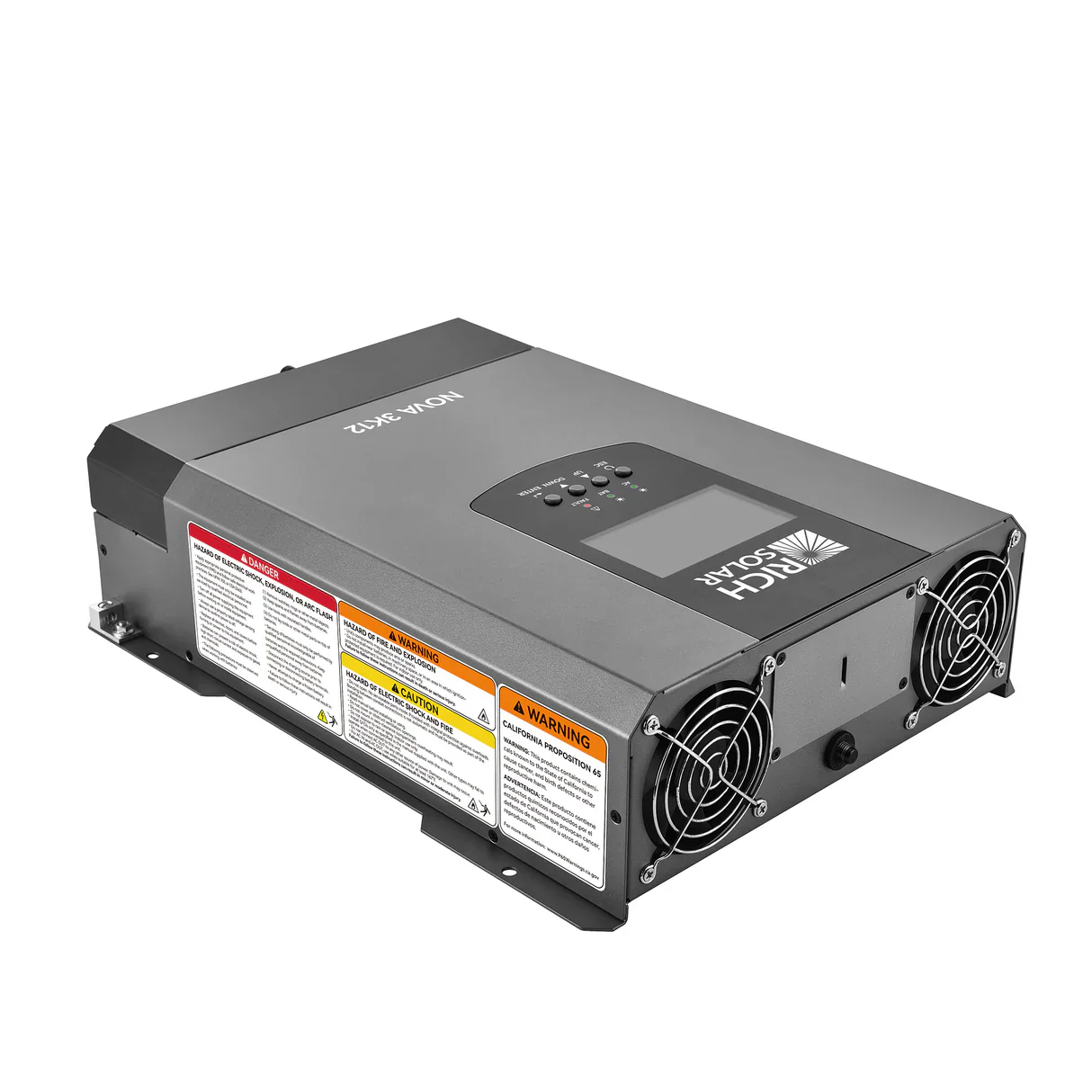

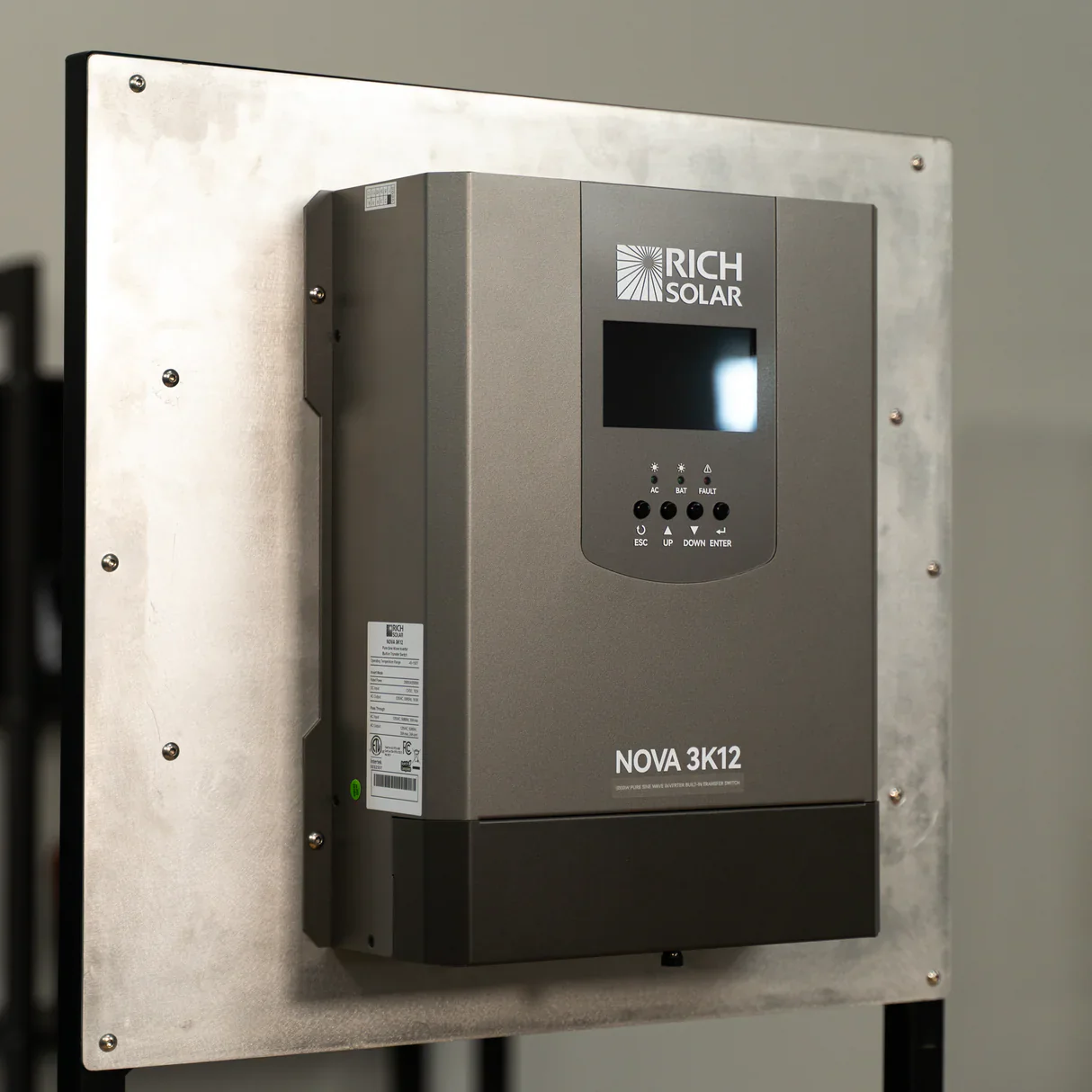

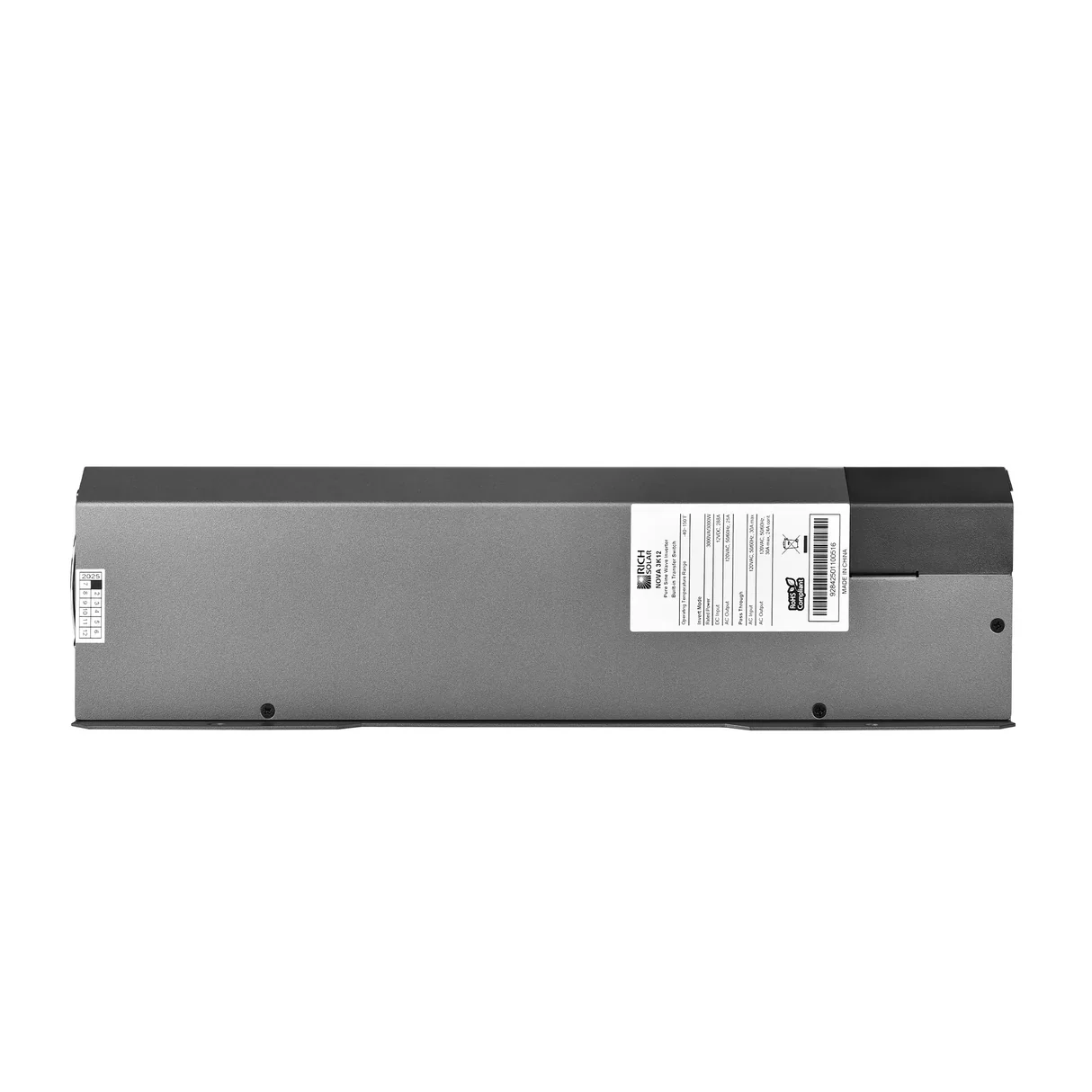

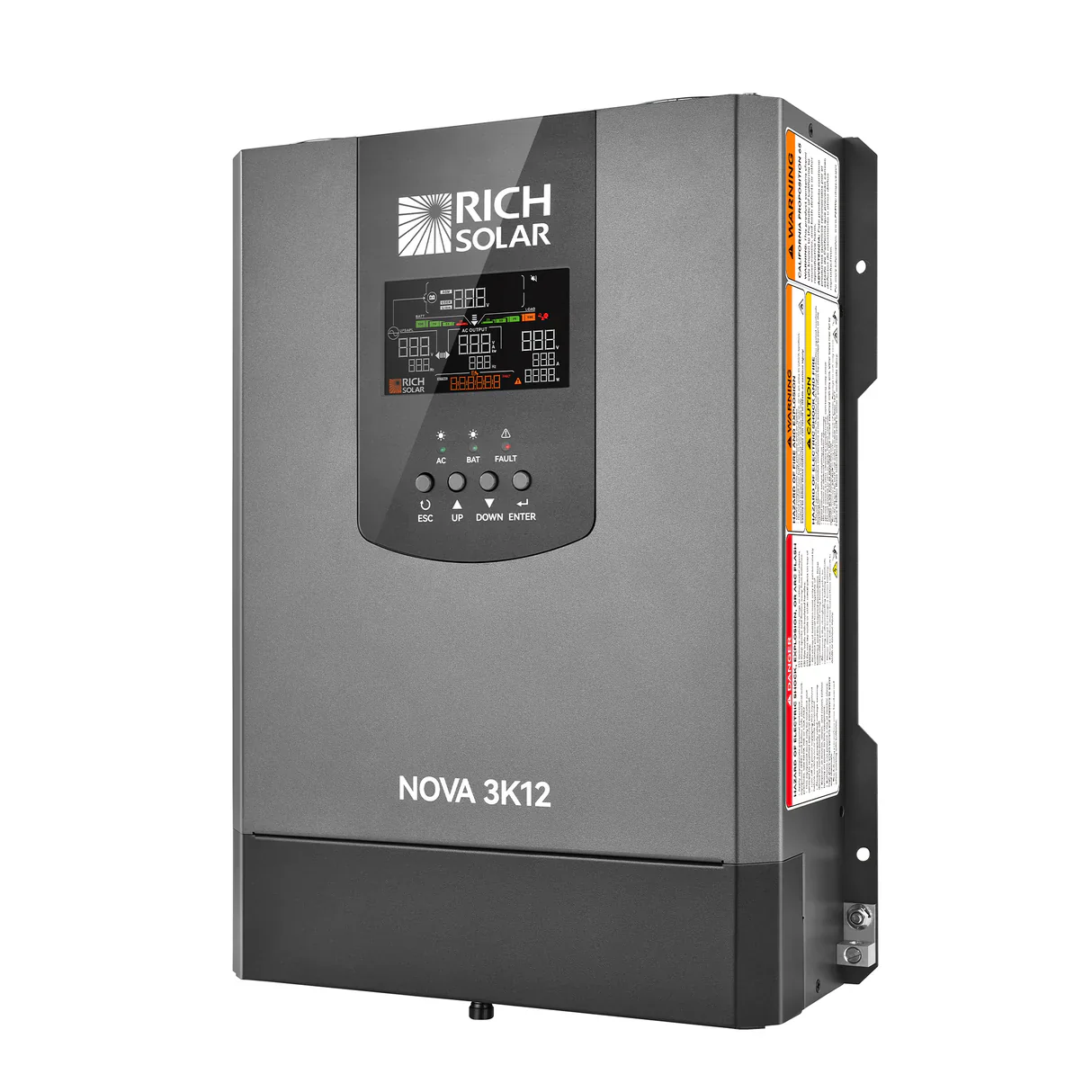

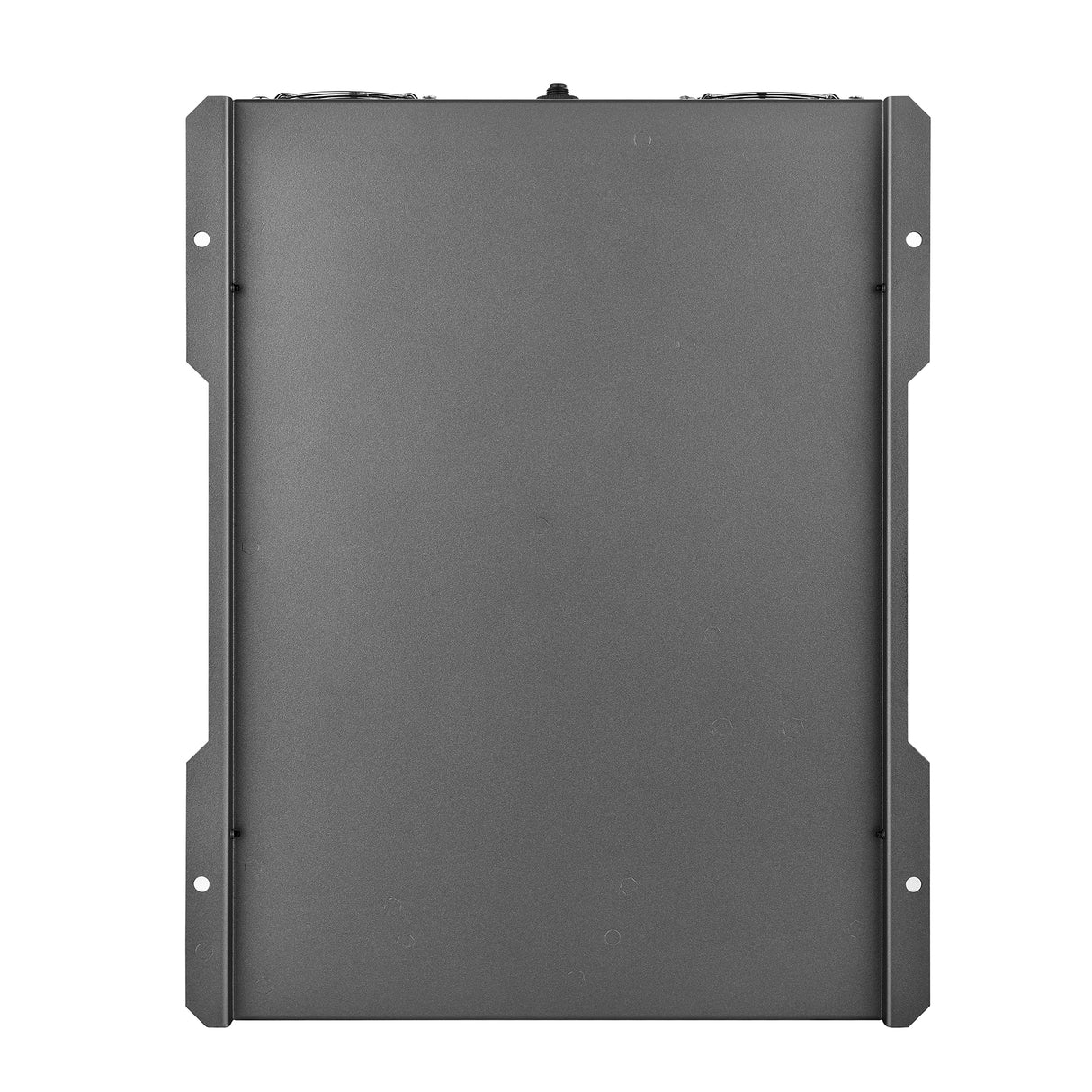

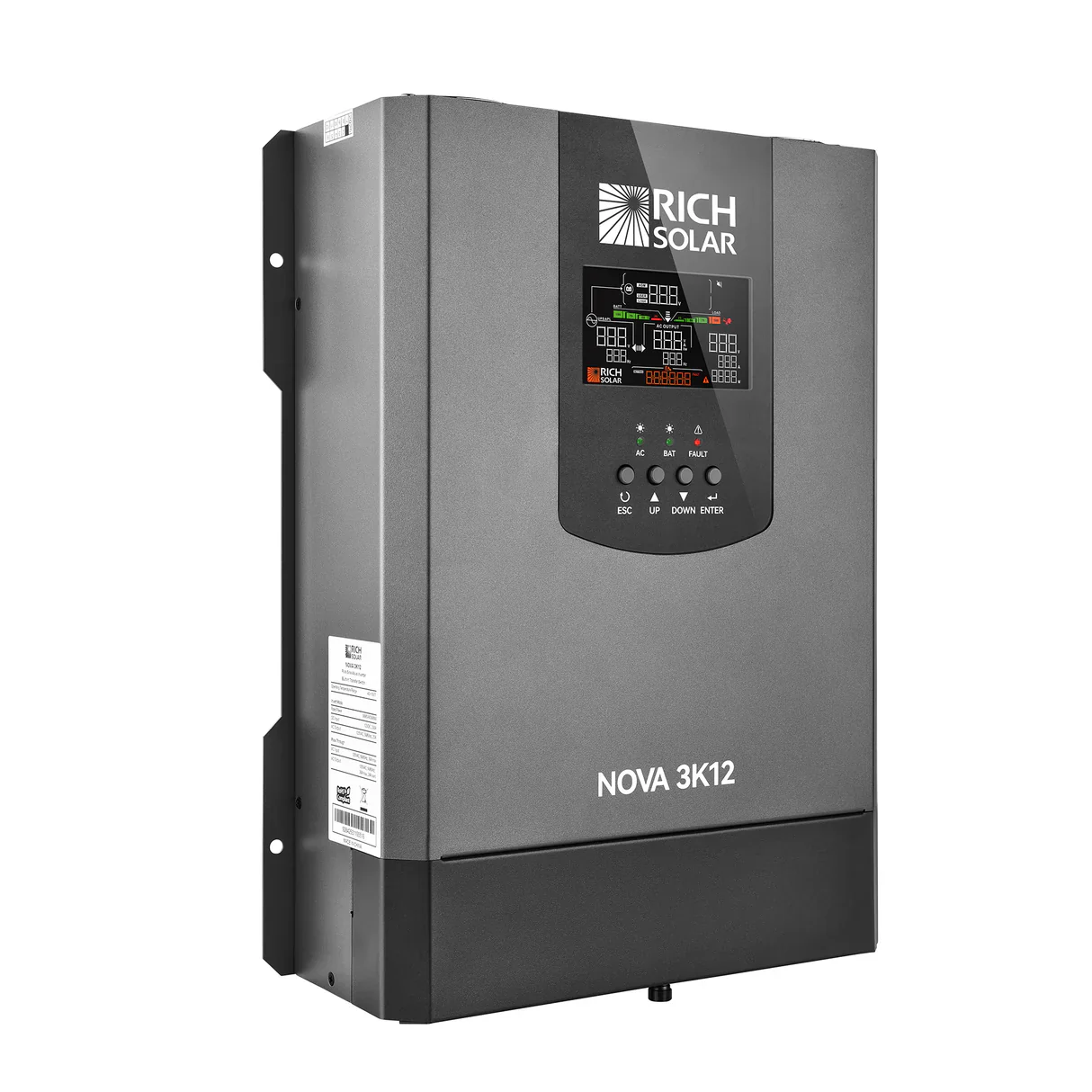

Rich Solar NOVA 3K12 | 3000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch | UL458 Certified for RVs, Campers, Trailers, Vans
Rich Solar NOVA 3K12 | 3000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch | UL458 Certified for RVs, Campers, Trailers, Vans
Description
Features
- Pure Sine Wave Output (<5% THD): Delivers clean, stable power for sensitive electronics, including medical equipment and servers.
- 91% High Efficiency: Maximizes battery life with minimal energy loss and low standby consumption.
- Seamless Automatic Transfer Switch: <20ms transfer time for uninterrupted power during outages; Dual transfer modes: Normal (fridges, tools) / Fast (computers, servers).
- Advanced Protection System: Adjustable low voltage shutdown (10.5V-12.8V) with overload/short-circuit/overheat protection.

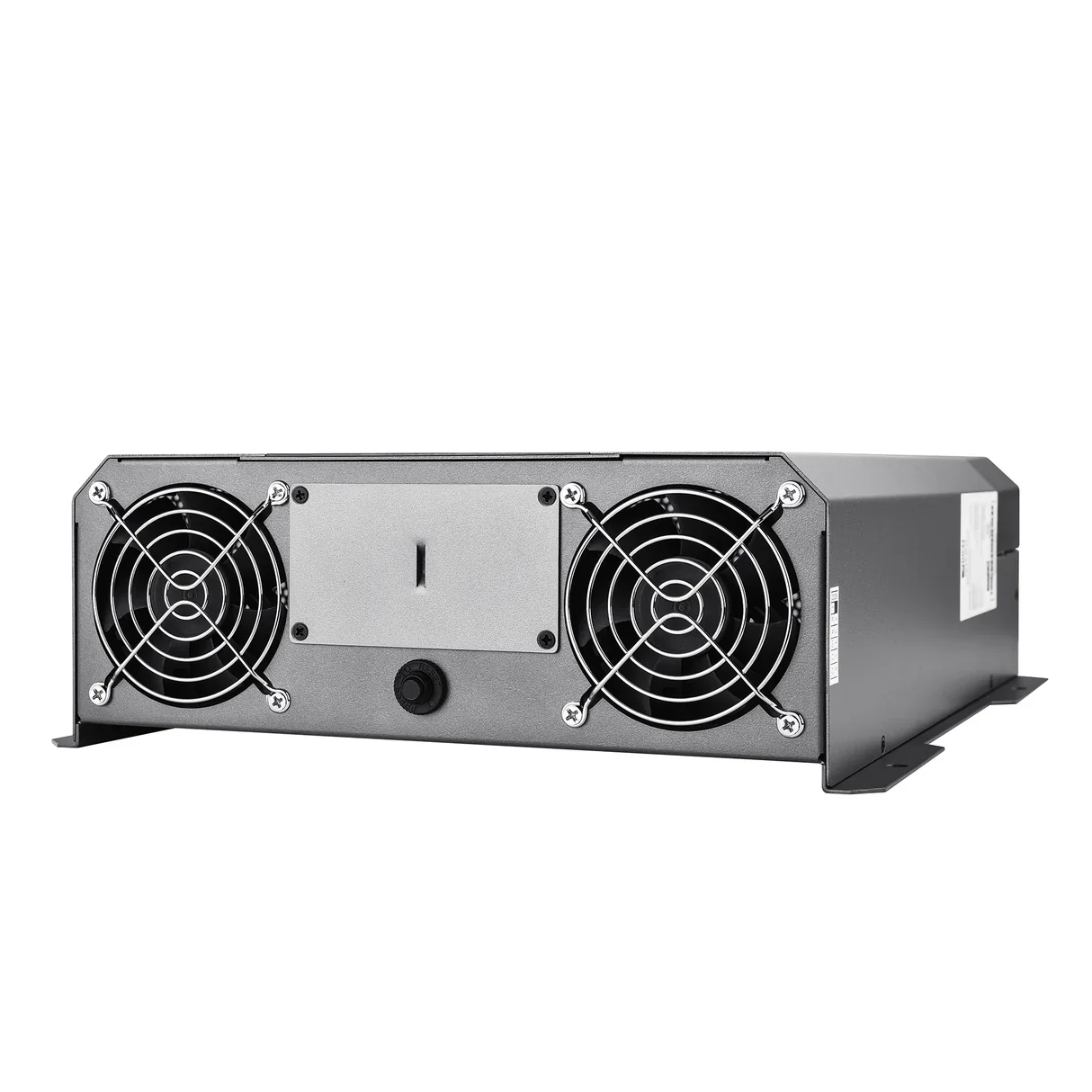

- Marine-Grade Durability: Optional drip shield and temperature-regulated cooling fan for harsh environments.

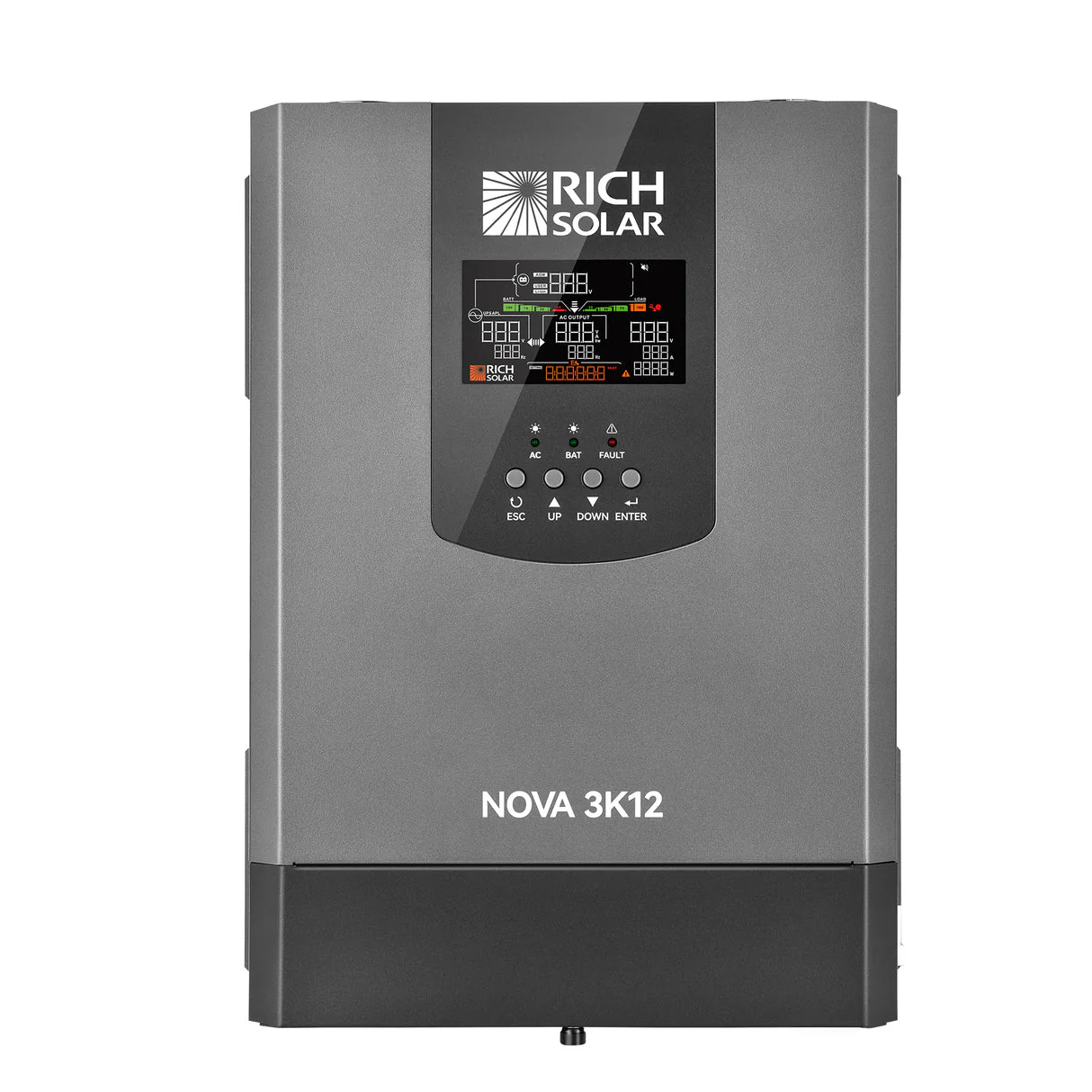

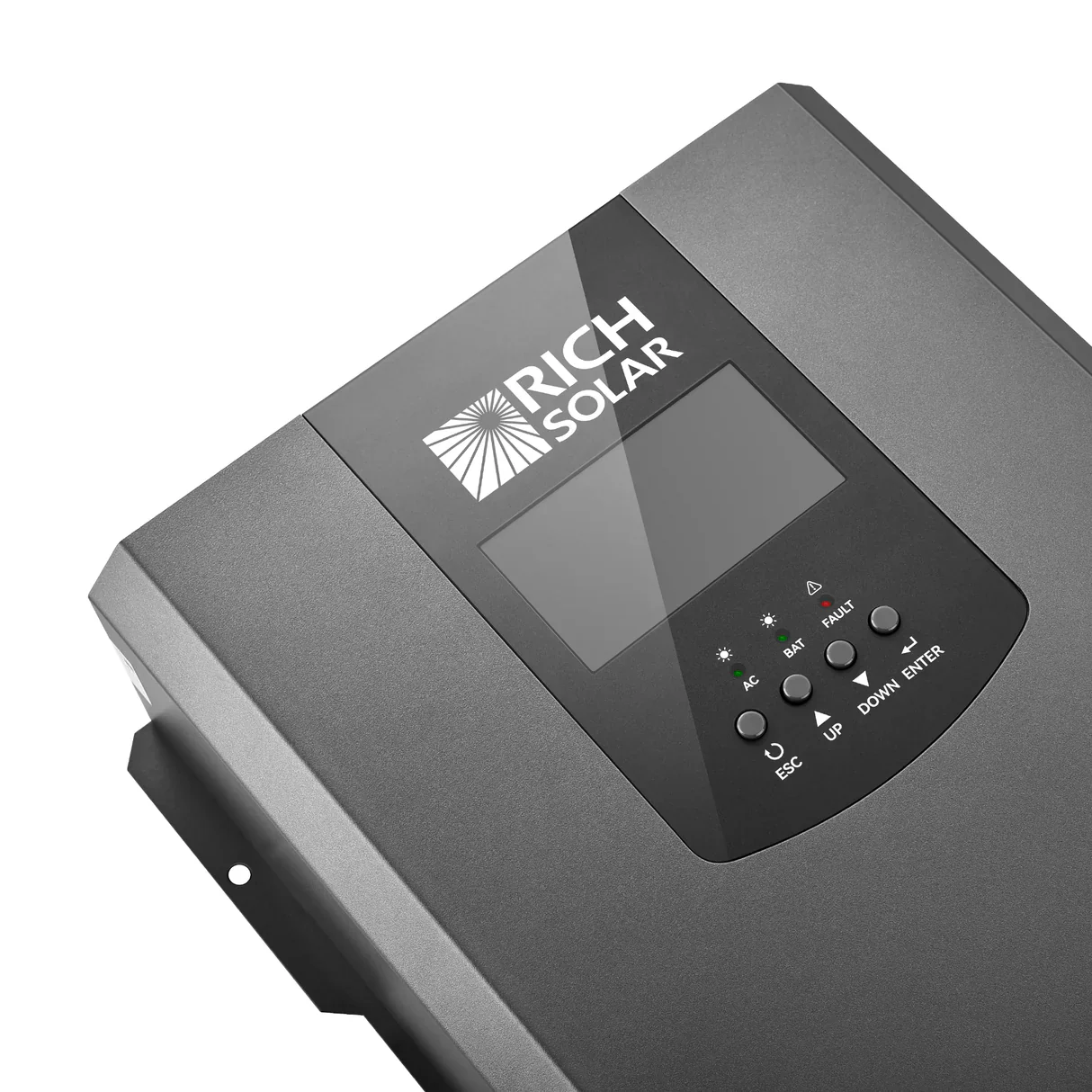

- Smart LCD Display: Shows real-time voltage, load, and system status.
- Safety Certified: Complies with UL/CSA standards, compatible with 12V deep-cycle and lithium (BMS) batteries.
Product Specifications
Rich Solar NOVA 3K12 | 3000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch | UL458 Certified for RVs, Campers, Trailers, Vans Product Specifications
| Category | Specification |
|---|---|
| Model | NOVA 3K12 |
| Rated Output Power | 3000W |
| Peak Power | 6000W (5 seconds) |
| DC Input Voltage | 12VDC (Max 18V) |
| Communication | RS232 / RS485 |

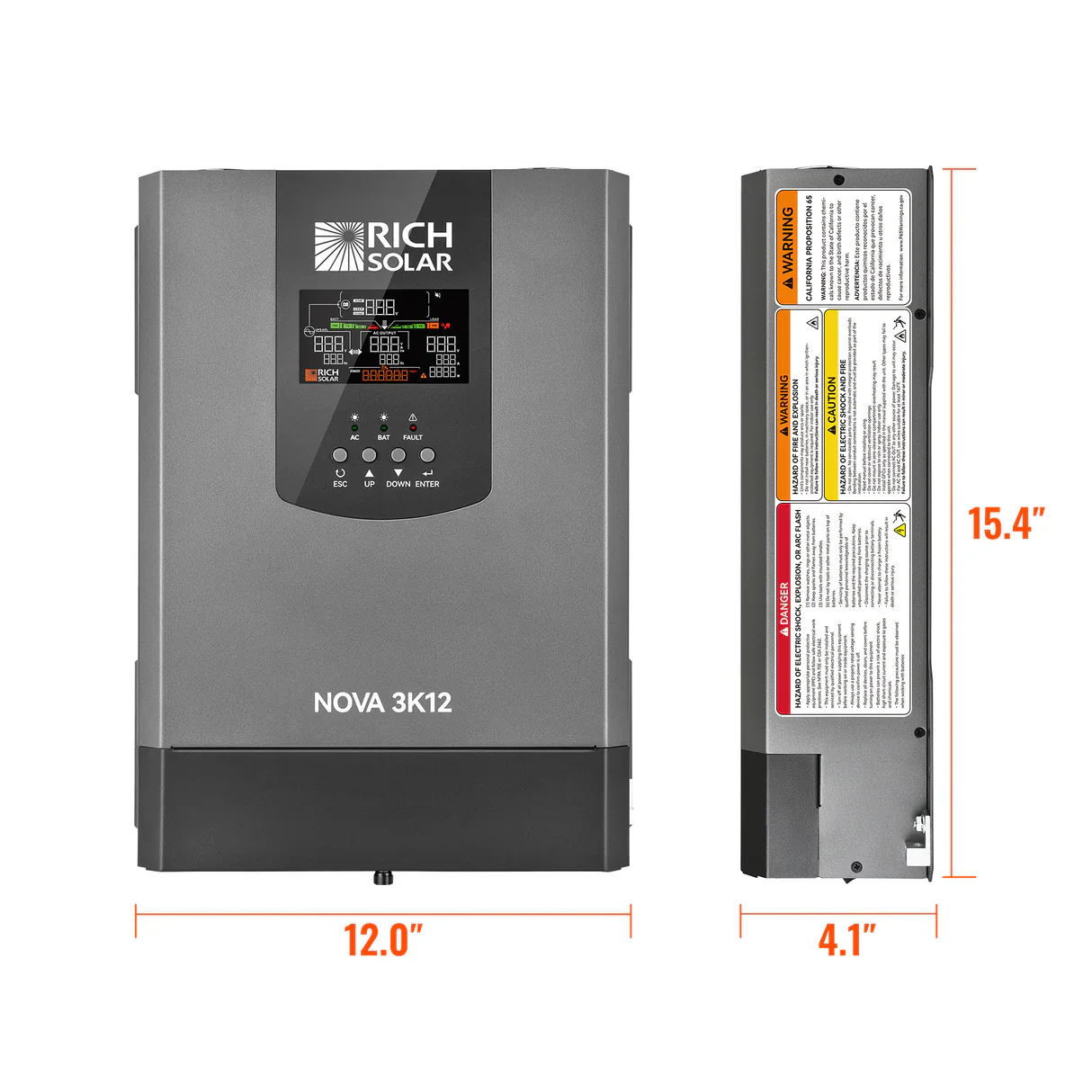

| Dimensions (L×W×H) | 15.6 × 12.0 × 4.1 in |
| Net Weight | 17.6 lb |
| AC INPUT | |
| Nominal Voltage | 120VAC |
| Operation Range | 80 – 140VAC (full power) |
| AC Input Frequency | 50/60 Hz selectable |
| Frequency Range | 45 – 70 Hz |
| AC OUTPUT | |
| Nominal Voltage | 120VAC |
| Voltage Regulation (Battery Mode) | 120VAC ± 5% |
| Output Frequency | 50Hz or 60Hz selectable ± 1% |
| THD (Battery Mode) | <5% |
| Efficiency | Peak 91%, >85% at full load |
| Waveform | Pure sine wave |
| Transfer Time | ≤ 20ms |
| Transfer Modes | Normal / Fast |
| BATTERY | |
| Nominal DC Voltage | 12VDC |
| Operating Voltage Range | 0 – 17VDC |
| Battery Compatibility | 12V deep-cycle (min. 100Ah), LiFePO4 (with BMS) |
| INDICATORS | |
| Line Mode | Green LED on |
| Battery Mode | Amber LED on |
| Warning with Output | Red LED flashing |
| Fault without Output | Red LED on |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Operating Temperature | -40°F to 150°F (-4°F to 122°F at full power) |
| CERTIFICATE | EMC Compliance: UL458, complies with FCC Part 15 |
Product Manual
Rich Solar NOVA 3K12 | 3000W 12V Pure Sine Wave Inverter Product Manual
NOVA Series Pure Sine Wave Inverter Built-In Transfer User Manual
Product Warranty
Rich Solar Product Warranty
What is the difference between DC and AC power?
DC (direct current) power is drawn directly from the battery and will run several types of
RV appliances, like lights and water pumps. AC power (alternating current), is what is
used in your home. An inverter in your RV converts your DC battery power into AC for
AC-powered devices such as TVs, hair dryers or coffee makers.
