Description

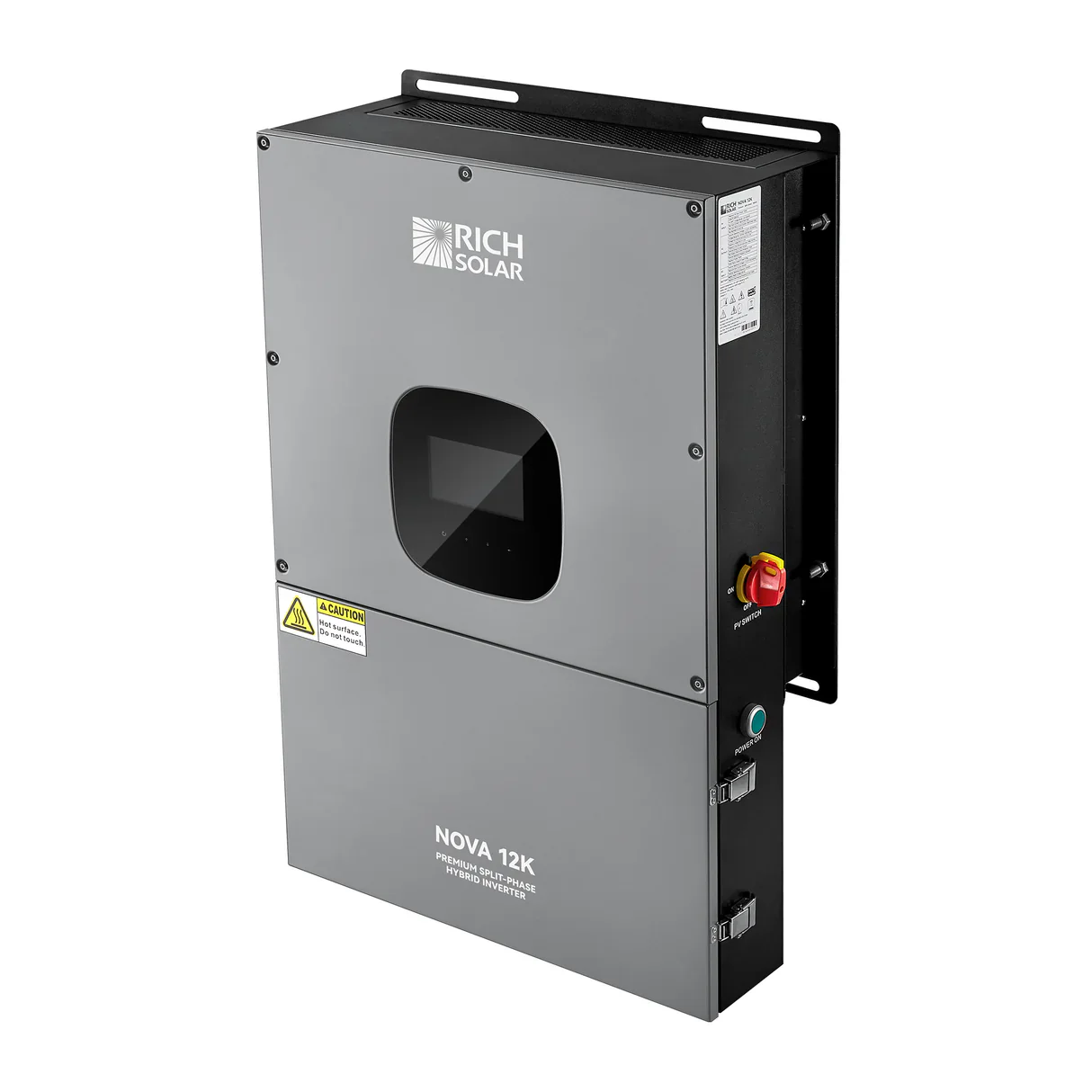

Take Control of Your Home's Energy With The Rich Solar NOVA 12K PV Hybrid Inverter
Dreaming of a home powered by clean, sustainable energy? Look no further than the Rich Solar NOVA 12K PV Hybrid Inverter. This all-in-one powerhouse seamlessly integrates solar power generation with battery storage and grid backup, giving you ultimate control over your home's energy needs.
FEATURES
- Support multiple input & output - Split phase 120/240VAC Split phase, 120V/208V Split phase

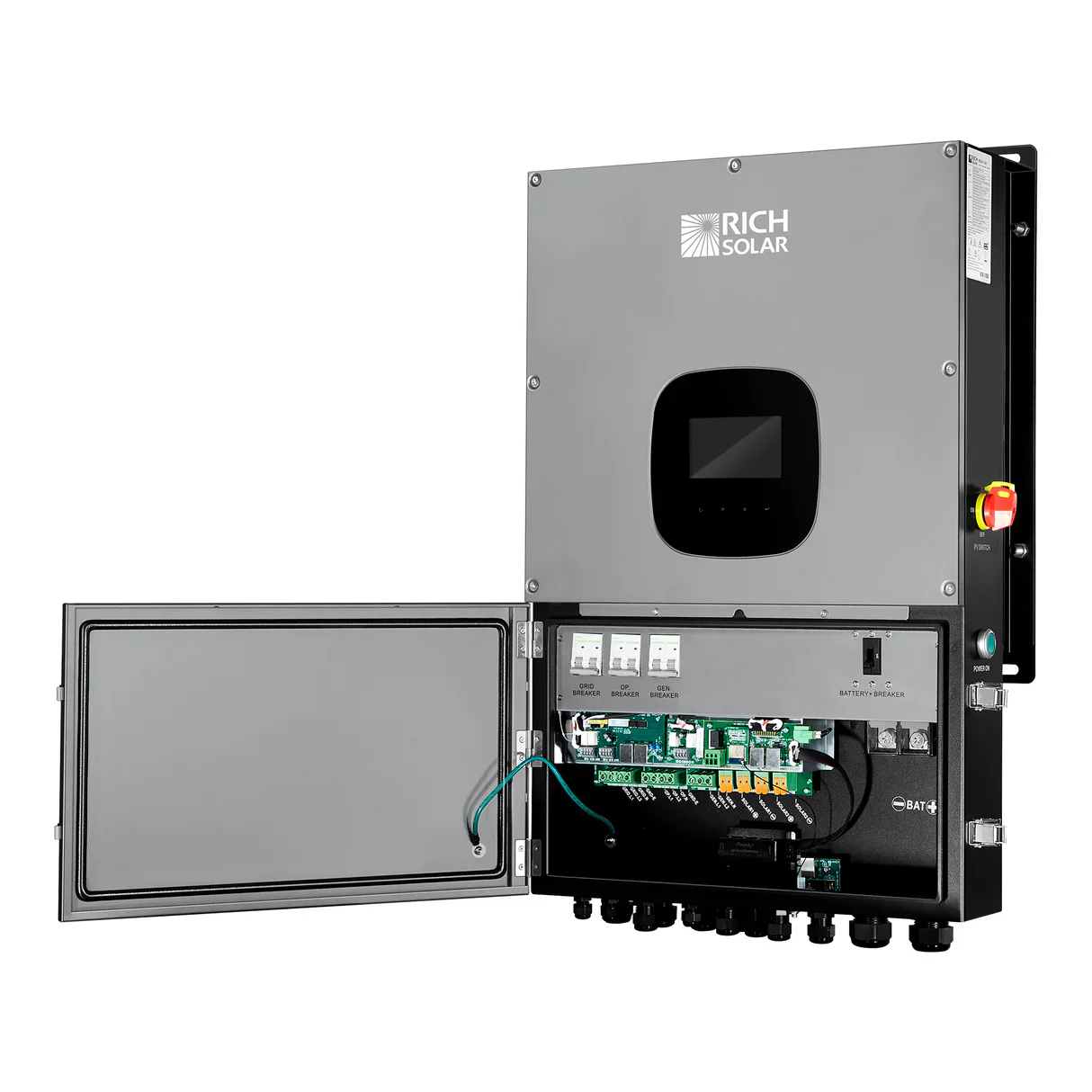

- Door-type cable compartment.
- Built-in 300A DC breaker and 60A AC breaker.
- Built-in AC coupled function.
- Built-in Wi-Fi for mobile monitoring (APP is available).
- Accepts second input power source, generator input compatible.
- Built-in arc fault detection (AFD) and rapid shutdown (RSD).
- External CT sensor to guarantee 100% self-consumption.
- Built-in communication port for BMS (RS485).
- User-adjustable charging current and voltage.
- Parallel operation up to 6 units.
- Idle Consumption: -150W (±10%)
What's In The Box
- 1 x Rich Solar NOVA 12K PV Hybrid Inverter
Product Specifications
RICH SOLAR NOVA 12K PV Hybrid Inverter | All-In-One Solar Inverter | 12000W PV Input | 10000W Output | 48V 120/240V Split Phase Product Specifications
| Category | Specification |
|---|---|
| Maximum PV Input Power | 12000W |
| Parallel Capability | Up to 6 units |
| INPUT | |
| Maximum DC Voltage | 600VDC |
| Start-up / Initial Feeding Voltage | 125VDC / 160VDC |
| MPPT Voltage Range | 120VDC – 550VDC |
| MPPT Trackers / Max Input Current | 2 / 18A |
| OUTPUT | |
| Rated Output Power | 10000VA / 10000W |
| Nominal Output Voltage | 120VAC (P-N) / 208VAC (P-P) / 240VAC (P-P) |
| Output Voltage Range | 105.5 – 132VAC per phase |
| Nominal Output Current | 41.5A per phase |
| BATTERY | |
| Battery DC Voltage Range | 40 – 62VDC / 48VDC |
| Max Solar Charging Current | 200A |
| Max AC Charging Current | 200A |
| Max Total Charging Current | 200A |
| OPERATING ENVIRONMENT | |
| Operating Temperature Range | -13°F to 140°F (>113°F derating) |
| Protection Degree | IP65 |
| Communication Ports | RS232, RS485, Wi-Fi, USB |
| PHYSICAL | |

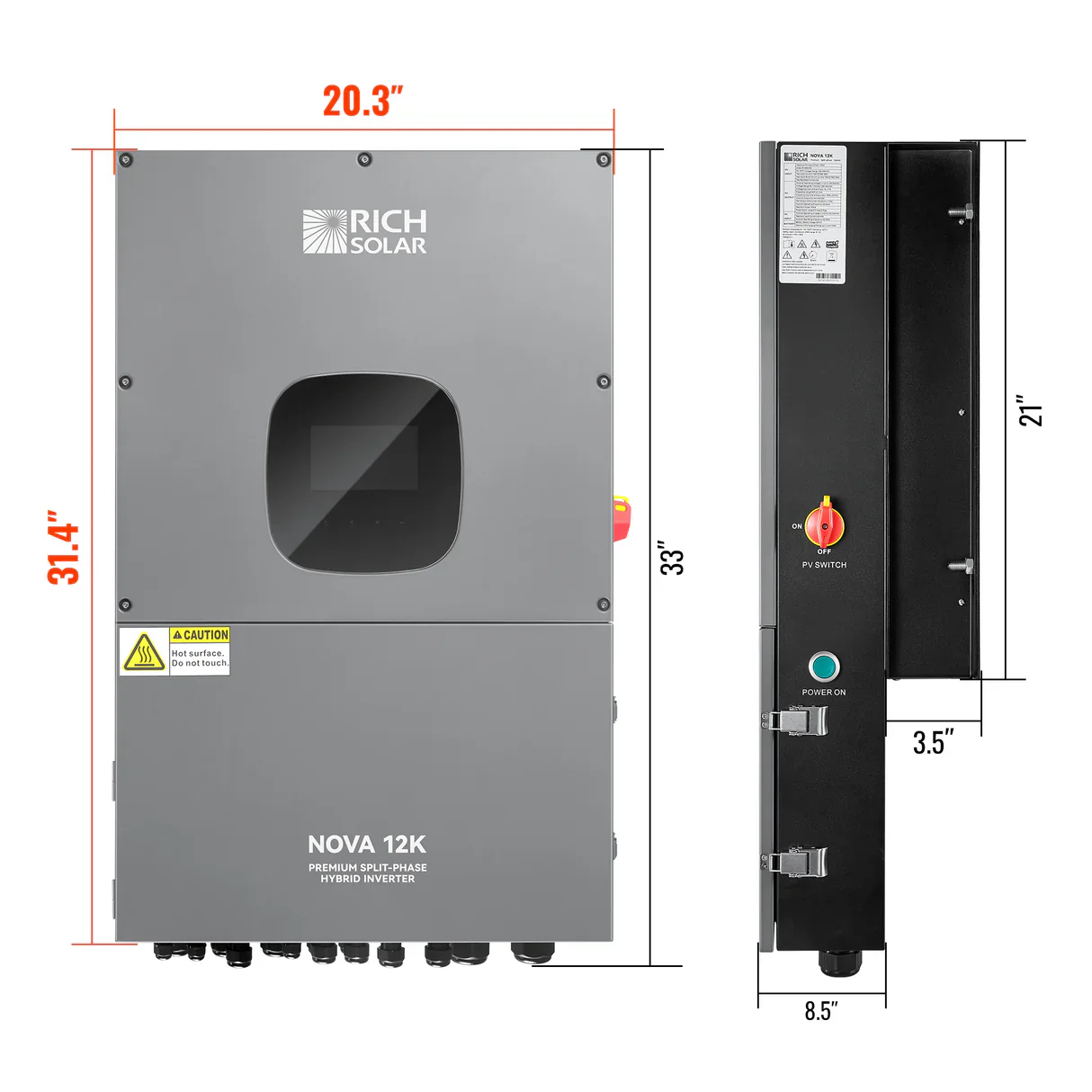

| Dimensions (L×W×H) | 8.5 x 20.3 x 28.1 in / 215.5 x 515 x 715 mm |
| Net Weight | 99.2 lb / 45 kg |
| CERTIFICATIONS | UL1741SA, UL1741SB, CSA 22.2.107.1, CEC |
