SunGold Power Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 16 X 440 Watt Solar Panel SGH-11N2E
SunGold Power Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 16 X 440 Watt Solar Panel SGH-11N2E
Description
This Hybrid Solar Kit includes 440W of solar panels, 11.4kW hybrid inverter, and 20.48kWh/51.2kWh of lithium battery storage. The system supports flexible configurations—off-grid, hybrid, or grid-tied—enabling you to power appliances with solar energy, feed excess power back to the grid, and optionally store energy to offset bills or provide backup during outages.

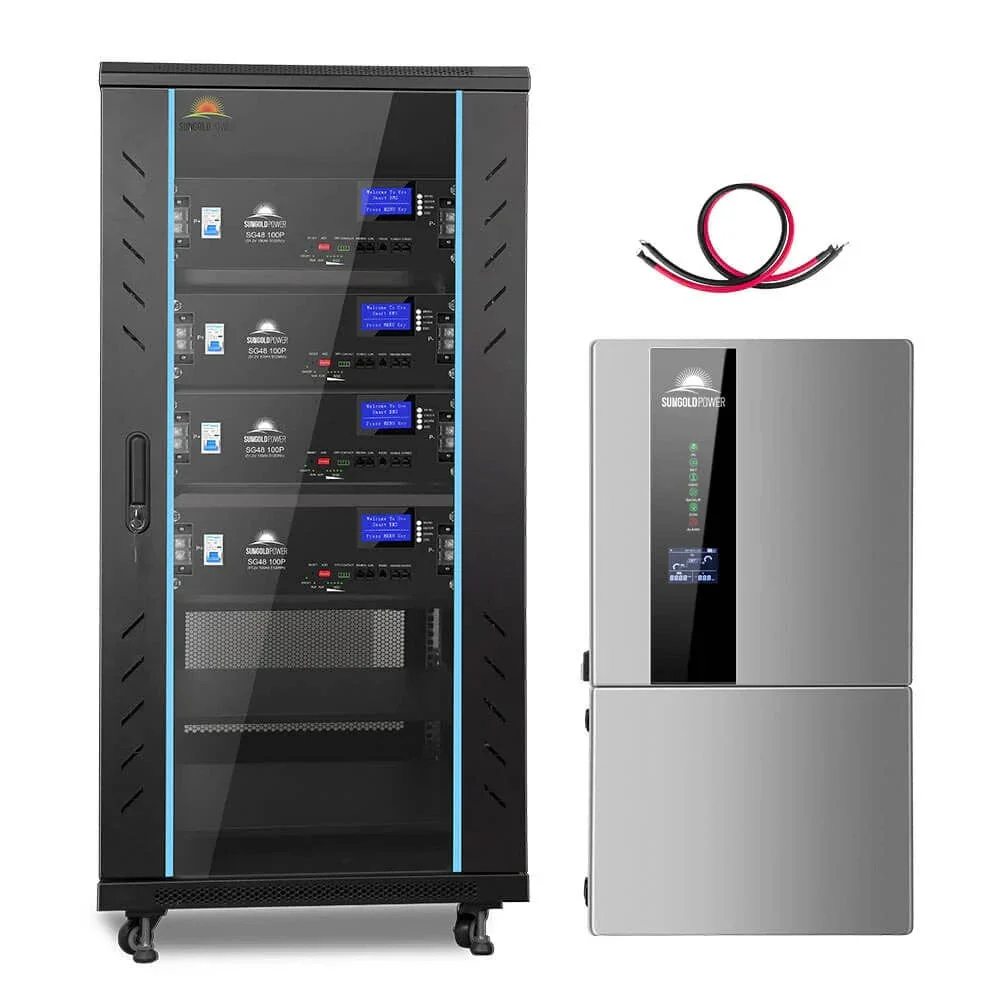

What is included with the solar kits!
SGH-11N2E:
◦ 1 X 11.4KW 48V Split Phase Hybrid Solar Inverter
◦ 16 X 440W Watt Monocrystalline Solar Panels
◦ 4 X 100AH 51.2V Lifepo4 Battery
◦ 1 X Enclosed Battery Cabinet for 4 X 100AH 51.2V Lifepo4 Batteries
◦ 2 Sets X 50 Feet, Solar Extension Cables-Inverter PV input
◦ 2/0 AWG Battery Cable
SGH-11N2E-s:
◦ 1 X 11.4KW 48V Split Phase Hybrid Solar Inverter

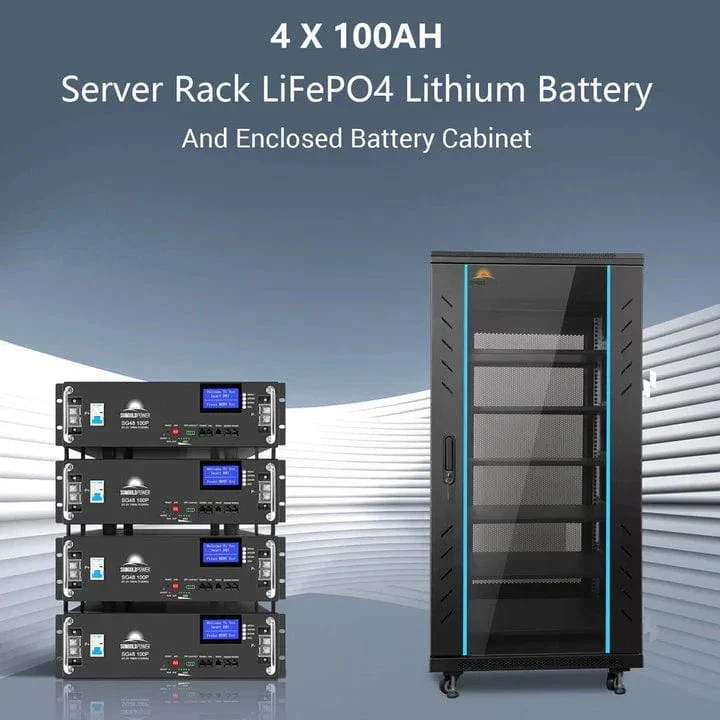

◦ 4 X 100AH 51.2V Lifepo4 Battery
◦ 1 X Enclosed Battery Cabinet for 4 X 100AH 51.2V Lifepo4 Batteries
◦ 2/0 AWG Battery Cable
Product Specifications
SunGold Power Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 16 X 440 Watt Solar Panel SGH-11N2E Product Specifications
11.4KW Hybrid Solar Inverter
| Specification | Details |
|---|---|
| AC Output | 11,400W |
| Output Waveform | Pure Sine Wave |
| AC Output Voltage | 120/240V (Split Phase) / 208V (2/3 Phase) VAC |
| Max PV Input Voltage | 600VDC |
| Max PV Input Power | 15,000W |
| Max Charging Current | 210A |
| Max Input Current per MPPT | 30A / 22A / 22A |
| Number of MPPTs | 3 |
| Dimensions | 16.5 x 31.5 x 9.4 inches |
| Weight | 88 lb |
| Warranty | 10 Years |
| Certificates | UL1741 / CSA / C22.2 / UL1699B... |

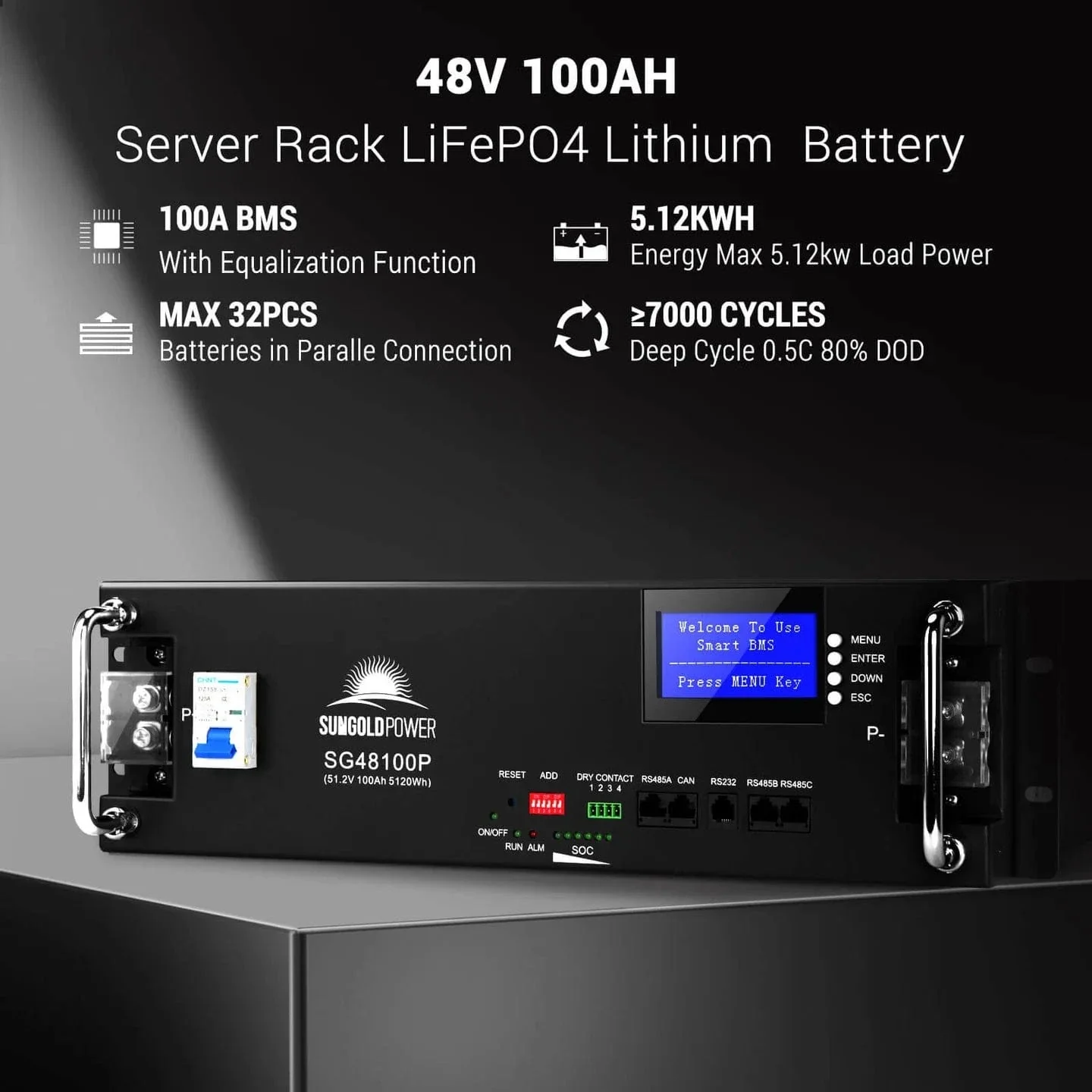

SG48100P LifePO4 Battery
| Specification | Details |
|---|---|
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Energy | 5.12KWH |
| Charge Cut-off Current | 5A |
| Max Continuous Charge Current | 100A |
| Discharge Cut-off Voltage | 43.2V |
| Cycle Life | ≥ 7000 |
| Communication Protocol | RS232 / RS485 / CAN (supports multiple protocols) |
| Storage Temperature | 14°F to 113°F |
| Dimensions | 19.3 x 18.9 x 5.5 inches |
| Weight | 93 lbs |
| Warranty | 10 Years |
| Certificates | UL1973, UL9540A |

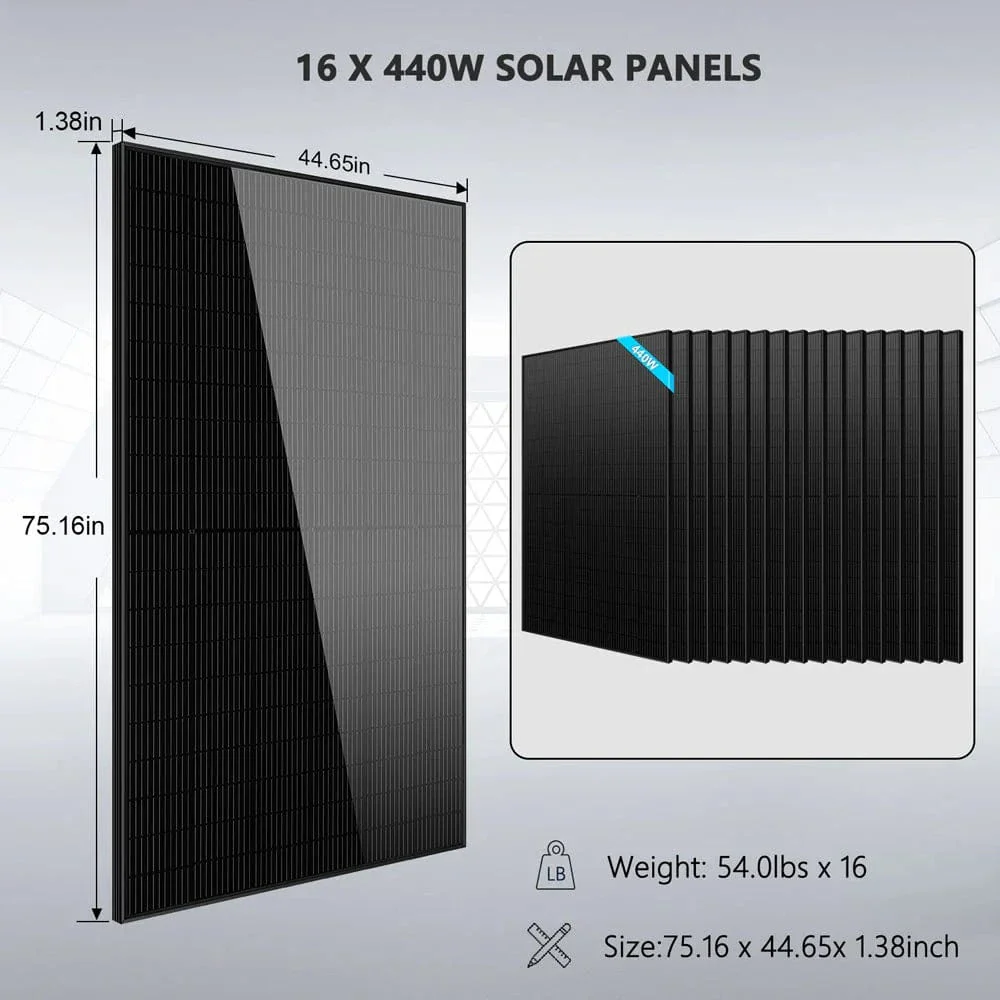

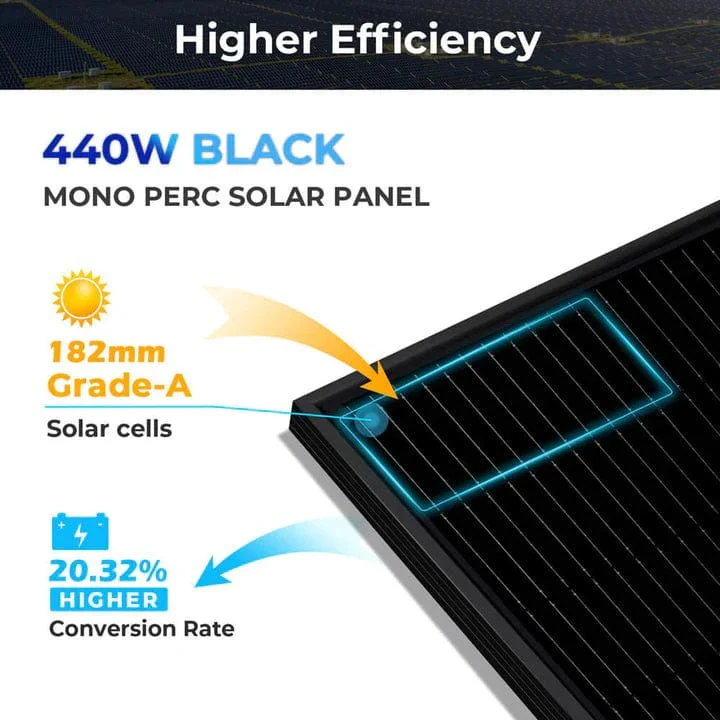

440 Watt Mono Solar Panel
| Specification | Details |
|---|---|
| Peak Power | 440W |
| Solar Cell | Monocrystalline |
| Product Tolerance | ±3% |
| Maximum Power Current (IMP) | 13.05A |
| Maximum Power Voltage (VMP) | 33.72V |
| Short Circuit Current (ISC) | 13.73A |
| Open Circuit Voltage (VOC) | 39.79V |
| Dimension | 75.16 × 44.65 × 1.38 inch |
| Weight | 54.0 lbs |
| Warranty | 25 Years |
| Certificates | UL61730, TUV, IEC, CEC, CE... |
Product Manual
11.4KW 48V Split Phase Hybrid Inverter
LifePo4 5.12KWH Lithium Battery
440 Watts Solar Panels
- The wiring diagram of SGH-11N2E solar kit
- The wiring diagram of SGH-11N5E solar kit
- The wiring diagram of SGH-11N5E solar kit(10 batteries comm)
Product Warranty
SunGold Power Product Warranty
WARRANTY PERIOD
The warranty period for is 12/36 months for different Sungoldpower products. In each case, the warranty period is measured starting on the day of purchase by the original consumer purchaser. The sales receipt from the first consumer purchase, or other reasonable documentary proof, is required in order to establish the start date of the warranty period.
LIMITED TO ORIGINAL CONSUMER BUYER
The warranty on Sungoldpower's product is limited to the original consumer purchaser and is not transferable to any subsequent owner.
EXCLUSIONS
Sungoldpower's warranty does not apply to:
Misused, abused, modified, damaged by accident, or used for anything other than normal consumer use as authorized in Sungoldpower's current product literature.
Attempted repair by anyone other than an authorized facility.
If any modified products received will be returned to you at your expense.
Product FAQs
N/A
