Raritan Fresh Head - Fresh Water Flush - Manual - Marine Size - Right Hand Operation [25M00]

Raritan Fresh Head - Fresh Water Flush - Manual - Marine Size - Right Hand Operation [25M00]

Raritan Fresh Head - Fresh Water Flush - Manual - Marine Size - Right Hand Operation [25M00]

Description

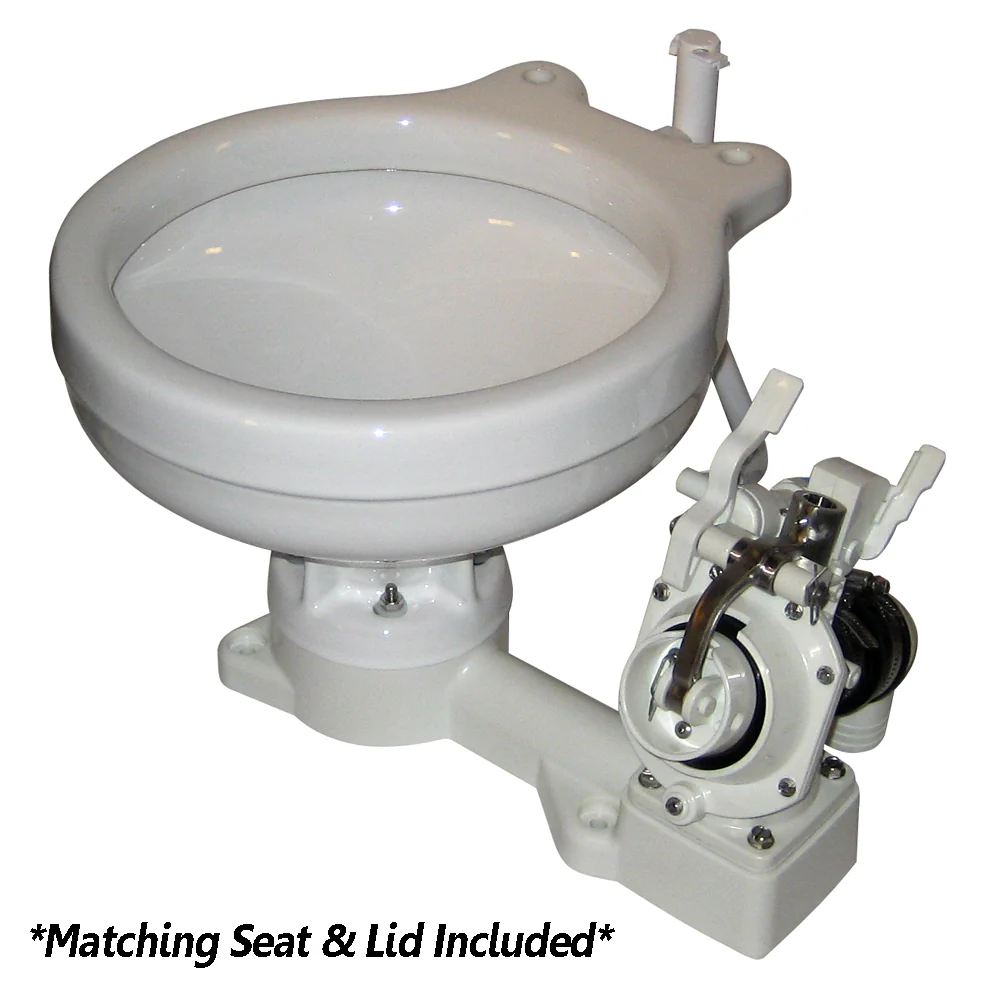

Fresh Head - Fresh Water Flush - Manual - Marine Size - Right Hand Operation

Fresh Head is a manual marine toilet designed to be flushed with pressurized fresh water. Freshwater flushing provides an odor free flush since no sealife can decay in the rim of the bowl. Discharge pump is a diaphragm pump with telescopic handle for ease in flushing. The pump can be locked to prevent waste water back flow.

With a diaphragm type pump and telescopic handle, flushing is extremely easy. Owners choose how much water to use. A lever allows water into the bowl to pre-wet it for a better flush. A built-in freshwater backflow prevention includes a vacuum break. A lock-out feature stops backflow coming in through the discharge when not in use.

Raritan products are chosen by powerboat, sailboat, houseboat, and RV owners and manufacturers the world over for their dependability, environmental responsibility, simplicity of installation, operation, and maintenance. The product line includes house-hold style toilets, marine toilets, marine sanitation devices and systems, cleaning products, icemakers, water heaters, and rudder angle indicators.

Features:

  • The first manual marine toilet to utilize pressurized fresh water - eliminates calcium deposits in discharge hose
  • Footprint is a direct replacement for competitive models
  • No Thru Hulls necessary when installed with a holding tank
  • Low water use toilet
  • Available as Left hand side pump
  • PHII toilets can be retrofitted by purchasing the retro-fit pump
  • Lock feature prevents potential backflow and possible flooding

Product Specifications

Raritan Fresh Head - Fresh Water Flush - Manual - Marine Size - Right Hand Operation [25M00] Product Specifications

Specification Details
Color White
Flow Rate 3 Gallons Per Minute (GPM)
Inlet Size 1/2"
Outlet Size 1-1/2"
Rinse Water Fresh Water
Rinse Water Inlet 1/2" FPT
Maximum Pressure 150 PSI (10 bar)
Minimum Pressure 3 GPM (11.3 L/min) @ 10 PSI (0.7 bar)
Discharge 1-1/2" Hose
Maximum Height 15 ft (4.5 m)
Average Water Consumption per Use 1 pint (0.47 L) liquid / 3.4 gal (2.8 L) solid
Type Toilet
Size Compact Size
Box Dimensions 16"H Ă— 23"W Ă— 24"L, WT: 31 lbs
UPC 085462035531

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Product Manual

Quick Guide (pdf)

Owner's Manual (pdf)

Brochure (pdf)

Product Warranty

Limited Warranty

Raritan Engineering Company warrants to the original purchaser that this product is free of defects in materials or workmanship for a period of one year from the product’s date of purchase. Should this product prove defective by reason of improper workmanship and/or materials within the warranty period, Raritan shall, at its sole option, repair or replace the product.

  1. TO OBTAIN WARRANTY SERVICE, Consumer must deliver the product prepaid, together with a detailed description of the problem, to Raritan at 530 Orange St., Millville, N.J. 08332. When requesting warranty service, purchaser must present a sales slip or other document which establishes proof of purchase. THE RETURN OF THE OWNER REGISTRATION CARD IS NOT A CONDITION PRECEDENT OF WARRANTY COVERAGE. However, please complete and return the owner Registration Card so that Raritan can contact you should a question of safety arise which could affect you.
  2. THIS WARRANTY DOES NOT COVER defects caused by modifications, alterations, repairs or service of this product by anyone other than Raritan; defects in materials or workmanship supplied by others in the process of installation of this product; defects caused by installation of this product other than in accordance with the manufacturer’s recommended installation instructions or standard industry procedures; physical abuse to, or misuse of, this product. This warranty also does not cover damages to equipment caused by fire, flood, external water, excessive corrosion or Act of God.
  3. ANY EXPRESS WARRANTY NOT PROVIDED HEREIN, AND ANY REMEDY FOR BREACH OF CONTRACT WHICH BUT FOR THIS PROVISION MIGHT ARISE BY IMPLICATION OR OPERATION OF LAW, IS HEREBY EXCLUDED AND DISCLAIMED. ALL IMPLIED WARRANTIES SUCH AS THOSE OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE, IF APPLICABLE, AS WELL AS ANY IMPLIED WARRANTIES WHICH MIGHT ARISE BY IMPLICATION OF LAW, ARE EXPRESSLY LIMITED TO A TERM OF ONE YEAR. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG A LIMITED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
  4. UNDER NO CIRCUMSTANCES SHALL RARITAN BE LIABLE TO PURCHASER OR ANY OTHER PERSONS FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
  5. No other person or entity is authorized to make any express warranty, promise or affirmation of fact or to assume any other liability on behalf of Raritan in connection with its products except as specifically set forth in this warranty.
  6. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
