Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set

Description

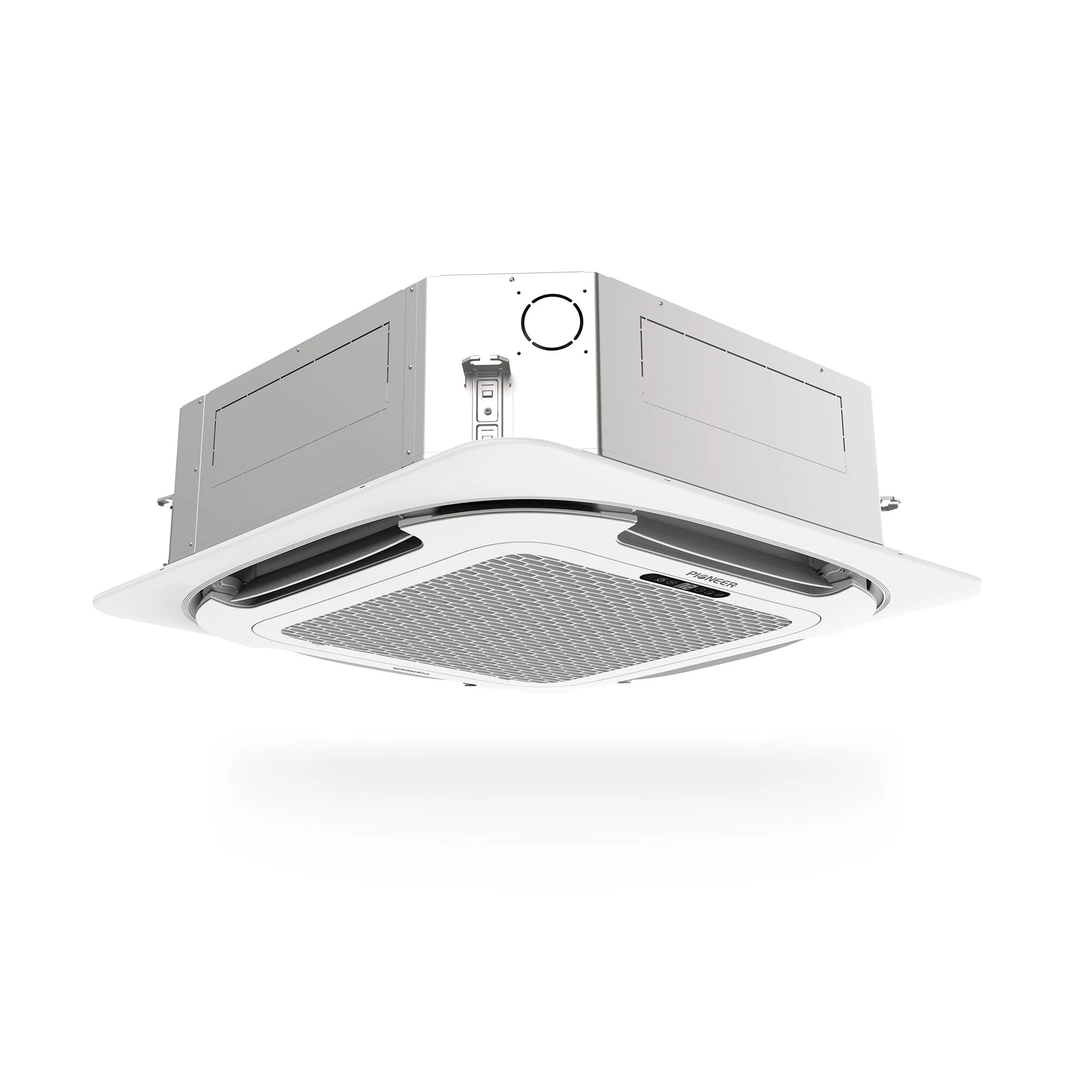

Quantum Ultra™ Ceiling Cassette

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options.

IMPORTANT
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

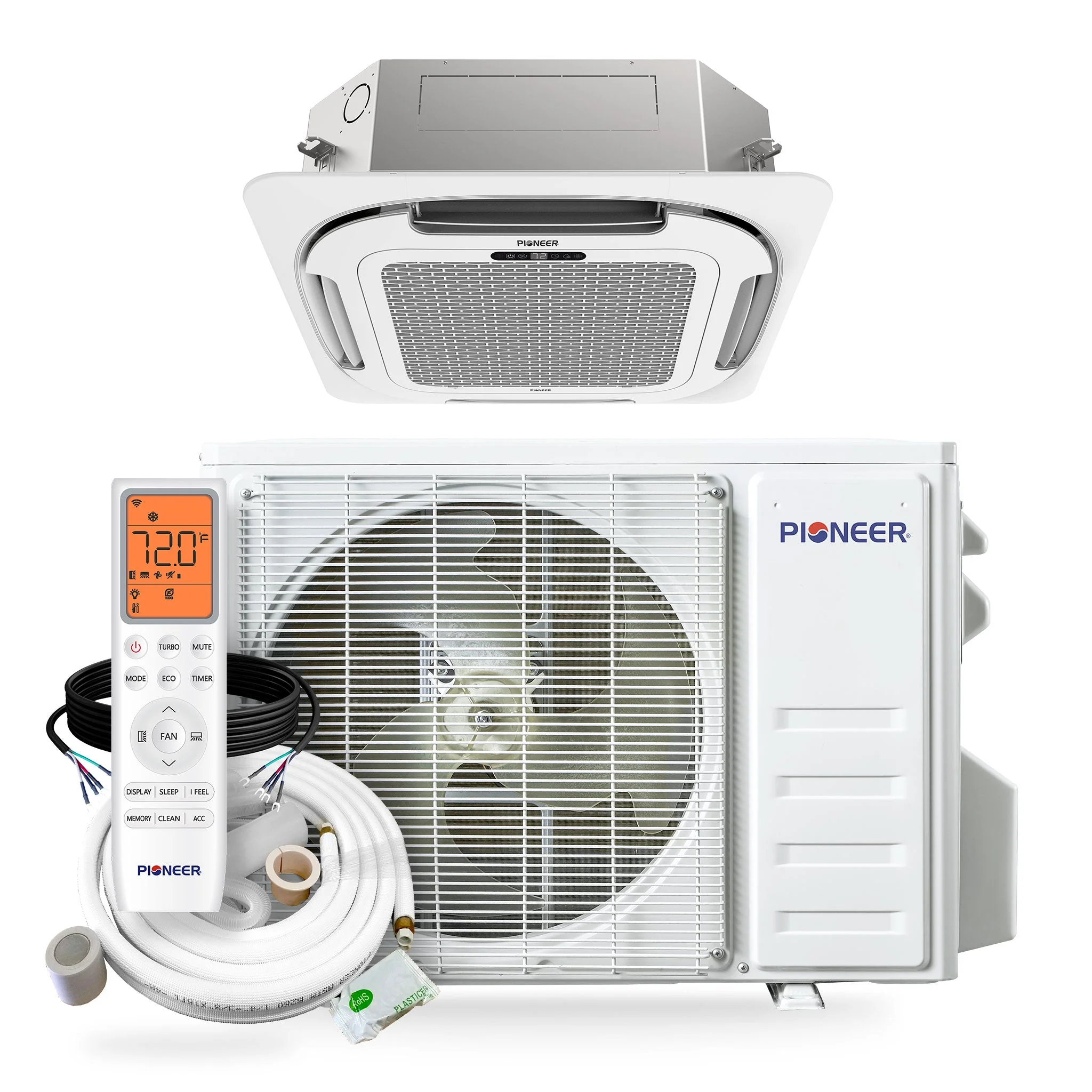

What's Included in Your Purchase

  • Indoor Unit
  • Outdoor Unit
  • Indoor Panel
  • Wireless Remote Control
  • Remote Control Wall Holder
  • Remote Control Batteries

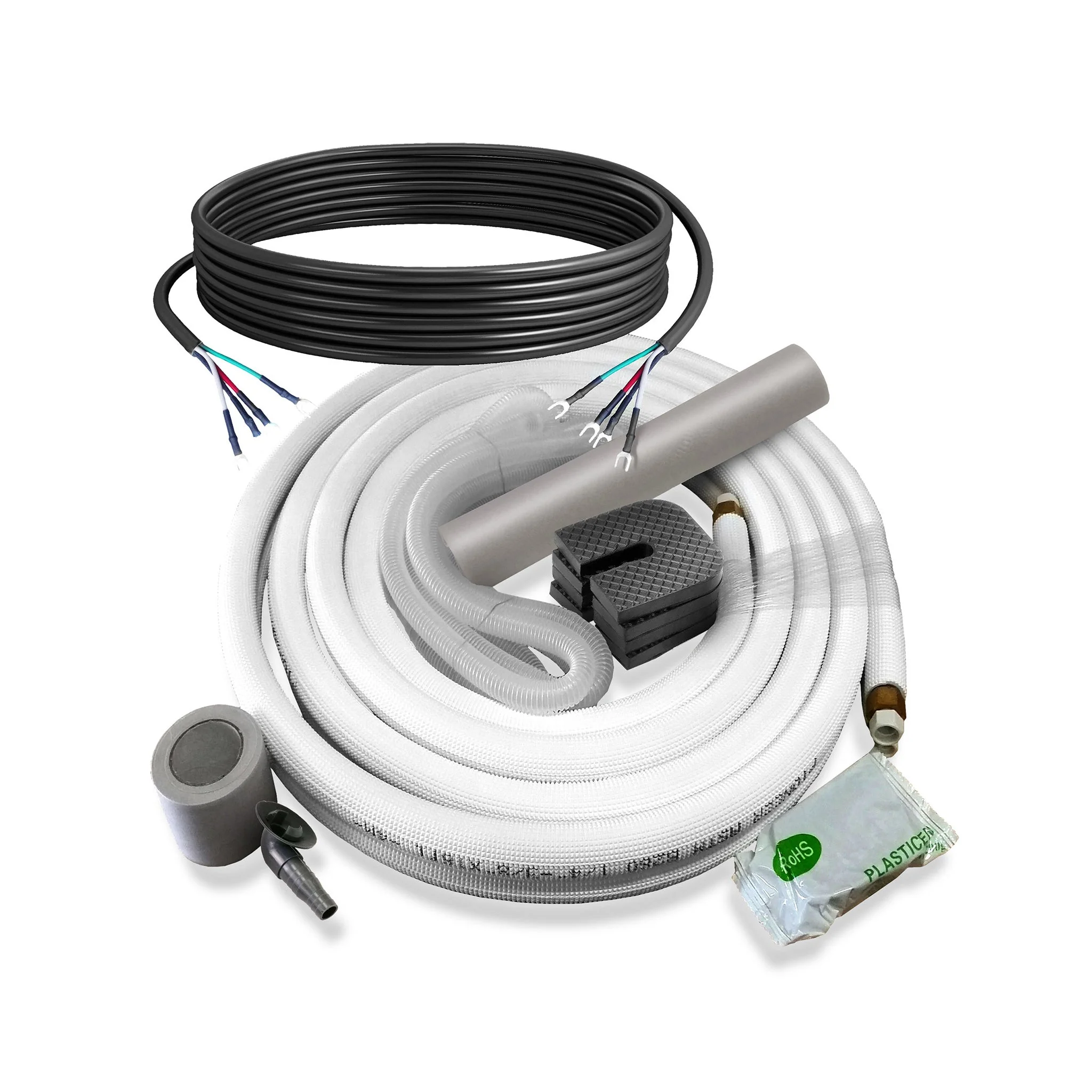

  • Customizable Length Copper Lines
  • Customizable Length Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Summary

  • High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
  • Cooling capacity: 9,500 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 9,500 BTU/H with 10.0 HSPF2 / 4.0 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Standard Ambient Range Operation (As low as 5°F in Heating / As high as 131°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

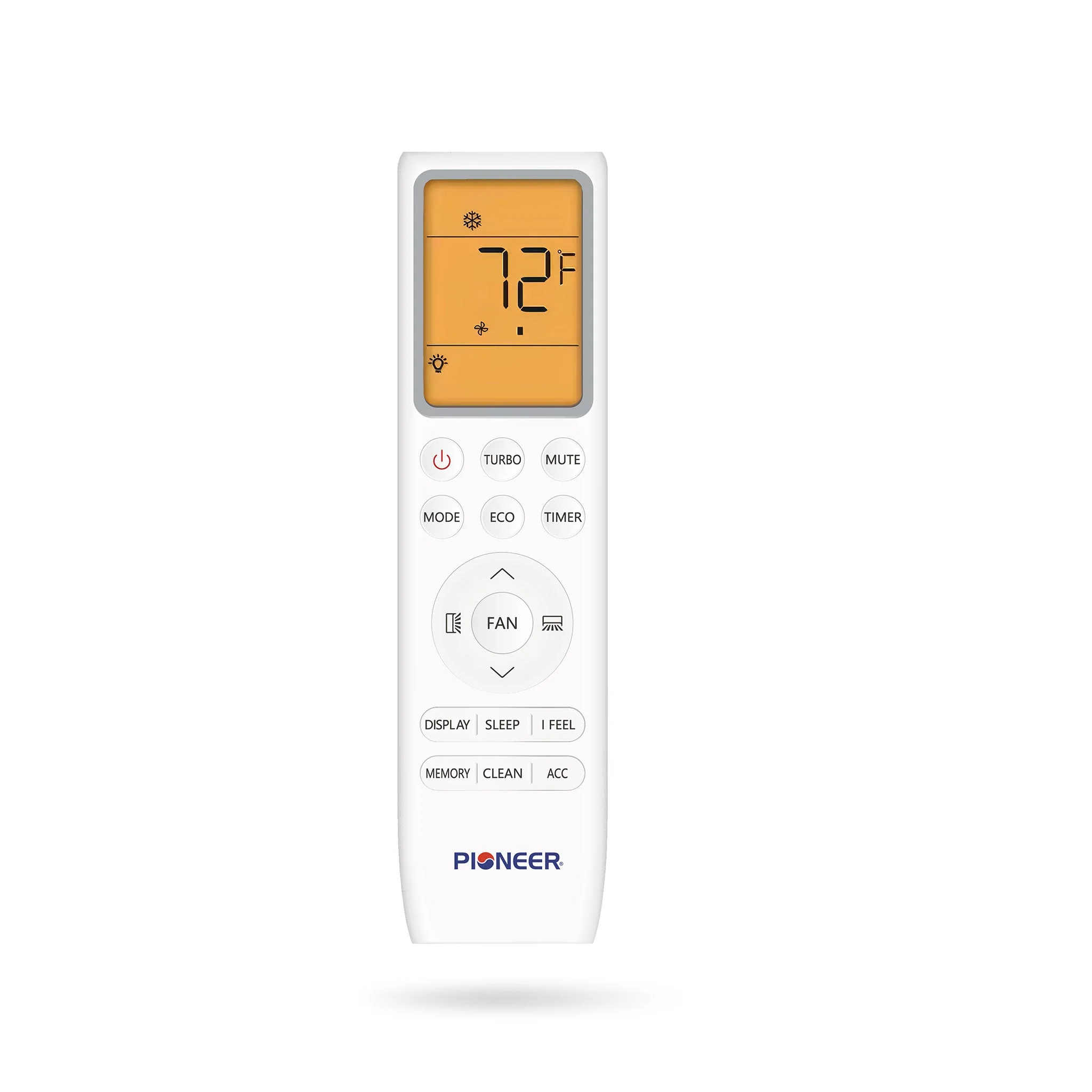

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

  • AHRI Certificate
  • Energy Guide

Product Specifications

Pioneer® Quantum Ultra™ 9,000 BTU 23 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set Product Specifications

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 9,500 BTU/h
    • Cooling Capacity Range: 2,000~10,400 BTU/h
    • Cooling SEER2: 23.0 BTU/W.h
    • Cooling EER2: 12.5 BTU/W.h
    • Heating Rated Capacity: 9,500 BTU/h
    • Heating Capacity Range: 2,500~12,500 BTU/h
    • Heating HSPF2 (Region IV): 10.0 / 9.0 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 4.0 / 2.0 W/W
    • Refrigerant Type: R454b
    • Suitable Area: 250~350 Sq.F
    • AHRI Reference: 217048758
  • Indoor Unit
    • Part Number: CT009GLSILCFHG
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 326/282.5/235/188/153 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 43/40/33/31/30 dB(A)
    • Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
    • Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
    • Net / Gross Weight: 32.0 / 38.6 lbs

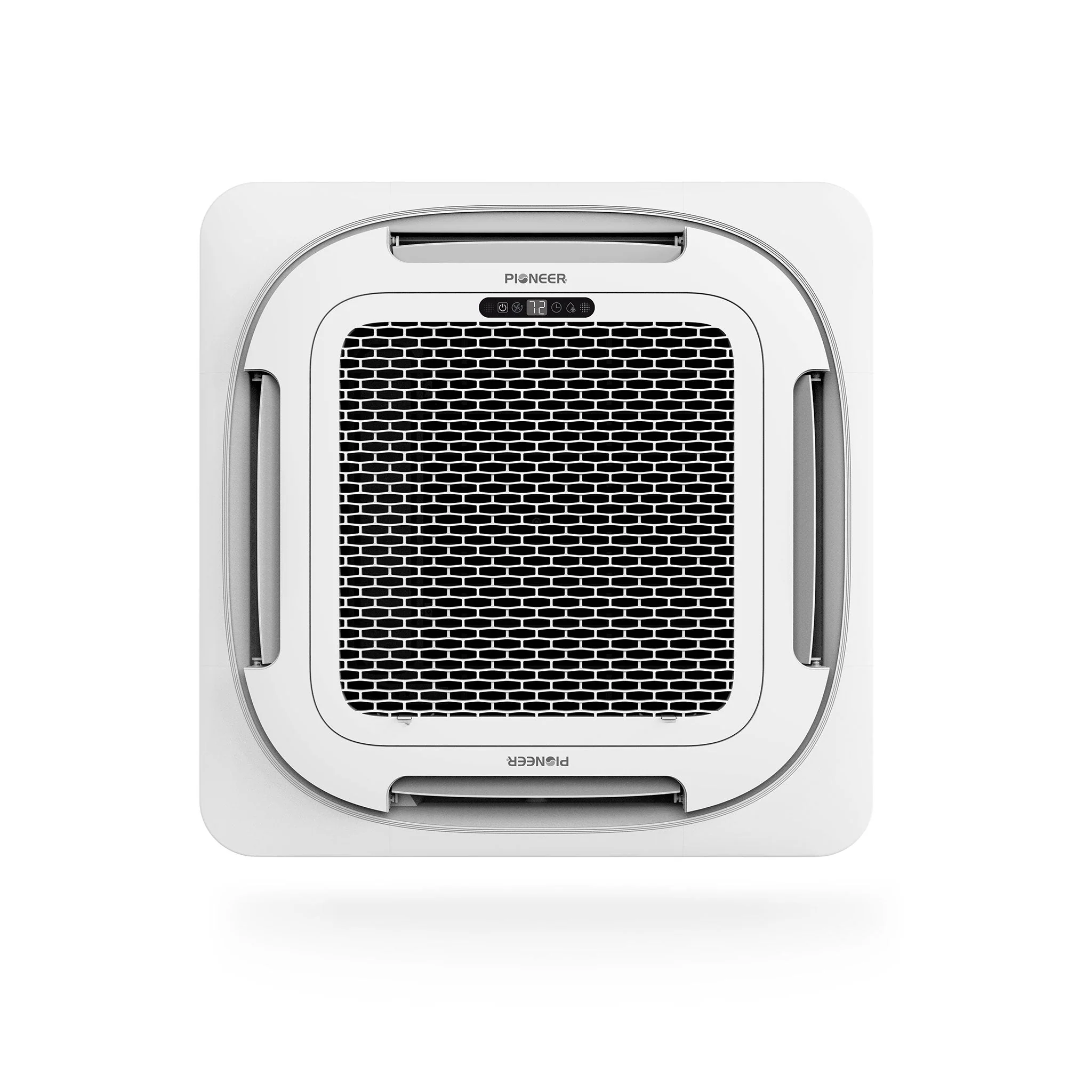

  • Decorative Panel
    • Part Number: CT0918DPNL
    • Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
    • Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
    • Net / Gross Weight: 6.0 / 9.5 lbs

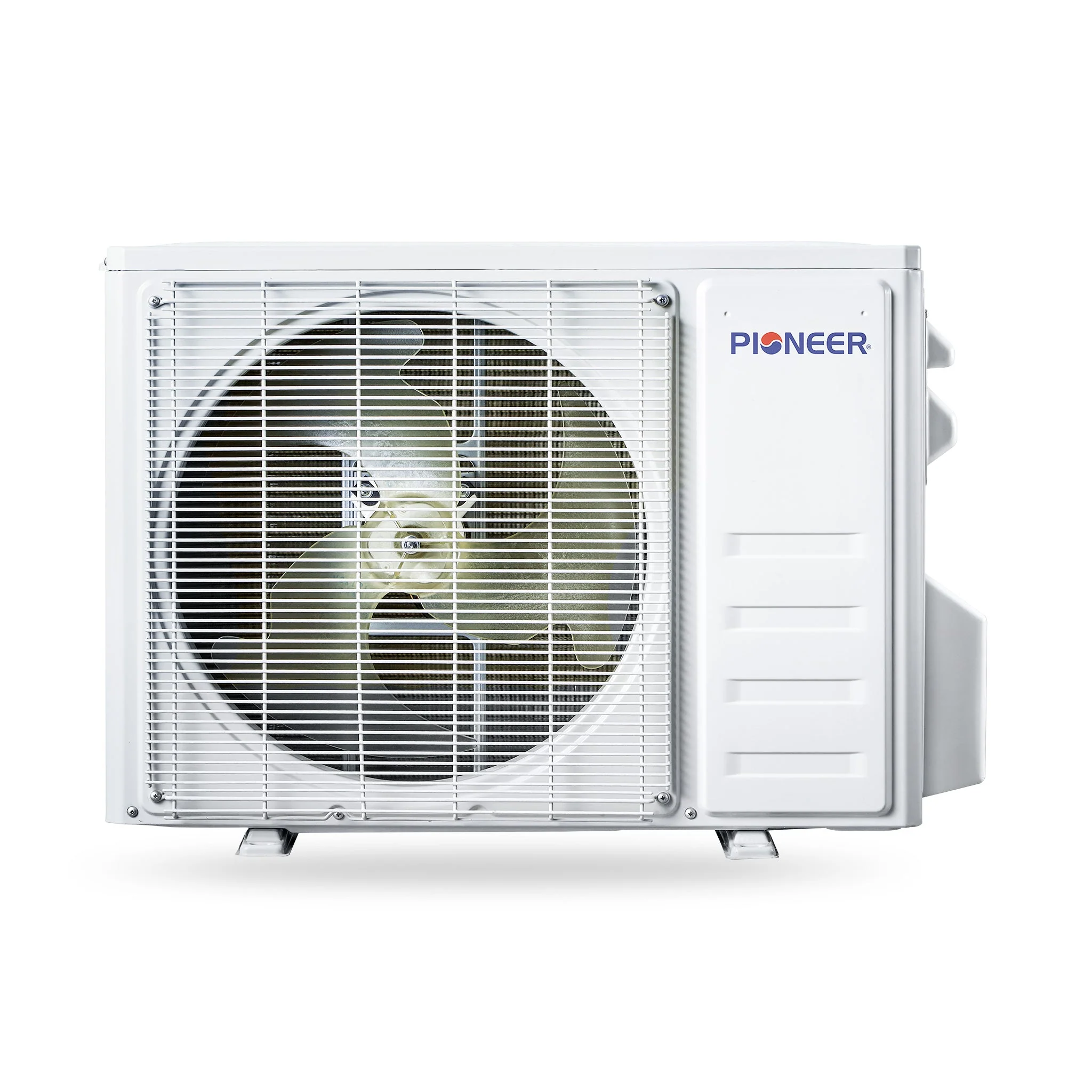

  • Outdoor Unit
    • Part Number: YN009GLSI24RPG
    • Breaker Needed: 15A (double-pole)
    • Sound Level: 50 dB(A)
    • Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
    • Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
    • Net / Gross Weight: 52.7 / 57.1 lbs.

Dimension Chart

22½ 22½ 9⅝ 25⅝ 25⅝ 2⅜ 31⅞ 12 21⅝ 2¼ ¾ 8½

Product Manual

Technical Brochure

User & Installation Manual

Service Manual

Disassembly Manual

Product Warranty

Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy

  • Up to 5 years Warranty for Parts
  • Up to 5 years Warranty for Compressor

Product FAQ's

N/A
