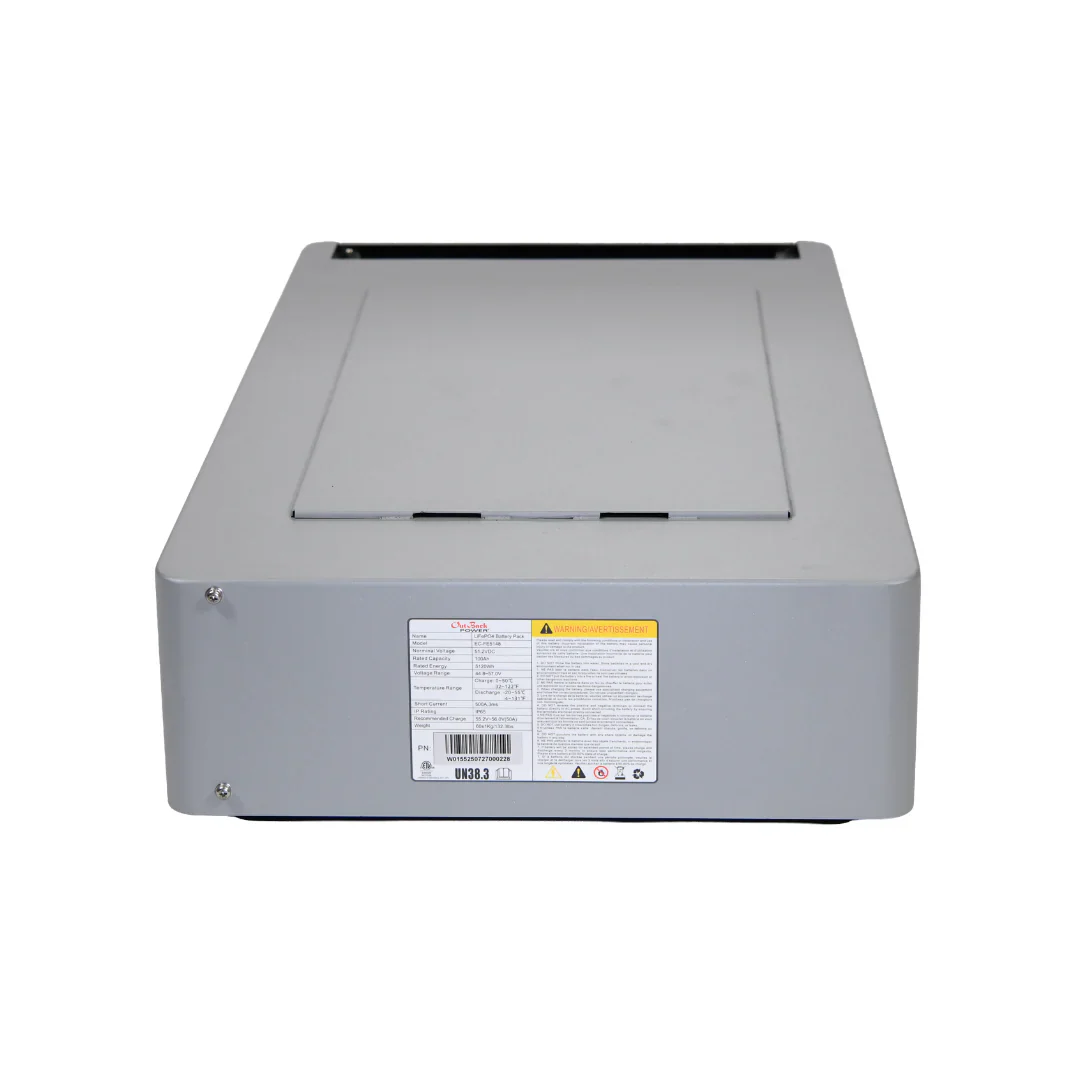

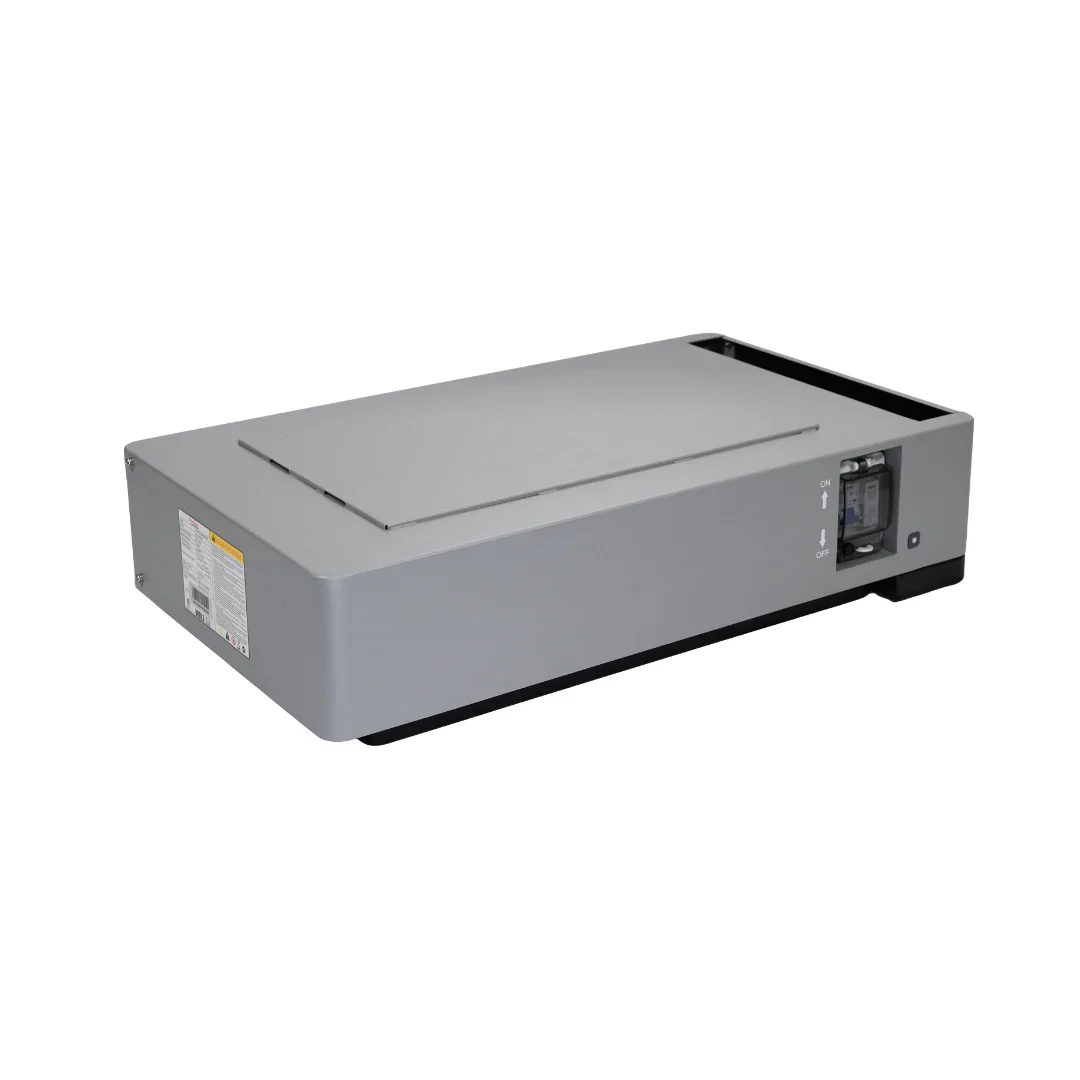

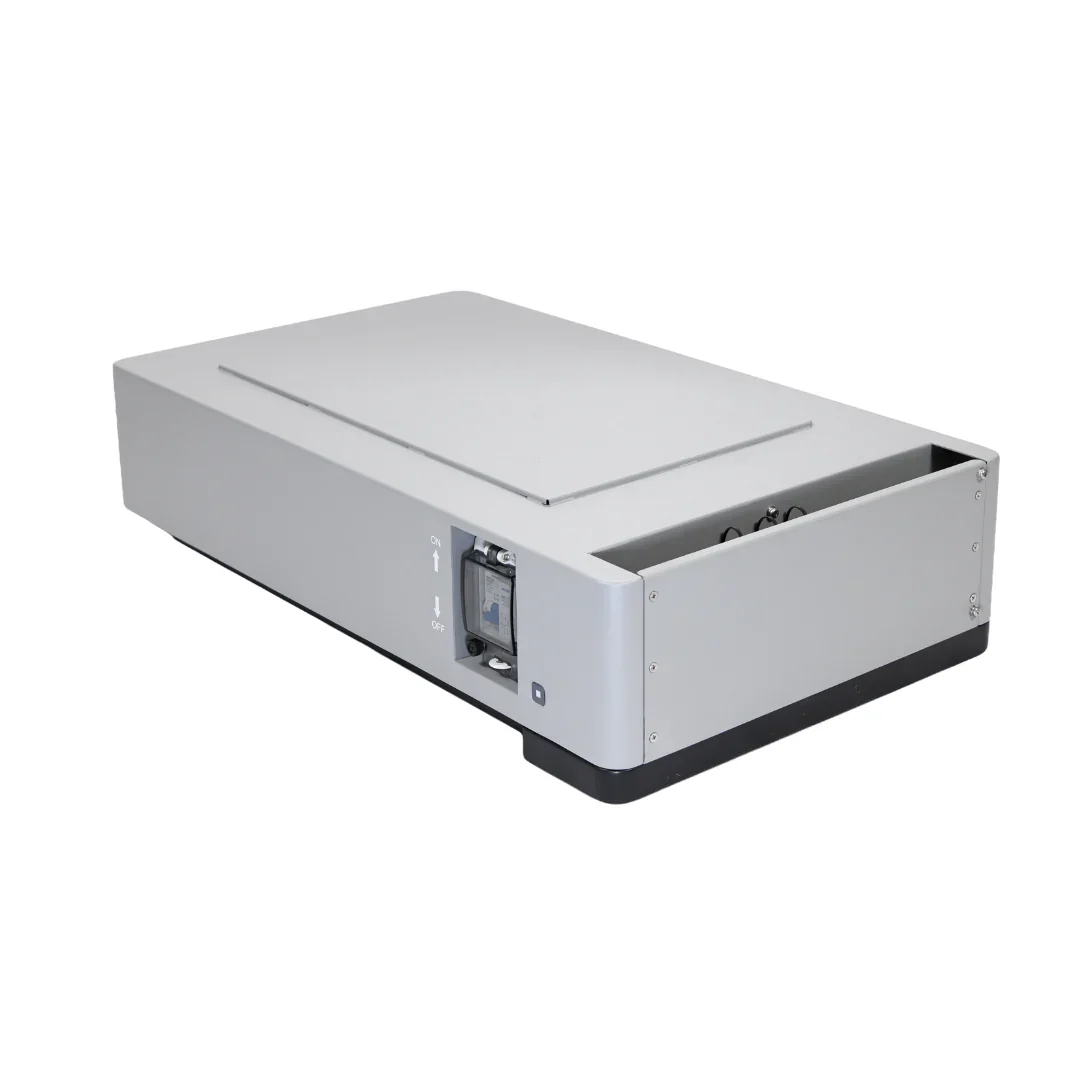

Outback Power EnergyCell Lithium Battery BMS/Junction Box (For EC-FE5148)
Outback Power EnergyCell Lithium Battery BMS/Junction Box (For EC-FE5148)
Description
The Outback Power EnergyCell Control Module serves as the BMS and junction box for EnergyCell 5 lithium battery systems. Designed for stackable LV configurations, this module manages system protection, communication, and high-current distribution for safe and scalable battery installations.
Outback Power EnergyCell Lithium Battery BMS / Junction Box Features
Integrated BMS Control – manages voltage, current, and system protection
300A Continuous Current Rating – supports high-power battery stacks
IP65 Outdoor Rating – suitable for indoor or outdoor installations
Quick Connect & Screw Terminals – flexible high-current connection options
RJ45 Communication Ports – inverter and system integration ready
LED Status Indicators – visual system monitoring and diagnostics
Ground/Floor Mount Configuration – designed for stackable installations
Natural Convection Cooling – passive thermal management design
Outback Power EnergyCell Lithium Battery BMS / Junction Box Applications
- EnergyCell 5 Stack Systems – required for multi-module battery configurations
- Residential ESS Installations – central control for lithium battery arrays
- Commercial Energy Storage – high-current management for larger stacks
- Outdoor Battery Systems – IP65-rated environmental protection
What's Included
Control Module and Base Module contents:
- 1 Ă— EnergyCell 5 Base Module
- 1 Ă— EnergyCell 5 Control Module
- 1 Ă— Wi-Fi/Bluetooth Antenna
- 1 Ă— Chassis Connector (Control Module to Battery)
- 1 Ă— Chassis Connector (Base Module to Battery)
- 2 × Red & Black Power Cables – Control Module (2 AWG, 59 in / 1500 mm, 1 Red, 1 Black)
- 2 × Red & Black Power Cables – Control Module to Battery (2 AWG, 60 in / 1524 mm, 1 Red, 1 Black)
- 1 Ă— Control Module to Inverter RJ45 Ethernet Communication Cable (59 in / 1500 mm)
- 1 Ă— USB to RJ45 Cable
- 2 Ă— Wall Brackets
- 4 Ă— Screws
- 4 Ă— Expansion Anchors
- 2 Ă— Communications Cable Waterproof Covers
- 4 Ă— Control Module Knockout Covers (small)
Product Specifications
Outback Power EnergyCell Lithium Battery BMS/Junction Box (For EC-FE5148) Product Specifications
| Specification | Value |
| Model Name | EC-FE5148-CM |
| Product Type | LV Stackable Control Module |
| Voltage Range | 44.8~57Vdc |
| Max Continuous Current | 300Adc |
| Operating voltage | 56Vdc |
Environmental Characteristics
| Specification | Value |
| Storage Temperature Range | 32°F~113°F [0°C~45°C] |
| Operating Temperature Range | -4°F~131°F [-20°C~55°C] |
| Outdoor Rated | IP65 |
| Humidity Range | 0 – 95% |
| Altitude | 2000m |
| Cooling Method | Natural convection |
Mechanical Specifications
| Specification | Value |
| Installation Configuration | Ground/Floor Mounted |
| Dimensions (H Ă— W Ă— D) | 7.1" Ă— 16.9" Ă— 29.1" [180 mm Ă— 430 mm Ă— 740 mm] |
| Weight | 39.7 lbs. [18 kg] |
| Display Indicators | LEDs |
| Connector Types | Quick Connects, Screw Terminals, RJ45 |
Product Manual
OutBack EnergyCell 5 – User Manual
OutBack EnergyCell 5 Integration
Product Warranty
Outback Power Warranty
How to Arrange for Warrant Services
During the warranty period beginning on the invoice date, OutBack Power will repair or replace products covered under this limited warranty that are returned to OutBack Power’ facility or to an OutBack Power authorized repair facility, or that are repaired on site by an OutBack Power authorized repair person.
Warranty Documentation
Click the following links for warranty documentation pertaining to your product
Limited Warranty
- English
EnergyCell 5
- English
FXR/VFXR A/E Series, Radian A/E Series, FLEXmax 60/80, FLEXmax 100, MATE3s, and any FLEXpower systems incorporating these models:
- English
OBX Extreme Series and other specialty or customized inverter/chargers:
- English / Spanish
- French / German
FX/VFX, Radian GS8048, FLEXmax Extreme, and any FLEXpower systems incorporating these models:
- English / Spanish
- French / German
MATE, MATE3, FLEXnet DC, AXS Port, all HUB products, Radian GS Load Centers, FLEXware products, autotransformers, combiners and all general “balance-of-system” (BOS) products:
- English
Mojave:
- English
Contacting OutBack
Troubleshooting
In the event of a product failure, the customer will need to work with an OutBack Technical Support representative to perform the necessary troubleshooting. This is a required step before a return can be performed. Troubleshooting requires a qualified technician to be present at the site of the product, with a quality voltmeter that measures both DC and AC. The OutBack representative will request voltmeter readings, product error messages, and other information. Many problems can be resolved onsite. If the customer is not willing or able to provide these readings (or is not willing or able to visit the site), and the product is found to have no problems upon return, OutBack may choose to charge additional labor and handling fees up to $180.00 USD.
Return Material Authorization (RMA)
A request for an RMA number requires all of the following information:
- Product model and serial number
- Proof-of-purchase in the form of a copy of the original Product purchase invoice or receipt confirming the Product model number and serial number
- Description of the problem
- Shipping address for the repaired or replacement equipment
Upon receiving this information, the OutBack representative can issue an RMA number.
Returning Product to OutBack
After receiving the RMA number, the customer must pack the product(s) authorized for return, along with a copy of the original purchase invoice and warranty certificate, in the original product shipping container(s) or packaging providing equivalent or reasonable protection. The RMA number must be written on the outside of the packaging where it is clearly visible.
If product is within the warranty period, OutBack will cover pre-paid shipping with prior arrangement.
The product(s) must be shipped back to OutBack Power in their original or equivalent packaging, to the following address:
OutBack Power
RMA # ____________________
400 Maple St
Commerce, TX 75428
United States
The customer must insure the shipment, or accept the risk of loss or damage during shipment. If a shipping box is needed for return of a product, OutBack will, upon request, send a shipping box.
IMPORTANT:
OutBack is not responsible for shipping damage caused by improperly packaged products, the repairs this damage might require, or the costs of these repairs.
If, upon receipt of the product, OutBack determines the product or product part is defective and that the defect is covered under the terms of this warranty, OutBack will then and only then ship a repaired or replacement product or product part to the purchaser freight prepaid, non-expedited, using a carrier of OutBack’s choice, when applicable.
If product fails in 90 days or fewer from the original purchase date, OutBack will replace with a new product. If product fails after 90 days and up to expiration of warranty, OutBack will, at its discretion, either repair and return a product, or ship a replacement product. OutBack will determine whether a product is to be repaired or replaced in accordance with product age and model. OutBack will authorize advance shipment of a replacement based on product age and model.
In cases where an OutBack dealer or distributor replaces a product more than 90 days old with a new product, OutBack will NOT compensate that dealer or distributor with new stock unless the exchange was authorized in advance by OutBack.
Out of Warranty
If product is out of warranty, OutBack will repair and return product for a fee. Alternately, if applicable, OutBack will advance-ship replacement parts for a fee upon request.
If a shipping box is needed for return of out-of-warranty product, OutBack will send a shipping box upon request. The customer is responsible for paying shipping to OutBack.
The warranty period of any repaired or replacement product or product part is 90 days from the date of shipment from OutBack, or the remainder of the initial warranty term, whichever is greater.
This warranty is void for any product that has been modified by the customer without authorization by OutBack. A product with a voided warranty will be treated the same as one with an expired warranty.
Product FAQs
Outback Power FAQs
Is this required for EnergyCell 5 installations?
Yes. The control module acts as the BMS and junction box for stackable EnergyCell 5 systems.
How much current can it handle?
It supports up to 300A continuous DC current.
Is it outdoor rated?
Yes. It carries an IP65 enclosure rating.
Does it include battery modules?
No. Battery modules and base modules are sold separately.
