MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O)

MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O)

MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O)

Description

This product only includes an air handler.

The 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a reliable and efficient solution for year-round heating and cooling in spaces up to 2,500 square feet. With a SEER2 rating of up to 16, it offers energy-efficient climate control for your home. This air handler is designed to withstand everyday use and is built with durable, painted galvanized steel. It includes a self-diagnostics panel that helps quickly identify and resolve any issues, making maintenance straightforward. This unit provides flexible installation options, including upflow, downflow, and horizontal left or right configurations, ensuring it fits various room layouts. It uses R-454B refrigerant, which is eco-friendly and reduces environmental impact.

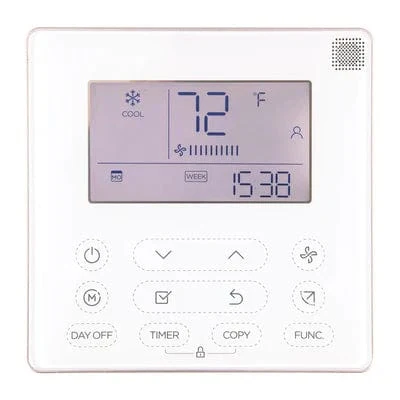

For those needing extra warmth, an optional heat kit can be added to expand the unit's capabilities. The included MRCOOL® Smart Thermostat provides accurate and dependable temperature control, ensuring optimal comfort in your home. It is also compatible with the MRCOOL® SmartHVAC app, allowing for convenient remote access and control. This air handler is fully compatible with our Central Ducted Hyper Heat Condenser. With a 10-year warranty, the 5 Ton MRCOOL® VersaPro® Central Ducted Air Handler is a dependable and efficient option to enhance your home's comfort. This user-friendly system is built to last and provides effective climate control throughout the year.

Product Specifications

MRCOOL VersaPro 2nd Gen 54K BTU, 5 Ton Central Ducted Air Handler (MVP-60-HP-MUAH-230A00-O) Product Specifications

Dimensions

24.49" D x 52.99" H x 21.02" w

CFM

1807.00/1583.33/1359.67/1136.00

Tonnage

5

Cooling Capacity (BTU)

54000

Heating Capacity (BTU)

54000

Voltage (V)

115/208-230

Phase

1

Cycle

60

Ma Fuse Breaker (A)

15

Min Circuit Ampacity (A)

14.5/11.0

Color

gray

Decibel Rating Low (DBA)

34.5

Decibel Rating High (DBA)

56

Number of Speeds

4

Max Lineset Length (FT)

246 ft

Liquid Line Size

3/8

Suction Line Size

3/4

Filter Type

Replaceable

Filter Size

23x20x1

Auxiliary Heater Included

No

Auxiliary Heater AVAILABLE

Yes

Auxiliary Heater Sizes

10kW/15kW/20kW

Adjustable Thermostat

Yes

WIFI Compatibility

Yes

APP Compatibility

Yes

ETL Certified

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Base parts Warranty

10 Years

Base Compressor Warranty

10 Years

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Compressed Gas

Yes

Net Weight (Lbs)

162.92

Gross Depth (In)

26.77

Gross Height (In)

56.5

Gross Width (In)

27.95

Gross Weight (Lbs)

190.92

Product Manual

Installation Manual
Warranty

Product Warranty

MRCOOL Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.
