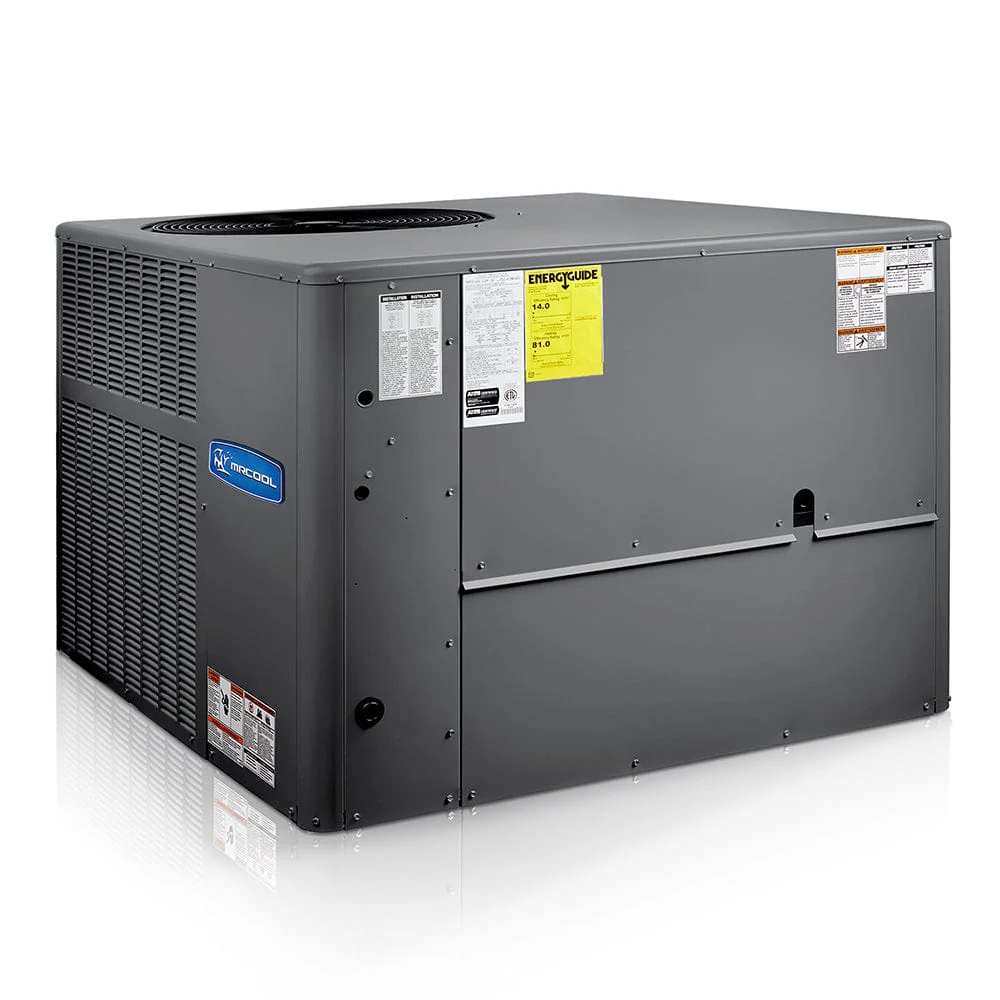

MRCOOL® 14 SEER 2.5 Ton Louvered Packaged Air Conditioner

MRCOOL® 14 SEER 2.5 Ton Louvered Packaged Air Conditioner

MRCOOL® 14 SEER 2.5 Ton Louvered Packaged Air Conditioner

Description

This is a brand new 2.5 ton, 208-230 volt, R410-A refrigerant, MRCOOL packaged air conditioning. This air conditioner unit has a seasonal energy efficiency rating of 14 SEER, providing maximum comfort cooling. This unit only provides "cooling" (this is NOT a heat pump).

  • Approved for installation in manufactured housing and mobile homes
  • Multi-Positional Application
  • Environmentally friendly R410A refrigerant
  • Insulated to minimize heat loss and reduce sound
  • Efficient multispeed motor for wide airflow range
  • Low ambient kits available
  • Utility connections on right side
  • One piece base design for strength and stability
  • Rounded corners for safety and an attractive, clean appearance
  • Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
  • All units ETL and ETLC approved and AHRI Certified
  • One piece no leak top design

Product Specifications

MRCOOL®14 SEER 2.5 Ton Louvered Packaged Air Conditioner Product Specifications

SEER

14

SEER2

13.4

EER

11

EER2

10.6

CFM

1000

TONNAGE

2 1/2

COOLING CAPACITY

28400

VOLTAGE

208-230

PHASE

1

CYCLE

60

MAX FUSE BREAKER

25

MIN CIRCUIT AMPACITY

18.2

COLOR

Gray

COLOR FAMILY

Gray

RATED LOAD

10.6

MAX COVERAGE AREA

1250

REFRIGERANT TYPE

R-410A

REFRIGERANT VOLUME

80

DECIBEL RATING

79

MIN AMBIENT HEAT

0

COMPRESSOR MOTOR TYPE

Single Stage

CONDENSER FAN MOTOR TYPE

ECM

CONDENSER FAN MOTOR HP

1/6

BLOWER MOTOR TYPE

ECM

BLOWER MOTOR HP

1/2

BLOWER MOTOR SPEEDS

Multi-speed

BLOWER MOTOR RPM

710-1050

FILTER TYPE

Replacable

FILTER SIZE

14x20

METERING DEVICE

TXV

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

Yes

AUXILIARY HEATER SIZES

5kw, 7.5kw

UL RECONIZED

No

UL LISTED

No

ETL LISTED

Yes

ETL CERTIFIED

No

LEED CERTIFIED

No

ASHRAE COMPLIANT

No

ENERGY STAR COMPLIANT

No

ENERGY STAR CERTIFIED

No

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

10-Year Parts Limited Warranty

BASE WARRANTY

5 year base limited parts warranty

HAS BATTERIES

No

CONTAINS ELECTRONICS

Yes

CONTAINS CHEMICALS

Yes

CONTAINS AEROSOL

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

RESTRICTED STATES

No

NET DEPTH

46.77

NET HEIGHT

36.82

NET WIDTH

46.8

NET WEIGHT

319

GROSS DEPTH

48

GROSS HEIGHT

42.5

GROSS WIDTH

48.75

GROSS WEIGHT

324

FREIGHT CLASS

125



Product Manual

Mr Cool MPC30 Product Manual

Energy Guide

Product Warranty

Limited Lifetime Warranty

MRCOOL distributor (hereinafter “Company”) warrants this product against failure due to defect in materials or workmanship under normal use and maintenance as follows.

All warranty periods begin on the date of original installation. If the date cannot be verified, the warranty period begins one hundred twenty (120) days from date of manufacture. If a part fails due to defect during the applicable warranty period Company will provide a new or remanufactured part, at Company’s option, to replace the failed defective part at no charge for the part.

This limited warranty is subject to all provisions, conditions, limitations and exclusions listed on the right side.

LIMITATIONS OF WARRANTIES

ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THE EXPRESS WARRANTIES MADE IN THIS WARRANTY ARE EXCLUSIVE AND MAY NOT BE ALTERED, ENLARGED, OR CHANGED BY ANY DISTRIBUTOR, DEALER, OR OTHER PERSON, WHAT SO EVER.

Product FAQs

Q1 How do I register my warranty?

Answer: Go to here to file your warranty.

Q2 How do I find the AHRI number of my unit?

Answer: You can find links to the AHRI certificates on the documentation page at mrcool.com/documentation.

Q3 I have not received my free SWAG item yet, has it been shipped?

Answer: Orders typically take 4 to 6 weeks to process and ship. If you have not received your Swag order within 8 weeks – please, contact us via email at [email protected]
