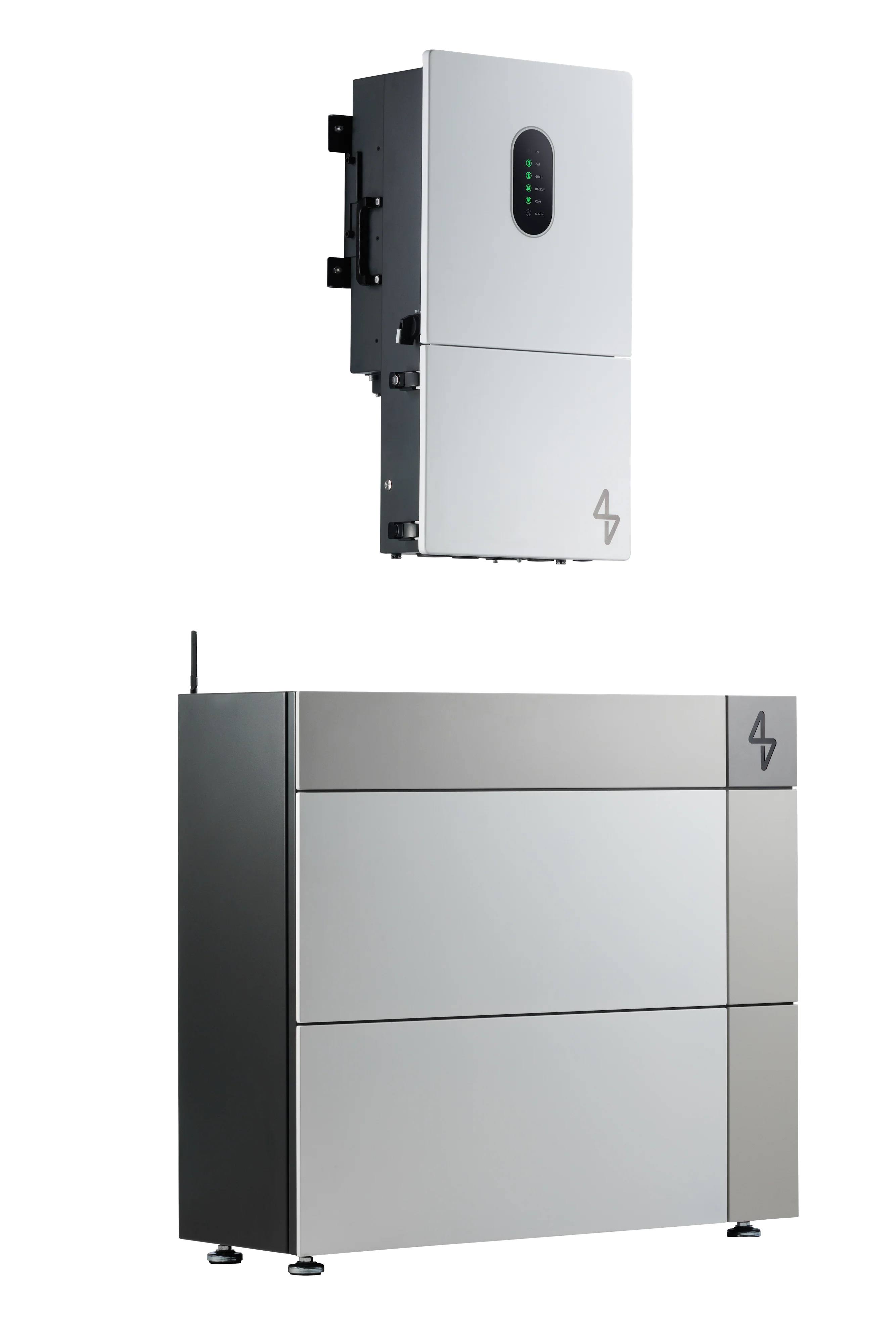

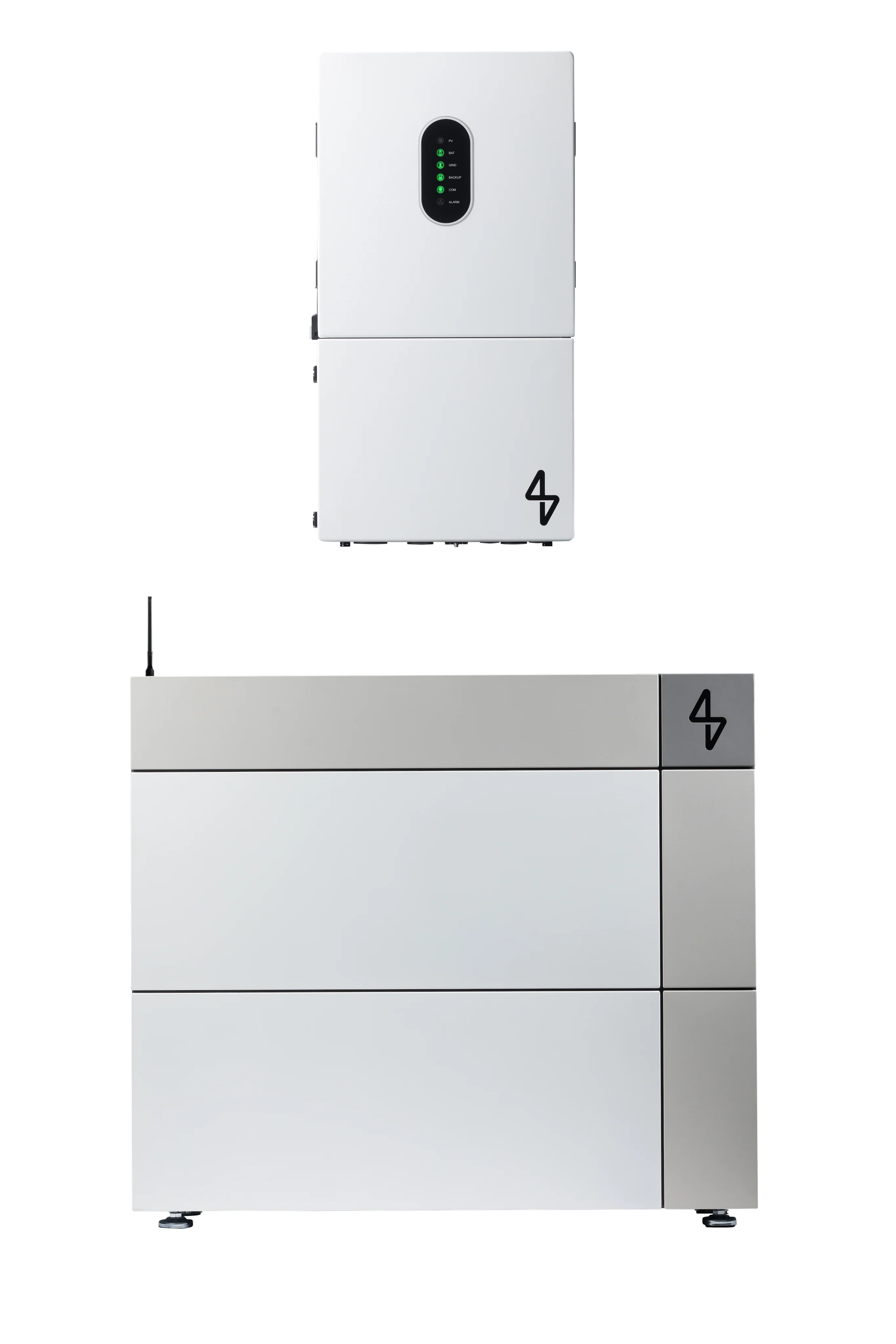

MeterHome™ Multi-Part AC Energy Storage System (ESS) (10kW | 14.3 kWh)
MeterHome™ Multi-Part AC Energy Storage System (ESS) (10kW | 14.3 kWh)
MeterHome’s energy storage system is designed to fit your life.
Fully compatible with the grid, solar, and generators, MeterHome's safe chemistries and flexible connections maximize energy savings and performance through blackouts and whatever life brings your way.
More power. More features. More value.
Built to fit your life.
Our advanced battery backup systems are stackable. Up to 8 battery enclosures and 9 inverters, delivering 114.4kW peak capacity and 90kW continuous power—ensuring your home stays on, no matter what.
Product Specifications
Inverter Tech Specifications
Download Spec Sheet| Weight Approximation | 88 lbs. (40 kg) |
|---|---|
| Dimension (W x D x H) | 16.5" x 9.4" x 31.5" (420mm x 240mm x 800mm) |
| Mounting | Wall bracket |
| Cooling Method | Fan Cooling |
| Ingress Protection Degree | NEMA 3R |
| Operating Temperature Range | -20°C to 60°C (-4°F to 140°F) |
|---|---|
| Maximum Operation Altitude | max 6,562ft (2000m) |
| Relative Humidity | 0~100% |
| Ingress Protection Degree | NEMA 3R |
| Nominal AC Output (W) | 10,000 |
|---|---|
| Maximum PV Input Power (W) | 15,000 |
| Maximum Input Current per MPPT (A) | 30/22/22 |
| Nominal Grid Voltage (Vac) | 120/240V (Split phase) / 208V (2/3 phase) |
| Nominal Grid Frequency (Hz) | 50/60 |
| Rated PV Input Voltage (Vdc) | 600 |
| Start Up DC Voltage (Vdc) | 90 |
| MPPT Voltage Range (Vdc) | 70-540 |
| Maximum PV Circuit Current (A) | 44+44 |
| Number of MPPT | 3 |
| String per MPPT | 2/2/2 |
| PV Connection Way | Terminals |
| Peak Power (off grid) | 2 times of rated power, 10s |
| Power Factor | 0.8 leading to 0.8 lagging |
| DC Injection Current (mA) | THD <3% (Linear load <1.5%) |
| Maximum Efficiency (PV to AC) | 98.0% |
| Maximum Efficiency (BAT to AC) | 94.5% |
| CEC. Efficiency | 96.5% |
| Communication Interface | CAN(for BMS), DRM/RS485 (for meter), RS485 |
| Safety Certification | UL1741, CSA C22.2, UL1699B |
| Grid Regulation | UL1741SB, IEEE1547 :2018, HECO SRD 2.0 |
| EMC | FCC Part 15 Class B |
| Protection Category | Class I |
| Connects up to | 9 Inverters |
Battery Enclosure Tech Specifications
| Dimension (W x D x H) | 39.6" x 16" x 34.5" (1006mm x 406mm x 876mm) |
|---|---|
| Weight Approximation | 463 lbs. (210 kg) |
| Installation Style | Indoor, Floor Mounted |
| Cooling | air-cooled |
| Humidity | 5%-95% |
|---|---|
| Maximum Operation Altitude | max 6,562ft (2000m) |
| Enclosure Protection Rating | IP 44 |
| Energy Configuration (kWh) | 14.3 |
|---|---|
| Maximum Charging / Discharging Current (A) | 150 |
| Battery Operating Voltage (V) | 40-58.4 |
| Battery Chemistry | LiFePO4 |
| Charging Temperature Range | 0°C to 35°C (32°F to 95°F) |
| Discharging Temperature Range | -30°C to 35°C (-22°F to 95°F) |
| Cycle Life | 25°C (77°F) 8000 cycles, 70% SOH / 45°C (113°F) 3000 cycles, 70% SOH |
| Safety Certification | UL60730, UL1973, UL9540, UL9540A, UN38.3 |
| Warranty | 10 years (Standard) |
| Connects up to | 8 Battery Enclosures |
Product Manual
MeterHome_BESS_User_Manual
Quick Install Guide
MeterHome Product Registration Form
App Guide
Product Flyer
Specification Sheet
Product Warranty
MeterHome Limited Warranty
Product FAQs
How is Meter different from other batteries out there?
MeterHome batteries are proudly designed, built and tested in the United States. Every battery is fully self-monitored and remotely optimized for peak efficiency by our professional, US-based control center. In the event of errors or performance issues, MeterHome engineers will either perform automatic remote maintenance or dispatch a technician for timely on-site service.
When will I receive my tax credit and state rebates?
The federal tax credit is applied when you file your tax return. State rebates may take up to six months after project completion. Consult your tax professional for more details.
Are shipping, permitting and installation included?
Shipping, permitting and installation fees are subject to the policies set forth by each distributor and the laws governing each municipality.
What type of battery is inside?
We use Lithium Iron Phosphate (LiFePO4) batteries. MeterHome is UL-listed for its adherence to strict safety regulations. In addition to their superior safety advantages, LiFePO4 batteries are free from nickel, magnesium and cobalt, toxic substances with significant humanitarian and ethical concerns.
Can my battery be used every day?
Yes, our batteries are designed for everyday use.
Is MeterHome safe?
Yes. We use Lithium Iron Phosphate (LiFePO4) batteries. MeterHome is UL-listed for its adherence to strict safety regulations. LiFePO4 exhibits greater thermal stability and a significantly higher thermal runaway temperature. These are safer, tougher, more durable batteries.
Will it work with existing batteries from other companies?
MeterHome batteries are designed to operate exclusively with our MeterHome batteries. However, your MeterHome system will be compatible with most existing solar setups and generators.
How do I prolong the life of my battery?
We do not restrict the depth of discharge if used daily. If not used daily, we suggest the resting stage be set between 40% and 60%. In addition, MeterHome batteries have built-in safety features to prevent damage.
What is the warranty?
Each MeterHome battery comes with a 10-year warranty
Can I participate in a program with my utility company where they deduct my energy contribution to the grid from my electric bill or otherwise compensate me?
Yes, MeterHome batteries support participation in utility financial benefit programs. Please contact your local utility company to inquire about their specific programs and offerings
