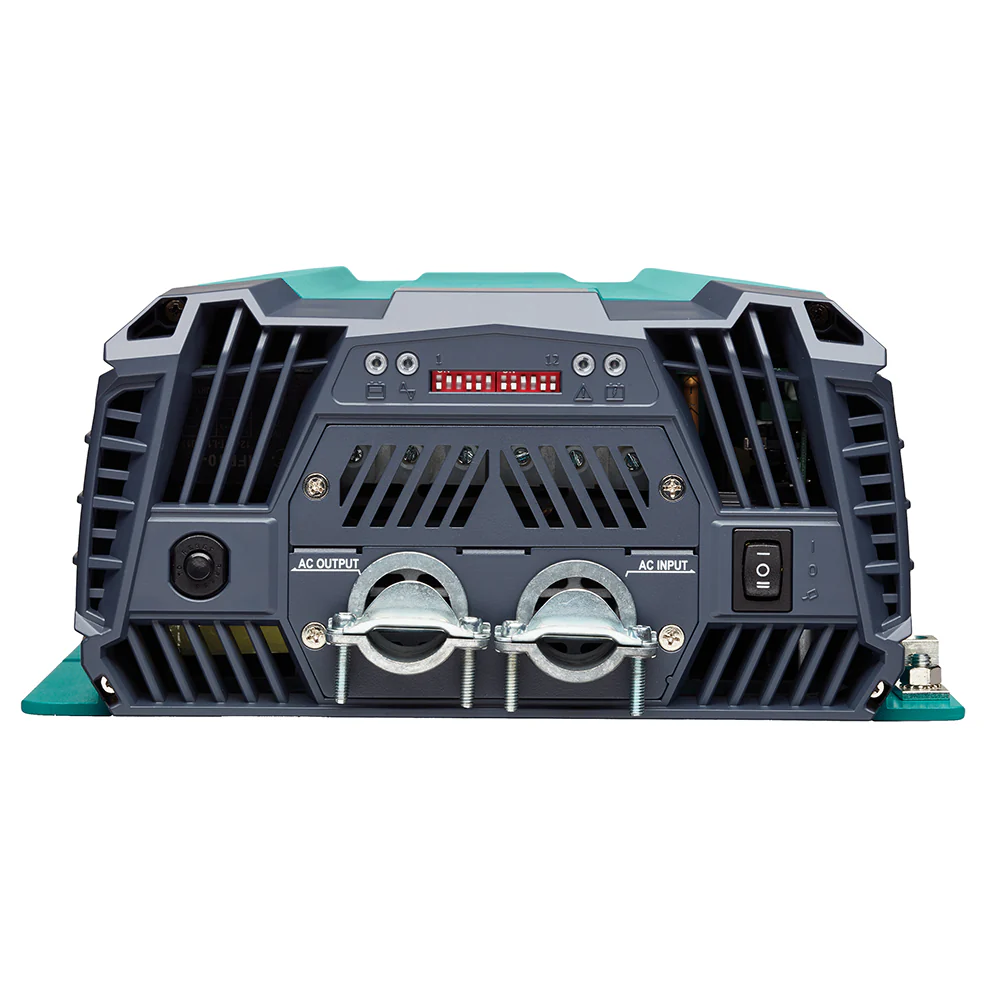

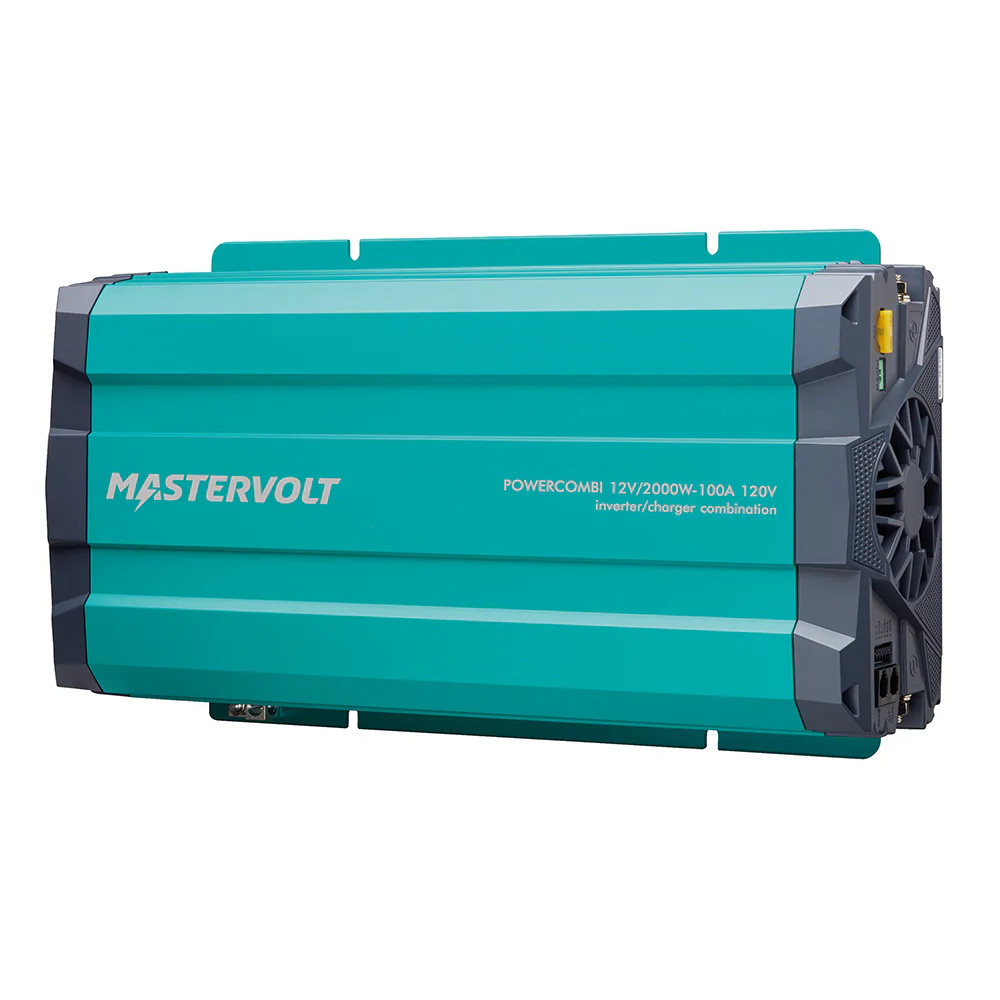

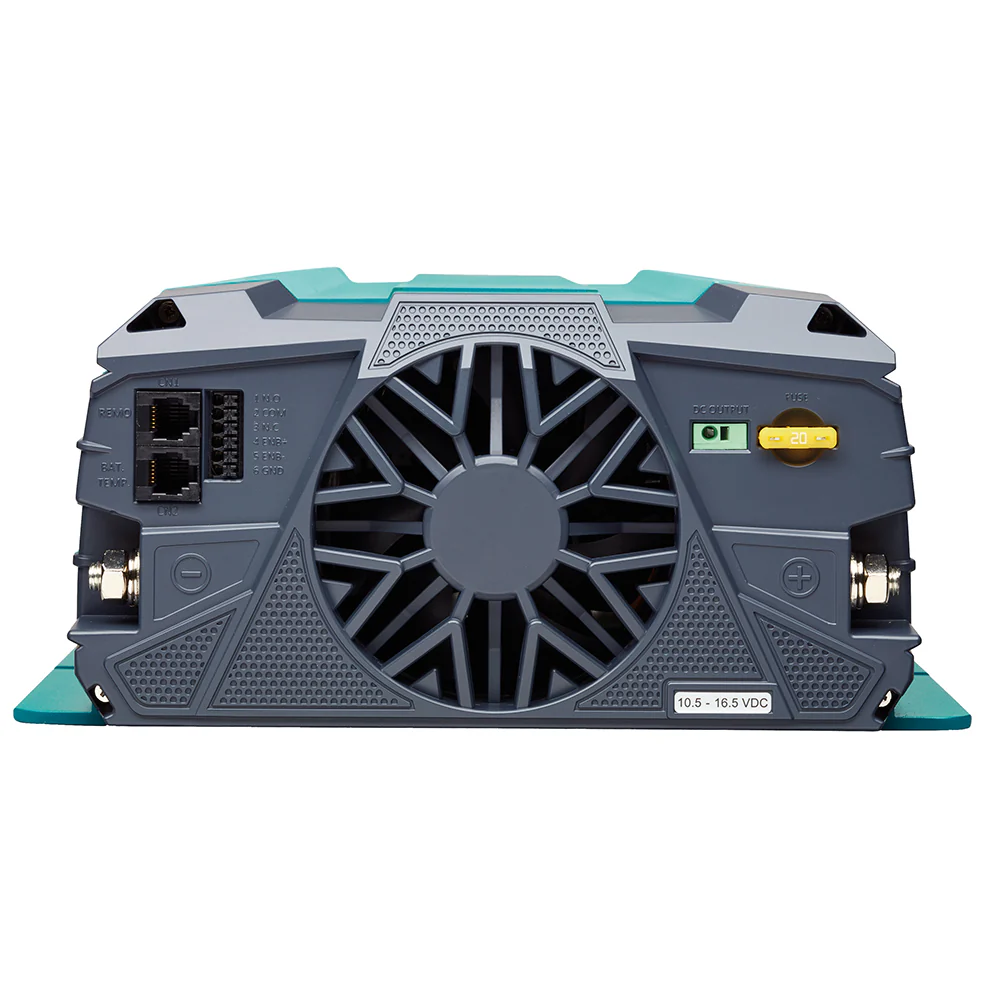

Mastervolt PowerCombi 12V - 2000W - 100 Amp (120V) [36212000]
Mastervolt PowerCombi 12V - 2000W - 100 Amp (120V) [36212000]
Simple. Independent. Flexible.
The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter / charger, it yet can easily be integrated into a MasterBus network (with additional interface).
With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming—the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries—including a custom profile for use with Li-ion.
Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Mastervolt PowerCombi 12V - 2000W - 100 Amp (120V) [36212000] Product Specifications
| Category | Specification |
|---|---|
| Sine Wave Inverter Efficiency | 89% |
| Battery Charger – Input Voltage Range | 10 – 15.5 V |
| Nominal Input Voltage | 12 V |
| Max. Charge Current (25 °C / 77 °F) | 100 A DC |
| Transfer System – Transfer Speed | 30 A (10 ms) |
| Communication | MasterBus compatible via PowerCombi MasterBus Interface (part # 77032900) |
| Flat Battery Support (Min. Charging) | No (6 V) |
| Continuous Power (25 °C / 77 °F, cos φ 1) | 2000 W |
| Continuous Power (40 °C / 104 °F, cos φ 1) | 2000 W |
| Surge Power (3s) | 4000 W |
| AC Voltage / Frequency | 120 V – 50/60 Hz selectable HF - pure |
| Idle Consumption | 36 W |
| Dimensions (H x W x D) | 453 x 251 x 116 mm / 17.8 x 9.9 x 4.6 inch |
| Weight | 6 kg / 13.2 lb |
| Compliance | UL458 & Supplement SA/CSA C22.2, UL 1741 no. 107.1-01KKK-A-1822F (pending) |
| Battery Types | Flooded, Gel, AGM, custom |
| Temperature Range (Ambient) | -20 °C to 60 °C |
Product Manual
Owner's Manual (pdf)
Product WarrantyÂ
Mastervolt Product Warranty
Product FAQs
N/A
Original: $899.99
-65%$899.99
$315.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Mastervolt PowerCombi 12V - 2000W - 100 Amp (120V) [36212000]
Simple. Independent. Flexible.
The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter / charger, it yet can easily be integrated into a MasterBus network (with additional interface).
With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming—the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries—including a custom profile for use with Li-ion.
Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Product Specifications
Mastervolt PowerCombi 12V - 2000W - 100 Amp (120V) [36212000] Product Specifications
| Category | Specification |
|---|---|
| Sine Wave Inverter Efficiency | 89% |
| Battery Charger – Input Voltage Range | 10 – 15.5 V |
| Nominal Input Voltage | 12 V |
| Max. Charge Current (25 °C / 77 °F) | 100 A DC |
| Transfer System – Transfer Speed | 30 A (10 ms) |
| Communication | MasterBus compatible via PowerCombi MasterBus Interface (part # 77032900) |
| Flat Battery Support (Min. Charging) | No (6 V) |
| Continuous Power (25 °C / 77 °F, cos φ 1) | 2000 W |
| Continuous Power (40 °C / 104 °F, cos φ 1) | 2000 W |
| Surge Power (3s) | 4000 W |
| AC Voltage / Frequency | 120 V – 50/60 Hz selectable HF - pure |
| Idle Consumption | 36 W |
| Dimensions (H x W x D) | 453 x 251 x 116 mm / 17.8 x 9.9 x 4.6 inch |
| Weight | 6 kg / 13.2 lb |
| Compliance | UL458 & Supplement SA/CSA C22.2, UL 1741 no. 107.1-01KKK-A-1822F (pending) |
| Battery Types | Flooded, Gel, AGM, custom |
| Temperature Range (Ambient) | -20 °C to 60 °C |
Product Manual
Owner's Manual (pdf)
Product WarrantyÂ
Mastervolt Product Warranty
Product FAQs
N/A
