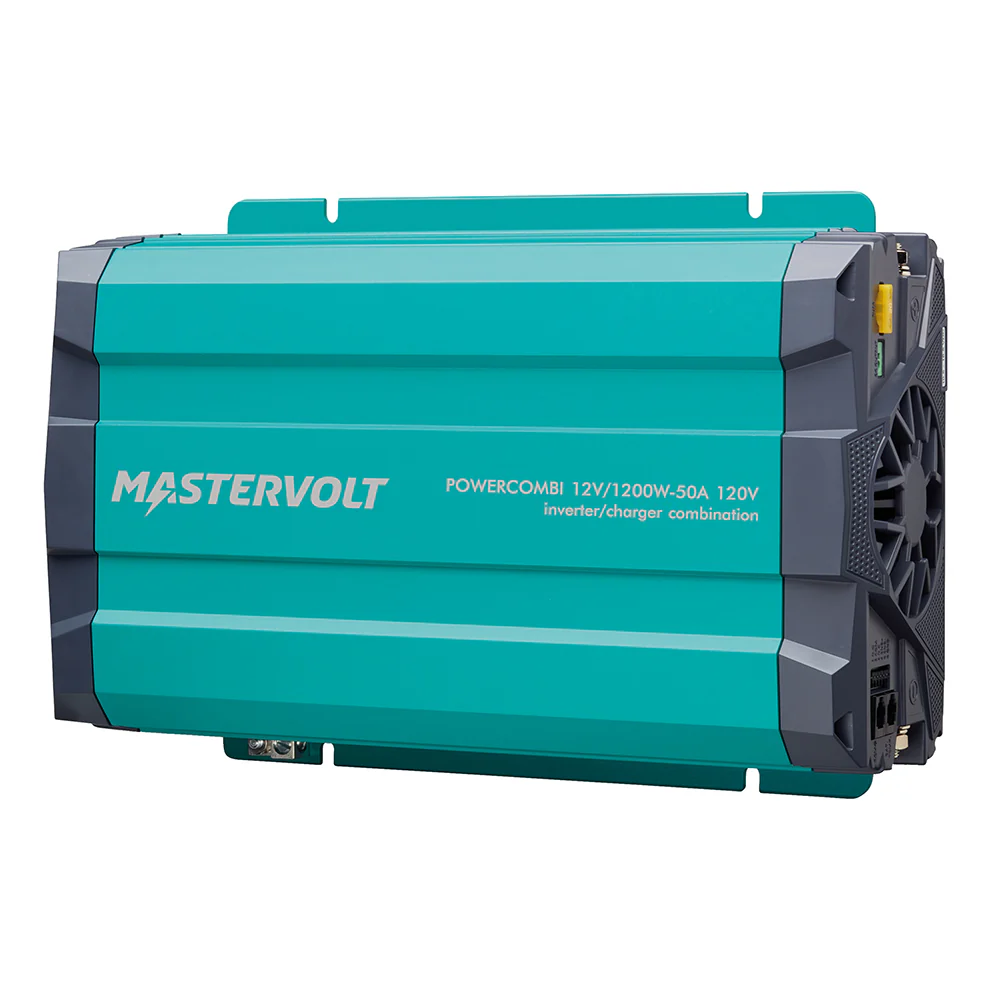

Mastervolt PowerCombi 12V - 1200W - 50 Amp (120V) [36211200]

Mastervolt PowerCombi 12V - 1200W - 50 Amp (120V) [36211200]

Simple. Independent. Flexible.

The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter / charger, it yet can easily be integrated into a MasterBus network (with additional interface).

With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming—the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries—including a custom profile for use with Li-ion.

Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.

Product Specifications

Mastervolt PowerCombi 12V - 1200W - 50 Amp (120V) [36211200] Product Specifications

Category	Specification
Input Voltage Range	10 – 15.5 V
Nominal Input Voltage	12 V
Max. Charge Current (25 °C / 77 °F)	50 A DC
Transfer System - Transfer Speed	30 A (10 ms)
Communication	MasterBus compatible via PowerCombi MasterBus Interface (part # 77032900)
Flat Battery Support (Min. Charging)	No (6 V)
Continuous Power (25 °C / 77 °F, cos φ 1)	1200 W
Continuous Power (50 °C / 122 °F, cos φ 1)	1200 W
Surge Power (3s)	2400 W
AC Voltage / Frequency	120 V – 50/60 Hz selectable HF - pure
Idle Consumption	25 W
Dimensions (H x W x D)	386 x 251 x 116 mm / 15.2 x 9.9 x 4.6 inch
Weight	4.55 kg / 10.0 lb
Compliance	UL458 & Supplement SA/CSA C22.2, UL 1741 no. 107.1-01KKK-A-1822F (pending)
Battery Types	Flooded, Gel, AGM, custom
Temperature Range (Ambient)	-20 °C to 60 °C
