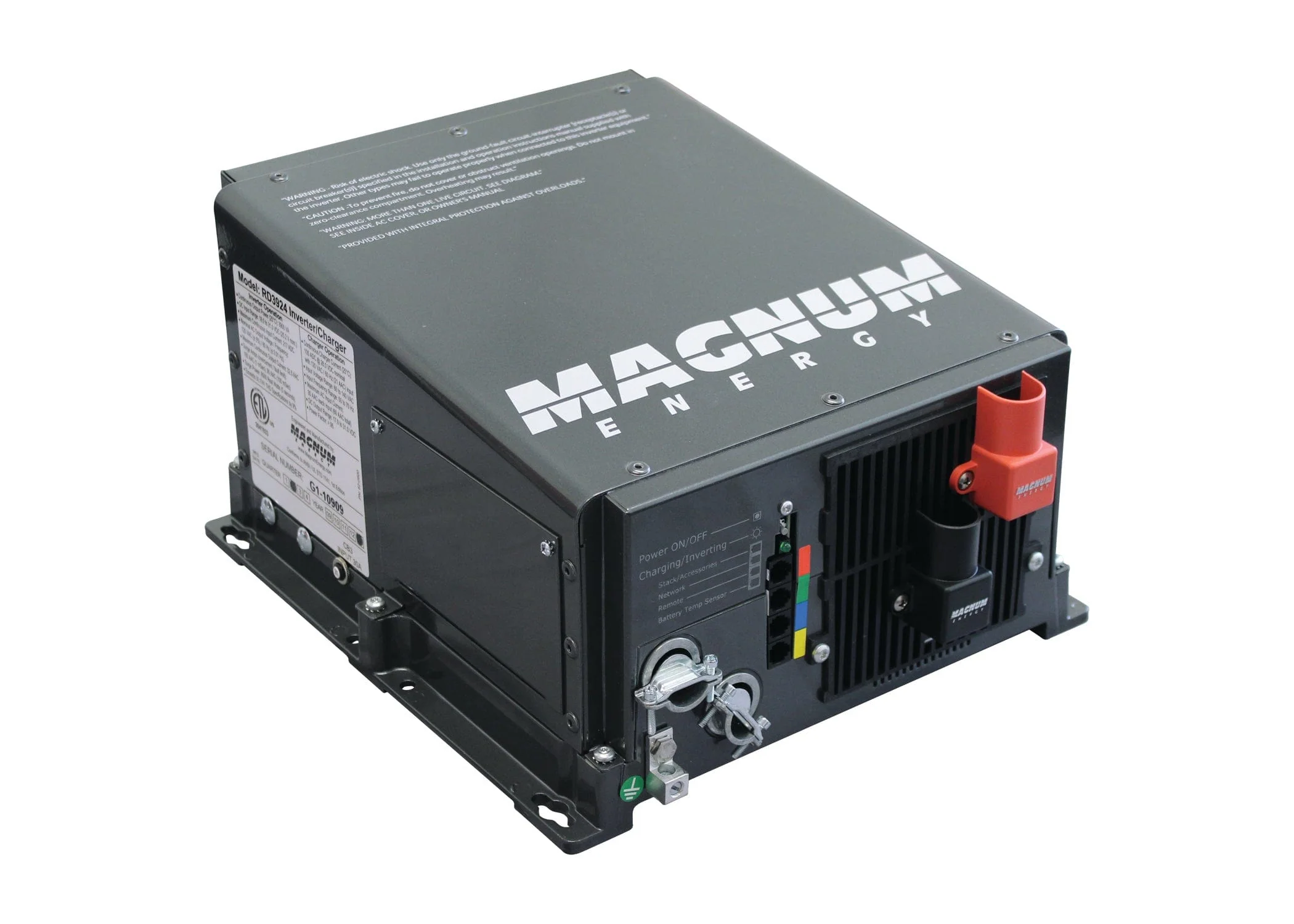

Magnum Energy RD2824 2800 Watt 24V Modified Inverter

The RD Series Inverter / Charger is a new generation modified sine wave inverter designed specifically for renewable energy use. The RD Series is powerful, easy-to-use, and best of all, cost effective.

Product Specifications

Magnum Energy RD2824 2800 Watt 24V Modified Inverter Product Specifications

Output Power	2,800W
Peak Watts	6,000W
Warranty	2 Years
Output Voltage	120 VAC
Output Current	23.3 amps
Output Waveform	Modified Sine
Output Frequency	60 Hz
Input Voltage	24
Operating Temp	-20° C to +60° C (-4° F to 140° F)
Efficiency	93%
Weight	42 lb (19.0 kg)
Dimensions	13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm)
UL Certified	Yes
Phase	Single
Topology	Low Frequency
Input Battery Voltage Range	18 - 32 VDC

Product Manual

Magnum Energy RD2824 Owner Manual

Magnum Energy RD2824 Spec Sheet

Product Warranty

Magnum-Dimensions Warranty Plan

Product FAQs

N/A
