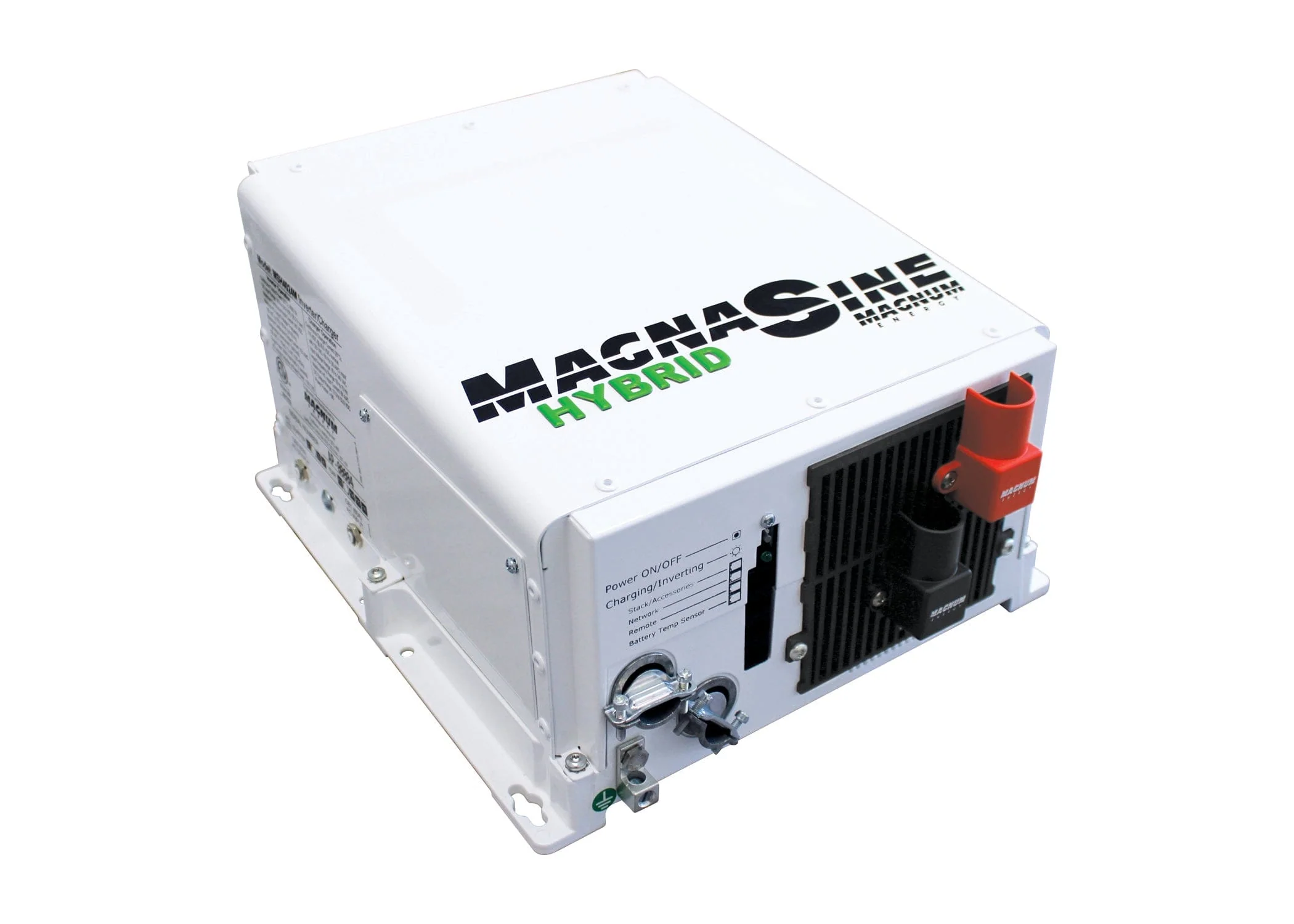

Magnum Energy MSH3012M-L 3000 Watt 12V Pure Sine Inverter

Magnum Energy MSH3012M-L 3000 Watt 12V Pure Sine Inverter

Description

The MSH-M Series Inverter/Charger from Magnum Energy – a pure sine wave inverter designed with true hybrid technology allowing it to run larger loads from smaller generators.

Hybrid Technology: Most inverters only use one source of energy to power loads, either from incoming AC power – shore or AC generator – or from the batteries. The MSH-M Series combines the energy from both sources to power loads. This allows the inverter to recharge the batteries when there is surplus power or deliver more power to the loads if they require more than the AC input can supply by itself.

Battery Profile Presets: Using the ME-RC or ME-ARC Remote Controls, easily choose from and set standard battery profiles, including Lithium Iron Phosphate (LFP) – only available via the ME-RC, Gel, Flooded, AGM1, and AGM2.

Product Features

Pure Sine Wave

Easy AC and DC Wiring

3 Year Warranty

Product Specifications

Magnum Energy MSH3012M-L 3000 Watt 12V Pure Sine Inverter Product Specifications

Output Power	3,000W
Peak Watts	3,900W
Warranty	Three years parts and labor
Output Voltage	120 VAC
Output Current	25.0 amps
Output Waveform	Pure Sine
Output Frequency	60 Hz
Input Voltage	12
Operating Temp	-20° C to +60° C (-4° F to 140° F)
Efficiency	90.0%
Weight	55 lb (24.9 kg)
Dimensions	13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm)
UL Certified	Yes
Phase	Single
Topology	Low Frequency
Input Battery Voltage Range	9 to 17

Product Manual

Magnum Energy MSH3012M-L Owner Manual

Magnum Energy MSH3012M-L Spec Sheet

Product Warranty

Magnum-Dimensions Warranty Plan

Product FAQs

N/A
