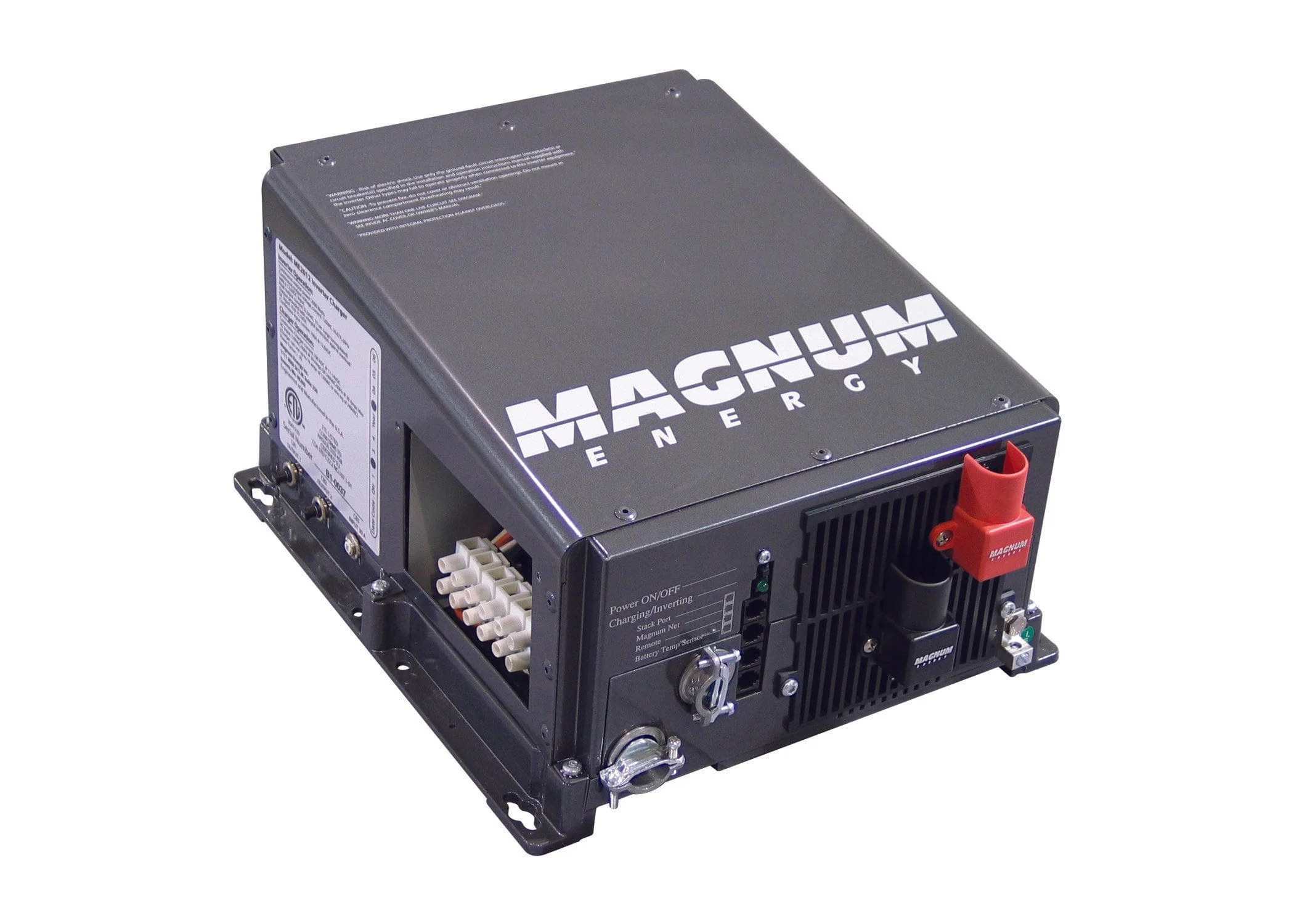

Magnum Energy ME2512-U 2500 Watt 12V Modified Sine Inverter

Magnum Energy ME2512-U 2500 Watt 12V Modified Sine Inverter

Description

The ME Series Inverter / Charger from Magnum Energy is a modified sine wave inverter designed specifically for rugged mobile applications. The ME Series is powerful, easy-to-use, and best of all, cost effective.

Safe and reliable: The ME Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverter is safe and reliable.

Product Specifications

Magnum Energy ME2512-U 2500 Watt 12V Modified Sine Inverter Product Specifications

Output Power	2,500W
Peak Watts	5,000W
Warranty	3 Years
Output Voltage	120 VAC
Output Current	20.8 amps
Output Waveform	Modified Sine
Output Frequency	60 Hz
Input Voltage	12
Operating Temp	-20° C to +60° C (-4° F to 140° F)
Efficiency	91%
Weight	41 lb (18.6 kg)
Dimensions	13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm)
UL Certified	Yes
Phase	Single
Topology	Low Frequency
Input Battery Voltage Range	9-16

Product Manual

Magnum Energy ME2512-U Owner Manual

Magnum Energy ME2512-U Spec Sheet

Product Warranty

Magnum-Dimensions Warranty Plan

Product FAQs

N/A
