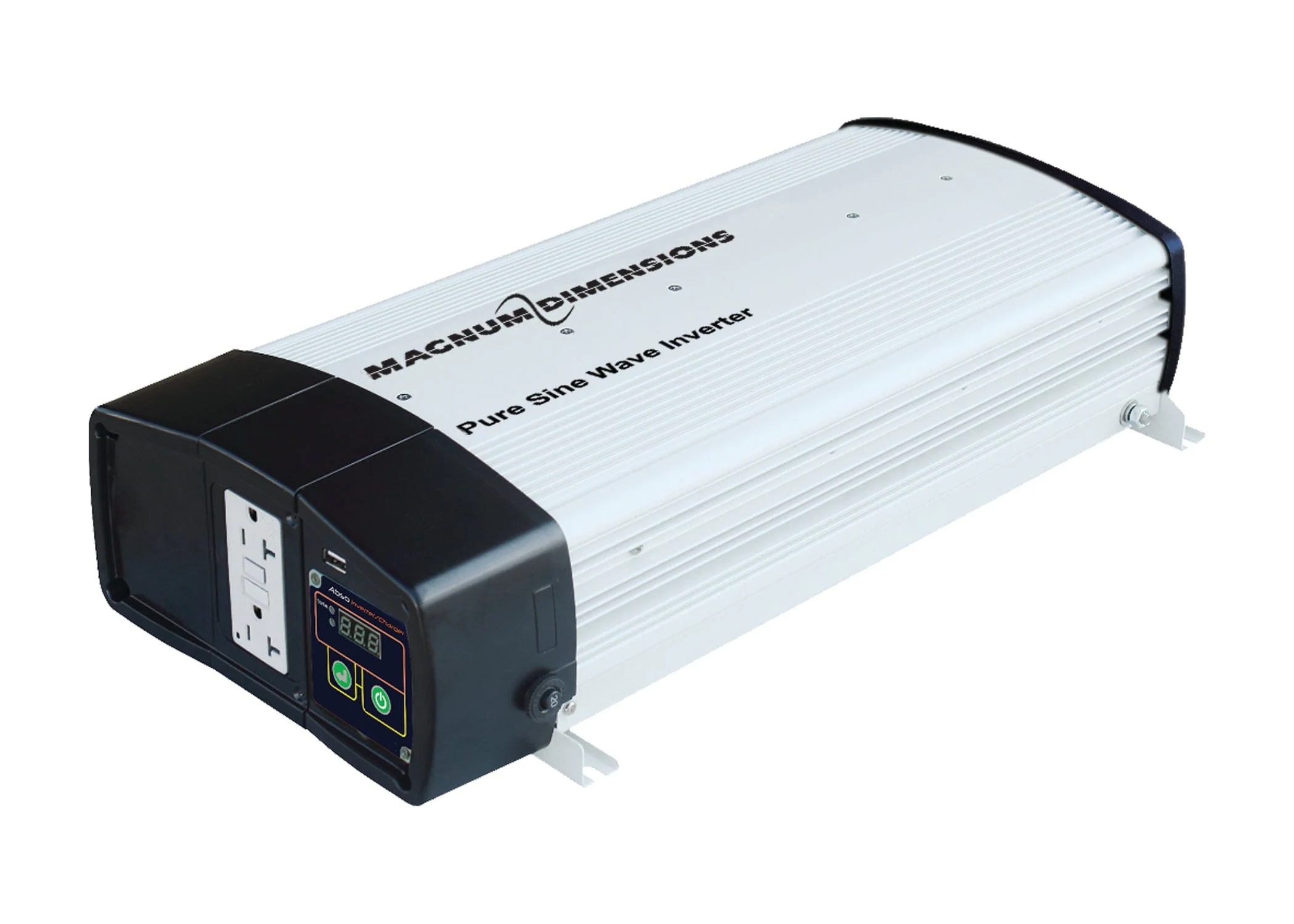

Magnum Energy CSW2012-X 2000 Watt 12V Pure Sine Wave Inverter

Magnum Energy CSW2012-X 2000 Watt 12V Pure Sine Wave Inverter

Description

The Magnum-Dimensions CSW Series inverter from Sensata Technologies is a pure sine wave inverter designed to be powerful, yet simple to operate. The CSW will provide you with reliable AC power for troublefree use.

Product Specifications

Magnum Energy CSW2012-X 2000 Watt 12V Pure Sine Wave Inverter Product Specifications

Output Power	2,000W
Peak Watts	4,000W
Warranty	1 Year
Output Voltage	120 VAC
Output Current	16.7 amps
Output Waveform	Pure Sine
Output Frequency	60 Hz
Input Voltage	12
Operating Temp	0°C to +40°C [32°F to 104°F]
Efficiency	> 90%
Weight	11.5 lb [5.2 kg] (2012-X: 13.0 lb [5.9 kg])
Dimensions	16.5” x 9.1” x 4.3” [41.9 cm x 23.1 cm x 10.9 cm]
UL Certified	Yes
Phase	Single
Topology	High Frequency
Input Battery Voltage Range	10.5 - 15.5

Product Manual

Magnum Energy CMW2012 -X Owner Manual

Magnum Energy CMW2012-X Spec Sheet

Manual Addendum CSW2012-HX

Product Warranty

Magnum-Dimensions Warranty Plan

Product FAQs

N/A
