Lowrance TM 20 Degree Skimmer Transducer [106-48]
Description

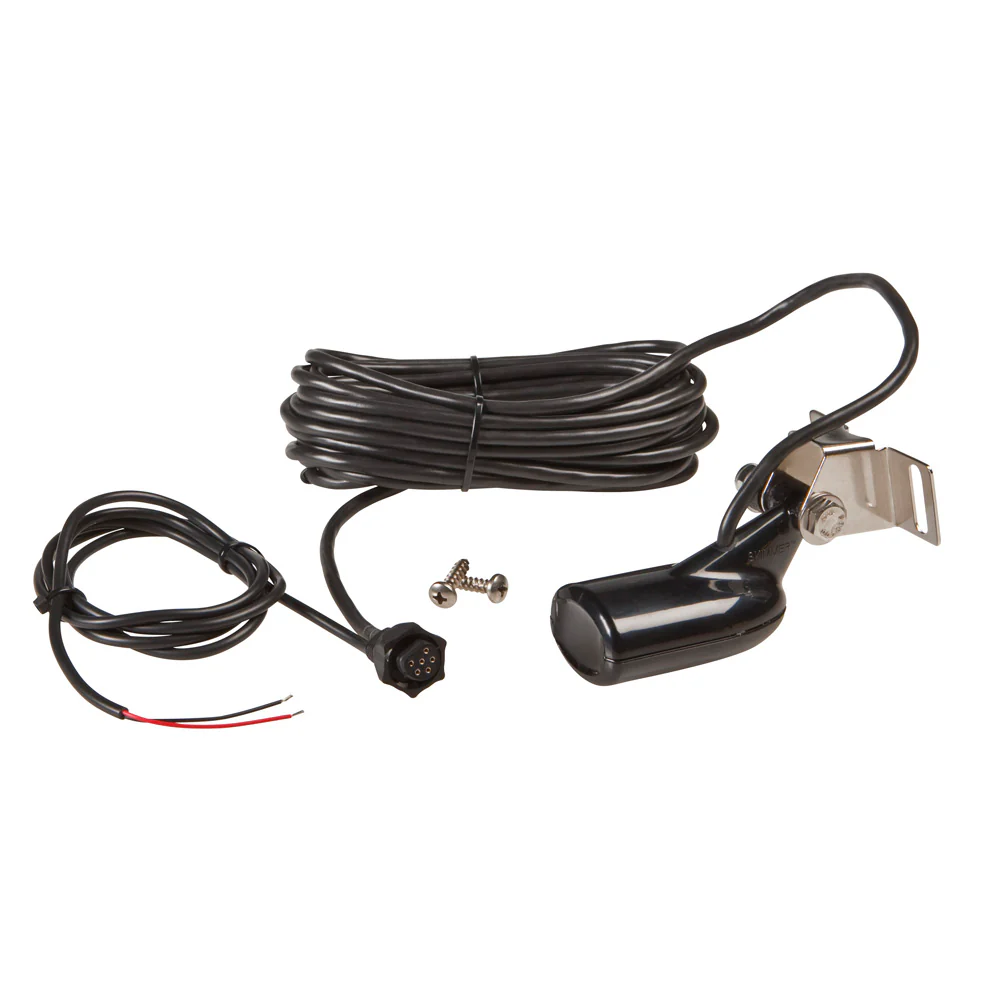

The Lowrance TM 20Ā° Skimmer Transducer is a transom-mount, 20-degree skimmer (200 kHz) with a built-in temperature sensor, delivering reliable sonar performance and clear underwater imaging. Designed for easy installation, it includes a power cable and offers dual-frequency operation for both wide and narrow beam coverage. Its standard imaging and broad compatibility make it ideal for anglers and boaters seeking accurate sonar readings and versatile placement.
Works with: Cuda 128, Cuda 128 P, Cuda 168, Cuda 168 EX, Cuda 242, Cuda 250 S/Map, FishEasy 240, FishEasy 245 DS, FishEasy 250 DS, FishEasy 320, FishElite 500C, FishElite 502C iGPS, FishElite 640C, FishElite 642C iGPS, FishMark 320, FishMark 500C, FishMark 640C, FishStrike 1000C, FishStrike 2000C, LCF-1440, LST-3800, M56 S/MAP, M68C S/MAP, X47, X47EX, X-50 DS, X67C, X-86 DS, X96
Product Specifications
Lowrance TM 20 Degree Skimmer Transducer [106-48] Product Specifications
| Specification |
Details |
| Frequency & Beam Width |
83 kHz ā 52Ā° wide, 200 kHz ā 22Ā° narrow |
| Maximum Range |
Up to 300 meters (approx. 1,000 feet) at 83 kHz |
| Transducer Type |
Transom mount with plastic housing, single internal broadband ceramic |
| Cable Length |
20' |
| Temperature |
Yes |
| Speed Included |
No |
| Pins |
7-pin connector |
| Mounting Style |
Transom |
| Imaging Type |
Standard |
| CHIRP |
No |
| Hull Compatibility |
Suitable for any hull |
| Box Dimensions |
3" H x 4" W x 10" L |
| Weight |
0.9 lbs |
| UPC |
042194521985 |
Product Manual
N/A
Product Warranty
Lowrance Limited Warranty
Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ādate of first purchaseā means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in theĀ Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors ā this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.
Obtaining Warranty Support
Customers can obtain warranty support by contacting:
- Their local Navico Certified/Approved Dealer or Distributor (a list of Certified/Approved Dealers and Distributors can be found on theĀ Dealer Locator)
- Navico Europe, Middle East & Africa ā for a list of Certified Dealers and Distributors by country refer to theĀ Dealer Locator
