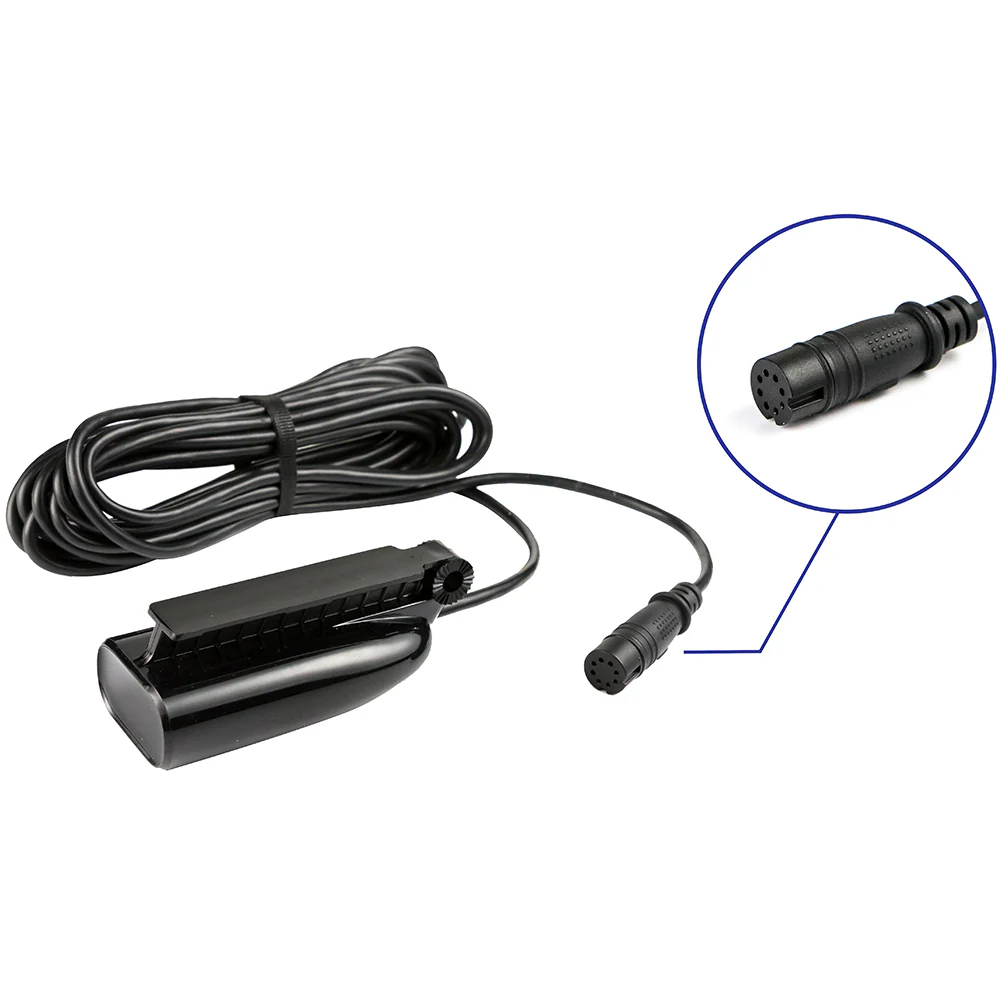

Lowrance SplitShot Skimmer Transom Mount Transducer [000-14028-001]

Lowrance SplitShot Skimmer Transom Mount Transducer [000-14028-001]

Lowrance SplitShot Skimmer Transom Mount Transducer [000-14028-001]

Description

The Lowrance SplitShot Skimmer Transom Mount Transducer (Model 000‑14028‑001) delivers reliable 83/200 kHz sonar for standard imaging. Designed for transom mounting, it is compatible with HOOK, Elite, and Reveal series fishfinders.

This transducer features a built-in temperature sensor but does not include speed functionality. Its durable, waterproof marine-grade housing ensures consistent performance in both freshwater and saltwater environments.

The SplitShot 2-in-1 Sonar with High CHIRP and DownScan Imaging™ provides clear traditional sonar views and lifelike images of fish-holding structure beneath and beside your boat. The product comes in a compact box measuring 3″ H × 5″ W × 10″ L and weighs 0.8 lbs.

Product Specifications

Lowrance SplitShot Skimmer Transom Mount Transducer [000-14028-001] Product Specifications

Feature Specification / Details
Product Name Lowrance SplitShot Skimmer Transom Mount Transducer
Model / SKU 000‑14028‑001
Compatibility Lowrance HOOK/Elite/Reveal series fishfinders
Transducer Type Skimmer / HDI compatible
Frequency 83/200 kHz
Temperature Sensor Yes
Speed Included No
Chirp No
Mounting Style Transom
Imaging Standard
Pins 7-pin
Cable Length Approx. 10 ft
Material / Housing Durable marine-grade plastic
Installation Transom mount with included hardware
Operating Temperature 32°F to 140°F (0°C to 60°C)
Water / Weather Protection Waterproof for marine use
Box Dimensions 3″ H × 5″ W × 10″ L
Weight 0.8 lbs
UPC 9420024166291

Product Manual

N/A

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.

Product FAQ's

N/A
