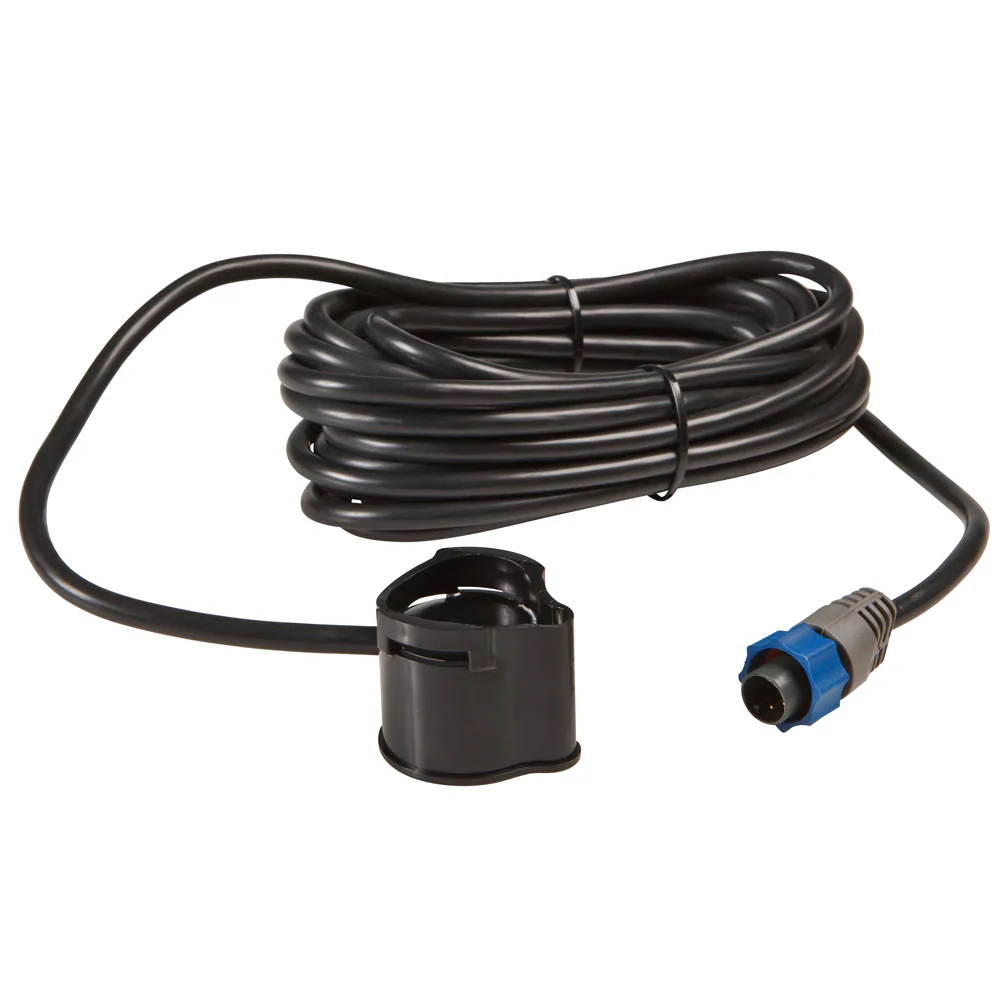

Lowrance PD-WBL Trolling Motor Mount Transducer [106-73]

Lowrance PD-WBL Trolling Motor Mount Transducer [106-73]

Lowrance PD-WBL Trolling Motor Mount Transducer [106-73]

Description

The Lowrance PD-WBL Trolling Motor Mount Transducer features dual-frequency operation with 83 kHz wide and 200 kHz narrow beams for accurate underwater imaging. Designed for in-hull or trolling motor mount installation, it provides standard sonar imaging without CHIRP and comes with a 20-foot cable for flexible placement. Ideal for anglers seeking reliable performance and easy installation on fiberglass-hulled boats, it delivers clear sonar readings and broad compatibility with Lowrance fishfinders.

Works with: LCX-110C, LCX-111C HD, LCX-15CI, LCX-15CT, LCX-15MT, LCX-16CI, LCX-17M, LCX-20C, LCX-25C, LCX-26C HD, LMS-332C, LMS-334C iGPS, X102C, X125, X135, X5

Product Specifications

Lowrance PD-WBL Trolling Motor Mount Transducer [106-73] Product SpecificationsĀ

Specification Details
Frequency & Beam Width 83 kHz – 52° wide, 200 kHz – 22° narrow
Maximum Range Up to 300 meters (approx. 1,000 feet) at 83 kHz
Transducer Type Trolling motor mount or shoot-thru-hull, pod type with plastic housing
Mounting Style In-Hull
Imaging Type Standard
CHIRP No
Cable Length 20'
Temperature No
Speed Included No
Pins 7
Hull Compatibility Suitable for fiberglass hulls
Box Dimensions 3" H x 5" W x 10" L
Weight 1.3 lbs
UPC 042194524054

Product Manual

N/A

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in theĀ Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.

Product FAQ's

N/A
