Lowrance Outboard Pilot Cable Steer Pack [000-11749-001]

Lowrance Outboard Pilot Cable Steer Pack [000-11749-001]

Lowrance Outboard Pilot Cable Steer Pack [000-11749-001]

Description

Everything you need in one box to fit an autopilot to your outboard motor, the Outboard Pilot lets you focus on fishing activity while keeping the boat on course.
When connected to a Lowrance HDS Gen2 or Gen2 Touch, the Outboard Pilot can steer to a waypoint or along a route, select a turn pattern or simply hold a constant heading.
The Lowrance SmartSteer™ user interface allows you to easily switch between electric-steer, trolling-motor control and outboard motor control directly from your HDS display. And, with your HDS display, you can easily convert trails to routes - so you can retrace a previous track and get your boat back to the dock from your fishing area.

Features:

  • HDS Units require 3.5 Software
  • Steer your outboard motor to a heading, waypoint, route or cursor, with control from your HDS Gen2 or Gen2 Touch display
  • Lowrance SmartSteer™ interface provides control of your cable-steered outboard motor, as well as the MotorGuide Xi5 Pinpoint electric-steer trolling motor
  • "One-touch" route creation from trails
  • Pre-set turn patterns for more effective fishing/trolling presentations
  • Recommended for single-outboard setups, on boats that are 30 feet and less, in length
  • VRF (Virtual Rudder Feedback).simplifies pilot installation eliminating the need for a rudder position sensor
  • Easy setup.straightforward guide steps you through first-time install
  • Easy-to-install, plug-and-socket connection with no complex terminal wiring
  • Supported by Lowrance Advantage Service program
  • Dash-mount button for one-touch Auto/Standby activation
  • Steer to Heading, Course or Route
  • High efficiency, super-quiet 0.8L hydraulic gear pump
  • Lowrance Outboard Pilot Cable-Steer Pack replaces the manual helm-drive unit
  • Morse 290, Morse 304411 and Teleflex SSC52 cable compatibility
  • Helm-1 is only compatible with the NAC-1.Helm-1 includes variable-voltage feedback interface
  • 2 Year Limited Warranty

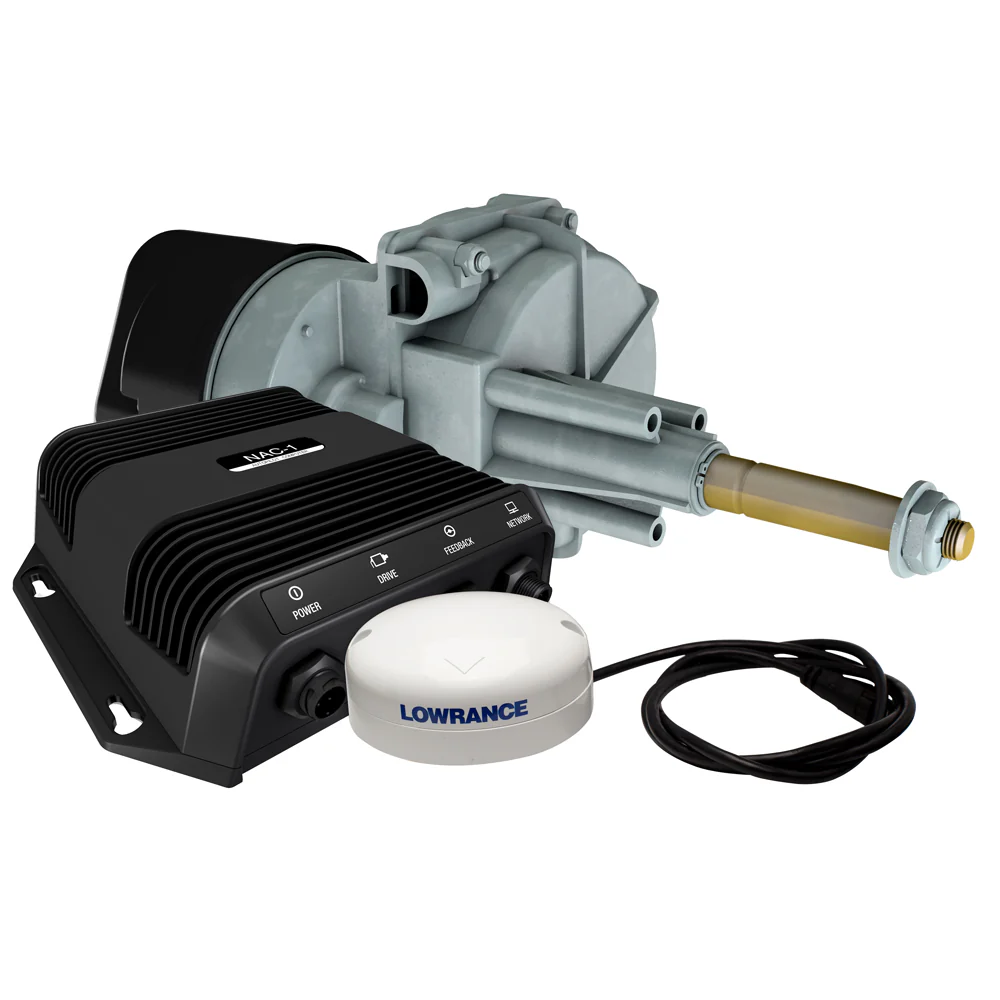

Package Includes:

NAC-1 Autopilot Computer - 000-11769-001
The brains behind the Lowrance Outboard Pilot system. It contains the steering computer and electronics for the drive unit motor and clutch.

Helm-1 for Outboard Pilot - 000-11771-001
This drive unit replaces your manual helm-drive unit on single cable installations. Compatible with Morse 290, 304411 and Teleflex SSC52 cables. Includes voltage rudder-feedback sensor, and is only compatible with NAC-1.

N2K 4 Way - 000-10996-001
NMEA2000 4-way joiner. Connect four NMEA2000 Micro-C devices to the NMEA2000 Network.

N2KEXT-2RD - 000-0119-88
0.6M (2') NMEA 2000® cable for backbone extension or or drop cable to connect an additional network device

N2KEXT-6RD - 000-0127-53
1.82M (6') NMEA 2000® cable for backbone extension or drop cable to connect an additional network device

N2KEXT-15RD - 000-0119-86
4.55M (15') NMEA 2000® cable for backbone extension or or drop cable to connect an additional network device

TR-120-KIT - 000-0127-52
Set of 1 male and 1 female NMEA 2000® terminators

MICRO-C POWER CABLE ONLY - NO T CONN - 000-12202-001

Product Specifications

Lowrance Outboard Pilot Cable Steer Pack [000-11749-001] Product Specifications

Feature Specification / Details
Product Name Lowrance Outboard Pilot Cable Steer Pack
Model / SKU 000‑11749‑001
Steering Type Cable/Solenoid
Compatibility Outboard motors
Steering Method Cable-based mechanical
Material / Housing Marine-grade components
Installation Direct replacement for standard outboard steering
Mounting Style Helm / outboard compatible
Cable Length Standard length for most outboards
Operating Temperature -10°C to 50°C (14°F to 122°F)
Water / Weather Protection Corrosion-resistant and marine-rated
Box Dimensions 7″ H × 16″ W × 19″ L
Weight 17.7 lbs
UPC 9420024134320

Product Manual

Brochure (pdf)

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.

Product FAQ's

N/A

$527.45

Original: $1,507.00

-65%
Lowrance Outboard Pilot Cable Steer Pack [000-11749-001]—

$1,507.00

$527.45

Product Information

Shipping & Returns

Description

Lowrance Outboard Pilot Cable Steer Pack [000-11749-001]

Description

Everything you need in one box to fit an autopilot to your outboard motor, the Outboard Pilot lets you focus on fishing activity while keeping the boat on course.
When connected to a Lowrance HDS Gen2 or Gen2 Touch, the Outboard Pilot can steer to a waypoint or along a route, select a turn pattern or simply hold a constant heading.
The Lowrance SmartSteer™ user interface allows you to easily switch between electric-steer, trolling-motor control and outboard motor control directly from your HDS display. And, with your HDS display, you can easily convert trails to routes - so you can retrace a previous track and get your boat back to the dock from your fishing area.

Features:

  • HDS Units require 3.5 Software
  • Steer your outboard motor to a heading, waypoint, route or cursor, with control from your HDS Gen2 or Gen2 Touch display
  • Lowrance SmartSteer™ interface provides control of your cable-steered outboard motor, as well as the MotorGuide Xi5 Pinpoint electric-steer trolling motor
  • "One-touch" route creation from trails
  • Pre-set turn patterns for more effective fishing/trolling presentations
  • Recommended for single-outboard setups, on boats that are 30 feet and less, in length
  • VRF (Virtual Rudder Feedback).simplifies pilot installation eliminating the need for a rudder position sensor
  • Easy setup.straightforward guide steps you through first-time install
  • Easy-to-install, plug-and-socket connection with no complex terminal wiring
  • Supported by Lowrance Advantage Service program
  • Dash-mount button for one-touch Auto/Standby activation
  • Steer to Heading, Course or Route
  • High efficiency, super-quiet 0.8L hydraulic gear pump
  • Lowrance Outboard Pilot Cable-Steer Pack replaces the manual helm-drive unit
  • Morse 290, Morse 304411 and Teleflex SSC52 cable compatibility
  • Helm-1 is only compatible with the NAC-1.Helm-1 includes variable-voltage feedback interface
  • 2 Year Limited Warranty

Package Includes:

NAC-1 Autopilot Computer - 000-11769-001
The brains behind the Lowrance Outboard Pilot system. It contains the steering computer and electronics for the drive unit motor and clutch.

Helm-1 for Outboard Pilot - 000-11771-001
This drive unit replaces your manual helm-drive unit on single cable installations. Compatible with Morse 290, 304411 and Teleflex SSC52 cables. Includes voltage rudder-feedback sensor, and is only compatible with NAC-1.

N2K 4 Way - 000-10996-001
NMEA2000 4-way joiner. Connect four NMEA2000 Micro-C devices to the NMEA2000 Network.

N2KEXT-2RD - 000-0119-88
0.6M (2') NMEA 2000® cable for backbone extension or or drop cable to connect an additional network device

N2KEXT-6RD - 000-0127-53
1.82M (6') NMEA 2000® cable for backbone extension or drop cable to connect an additional network device

N2KEXT-15RD - 000-0119-86
4.55M (15') NMEA 2000® cable for backbone extension or or drop cable to connect an additional network device

TR-120-KIT - 000-0127-52
Set of 1 male and 1 female NMEA 2000® terminators

MICRO-C POWER CABLE ONLY - NO T CONN - 000-12202-001

Product Specifications

Lowrance Outboard Pilot Cable Steer Pack [000-11749-001] Product Specifications

Feature Specification / Details
Product Name Lowrance Outboard Pilot Cable Steer Pack
Model / SKU 000‑11749‑001
Steering Type Cable/Solenoid
Compatibility Outboard motors
Steering Method Cable-based mechanical
Material / Housing Marine-grade components
Installation Direct replacement for standard outboard steering
Mounting Style Helm / outboard compatible
Cable Length Standard length for most outboards
Operating Temperature -10°C to 50°C (14°F to 122°F)
Water / Weather Protection Corrosion-resistant and marine-rated
Box Dimensions 7″ H × 16″ W × 19″ L
Weight 17.7 lbs
UPC 9420024134320

Product Manual

Brochure (pdf)

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.

Product FAQ's

N/A
