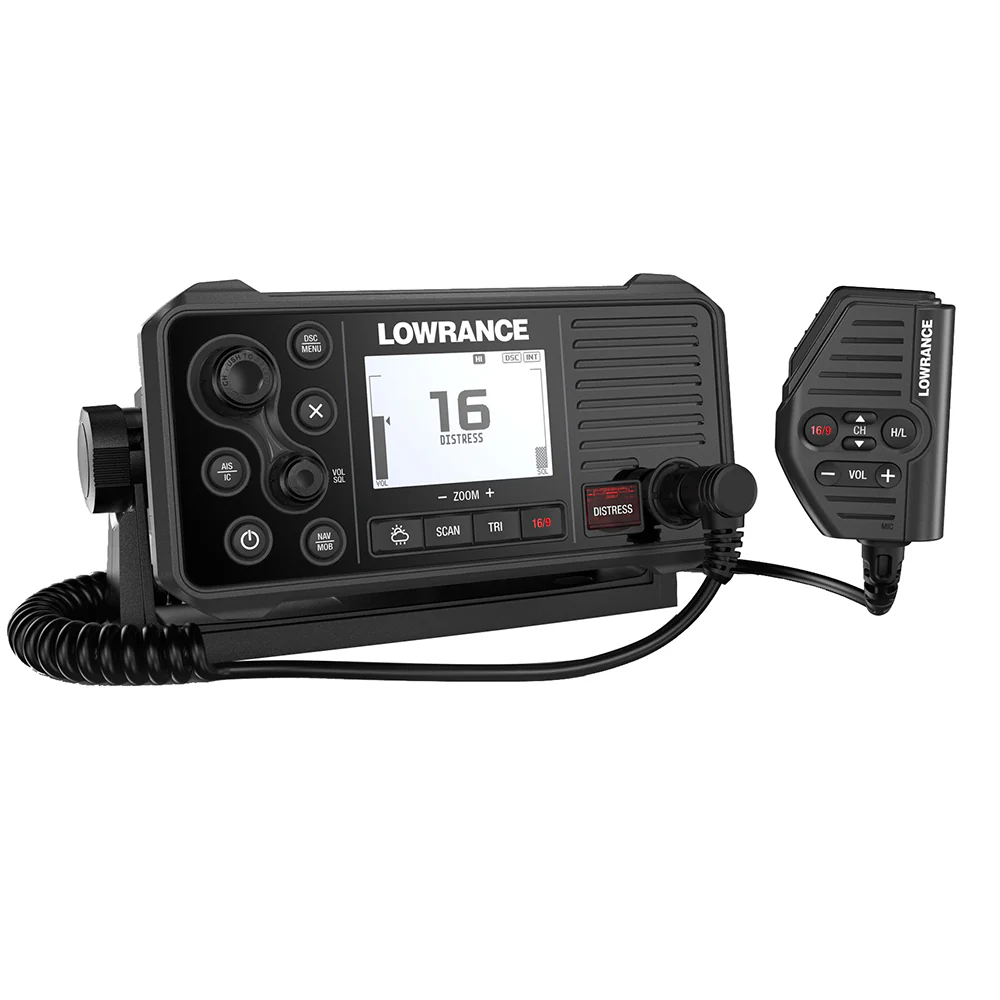

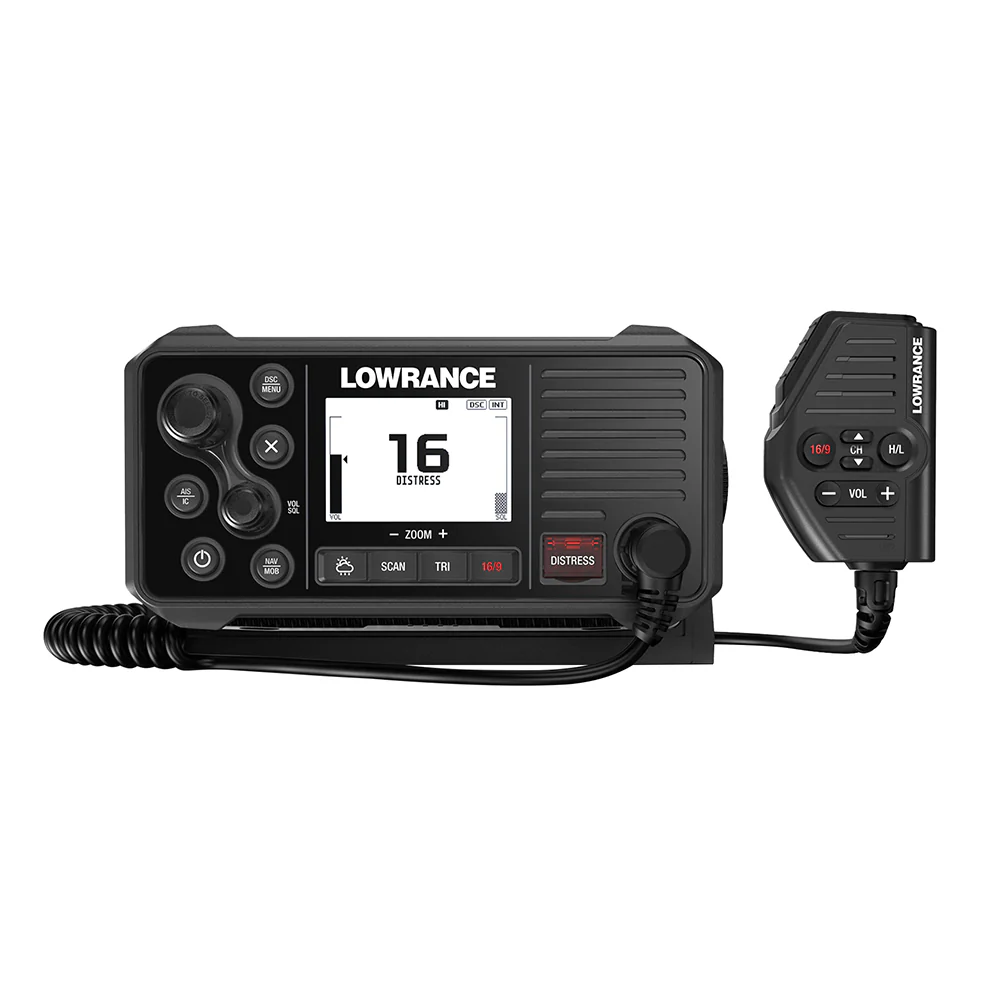

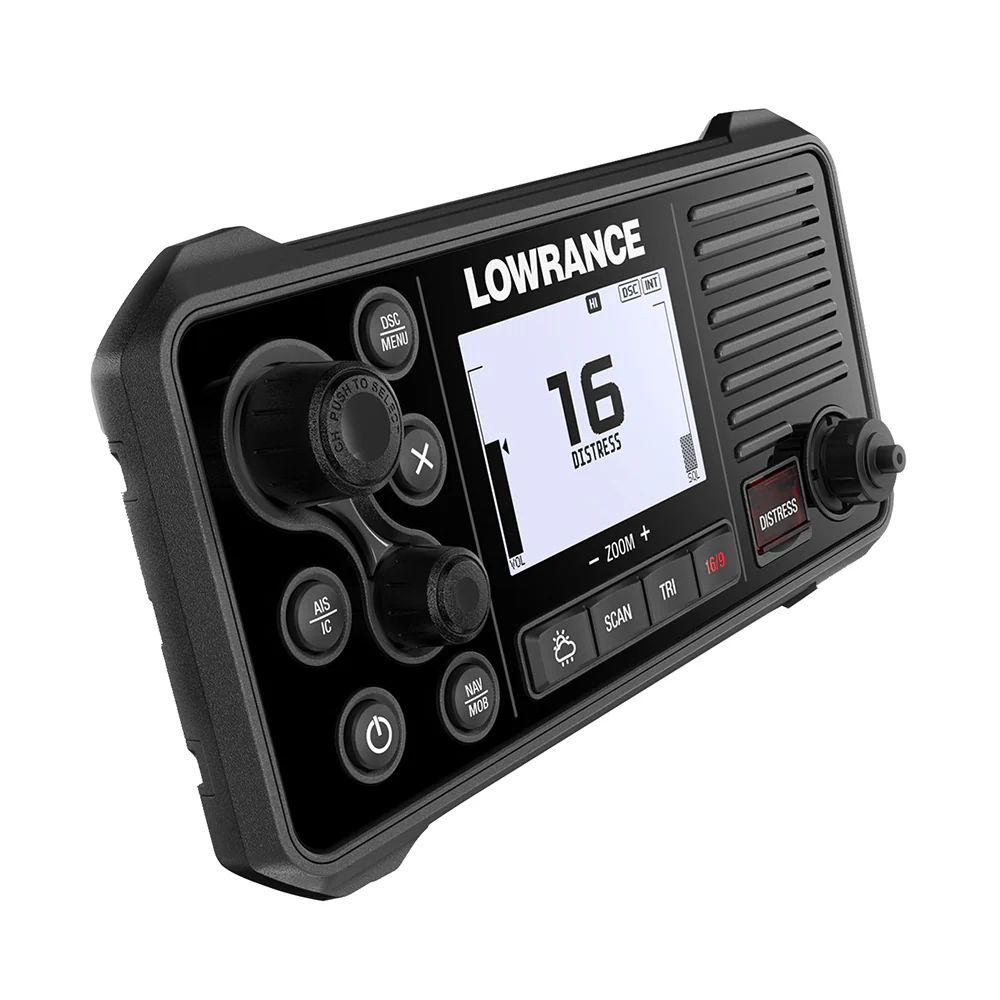

Lowrance Link-9 VHF Radio w/DSC AIS Receiver [000-14472-001]

Lowrance Link-9 VHF Radio w/DSC AIS Receiver [000-14472-001]

Lowrance Link-9 VHF Radio w/DSC  AIS Receiver [000-14472-001]

Description

Features:

  • Lowrance Link-9 Replaces the current Link-8 VHF
  • Front mountable design for easy installation
  • Industrial Design to align with style of Lowrance MFDs
  • Seamless integration with a wider B & G system through NMEA 2000 and 0183
  • Built-in AIS Receiver
  • Large screen with intuitive user interface

Unique Selling Points:

GPS 4-Ways:

  • With the integrated GPS receiver the Link-9 now has four ways to ensure you have a GPS fix in the event of an emergency.
  • A GPS antenna in the face of the radio means open air installations don’t need another antenna at all
  • An SMA connector on the rear case allows for connection to a GPS-500 antenna
  • NMEA 0183 allows you to get GPS from a chartplotter
  • NMEA 2000 means you don’t need another antenna if you already have one in your network

Built in AIS:

  • A dual-channel AIS receiver monitors the position of nearby AIS-equipped vessels, helping you to avoid collisions in crowded harbours and waterways.
  • AIS information can be viewed on the Link-9’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.

Remote Mountable Fist Mic:

  • The Link-9’s removable fist mic can be connected to the front or rear of the radio, and optional extension cable allows the radio and mic to be mounted separately.
  • This offers a simple and cost-effective solution for any mounting location, with no cable clutter.
  • For example, the Link-9 can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.

Mount From The Front:

  • Link-9 features easily removable top and bottom bezels which reveal mounting holes allowing the same style of mounting from the front that is featured on Lowrance MFDs.

Track Buddy:

Track buddy is a feature that automatically requests the position of another VHF radio. Simply enter the MMSI of the VHF into your contact list, then start tracking!

  • Track up to 5 buddies
  • Polls your contacts for their Lat/Long position automatically
  • Can be set to 1, 5, 15, 30 or 60 minute intervals
  • Displays the position on a compatible chart plotter
  • Great for keeping track of friends, family or vessels you need to know the position of that don’t have AIS

Navigation Mode:

  • Press the NAV button on the Link-9 to turn it into a navigational instrument displaying your Speed and Course.
  • Link-9 also contains a Man Overboard (MOB) function, hold down the NAV/MOB button to drop a waypoint on your current location and the Link-9 will enter MOB mode to show you how far away you are and where you need to steer to get back to the position of the MOB event. The MOB waypoint is also transmitted over NMEA 2000 to the rest of your network.

Product Specifications

Lowrance Link-9 VHF Radio w/DSC  AIS Receiver [000-14472-001] Product Specifications

Feature Specification / Details
Product Name Lowrance Link-9 VHF Radio with DSC & AIS Receiver
Model / SKU 000‑14472‑001
Type VHF Marine Radio
DSC Yes, Digital Selective Calling
AIS Receiver Yes
NMEA 2000 Yes
Built-In GPS Yes
Scrambler Capable No
Remote Mic Capable Yes
Power Output 25 W
Frequency 156–162 MHz
Channels 72 marine channels
Display Full dot-matrix LCD
Backlight Yes, adjustable
Connectivity NMEA 2000 / NMEA 0183
Water / Weather Protection IPX7 waterproof rating
Mounting Fixed mount, bracket included
Operating Temperature -15°C to 55°C (5°F to 131°F)
Color Grey
Dimensions 7.9″ H × 8.2″ W × 3.3″ D
Weight 5.55 lbs
Box Dimensions 7″ H × 10″ W × 11″ L
UPC 9420024172490

Product Manual

Link-9 User Manual

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.

Product FAQ's

N/A

$173.95

Original: $496.99

-65%
Lowrance Link-9 VHF Radio w/DSC AIS Receiver [000-14472-001]

$496.99

$173.95
