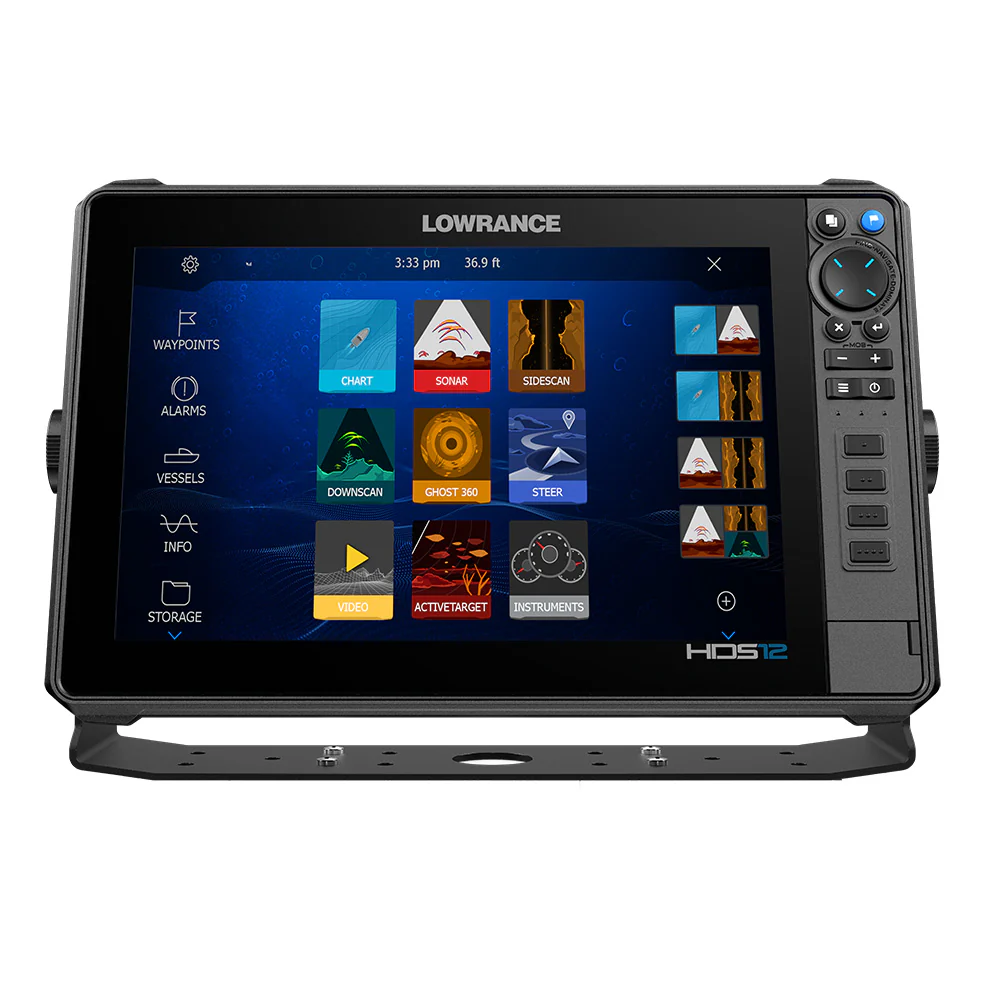

Product image 1

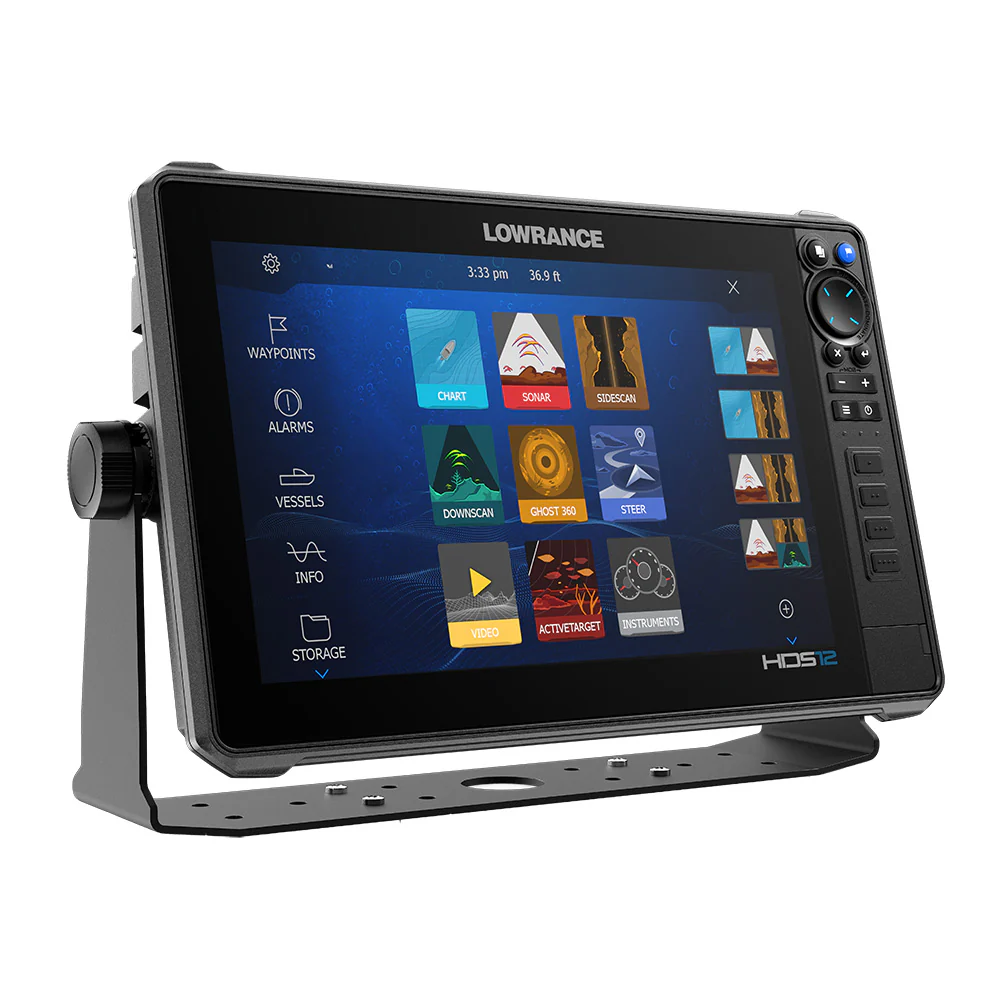

Product image 2

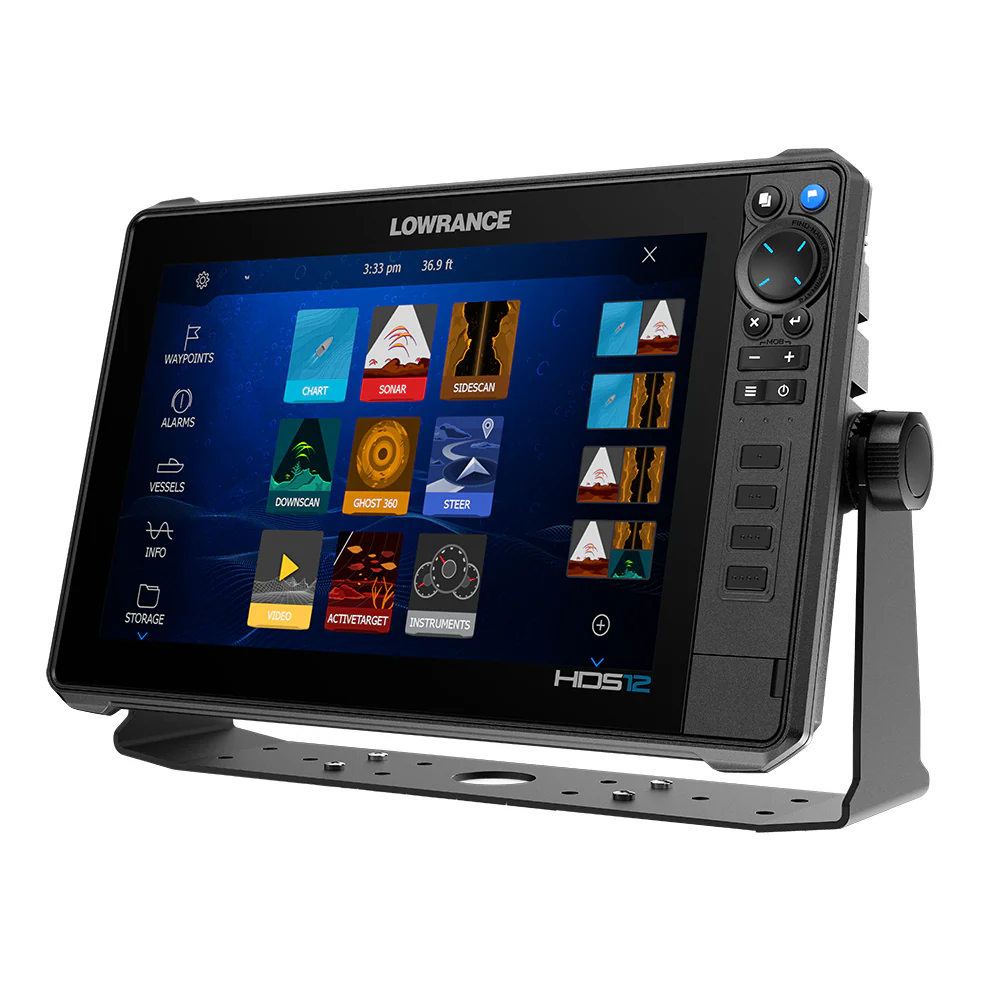

Product image 3
HomeStore

Lowrance HDS PRO 12 - w/ Preloaded C-MAP DISCOVER OnBoard - No Transducer [000-16002-001]

Lowrance HDS PRO 12 - w/ Preloaded C-MAP DISCOVER OnBoard - No Transducer [000-16002-001]

Lowrance HDS PRO 12 - w/ Preloaded C-MAP DISCOVER OnBoard - No Transducer [000-16002-001]

Description

See more and catch more with the HDS PRO 12 fishfinder/chartplotter. Watch fish react to your lure live with support for high-resolution ActiveTarget® 2 Live Sonar, and find fish and holding structure with ultra-high-definition Active Imaging™ HD. Quickly locate prime fishing areas with preloaded C-MAP® DISCOVER OnBoard charts and get full fishing system networking with expanded boat control from bow to stern.

In the box:

  • HDS PRO fishfinder/chartplotter (12-inch display screen)
  • C-MAP DISCOVER OnBoard (Preloaded in HDS PRO fishfinder/chartplotter)

Features:

  • Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes
  • SolarMAX™ HD Touchscreen viewable at extreme angles and through polarized lenses
  • High-definition Active Imaging™ HD ready (Lowrance CHIRP/SideScan/DownScan Imaging™)
  • High-resolution ActiveTarget 2 Live Sonar ready
  • FishReveal™ with SideScan view, as well as Downscan (*Requires S3100 and compatible transducer)
  • Real-time mapping is available with C-MAP Genesis Live.
  • Support for ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views
  • Large programmable keys
  • Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot, and Lowrance Outboard Pilot
  • NMEA 2000, wireless and bluetooth, connectivity – plus smartphone notifications

Display:

  • Backlight Color: Pure white LED
  • Display Resolution: 1280 x 800
  • Viewing Angles: 80° top/bottom, 80° left/right

Connectivity:

  • Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
  • Ethernet Ports: 2 x 100 Mbit, 6 max MFD's on a network
  • Connectivity WiFi: Internal 802.11b/g/n and compatible with WiFi-1 Module
  • NMEA 2000 Connectivity: 1x Micro-C
  • SD Card Storage: 2 micro SD cards up to 32GB

Electrical:

  • Power Consumption Max: 3.6A @ 13VDC with full backlight, sonar on
  • Power Consumption Minimum: 2.3A @ 13VDC with full backlight, sonar on
  • Power Consumption Typical: 2.3A @ 13VDC with full backlight, sonar on
  • Recommended Fuse Rating: 5A
  • Supply Voltage: 12 v DC (10.8-17VDC)

Environment:

  • Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
  • Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )

 GPS:

  • GPS Receiver Channels: 16
  • Update rate: 10 Hz

MFD (Multi-Function Display):

  • Cartography included: C-MAP Discover OnBoard (AMER models), C-MAP World Background (ROW models), Navionics basemap (AMER and ROW models)
  • Internal Storage: 8.0 GB Internal
  • Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail

*Sidescan Fish Reveal requires S3100 module and a compatible transducer

Product Specifications

Lowrance HDS PRO 12 - w/ Preloaded C-MAP DISCOVER OnBoard - No Transducer [000-16002-001] Product Specifications

Specification Details
Part Number 000-16002-001
Cartography Brand C-Map
Screen Size 12 inches
Touchscreen Yes
Transducer Included No
Box Dimensions 7"H x 16"W x 17"L
Weight (Boxed) 11 lbs
UPC 9420064129829
Display Type SolarMAX™ HD IPS touchscreen
Resolution 1280 x 800 pixels
Brightness >1200 nits
Viewing Angles 80° top/bottom, 80° left/right
Keypad 8-way directional keypad
Preloaded Charts C-MAP DISCOVER OnBoard (19,000+ U.S. lakes, 9,400+ Canadian lakes)
Real-Time Mapping C-MAP Genesis Live support
Sonar Compatibility Active Imaging™ HD ready (CHIRP/SideScan/DownScan Imaging™) ready for future transducers
Live Sonar Compatibility ActiveTarget® 2 Live Sonar ready
FishReveal™ Available with SideScan and DownScan views (requires S3100 module & compatible transducer)
Ethernet Ports 2x 100 Mbit
NMEA 2000 Connectivity 1x Micro-C
Wireless Connectivity Internal 802.11b/g/n, Bluetooth 4.0
Smartphone Notifications Yes
Mounting Type Panel mount or bracket mount
Waterproof Rating IPX7 with card door closed
Operating Temperature 5°F to 131°F (-15°C to 55°C)
Storage Temperature 4°F to 140°F (-20°C to 60°C)
Shock & Vibration Resistance 100,000 cycles of 20 G
Power Consumption (Max) 3.6 A at 13 V DC with full backlight
Power Consumption (Typical) 2.3 A at 13 V DC with full backlight
Recommended Fuse Rating 5 A

    Product Manual

    Quick Guide (pdf)
    Owner's Manual (pdf)

    Product Warranty

    Lowrance Limited Warranty

    Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

    For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

    Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

    Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.

    Product FAQ's

    N/A

    $2,999.00
    Lowrance HDS PRO 12 - w/ Preloaded C-MAP DISCOVER OnBoard - No Transducer [000-16002-001]—
    $2,999.00
