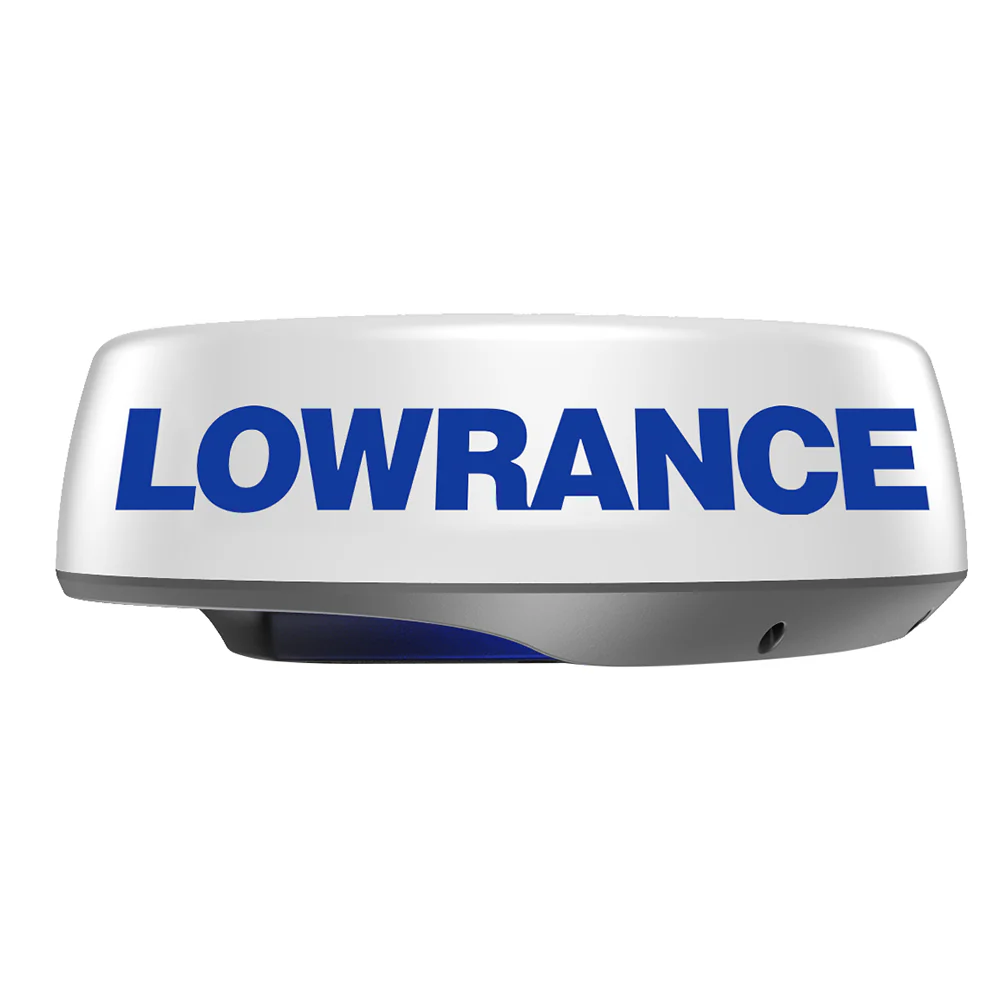

Lowrance HALO24 Radar Dome w/Doppler Technology [000-14541-001]
Lowrance HALO24 Radar Dome w/Doppler Technology [000-14541-001]
Lowrance HALO24 Radar Dome w/Doppler Technology [000-14541-001]
Description
HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrackā¢ Doppler technology, and enjoy simultaneous short and long-range coverageāup to 48 nautical milesāfrom one compact 24-inch dome antenna.
See Near and Far with One Compact DomeĀ
Perfect for a wide range of sailboats, fishing boats and smaller powerboats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode, which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radarās pulse-compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Ultimate View for Collision Avoidance
HALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether youāre navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings
VelocityTrackā¢ Doppler Technology Built-In
VelocityTrackā¢ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; thereās no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.
Key Features:
48 nm range from a compact 24" dome
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation sees both near and far
Ultra-fast 60 RPM operation at ranges up to 2nm
VelocityTrackā¢ Doppler technology for collision avoidance
Easy operation with harbour, offshore, weather, and bird modes
MARPA target tracking (up to 10 targets, 20 in dual range).
Ready instantly from standby
Lightweight, low profile dome design, with integrated LED lights
5m Radar Cable
Environmental
Operating Temperature: -25Ā° to +55Ā°C (-13Ā° to +130Ā°F)
Side lobe level (Tx and Rx antenna): Below -18 dB (within Ā±10Ā°);Below -24 dB (outside Ā±10Ā°)
Noise figure: Less than 5 dB nominal
Communications/Cabling
Protocol: Ethernet 100 Base T
Maximum inter connecting cable length: 30M (98.5') ā available as option, use NEP-2 for longer cable runs
Product Specifications
Lowrance HALO24 Radar Dome w/Doppler Technology [000-14541-001] Product Specifications
Feature
Specification / Details
Product Name
Lowrance HALO24 Radar Dome with Doppler Technology
Model / SKU
000ā14541ā001
Radar Type
Solid-state pulse compression radar
Technology
Doppler radar for target tracking
Range
Max 48 nautical miles
Rotation Speed
Adjustable: 24 RPM / 48 RPM
Beam Width
4.9Ā°
Antenna / Array Size
24 in (61 cm)
Power Requirements
12ā24 V DC, 4.2 A max
Connectivity
NMEA 2000, Ethernet, Radar Ethernet
Operating Temperature
-15Ā°C to 55Ā°C (5Ā°F to 131Ā°F)
Water / Weather Protection
IPX6 and IPX7 rated
Mounting
Deck or mast mount compatible
Weight
26.75 lbs
Box Dimensions
11ā³ H Ć 28ā³ W Ć 30ā³ L
UPC
9420024173831
Product Manual
HALO20/20+/24 Installation Manual
Product Warranty
Lowrance Limited Warranty
Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ādate of first purchaseā means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in theĀ Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors ā this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.
Obtaining Warranty Support
Customers can obtain warranty support by contacting:
Their local Navico Certified/Approved Dealer or Distributor (a list of Certified/Approved Dealers and Distributors can be found on theĀ Dealer Locator)
Navico Europe, Middle East & Africa ā for a list of Certified Dealers and Distributors by country refer to theĀ Dealer Locator
Product FAQ's
N/A
$1,154.65
Original: $3,299.00
-65%
Lowrance HALO24 Radar Dome w/Doppler Technology [000-14541-001]ā
$3,299.00
$1,154.65
