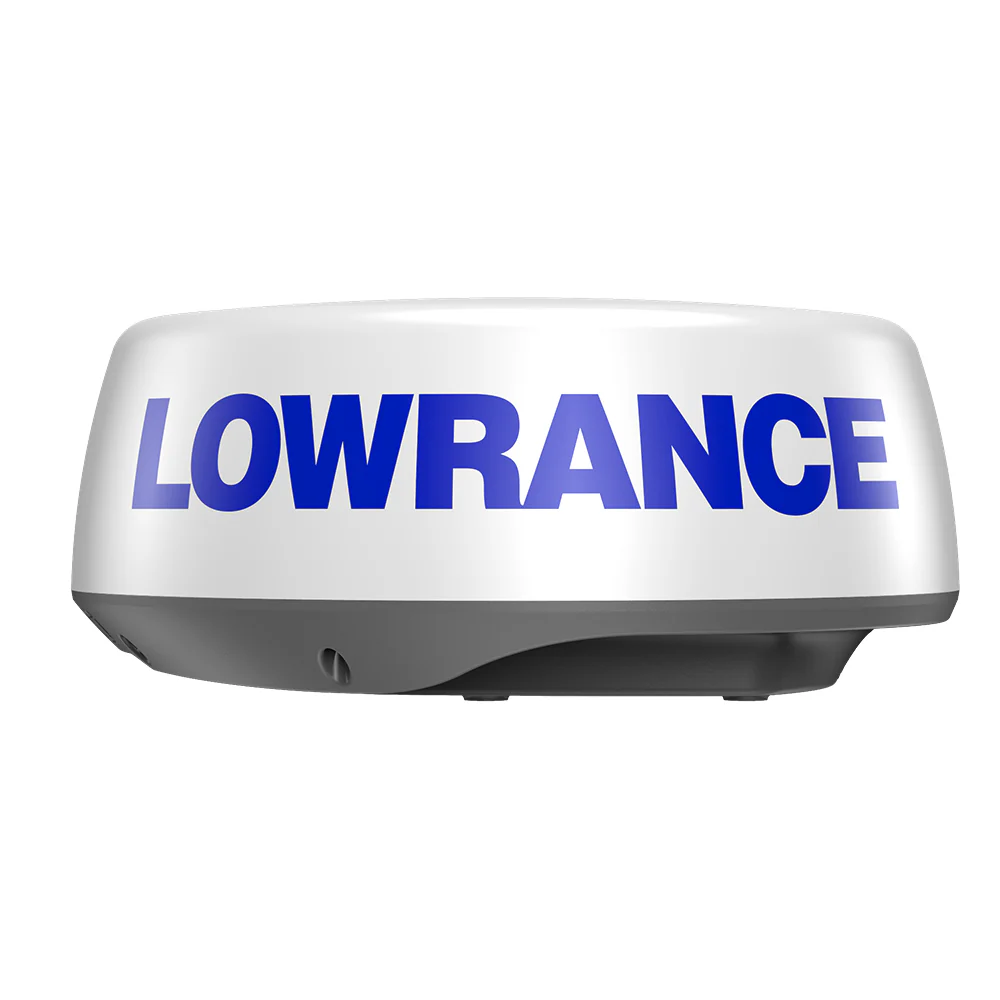

Lowrance HALO20 20" Radar Dome w/5M Cable [000-14543-001]

Lowrance HALO20 20" Radar Dome w/5M Cable [000-14543-001]

Lowrance HALO20 20" Radar Dome w/5M Cable [000-14543-001]

Description

Unrivalled Short-To-Mid-Range Performance

Extend your view from the bow of your boat out to 24 nautical miles with pulse-compression radar technology that not only delivers a powerful mix of short and long-range detection, but provides precise target definition with minimal clutter.

Better Situational Awareness, Collision Avoidance

HALO20 radar delivers a comprehensive range of features to enhance your situational awareness and on-water safety. Monitor selected collision hazards with MARPA target tracking, tracking up to 10 targets, or 20 in dual range. Whether you’re navigating through crowded waterways or contending with poor visibility, HALO20 radar cuts through the clutter to give you a clear and current picture of your surroundings.

Ready Instantly

HALO20 Radar wakes instantly from its low-power standby mode, delivering radar coverage exactly when and where you want it. Even if your HALO20 radar is completely powered down start-up is a matter of seconds, not minutes like traditional pulse radar.

Easy to Use

Harbour, offshore, weather and custom modes tune HALO20 Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.

Features:

  • 10W Pulse Compression
  • 24 nm range from a compact 20-inch dome
  • Unrivalled short range
  • Radiation safe
  • Easy operation with harbour, offshore and weather mode
  • MARPA target tracking
  • InstantOn™
  • Low Power Consumption
  • Guard Zones

Included:

  • 20" dome
  • 5m cable (000-14547-001)
  • Ethernet Adapter Cable (000-14552-001)

Product Specifications

Lowrance HALO20 20" Radar Dome w/5M Cable [000-14543-001] Product Specifications

Feature Specification / Details
Product Name Lowrance HALO20 20" Radar Dome with 5M Cable
Model / SKU 000‑14543‑001
Radar Type Solid-state pulse compression radar
Technology Doppler radar for target tracking
Range - Max (Miles) 24 nm
Rotation Speed Adjustable: 24 RPM / 48 RPM
Beam Width 4.9°
Antenna / Array Size 20 in (51 cm)
Power Requirements 12–24 V DC, 4.2 A max
Connectivity NMEA 2000, Ethernet, Radar Ethernet
Operating Temperature -15°C to 55°C (5°F to 131°F)
Water / Weather Protection IPX6 and IPX7 rated
Mounting Deck or mast mount compatible
Weight 22.35 lbs
Box Dimensions 11″ H × 23″ W × 26″ L
Cable Length 5 meters (16.4 ft)
UPC 9420024173855

Product Manual

HALO20/20+/24 Installation Manual

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.

Product FAQ's

N/A

$699.65

Original: $1,999.00

-65%
