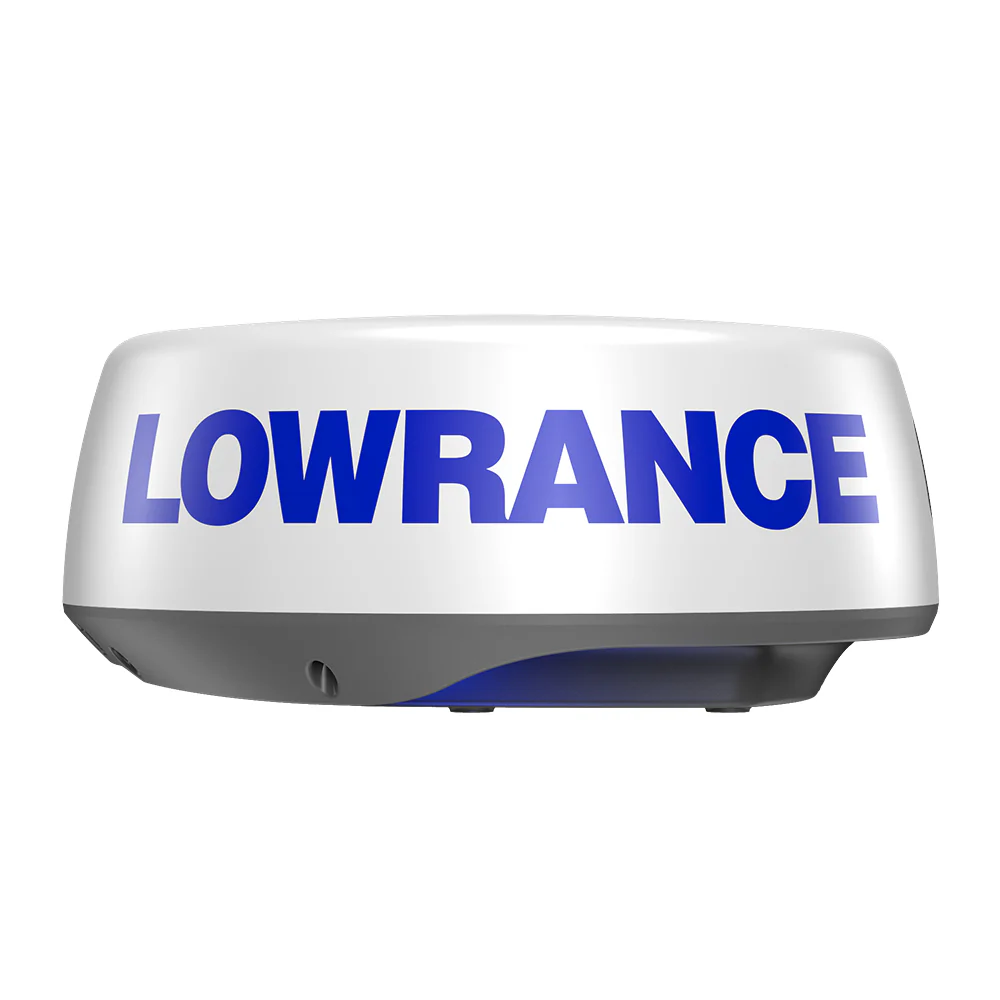

Lowrance HALO20+ 20" Radar Dome w/5M Cable [000-14542-001]
Lowrance HALO20+ 20" Radar Dome w/5M Cable [000-14542-001]
Lowrance HALO20+ 20" Radar Dome w/5M Cable [000-14542-001]
Description
See Far And Near With One Compact Dome
Perfect for a wide mid-sized to large sailboats, HALO20+ comes in a compact 20-inch dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Best View To Avoid Collision
HALO20+ radar does a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.
Built-in VelocityTrack™ Doppler Technology
VelocityTrack™ technology grands instant visual feedback on whether targets are coming towards you or moving away with colour-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
Ready Whenever You Are
HALO20+ Radar wakes instantly from its low-power standby mode, delivering this high-speed radar coverage exactly where and when you require it. Even if your HALO20+ Radar is completely powered down, start-up only takes some seconds, not minutes like traditional pulse radar.
Easy to Use Radar
Harbour, offshore, weather and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly – even in the toughest environmental conditions.
Features:
36 nm range from a compact 20-inch dome
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation sees both far and near
Ultra-fast 60 RPM operation at ranges up to 1.5 nm
VelocityTrack™ Doppler technology to avoid collision
Easy operation with harbour, offshore, weather and custom modes
MARPA target tracking (up to 10 targets, 20 in dual range)
Ready instantly from standby
Low power consumption
Included:
20" dome
5m cable (000-14547-001)
Ethernet Adapter Cable (000-14552-001)
Product Specifications
Lowrance HALO20+ 20" Radar Dome w/5M Cable [000-14542-001] Product Specifications
Feature
Specification / Details
Product Name
Lowrance HALO20+ 20" Radar Dome with 5M Cable
Model / SKU
000‑14542‑001
Radar Type
Solid-state pulse compression radar
Technology
Doppler radar for target tracking
Range - Max (Miles)
24 nm
Rotation Speed
Adjustable: 24 RPM / 48 RPM
Beam Width
4.9°
Antenna / Array Size
20 in (51 cm)
Power Requirements
12–24 V DC, 4.2 A max
Connectivity
NMEA 2000, Ethernet, Radar Ethernet
Operating Temperature
-15°C to 55°C (5°F to 131°F)
Water / Weather Protection
IPX6 and IPX7 rated
Mounting
Deck or mast mount compatible
Weight
22.35 lbs
Box Dimensions
11″ H × 23″ W × 26″ L
Cable Length
5 meters (16.4 ft)
UPC
9420024173848
Product Manual
HALO20/20+/24 Installation Manual
Product Warranty
Lowrance Limited Warranty
Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in theNavico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.
Obtaining Warranty Support
Customers can obtain warranty support by contacting:
Their local Navico Certified/Approved Dealer or Distributor (a list of Certified/Approved Dealers and Distributors can be found on the Dealer Locator)
Navico Europe, Middle East & Africa – for a list of Certified Dealers and Distributors by country refer to the Dealer Locator
Product FAQ's
N/A
$874.65
Original: $2,499.00
-65%
Lowrance HALO20+ 20" Radar Dome w/5M Cable [000-14542-001]—
$2,499.00
$874.65
