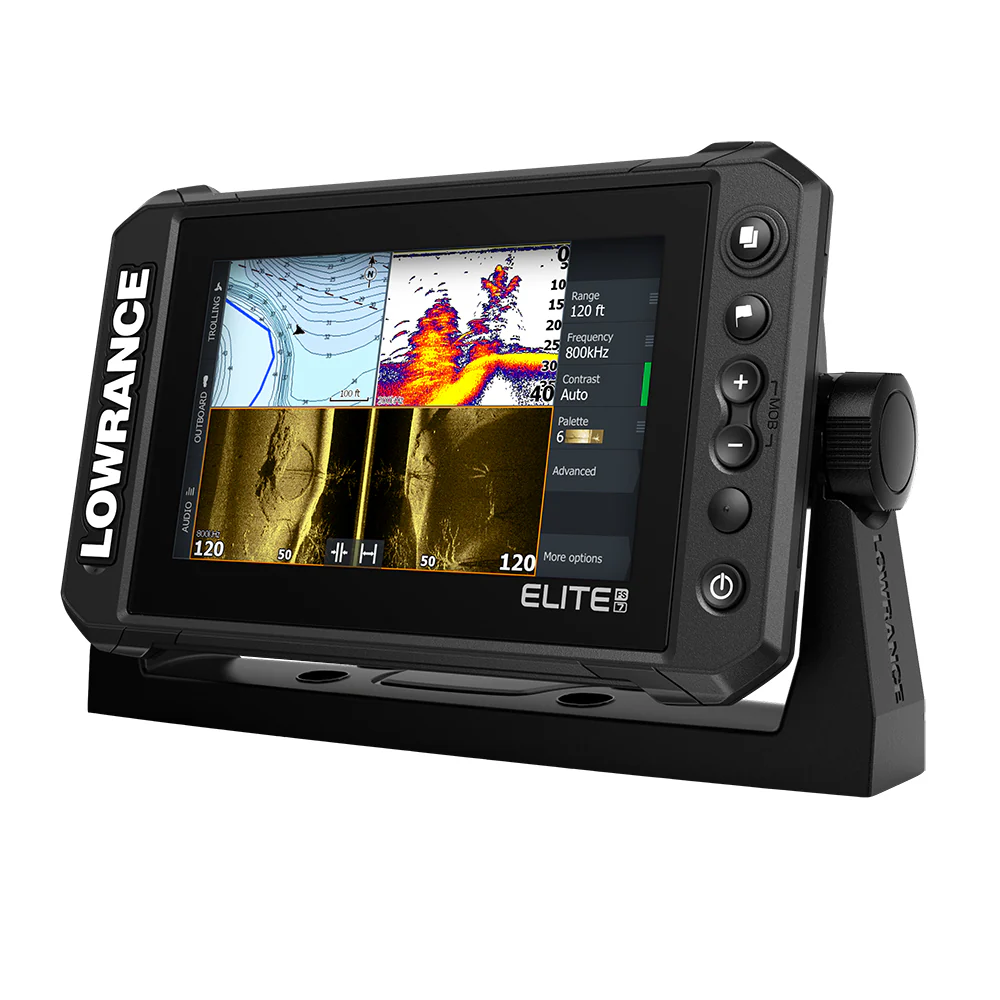

Product image 1

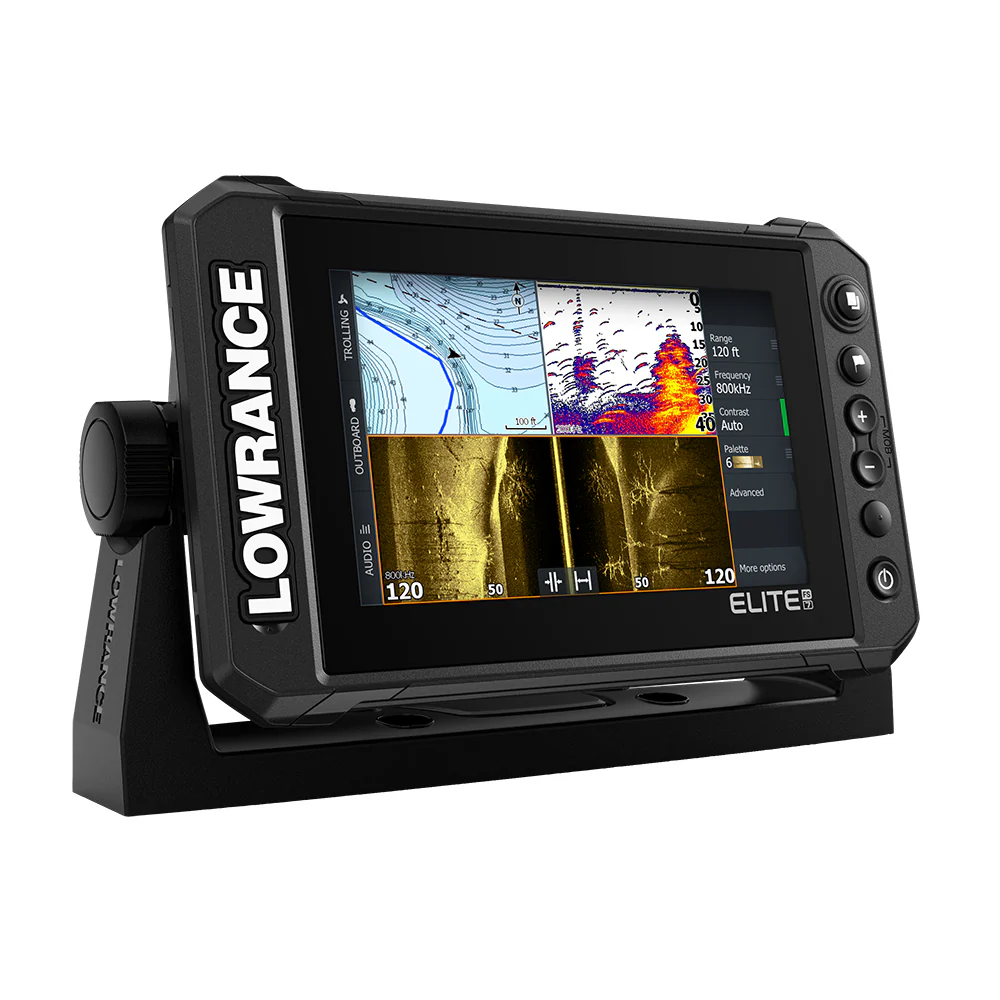

Product image 2

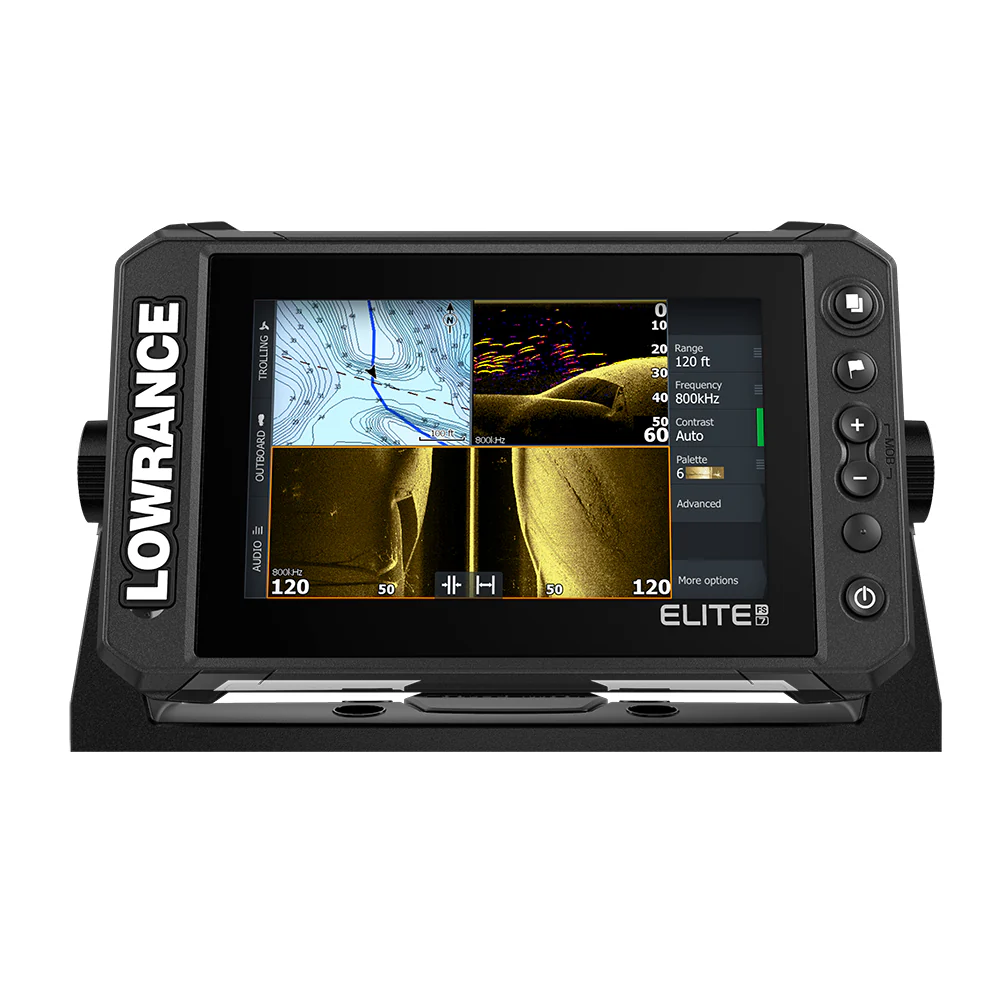

Product image 3
HomeStore

Lowrance Elite FS 7 Chartplotter/Fishfinder - No Transducer [000-15703-001]

Lowrance Elite FS 7 Chartplotter/Fishfinder - No Transducer [000-15703-001]

Lowrance Elite FS 7 Chartplotter/Fishfinder - No Transducer [000-15703-001]

Description

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget™ live sonar and extreme high-resolution Active Imaging™ with Lowrance CHIRP sonar, SideScan and DownScan Imaging™ to preloaded C-MAP® Contour+ Fishing Maps, Elite FS gives you all the tools you need to find and catch more fish.

Key Features

  • 7" Display
  • ActiveTarget™ Live Sonar ready with optional ActiveTarget™ live sonar and transducer (000-15593-001)
  • Transducer Required
  • FishReveal™
  • Preloaded C-MAP® Contour+ with 1-foot contours on 8,900 lakes
  • Other mapping options including C-MAP, Navionics® and more
  • C-MAP® Easy Routing, Navionics® Autorouting capability
  • C-MAP Genesis Live onscreen mapping
  • High-resolution multi-touch touchscreen
  • Integrated wireless, NMEA 2000® and Ethernet connectivity
  • Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

C-Map Contour+ Mapping Preloaded

You will spend more time trying to catch fish and less time trying to find them with the high-resolution detail of the C-MAP Contour+ charts built into Elite FS displays. From finding key fishing areas, like ledges, drop-offs and ditches to navigating with precision to fish-holding areas, you will have more success on the water with high-resolution 1-foot contours on 8,900 lakes.

Key Features

  • Custom depth shading
  • Easy routing, Lowrance presentation for icons
  • High-Resolution, Bathymetric 1-foot contours on 8,900 U.S. lakes
  • Standard navigation data
  • Fishing POIs

Product Specifications

Lowrance Elite FS 7 Chartplotter/Fishfinder - No Transducer [000-15703-001] Product Specifications

Feature Specification / Details
Product Name Lowrance Elite FS 7 Chartplotter/Fishfinder – No Transducer
Model / SKU 000-15703-001
Transducer Included No
Touchscreen Yes
Screen Size 7"
Display Resolution 800 Ă— 480 pixels
Brightness >1200 nits
Viewing Angles 50° top, 60° bottom, 70° left/right
Backlight Color Pure White LED
Power Supply 12 V DC (nominal), operating range ~10–17 V DC
Current / Power Consumption Up to ~1.5 A @ ~13.8 V (~21 W max with full backlight)
Recommended Fuse Rating 3 A
Connectivity / Interfaces • 1× NMEA 2000 (Micro-C)• Ethernet (100Base-T)• 1× microSD card slot• Sonar port (9-pin) for external transducer• Bluetooth 4.0• WiFi 802.11 b/g/n
GPS 10 Hz, high-sensitivity (WAAS / EGNOS / MSAS, GLONASS support depends on firmware)
Included Mapping / Charts Preloaded C-MAP Contour+ charts
Mapping Options Supports C-MAP, Navionics, and other mapping brands
FishReveal™ Yes
Active Imaging 3-in-1 Ready Yes
ActiveTarget™ Live Sonar Ready Yes
Mounting Options Gimbal bracket mount or flush dash mount
Operating Temperature 5°F to 131°F (‑15°C to +55°C)
Storage Temperature 4°F to 140°F (‑20°C to +60°C)
Water / Weather Protection Waterproof rating IPX-6 and IPX-7 when covered appropriately
Box Dimensions 6″ H × 13″ W × 16″ L
Weight 6.55 lbs
UPC 9420064117055

Product Manual

Quick Guide (pdf)
Owner's Manual (pdf)

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.

Product FAQ's

N/A
