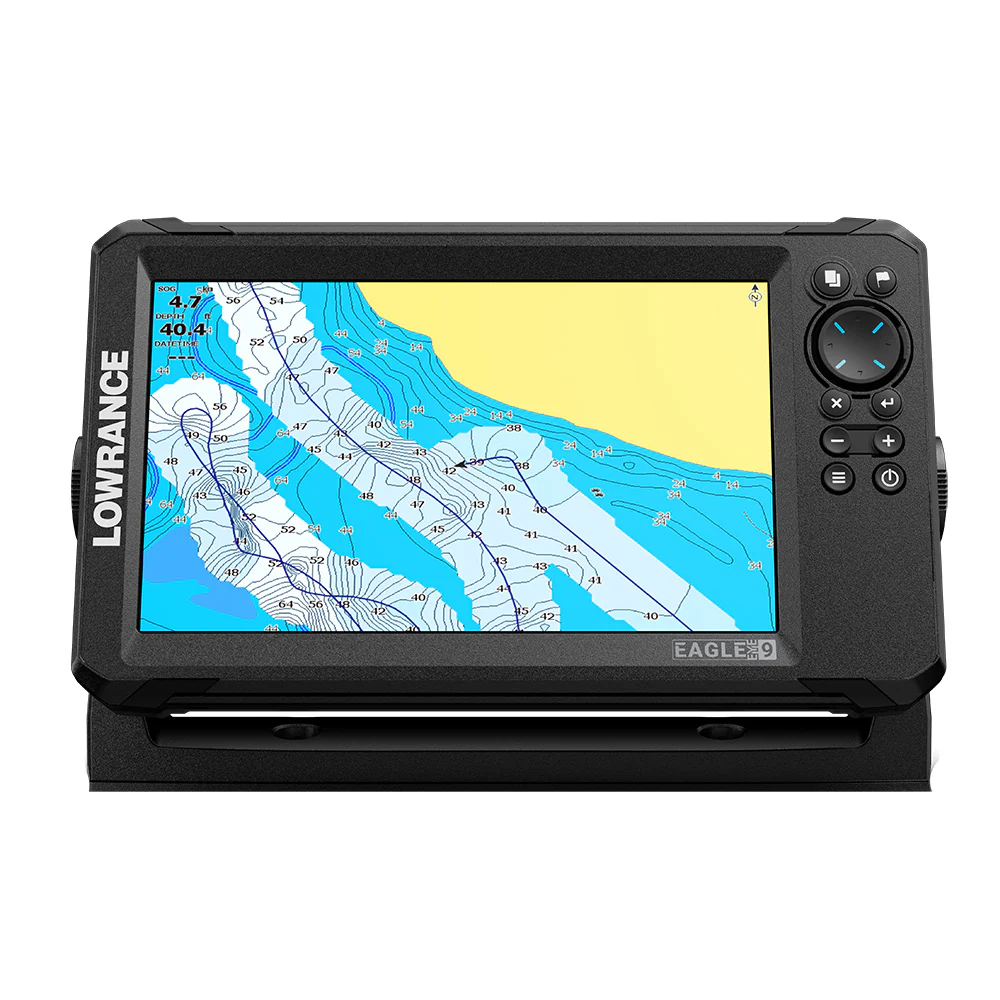

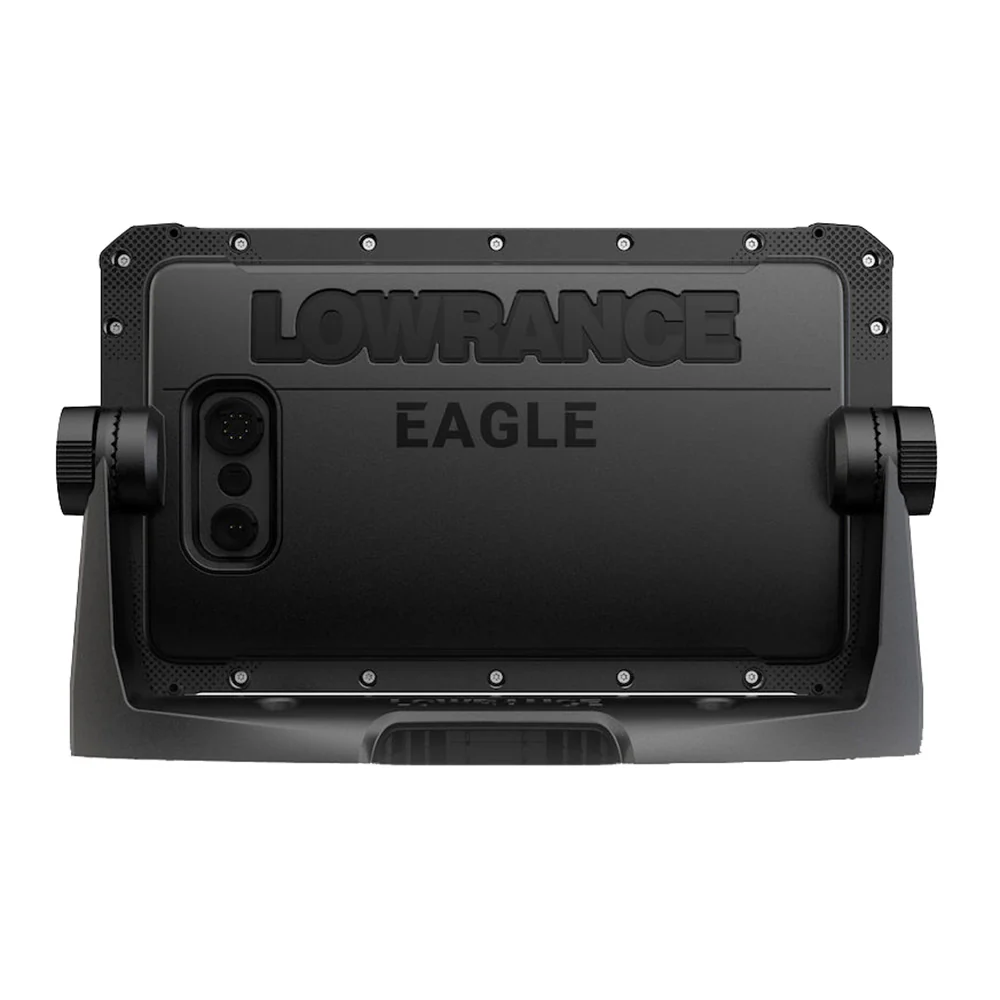

Lowrance Eagle Eye 9 Live w/T/M Transducer  C-MAP DISCOVER Chart [000-16232-001]
Description
Eagle Eye™ is the world’s most accessible fish finder with live sonar. Focused forward and down live sonar combines with CHIRP and DownScan Imaging™ with FishReveal™ in one transducer, along with detailed C-MAP® charting on a crystal clear IPS display.Â
The Complete Live Sonar SolutionÂ
Easy and affordable access to live sonar lets users watch fish react to lures in real-time. Eagle Eye™ brings users the same best-in-class live sonar resolution as seen on ActiveTarget® 2 in more focused down and forward views. With a smooth and consistent image, Eagle Eye provides all the detail users need to know when to strike.Â
Full FlexibilityÂ
The highly focused live sonar combines with CHIRP and DownScan Imaging™ (with FishReveal™) in a single transducer, giving users true Eagle-like vision for any kind of fishing.Â
CHIRP SonarÂ
CHIRP sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom or suspended in tight schools.Â
DownScan Imaging™Â
DownScan Imaging™ makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees, and other underwater structures directly beneath the boat.Â
FishReveal™Â
Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.Â
Autotuning Sonar
Simple autotuning sonar gives users the optimal settings from the start, so users don’t have to spend time trying to find them themselves.Â
C-MAP® DISCOVER ONBOARD™Â
Spend more time fishing and less time searching, with high-resolution C-MAP® Discover OnBoard™ charts included for the US and Canada. With Eagle, users have all the details needed to discover and navigate to the best fishing spots, faster.
Genesis® Live
Know local waters better than anyone with the ability to create custom ½-foot contour maps of a local lake or uncharted water in real-time.Â
Key Features:
- 4 sonar views from a single transducer with no module needed (Live Forward, Live Down, CHIRP Sonar, DownScan Imaging™ with FishReveal™)Â
- Autotuning live sonar with focused down and forward viewsÂ
- Detailed C-MAP® charts feat. Genesis® LiveÂ
- IPS screen, viewable from all angles, even in polarized glassesÂ
- A reliable twist-lock connector system for easy installation in any boat or kayakÂ
- SD card slot for software updates, Genesis Live recording, and charting add-ons.Â
- See fish hiding in cover with FishReveal™ modeÂ
- Increase contrast and viewability with all-new imaging color palettes
Comes With:
- Eagle® Power Cable (000-16314-001)
Product Specifications
Lowrance Eagle Eye 9 Live w/T/M Transducer  C-MAP DISCOVER Chart [000-16232-001] Product Specifications
| Specification |
Details |
| Product Name |
Lowrance Eagle Eye 9 Live w/T/M Transducer & C-MAP DISCOVER Chart |
| Part Number |
000-16232-001 |
| Cartography Brand |
C-Map |
| Screen Size |
9" |
| Display Resolution |
1024 x 600 |
| Display Type |
LED (IPS) |
| Brightness |
1000 NITS |
| Viewing Angles |
85° top/bottom, 85° left/right |
| Power Consumption |
650 mA @ 12 V DC with backlight on full |
| Voltage |
12V DC (10.8–17V DC) |
| Weight |
7 lbs |
| Box Dimensions |
6"H x 13"W x 16"L |
| Mounting Options |
Panel mount, bracket mount |
| Included Components |
9" display, power cable, gimbal bracket, replacement twist locks, corner clips, live transducer pack |
| Sonar Views |
Live Forward, Live Down, CHIRP Sonar, DownScan Imaging™ with FishReveal™ |
| Transducer Type |
Eagle Eye™ transducer |
| SD Card Slot |
1 microSD® slot (32 GB maximum) |
| Software Features |
Autotuning live sonar, Genesis Live recording and charting add-ons |
Product Manual
Eagle 7, 9 & Eagle Eye 9 Installation GuideÂ
Eagle Eye Quick Start Guide (en-us)
Product Warranty
Lowrance Limited Warranty
Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.
Obtaining Warranty Support
Customers can obtain warranty support by contacting:
- Their local Navico Certified/Approved Dealer or Distributor (a list of Certified/Approved Dealers and Distributors can be found on the Dealer Locator)
- Navico Europe, Middle East & Africa – for a list of Certified Dealers and Distributors by country refer to the Dealer Locator
