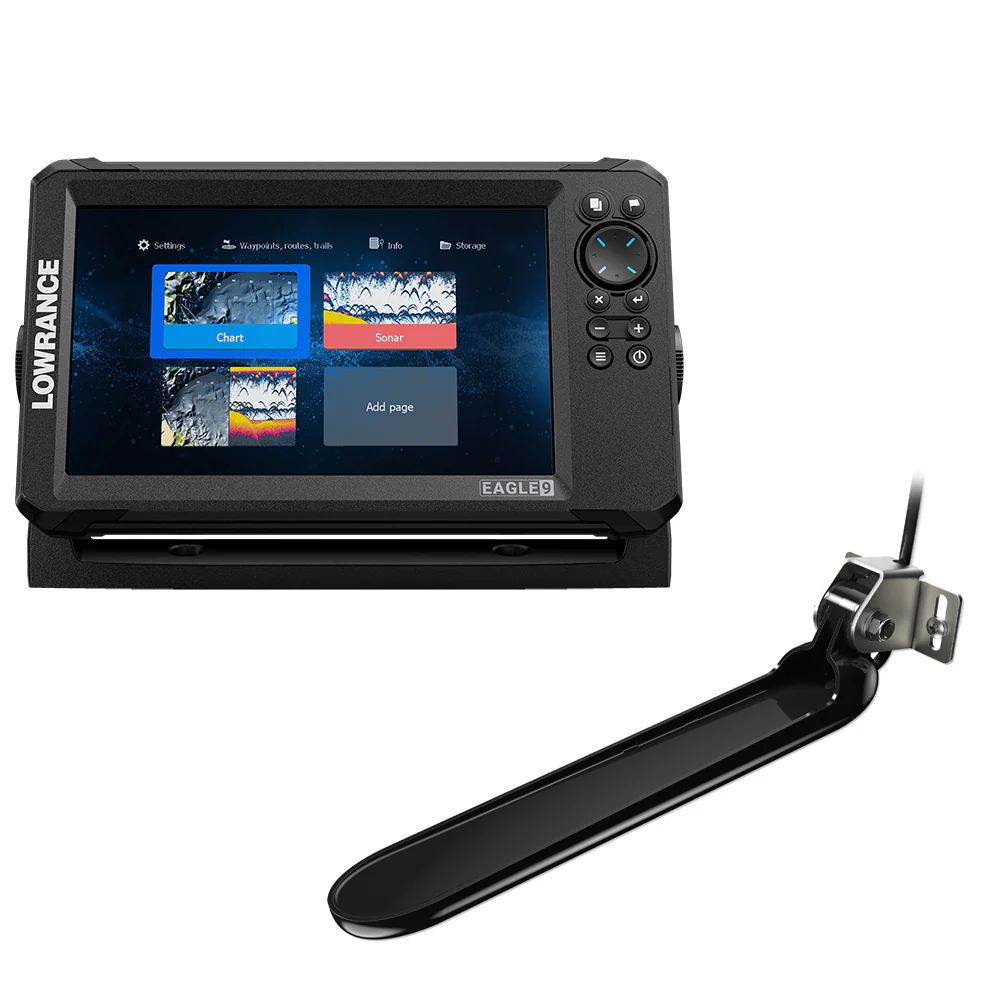

Lowrance Eagle 9 w/TripleShot Transducer  Inland Charts [000-16126-001]
Description
Eagle® was born to make fishing as simple and enjoyable as possible. Easy to use and quick to install, this model features a TripleShot™ HD Transducer with FishReveal technology and autotuning for a quick and optimal setup. An IPS screen provides higher resolution and visibility from all angles. This model also comes pre-loaded with high-resolution C-MAP® inland charts for the US, with coverage of over 17,000+ American lakes.
Easy to Use Sonar
TripleShot HD
Have the best chance of finding fish with underwater views to the side and below the boat, all with one transducer. TripleShot™ HD features the fish-finding capability of wide-angle high CHIRP sonar and high-resolution images of fish-holding structures from SideScan and DownScan Imaging™.
FishReveal™
Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.Â
Autotuning
Simple autotuning sonar gives users the optimal settings from the start, so users don’t have to spend time trying to find them.
Detailed Charting
C-MAP Embedded Inland
Spend more time fishing and less time searching with pre-loaded high-resolution C-MAP® Embedded inland charts for the US. Get coverage of over 17,000+ American lakes. With Eagle, users have all the details needed to discover and navigate to the best fishing spots, faster.
Genesis Live
Know the local waters better than anyone with the ability to create custom ½-foot contour maps of the local lake or uncharted water in real-time.
Designed for Fishing
IPS Screens
See clearly wherever users go with an IPS screen, offering improved resolution, clarity, and visibility, even with polarized sunglasses in direct sunlight.
Connector System
Set up in an instant with Eagle’s improved twist-locking connector, promising easy installation and removal every time.
One-Year Warranty
Lowrance's priority is to give users superior quality products and a stress-free time on the water. Enjoy the feeling of fishing with peace of mind, thanks to Lowrance's one-year warranty guarantee.
Features:
- Enhanced TripleShot™ HD Transducer with Autotuning Sonar
- C-MAP® inland charts for the US, feat. Genesis® Live
- IPS screen, viewable from all angles, even in polarized glasses
- Reliable twist-lock connector system for easy installation in any boat or kayak
- SD card slot for software updates, Genesis Live recording, and charting add-ons
- See fish hiding in cover with FishReveal™ mode
- Increase contrast and viewability with Imaging color palettes
What’s in the Box?
- Eagle 9 Display
- TripleShot HD Transducer
- Tripleshot Bracket
- Power Cable, with fuse and connectors
- Eagle 9 Bracket and mounting hardware
Spotlight Feature Icons:
- CHIRP
- DownScan
- FishReveal
- IPS Screens
- Autotuning Sonar
Product Specifications
Lowrance Eagle 9 w/TripleShot Transducer  Inland Charts [000-16126-001] Product Specifications
| Specification |
Details |
| Product Name |
Lowrance Eagle 9 w/TripleShot Transducer & U.S. Inland Charts |
| Part Number |
000-16126-001 |
| Included Transducer |
000-16285-001 |
| Screen Size |
9 inches |
| Touchscreen |
No |
| Display Type |
IPS screen (viewable from all angles, even with polarized glasses) |
| Sonar Technologies |
High CHIRP + SideScan + DownScan Imaging™ |
| FishReveal™ |
Yes – combines CHIRP + DownScan for better fish vs structure visibility |
| Autotuning Sonar |
Yes |
| Cartography |
Preloaded C-MAP® inland charts for the U.S., covering over 17,000+ American lakes |
| Waypoints, Routes, Tracks |
3000 Waypoints, 100 Routes, 100 Trails |
| Mounting Style |
Gimbal bracket or dash mount |
| Connector System |
Twist-lock connector |
| SD Card Slot |
Yes – for software updates, Genesis Live recording, and charting add-ons |
| Box Dimensions |
6"H x 13"W x 16"L |
| Weight (Boxed) |
6.5 lbs |
| UPC |
9420064131501 |
Product Manual
Eagle 7, 9 & Eagle Eye 9 Installation Guide
Eagle 5, 7, 9 Quick Start Guide
Eagle Series Operator Manual
Product Warranty
Lowrance Limited Warranty
Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).
For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.
Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.
Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.
Obtaining Warranty Support
Customers can obtain warranty support by contacting:
- Their local Navico Certified/Approved Dealer or Distributor (a list of Certified/Approved Dealers and Distributors can be found on the Dealer Locator)
- Navico Europe, Middle East & Africa – for a list of Certified Dealers and Distributors by country refer to the Dealer Locator
