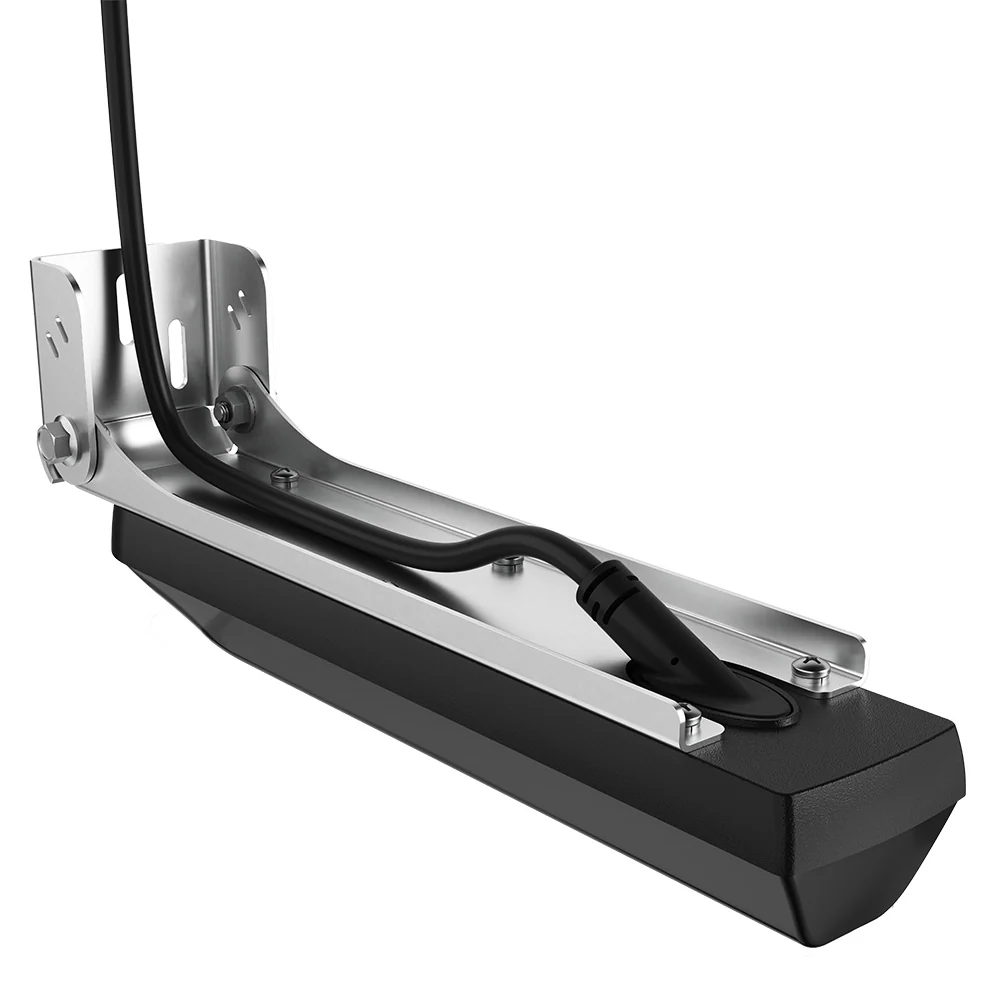

Lowrance Active Imaging HD 3-in-1 FishReveal High/Wide Transducer [000-16061-001]

Lowrance Active Imaging HD 3-in-1 FishReveal High/Wide Transducer [000-16061-001]

Lowrance Active Imaging HD 3-in-1 FishReveal High/Wide Transducer [000-16061-001]

Description

Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance® High/Wide CHIRP sonar, high-frequency (up to 1.2MHz) SideScan/DownScan Imaging™, plus FishReveal™ DownScan and a new FishReveal SideScan* view, making fish identification easier.

*Requires S3100 sonar module for Fish Reveal SideScan on HDS Pro

Features:

  • High definition (up to 1.2MHz) SideScan and DownScan Imaging deliver the clearest images of fish and structure
  • High/Wide Lowrance CHIRP delivers superb clarity and target separation over a wider coverage area
  • FishReveal™ with new SideScan* view as well as DownScan
  • Supports Medium and High/Wide CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
  • Smart transducer design boosts signal clarity
  • Compatible directly with Lowrance HDS PRO or with an S3100 module

*Requires S3100 sonar module and relevant transducer for Fish Reveal SideScan on HDS PRO

Product Specifications

Lowrance Active Imaging HD 3-in-1 FishReveal High/Wide Transducer [000-16061-001] Product Specifications

Specification Details
Part Number 000-16061-001
Compatibility Direct connection to Lowrance HDS PRO; Ethernet connection via S3100 module for HDS Live and Elite FS
Sonar Technologies High/Wide CHIRP (83/200kHz), 455/800kHz, 455/1.2MHz SideScan and DownScan Imaging™
FishReveal™ Yes – includes DownScan and new SideScan views (requires S3100 module for SideScan)
Mounting Style Bracket mount
Weight 2.67 lbs (1.21 kg)
Dimensions (W x H x D) 5.90" x 3.24" x 2.28" (149.8 mm x 82.4 mm x 58.0 mm)
Waterproof Rating IP67
Operating Temperature 5°F to 131°F (-15°C to 55°C)
Storage Temperature -22°F to 158°F (-30°C to 70°C)
Shock/Vibration Resistance 100,000 cycles of 20 G

Product Manual

N/A

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.

Product FAQ's

N/A
