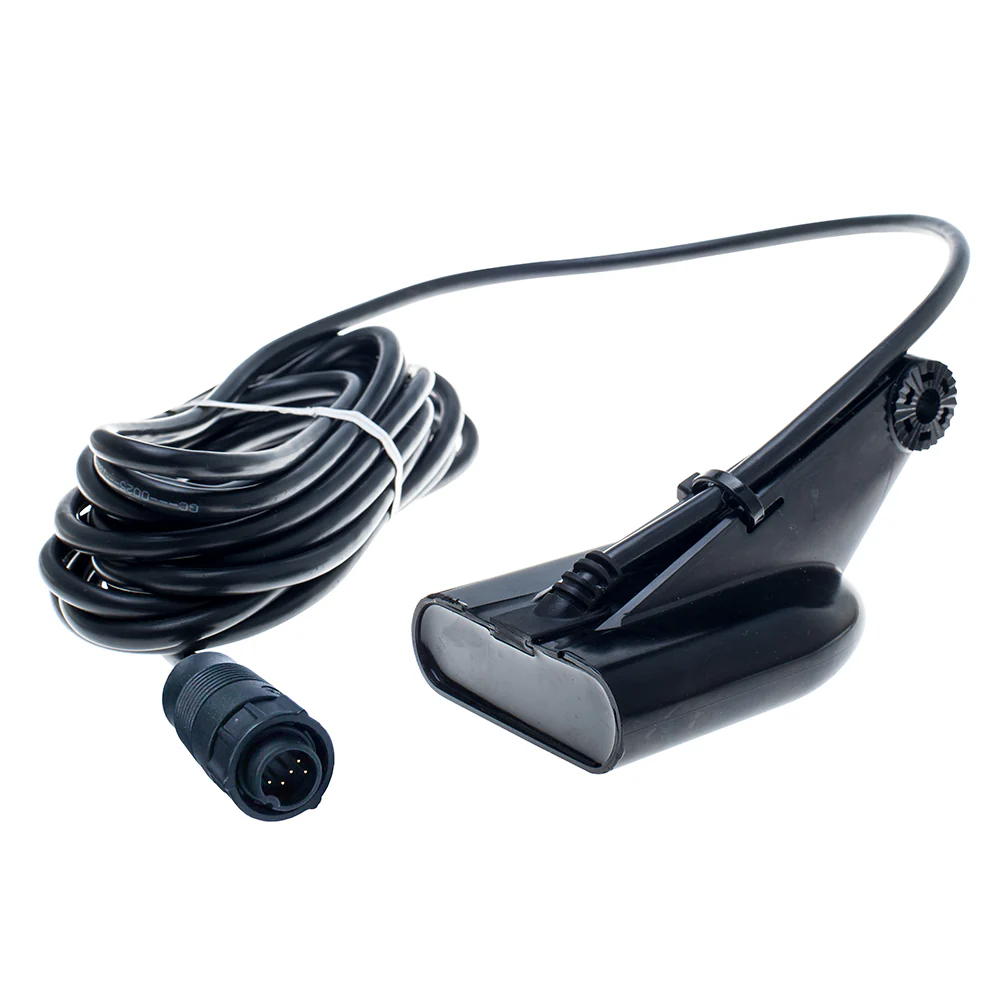

Lowrance 50/200 HDI Transom Mount Transducer f/HOOK Reveal [000-15639-001]

Lowrance 50/200 HDI Transom Mount Transducer f/HOOK Reveal [000-15639-001]

Lowrance 50/200 HDI Transom Mount Transducer f/HOOK Reveal [000-15639-001]

Description

HDI Skimmer® transducer 50/200 / 455/800kHz for HOOK²/HOOK Reveal, with built in temp. Includes mounting bracket and hardware.  Cable Length 6 m (20 ft). Connector: 8 pin push fit.

Hybrid Dual Imaging™ (HDI) transducer (50/200/455/800) - The power of two award-winning technologies -- Broadband Sounder PLUS Exclusive DownScan Imaging™ -- combined to provide the best-possible view beneath your boat.

Product Specifications

Lowrance 50/200 HDI Transom Mount Transducer f/HOOK Reveal [000-15639-001] Product Specifications

Feature Specification / Details
Product Name Lowrance 50/200 HDI Transom Mount Transducer
Model / SKU 000‑15639‑001
Compatibility Lowrance HOOK Reveal series
Transducer Type HDI (High Definition Imaging)
Frequency 50/200 kHz
Temperature Yes
Speed Included No
Pins 8 pin
Mounting Style Transom
Imaging Standard / DownScan
Cable Length (Feet) 20 ft
Material / Housing Durable plastic for marine use
Installation Easy transom mount with included hardware
Operating Temperature 32°F to 140°F (0°C to 60°C)
Water / Weather Protection Marine-grade waterproof housing
Box Dimensions 4″ H × 6″ W × 9″ L
Weight 1.6 lbs
UPC 9420064115921

Product Manual

N/A

Product Warranty

Lowrance Limited Warranty

Navico warrants that its products, when properly installed and used, will be free from defects in material and workmanship for the period stated for the applicable product and/or peripheral device as set out in the Warranty Period Matrix from the date of first purchase (the Warranty Period).

For the purpose of this Warranty, ’date of first purchase’ means the date the product was purchased by the first retail customer; or in the case of a product installed on a new vessel by a Certified/Approved Lowrance/ Navico Boat Builder, the date the first retail customer took delivery of the vessel.

Navico will, at its sole discretion, repair or replace with new or refurbished parts or product, or equivalent product, any proven defective products or components returned to Lowrance/ Navico, or its approved agent during the Warranty Period in accordance with the terms, conditions and limitations as set out in the Navico Warranty Policy. Such repairs or replacements will be the sole remedy of the customer under this Warranty.

Lowrance Electronics manufactures units specifically for sale in the Americas and units specifically for sale to the Rest of the World (ROW). These units are certified to different standards for different markets. Lowrance Americas-based products will go into a limited features mode, when crossing a defined meridian (30 degrees West longitude or the International dateline to the East). Customers should purchase units from local authorized Lowrance/Navico dealers and distributors – this will ensure that customers receive products which are safe and useful for their requirements. In addition, customers who experience a problem can receive prompt local service and support. Contact us for more information.
